| Prod Model: |
CD6241 |
| Medium Size Gap Bed Lathe Machine: |
Swing Over Bed 410mm, Length 1000, 1500mm. |
| Max.Swing Over Cross Slide: |
255mm |
| Max. Swing Over Gap: |
580mm |
| Center Height: |
205mm |
| Distance Between Centers: |
1000mm(40")/1500mm(60") |
| Width Of Bed: |
250mm(10") |
| Max.Travel Of Cross Slide: |
210mm(8 1/2") |
| Spindle Bore: |
52mm(2") |
| Power Of Main Motor: |
2.2/3.3kw(Optional 3/5.5kw) |
| Power Of Coolant Pump: |
4p,3pH 90W |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Tool Holder: |
4-Position Tool Post |
Product Description

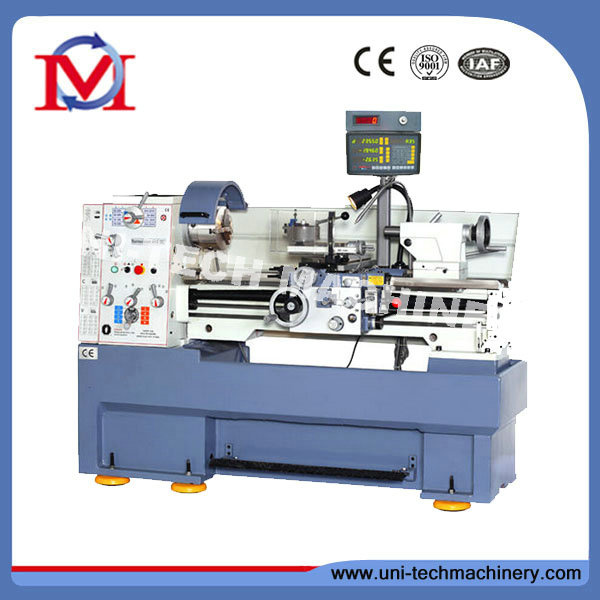

CE certificate high precision horizontal gap bed lathe MACHINE (CD6241)
The specification of bench lathe (CD6241)
CAPACITY
Swing over bed 410mm(16")
Swing over cross slide 255mm(10")
Swing in gap 580(23")
Length of gap 250(10")
Distance between centers 1000mm(40")
Center height 20.5"
Width of bed 250(10")
The specification of bench lathe (CD6241)HEADSTOCK
Spindle nose D1-6
Spindle bore 52mm(2")
Taper of spindle bore No. 6Morse
Range of spindle speed 16 changes 45-1800r/min
FEEDS AND THREADS
Max. Travel of compound rest 102mm(4")
Max. Travel of cross slide 210mm(8-1/4")
Leadscrew pitch 4T. P. I.
Max. Section of tool 20× 20mm(13/16")
Longitudinal feeds range 0.05-1.7mm/rev(0.002"-0.067"/rev)
Cross oeeds range 0.025-0.85mm(0.001"-0.0335"/rev)
Metric threads range 39kinds 0.2-14mm
Inch threads range 45kinds 2-72T. P. I
Diametrical pitchesrange 21kinds 44D. P.
Module pitches range 18kinds 0.3-3.5M. P.
TAILSTOCK
Dia. Of tailstock sleeve 50mm(2")
Travel of tailstock sleeve 120mm(4-3/4")
Morse taper of tailstock sleeve No. 4 Morse
Cross adjustock ± 13mm(± 1/2")
MOTOR
Power of main motor 2.8/3.3kw(3.8/4.5HP)3pH
Power of coolant pump 0.1KW(1/8HP), 3pH
DIMENSION AND WEIGHT
Overall dimension(L× W× H) mm 1940× 850× 1300 1940× 850× 1320
Packing size(L× W× H)mm 2060× 900× 1640 2060× 900× 1640
Net weight/Gross weight 1500/1750 1550/1800
The specification of bench lathe (CD6241)
STANDARD ACCESSORIES
200mm Three Jaw Chuck and Adapter
320mm Four Jaw Chuck and Adapter
300mm Face Plates
Steady Rest
Follow Rest
Thread Chasing Dial
Mt/6/4 Sleeve and MT 4 Center
Oil Gun
One set of Wrenches
Operation Manual
The specification of bench lathe (CD6241)
SPECIAL ACCESSORIES
1.200mm Driving plate
2. Quick change Tool Post
3. Taper Turning Attachment
| The specification of bench lathe (CD6241) |
| Model | CD6241× 1000 | CD6241× 1500 |
| Max.swing over bed | Φ410mm(16") |
| Max.swing over cross slide | Φ255mm(10") |
| Max. swing over gap | Φ580mm(23") |
| Center height | 205mm(8") |
| Distance between centers | 1000mm(40")/1500mm(60") |
| Width of bed | 250mm(10") |
| Max.section of tool | 20mm×20mm(3/4"×3/4") |
| Max.travel of cross slide | 210mm(8 1/2") |
| Max.travel of compound rese | 140mm(5 1/2") |
| Spindle bore | Φ52mm(2") |
| Spindle nose | D1-6 |
| Taper of spindle speed | M.T.#6 |
| Range of spindle speed | 16changes25-1800r/min |
| Leadscrew pitch | 4 T.P.I. |
| Range of metric longitudinal feeds range | 0.05-1.7mm/rev(17 Nos) |
| Range of inch longitudinal feeds | 0.002"-0.067"/rev (17 Nos) |
| Range of metric cross feeds | 0.025-0.85mm/rev (17 Nos) |
| Range of inch cross feeds | 0.001"-0.0335"/rev (17 Nos) |
| Range of metric threads | 0.2-14mm(NO. 39) |
| Range of inch threads | 2-72 T.P.I.(NO. 45) |
| Range of Diametrical pitch | 8-44D.P.(21Nos) |
| Range of module pitches | 0.3-3.5 M.P.(18Nos) |
| Dia. of tailstock sleeve | 50mm(2") |
| Travel of tailstock sleeve | 120mm(4 3/4") |
| Morse taper of tailstock sleeve | M.T.#4 |
| Power of main motor | 2.2/3.3kw(optional 3/5.5kw) |
| Power of coolant pump | 4P,3PH 90W |
| Overall diamension(L*W*H) | 1940mm×850mm×1320mm |
| Packing size(L*W*H) | 2070mm×940mm×1600mm |
| N.W/G.W | 1550kg/1760kg |
