Prod Model: |
SV24Yseries |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity: |
100-1000ton |
Stroke: |
50-500mm |
O.D: |
132-598mm |
Piston I.D: |
69-320mm |
Weight: |
15-320kg |
OEM: |
Yes |
Certificate: |
CE&ISO |
Payment: |
T/T |
Color: |
Customerized |
Pressure: |
700bar |
Material: |
Stainless Steel |
Structure: |
Piston Cylinder |
Power: |
Hydraulic |
Standard: |
Nonstandard |
Pressure Direction: |
Double-acting Cylinder |
Usage: |
for Lifting |
Product Description

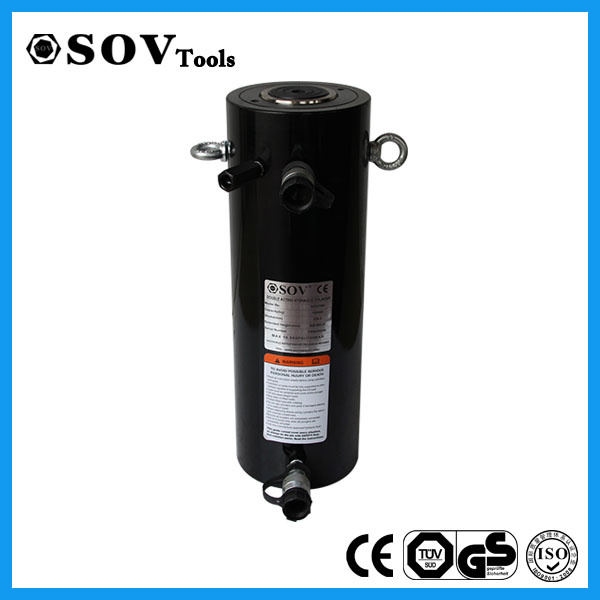

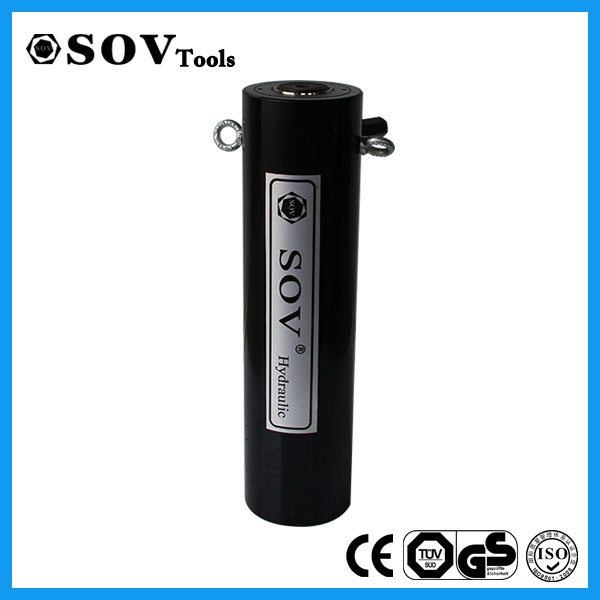

CE&ISO Approved Electric Double Acting Hydraulic Cylinder
Features
1. Its safety valve is specially set to prevent overpressure.
2. Both cylinder top and plunger base are equipped with the guide ring to bear an eccentric load of 5%.
3. The hydraulic cylinder is equipped with lugs for convenient transport, simple structure and easy use.
4. Double action for high return speed
5. Optional grooved saddle or spherical saddle used for special lifting and loading
6. Dust cap is installed to extend the life of the cylinder.
7. Special surface treatment for high corrosion resistance
8. The hydraulic ram cylinder is designed with two NPT3/8 couplers for convenient use.
Model | Capacity (ton) | Stroke(mm) | Collapsed height(mm) | Cylinder O.D(mm) | Piston I.D(mm) | Working Pressure(Bar) | Weight(kg) |
SV24Y5050 | 50 | 50 | 178 | 132 | 69 | 700 | 15 |
SV24Y50100 | 50 | 100 | 228 | 132 | 69 | 18 |
SV24Y50150 | 50 | 150 | 277 | 132 | 69 | 22 |
SV24Y50200 | 50 | 200 | 326 | 132 | 69 | 26 |
SV24Y50300 | 50 | 300 | 425 | 132 | 69 | 34 |
SV24Y10050 | 100 | 50 | 205 | 175 | 95 | 28 |
SV24Y100100 | 100 | 100 | 275 | 175 | 95 | 35 |
SV24Y100150 | 100 | 150 | 326 | 175 | 95 | 39 |
SV24Y100200 | 100 | 200 | 375 | 175 | 95 | 46 |
SV24Y100300 | 100 | 300 | 477 | 175 | 95 | 59 |
SV24Y15050 | 150 | 50 | 216 | 215 | 115 | 38 |
SV24Y150100 | 150 | 100 | 284 | 215 | 115 | 50 |
SV24Y15050 | 150 | 150 | 335 | 215 | 115 | 65 |
SV24Y15000 | 150 | 200 | 380 | 215 | 115 | 75 |
SV24Y15000 | 150 | 300 | 480 | 215 | 115 | 105 |
SV24Y200100 | 200 | 100 | 291 | 242 | 137 | 55 |
SV24Y200150 | 200 | 150 | 346 | 242 | 137 | 90 |
SV24Y200200 | 200 | 200 | 390 | 242 | 137 | 145 |
SV24Y300100 | 300 | 100 | 342 | 295 | 178 | 86 |
SV24Y300200 | 300 | 200 | 442 | 295 | 178 | 132 |
SV24Y300300 | 300 | 300 | 545 | 295 | 178 | 202 |
SV24Y500100 | 500 | 100 | 412 | 398 | 238 | 266 |
SV24Y500200 | 500 | 200 | 509 | 398 | 238 | 325 |
SV24Y500300 | 500 | 300 | 611 | 398 | 238 | 418 |
SV24Y800100 | 800 | 100 | 474 | 510 | 320 | 735 |
SV24Y800200 | 800 | 200 | 578 | 510 | 320 | 859 |
SV24Y800300 | 800 | 300 | 676 | 510 | 320 | 1032 |
Packaging Details
1. Outside packaging: standard export wooden packing;
2. Inner packaging: stretch Film;
3. Customized packaging acceptable.
Delivery
1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: by sea transportation. Goods will arrive in 30~45 days,
according to the diatance.
Product Application
Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.
Our Service
1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.
Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders , synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
NOTE: all items are directly from factory, We would allow you a quantity discount, so please contact with me when u gonna order, we will answer back ASAP.
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
