| Prod Model: |
CG2-11Y |
| Cutting Pipe: |
Stainless Steel Pipe,Steel Pipe,Carbon Steel Pipe |
| Cutting Method: |
Gas or Frame Cutting |
| Drive Method: |
Mannual |
| Portable Or Not: |
Portable |
Product Description

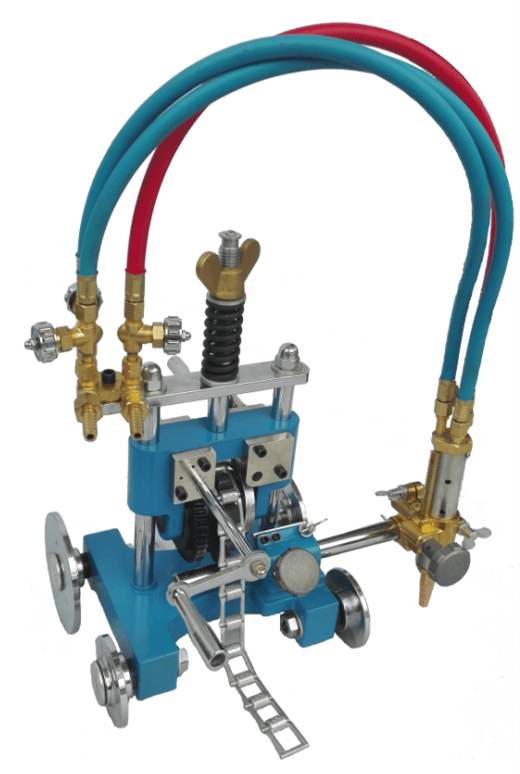

Product summaryG2 -11Y type manual gas cutting machine for pipes is applicable for the seamless steel tube cutting and bevel cutting for such industries as petroleum, chemical industry, boiler, electric power generation, ship manufacture, building, motor vehicle, bridge building and so on. It's suitable for working outside with convenient and hight effective.Technical performance and characteristic:
This cutting machine is adopted worm wheel and worm as driving system, with chains to be fixed on the tube and four wheels for driving. Oxygen-acetylene flame for cutting (or Oxygen-Propane flame); alloy-aluminum casting for the machine body, light, splendid figure; no electricity needed, specially suitable to be used outdoors or other place without electricity, an indispensable equipment for pipe construction.| Type | CG2-11Y | CG2-11S |
| Drive method | mannual | mannual |
| Cutting speed | depend on operator | depend on operator |
| Cutting thickness | 5-50mm | 5-50mm |
| Bevel cut angle | 0-45° | 0-45° |
| Circle cutting diameter | Φ150- Φ600 | Φ250- Φ1000 |
| Machine size | 513*370*510 | 515*370*510 |
| weight | 18kg | 16.5kg |
Features:
1.Manual control cutting speed,especially suitable for outdoor no power source operation.
2.Can do I-bevel,V-bevel,cutting,the maximum angle is 45 degree.
3.Make machine body close to the tube trough add or minus link chains.
4.CG2-11S adopt double square chain link,more firm and reliable.
Advantage:

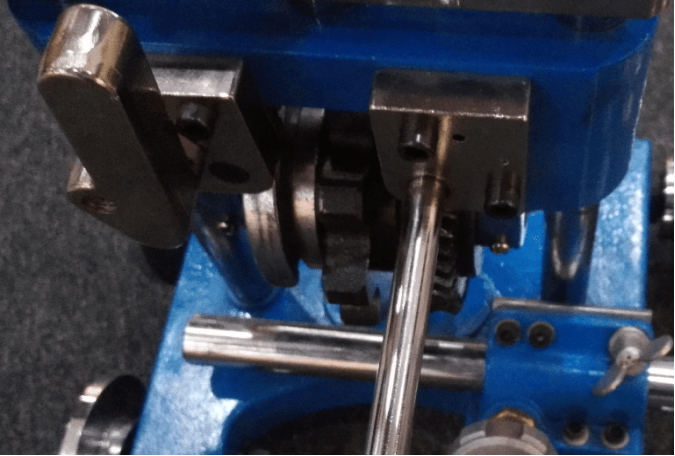

we have a clutch switch,which is a unique selling point of CHD.when you stop cutting at some point of the pipe,then you have to restart cutting at another point of the pipe,you just need to close the clutch,and move the vehicle by hand.and open the clutch to start cutting.

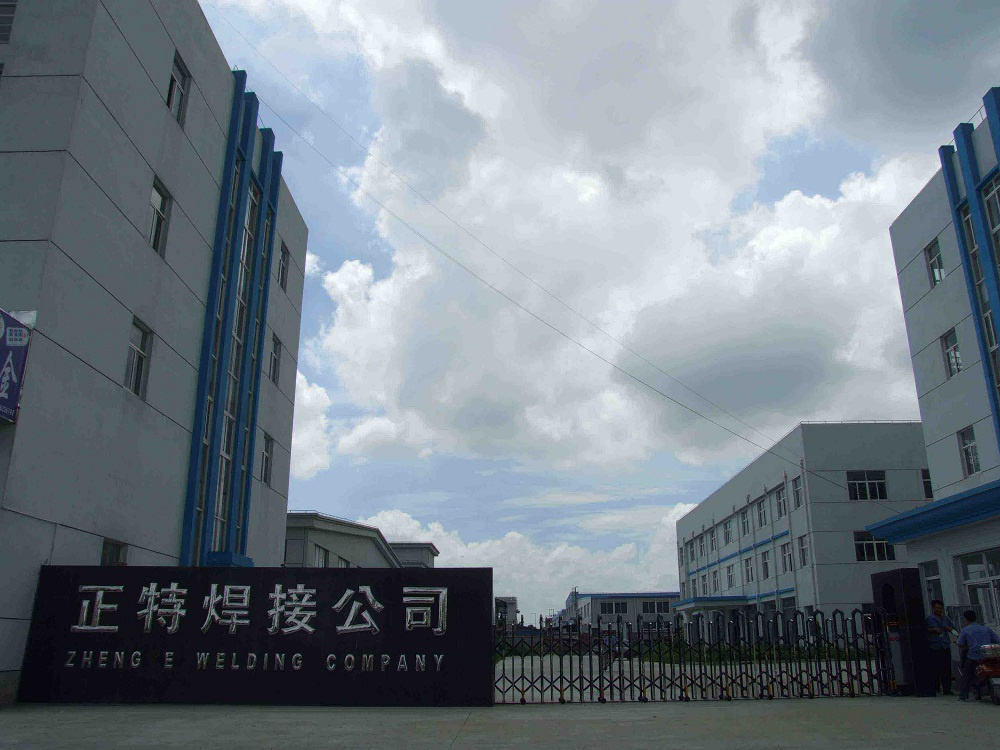

FAQ1. Q: Are you manufaturer or trading company?A: We are a factory with 28 years manufacturing experience.our main products is IGBT inverter air plasma cutter,CNC cutting machine,welding machine,beveling machine.2. Q: what certificate do you get?A: CE ,ISO,CCC and SGS.3 Q:How many days for mass production? A:15 working days after receipt of remittance.4 Q:what is your garantee period? A:1 year.5 Q:what after-sale service do you offer?A: 24 Hours Online Service, Free spare parts for breakdown machine in warranty service6.Q: working voltage? A:AC220V About CHDFounded in 1989, WenZhou CHD Welding Equipment Factory is China's famous cutting machine, beveling machine, welding machine and accessories manufacturer, with 3 production bases located in Shanghai, Wenzhou and Chengdu and plant area of 53,000 square meters.have passed authoritative certification such as the ISO9001 and Switzerland SGS, France BV.10 kind of products has passed the EU CE certification.Wenzhou CHD have applied for more than 10 patents, have participated in the drafting of three Chinese national standards, been rated as famous brand in Shanghai. With marketing and service agencies covering more than 70 countries.
