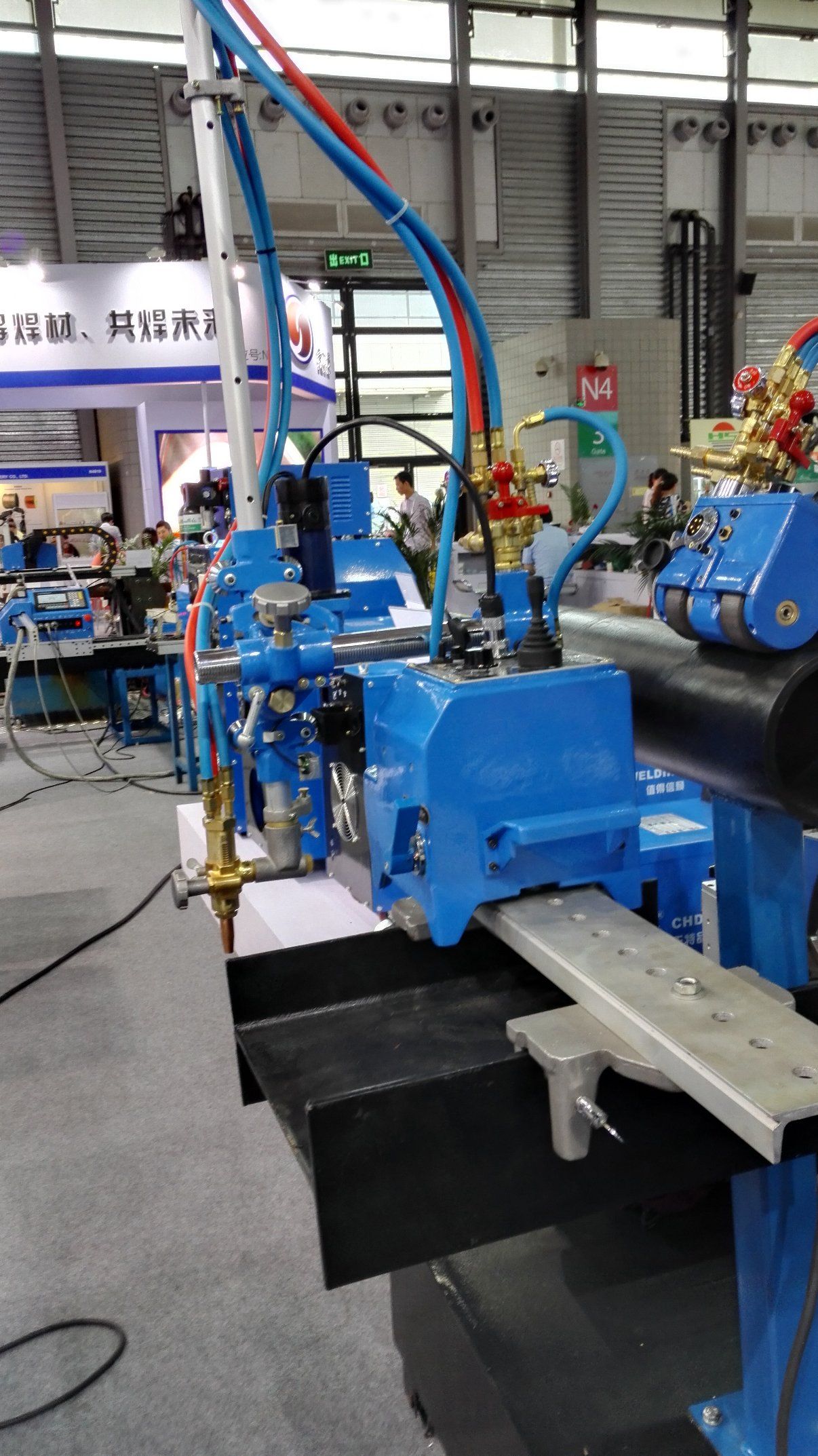

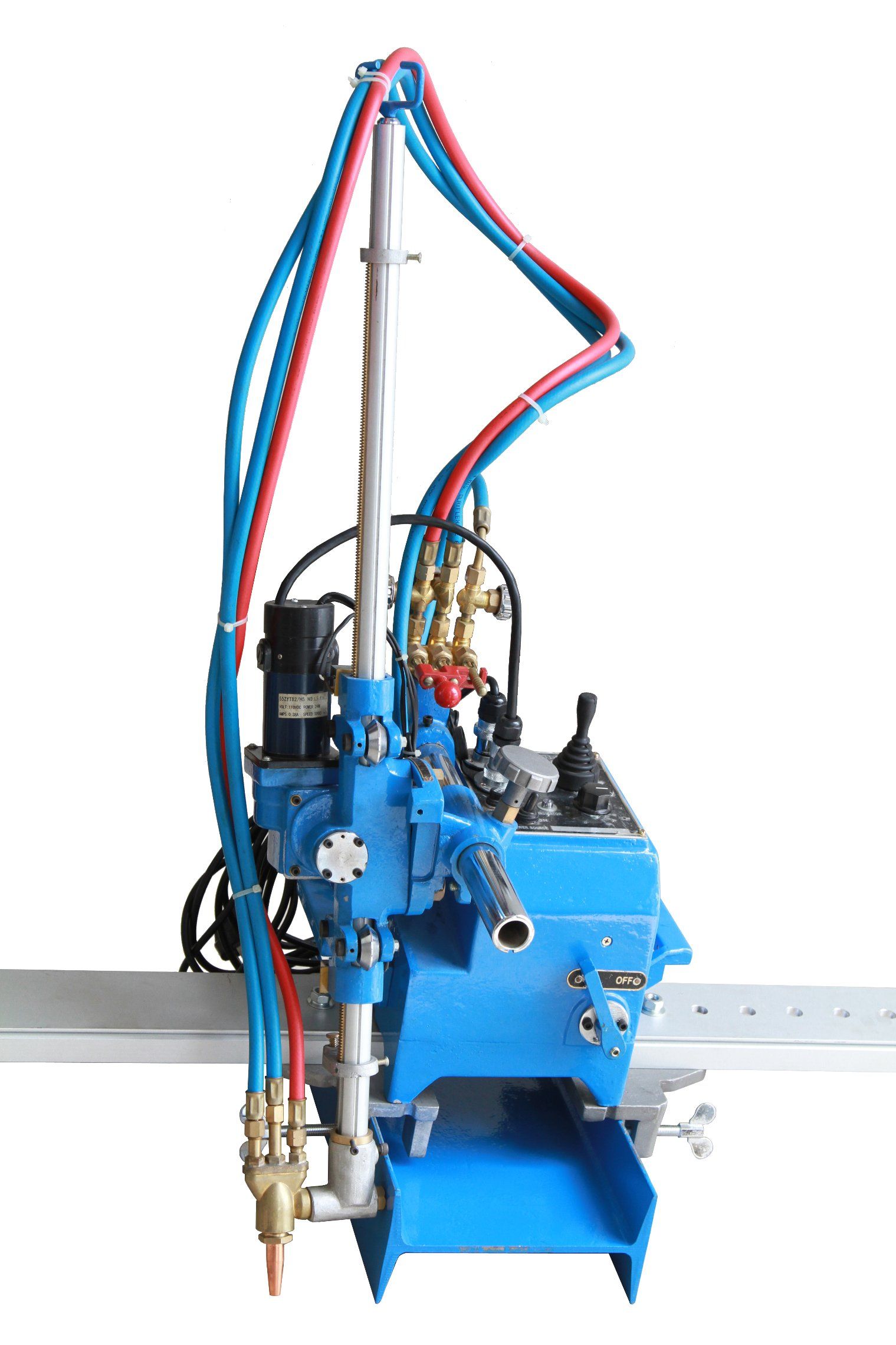

portable motorized H Beam I steel Gas Cutting Machine oxy-fuel flame cutter
| Price: |
US $ 650-750/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
CG1-2 |
| Body Material: |
High Intensity Aluminum Alloy |
| Usage: |
Cutting H Beam,I Beam,Channel Steel |
| Cutting Gas: |
Oxygen+Acetylene or Propane |
| Guide Rail Length: |
1500mm |
Product Description
Products SummaryThe H beam cutting machine is gas or frame cutting machine,mainly used for cutting hot rolled H beam steel.it cheap,easy to operate and move,very solid steel structure to ensure long expectancy life. first you need to buy Oxygen ,Acetylene or Propane tank for gas source.
Techinical Parameter:| Type | CG1-2 | CG1-2A |
| Supply voltage | AC220V | AC220V |
| Cutting speed | 50-750mm/min | 50-750mm/min |
| cutting thickness | 5-60mm | 5-60mm |
| cutting width | 150-800mm | 50-1600mm |
| cutting height | 150-400mm | 150-800mm |
| machine size | 250*260*176mm | 340*440*280mm |
| guide rail size | 1500*224*114mm | 2200*270*220mm |
| weight | 30kg | 37.5kg |
About CHDFounded in 1989, WenZhou CHD Welding Equipment Factory is China's famous cutting machine, beveling machine, welding machine and accessories manufacturer, with 3 production bases located in Shanghai, Wenzhou and Chengdu and plant area of 53,000 square meters.have passed authoritative certification such as the ISO9001 and Switzerland SGS, France BV.10 kind of products has passed the EU CE certification.Wenzhou CHD have applied for more than 10 patents, have participated in the drafting of three Chinese national standards, been rated as famous brand in Shanghai. With marketing and service agencies covering more than 70 countries.
Exhibition
CHD have participated in all kinds of the welding exhibitions more than 100 times since 1989 when enterprise started to run over the last decade.we attend at least 6 exhibitions annually.
1989-2015 all the Beijing Essen Welding&Cutting Exhibitions
1989-2015 all the China welding expositions.
and exhibitions in Russia,Austrilia,India,Brazil,Vietnam&all over the mainland China.
Contact information:
Founded in 1989, CHD Welding and cutting equipment Co., Ltd is China's famous manufacturer of CNC plasma cutting machine, pipe and steel plate beveling machine, welding machine and accessories, with 3 production bases located in Shanghai, Wenzhou and Chengdu and plant area of 53, 000 square meters. Have passed authoritative certification such as the ISO9001 and Switzerland SGS, France BV. 10 kind of products has passed the EU CE certification. Wenzhou CHD have applied for more than 10 patents, have participated in the drafting of 3 Chinese national standards and own 9 invention patents. CHD has been rated as famous brand in Shanghai. With marketing and service agencies covering more than 70 countries. The sales quantity of cutting machine are more than 10000 every year.
CHD have participated in all kinds of the welding exhibitions more than 100 times since 1989 when enterprise started to run over the last decade. We attend at least 6 exhibitions annually.
1989-2015 all the Beijing Essen Welding&Cutting Exhibitions
1989-2015 all the China welding expositions.
And exhibitions in Russia, Austrilia, India, Brazil, Vietnam&all over the mainland China.
