| Prod Model: |
XM-G82 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gabion Box Size: |
1mx1mx2m, 1mx1mx4m,1mx1mx0.5m |
| Gabion Aperture: |
60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm |
| Gabion Wire Diameter: |
2.0mm-4.0mm |
| Gabion Selvedge Wire Diameter: |
3.0mm-4.5mm |
| Feature: |
Assist Acid and Rust |
| Zinc Coated: |
40-270g/Sqm |
| Gabion Tie Wire: |
2.2mm |
| Gabion Use: |
Protect River Bank |
| Gabion Diaphragm: |
1m |
| Tensile Strength: |
300-550mpa |
| Material: |
Low-Carbon Iron Wire |
| Application: |
Construction Wire Mesh |
| Hole Shape: |
Hexagonal |
| Usage: |
Civil Engineering |
| Technics: |
Woven |
| Surface Treatment: |
Galvanized |
| Size: |
2m x 1m x 1m |
| Aperture: |
80*100mm |
Product Description
Gabion type:Galvanized Gabion box, PVC coated Gabion box,Galvanized gabion mesh, Galvanized gabion basket, Galvanized gabion stone cage, Gabion rockfall protection mesh
Gabion box Specifications1. Gabion box: Galvanized Gabion box, PVC coated Gabion box, Galfan Gabion box, Hot-dipped galvanized Gabion box.
2. Gabion box size : 2mx1mx1m, 1mx1mx3m,1mx1mx4m,1mx1mx0.5m
3.Gabion box Wire Dia.: 2-4mm
4. Gabion box Aperture(mm): 60*80mm-120*150mm

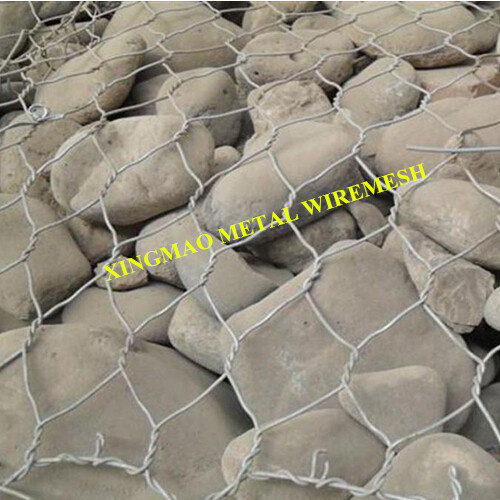

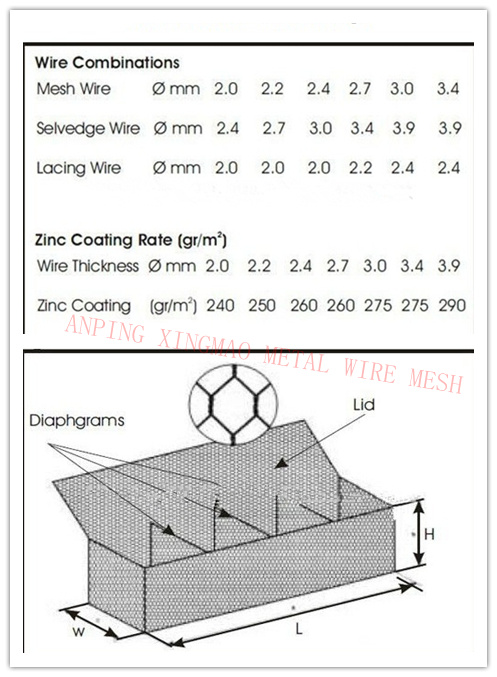

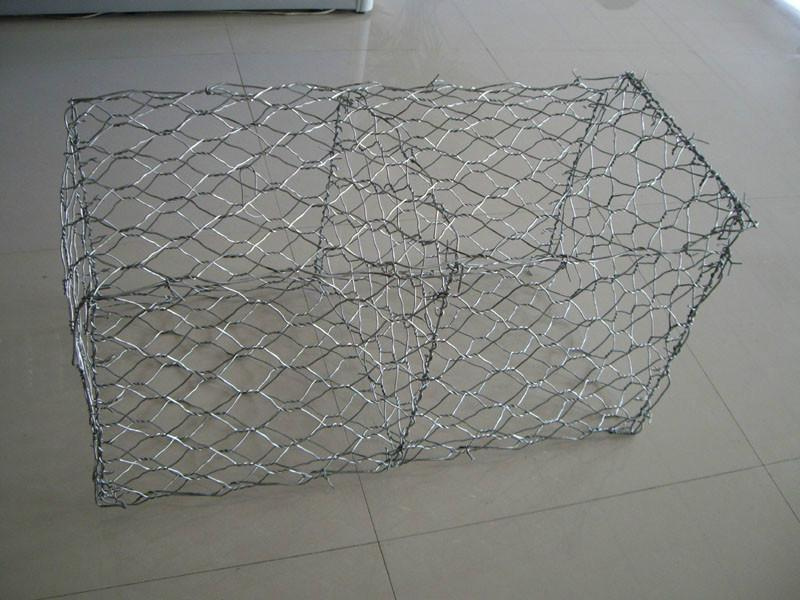

Gabion box are wire containers made of hexagonal wire mesh.Gabion box mesh is made of hexagonal wire netting. The wire of the outside frame edge is
One wire gauge thicker than the wire used for hexagonal wire netting.
Gabion box material: Low Carbon Steel, Mild steel, Electric Galvanized Gabion Mesh, stainless steel, Hot Dipped Galvanized Gabion Mesh, Galfan Gabion Mesh(95% Zn + 5% Al), PVC Coated Gabion BoxGabion box Features:1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. No collapse even under big scope of deforming.
5. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
6. Good permeation can prevent the damage by hydrostatic.

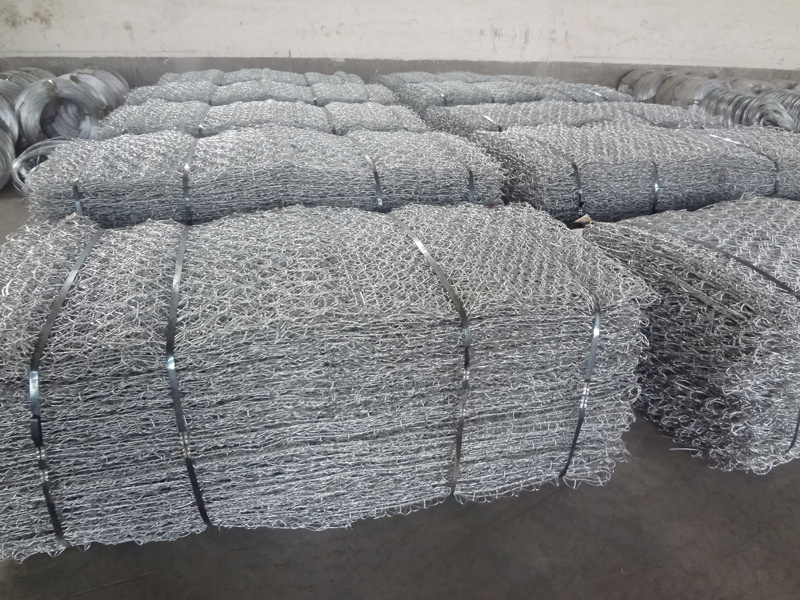

7. Less transport freight. It can be folded together for transport and further installationGabion boxes applications:1. Control and guide of water or flood
2. Flood bank or guiding bank
3. Preventing of rock breaking
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area.

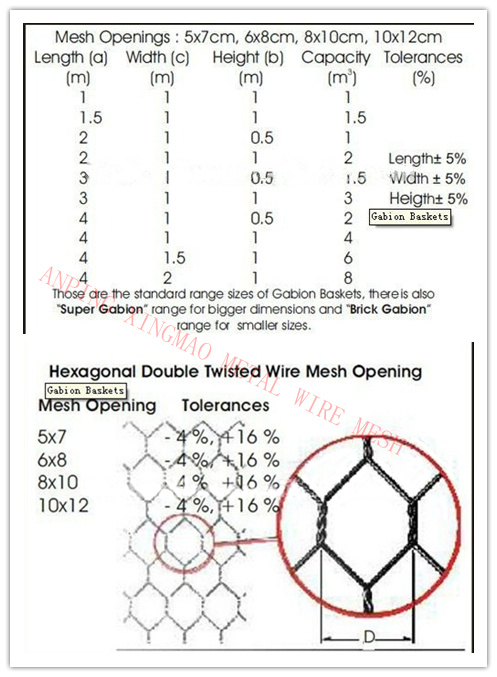

Opening
(mm) | Wire Diameter(Metal Wire) (mm) | Wire Diameter (PVC Coate)/ Inner/Outside(mm) |
| 60X80 | Ø 2.0-2.8 | Ø 2.0/3.0-2.5/3.5 |
| 80X100 | Ø 2.0-3.2 | Ø 2.0/3.0-2.8/3.8 |
| 80X120 | Ø 2.0-3.2 | Ø 2.0/3.0-2.8/3.8 |
| 100X120 | Ø 2.0-3.4 | Ø 2.0/3.0-2.8/3.8 |
| 100X150 | Ø 2.0-3.4 | Ø 2.0/3.0-2.8/3.8 |
| 120X150 | Ø 2.0-4.0 | Ø 2.0/3.0-3.0/4.0 |
Anping Xingmao Metal Wire Mesh Co., Ltd. is located at Anping County, Hebei Province, the famous Wire Mesh Town in China. XingMao is a one of the 5 biggest wiremesh companys in China, has advanced technology and equipment of production, test and inspection. The products are all inspected by our professional inspection team. We can design and develop different wire mesh products upon customers requirements or drawings.
Our main products include:
Gabion basket,
Gabion box,
Security Fence,
Garrison Fencing,
Perforated metal sheet,
Stainless steel wire mesh,
Galvanized iron wire,
Black annealed wire,
Alumium alloy wire mesh,
Brass wire mesh,
Copper mesh etc,
Which are widely applied in petroleum, chemical, food, construction and other industries.
Our export amount is up to 65, 000.00 dollars averagely per month. We mainly export to Europe, America, South Amercia, East and south Asia, MID east district, and some parts Africa countrys. With a dozen of years, we have entered into steady business with hundreds of customers at home and abroad.
General Manager, on behalf of all employees of Xing Mao, warmly welcomes you contact us for further information! We trust we can cooperate well based on mutual benefit and trust!
