| Price: | US $ 1.46-1.57/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1000/Square Meter |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | XM-P4 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gabion Wire Diameter: | 2.0mm-4.5mm |
| Gabion Aperture: | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm |
| Gabion Size: | 2mx1mx1m, 0.5mx1mx1m, 3mx1mx1m, 4mx1mx1m |
| Gabion Basket Type: | Welded and Hexagonal |
| Gabion Tie Wire: | 2.2mm,3.2mm |
| Zinc Coating: | 40-270g/Sqm |
| Diaphgram: | 1m |
| Tensile Strength: | 300-500MPa |
| Certificates: | ISO9001, SGS,BV, Ce, Pvoc |
| Packaging: | Pallet, or Can Be as Per Your Request |
| Material: | Low Carbon Steel Wire |
| Application: | Construction Wire Mesh |
| Hole Shape: | Hexagonal |
| Usage: | Civil Engineering |
| Technics: | Woven |
| Surface Treatment: | PVC Coated |
| Size: | 2m x 1m x 1m |
| Aperture: | 80*100mm |

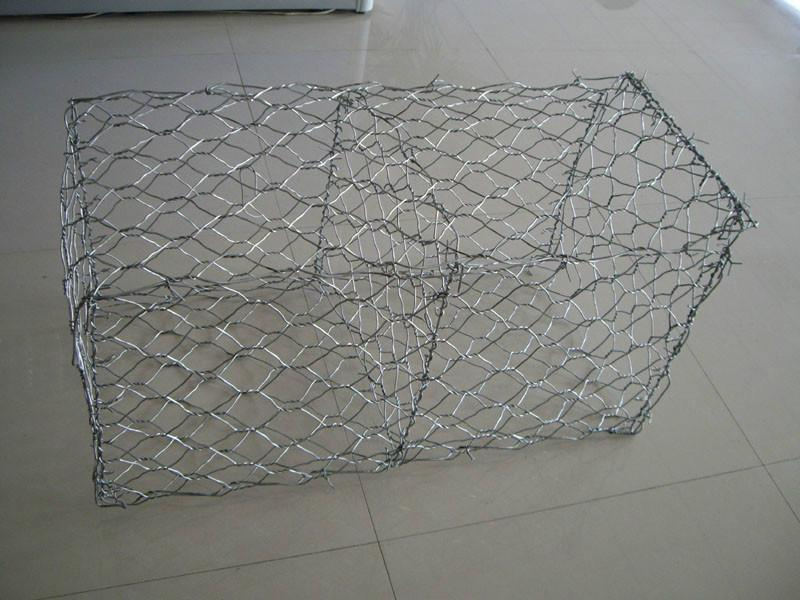

Metal Gabion is comprised double twisted hexagonally woven steel wire mesh with Zinc galvanized / Zinc + PVC coated compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone at the site of use, to form flexible, permeable, monolithic structures for earth retention and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
We manufacture Zinc as well as Zinc + PVC Coated Gabions / Mattresses with different mesh types as follows:
10 x 12 Mesh type Gabions
8 x 10 Mesh Type Gabions
6 x 8 Mesh type Gabion mattresses
Application:* Earth control and soil conservation * Retaining structures/walls
* Rock fall protection netting * Protection of highways/Railways
* Barriers at the rivers * Bridges and culvert protection
* Marine and seawall protection * Lining of steep slopes or slope protection
* Revetments for lakes and seashores * Lining of canals and dams
* Protection of islands * Lining behind water works discharges
* Anti noise barriers * Construction of the gravitation abutment wall
* River training and flood control etc.
Features:| mesh size | Wire diameter (PVC coated wire) inner dia/outside dia. |
| 60*80 | 2.0mm/3.0mm-2.8mm/3.8mm |
| 80*100 | 2.2mm/3.2mm-3.0mm/4.0mm |
| 100*120 | 2.4mm/3.4mm-3.2mm/4.2mm |
| 120*150 | 2.7mm/3.7mm-3.5mm/4.5mm |
