| Prod Model: |
KET-VLP/XLP Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Jiangsu(Mainland), China |
| Voltage: |
220V |
| Working Pressure: |
700bar |
| Power: |
50Hz |
| Press Capacity: |
10--200t |
| Certifiacation: |
CE&ISO9001:2008 |
| OEM: |
Yes |
| Cylinder Stroke: |
156-330mm |
| Color: |
Can Customize |
| Weight: |
49-1992kg |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Electric |
| Precision: |
High Precision |
| Slider Movement: |
Customize |
Product Description

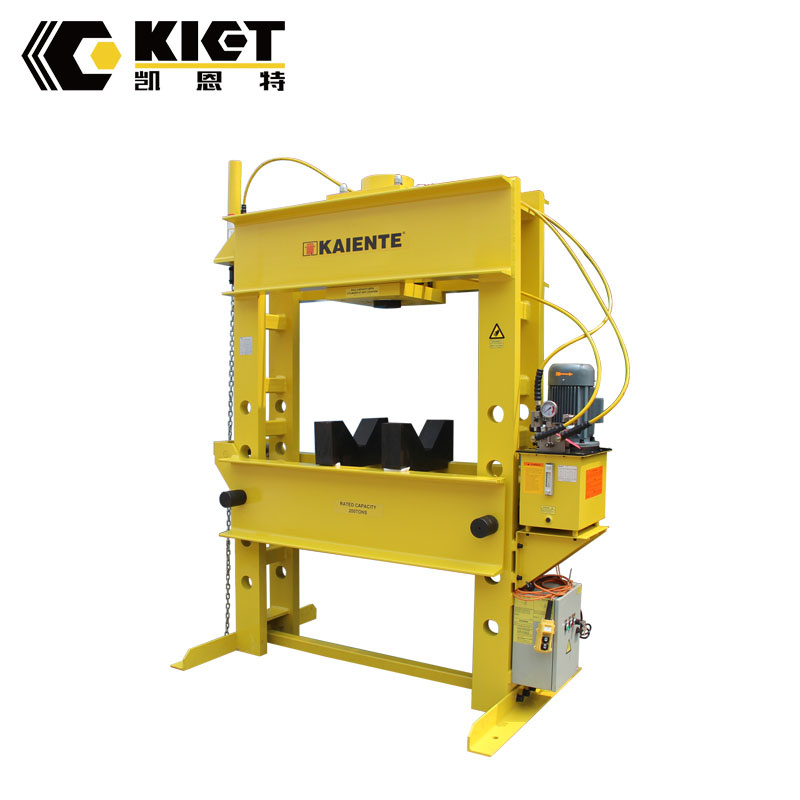

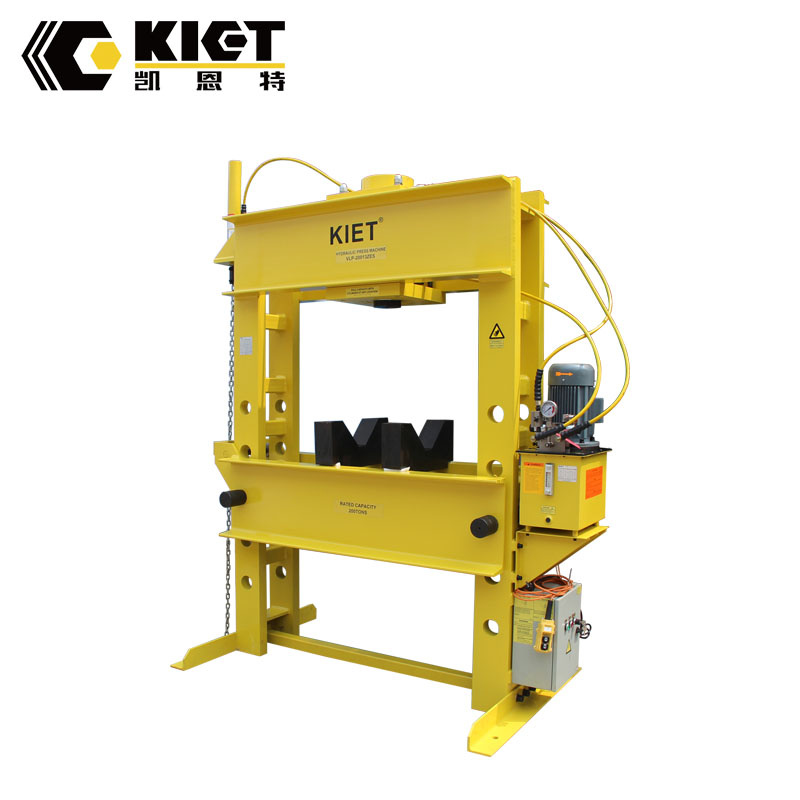

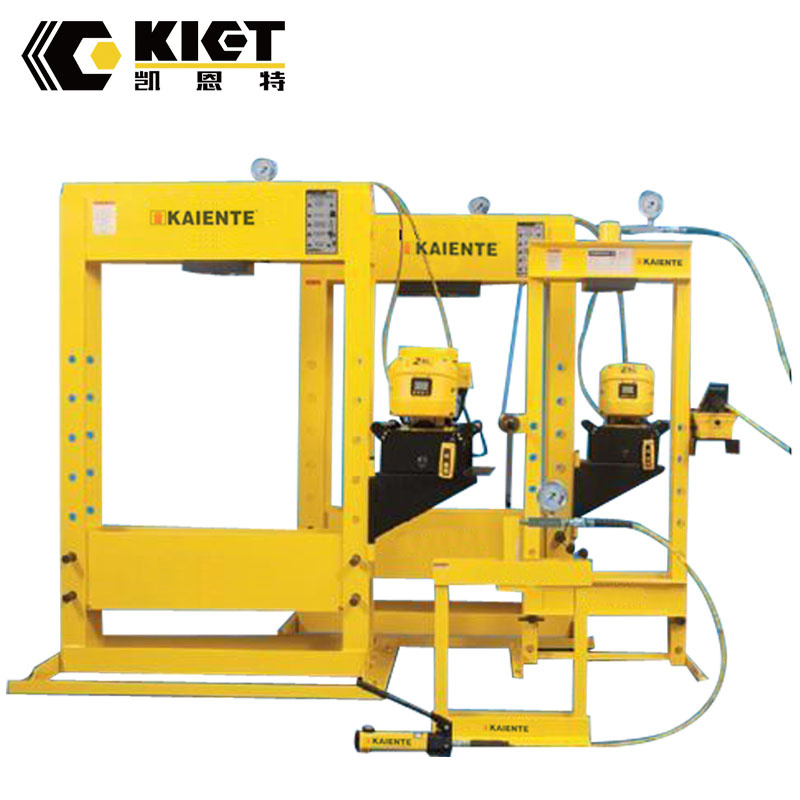

China Factory Price 200t Hydraulic Workshop Press Machine
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Product Description:
Precise hydraulic control allows fast, efficient and safe pullingHigh quality, forged steel components provide superior reliability and service
Parameter:
Press Model Number | Press Capacity ton (kN) | Maximum Daylight (mm) | Power Source | Cylinder | Weight (kg) |
| Vertical | Horizontal | Pump Type | Valve Type | Pump Model Nr. | Stroke (mm) | Cylinder Model Nr. |
| Man. | Elec. | Air | Man | Elec. |
| VLP-106P142 | 10 (101) | 430 | 432 |
|
|
|
|
| P-142 | 156 | RC-106 | 49 |
| VLP-106PAT1 | 430 | 432 |
|
|
|
|
| PATG-1102N | 156 | RC-106 | 54 |
| XLP-256P392 | 25 (232) | 1225 | 510 |
|
|
|
|
| P-392 | 158 | RC-256 | 165 |
| XLP-256XA11G | 1225 | 510 |
|
|
|
|
| XA-11G | 158 | RC-256 | 170 |
| XLP-506P802 | 50 (498) | 993 | 990 |
|
|
|
|
| P-802 | 159 | RC-506 | 595 |
| XLP-506XA12G | 993 | 990 |
|
|
|
|
| XA-12G | 159 | RC-506 | 600 |
| XLP-506ZES | 993 | 990 |
|
|
|
|
| ZE4410SE-E050 | 156 | RR-506 | 660 |
| XLP-5013ZES | 993 | 990 |
|
|
|
|
| ZE4410SE-E050 | 334 | RR-5013 | 700 |
| XLP-756XA12G | 75 (718) | 989 | 990 |
|
|
|
|
| XA-12G | 156 | RC-756 | 900 |
| VLP-1006ZES | 100 (933) | 989 | 990 |
|
|
|
|
| ZE5420SW-E050 | 168 | RR-1006 | 970 |
| VLP-10013ZES | 989 | 990 |
|
|
|
|
| ZE5420SW-E050 | 333 | RR-10013 | 993 |
| VLP-20013ZES | 200 (1995) | 1340 | 1220 |
|
|
|
|
| ZE6420SW | 330 | RR-20013 | 1992 |
Packaging & Shipping:
We Provide Standard wooden box for export , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.
Company Information:
Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field
Our Services:
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Our other Related Products for your reference
Why Choose Kiet?
Quality --- Kiet has been in the industry for than 20 years. We have been trusted by domestic mega stated-state owned companies, as well as international distributors and renowned brands. We put quality as lifeline. We never manufacture or sale defected product, or lowering our price at the cost of products quality.
Service --- Kiet promised to respond to customers products quality or service in 24 hours reported, and solutions shall be provided in 48 hours.
Welcome to contact us!
Aaron
Mobile:86-18052610078
Tel: 86-523-81569666
Website: www.kaientehydraulic.com
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
