| Prod Model: |
HZ-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Hebei, China (Mainland) |
| Brand Name: |
Hz |
| Model Number: |
Hz-8000 |
| Blind: |
2m |
| Working Range: |
30km |
| Resolution: |
Low-Voltage Pulse Mode 1m; Pulse Current Mode 4m |
| Certificate: |
Ce ISO |
| Sampling Frequency: |
100MHz. |
| Measuring Mode: |
Low-Voltage Pulse, The Pulse Current |
| Warranty: |
1 Year |
| Test Mode: |
Point Test |
| Test Region: |
Forming Cable |
| Color: |
Grey |
Product Description

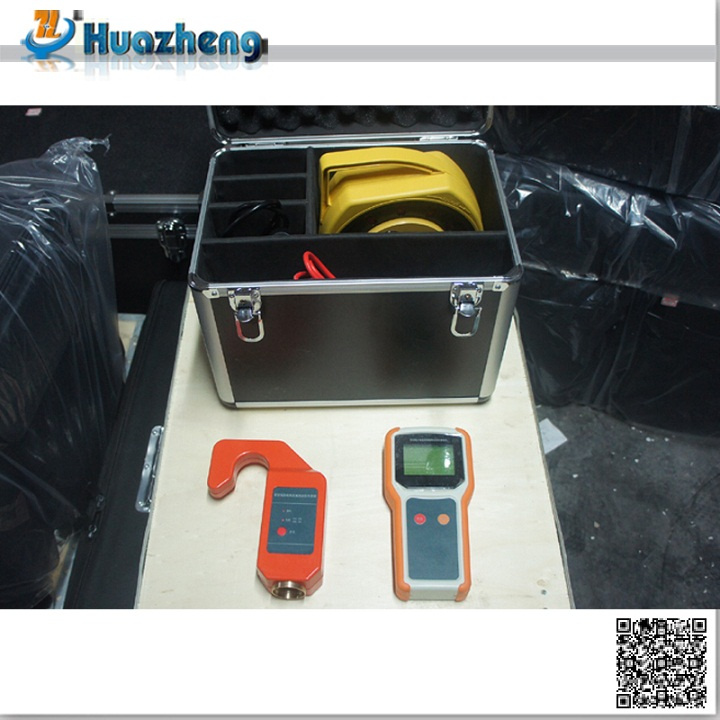

China Factory Quotation For Request Hz-100 Power Cable Fault Locator I. Introduction of China Factory Quotation For Request Hz-100 Power Cable Fault Locator HZ-100 overhead line grounding fault locator, apply for small current grounding system overhead lines. The device can be used to precise position the docking site when the lines occur ingle-phase ground fault outage.
II. Functional Characteristics of China Factory Quotation For Request Hz-100 Power Cable Fault Locator1. Suit for small current grounding system distribution network, detection for single-phase metallic ground, the arcing ground, the transition resistance grounding and other faults for overhead line.
2. After the line outage, the fault line can be located, especially for the cable branch of the fault line.
3. The high voltage signal is applied so that to reproduce the fault, the current signal is stable, easy to detect.
4. Avoid ultra-low frequency signal distributed capacitance system, capable of high resistance fault locate.
5. Transmitter safety features: high-voltage start lockout, output allows direct short circuit.
6. The sensor uses a high-sensitivity sensor, open design, without closure, easy to mount on the line.
7. The sensor and receiver for wireless communication transmission, safe and reliable.
8. The transmitter may use electricity, power generators, sensors and battery-powered receivers.
9. The transmitter small size, light weight; sensors to minimize volume and weight design, easy to mount along; receiver for handheld design.
10. The receiver employs large-screen LCD display, showing the status of the sensor, the current waveform and the current value.
III. Technical Indicators of China Factory Quotation For Request Hz-100 Power Cable Fault Locator 1. Positioning accuracy: 0.2 m.
2. Transmitter output characteristics:
| Output frequency | 1Hz |
| Open circuit voltage | fundamental RMS 0 ~ 2800V(Pulsating DC ; peak 8kV, equivalent to a peak phase voltage of 10kV line) |
| Short-circuit current | the fundamental RMS 0 ~ 35mA (pulsating DC peak 100mA) |
(3) Short-circuit current: the fundamental RMS 0 ~ 35mA (pulsating DC peak 100mA)
3. The wireless communication distance sensor and a receiver: not less than 30m.
4. Transmitter Power: AC 220V mains, the generator can be connected (output ≥1500W).
5. The transmitter power: maximum power 900W.
6. Sensor power supply: 3 section 7 alkaline batteries.
7. Receiver Power: 5 section 5 alkaline batteries.
8. Volume:
The transmitter 455 × 335 × 310mm; sensor 180 × 100 × 35mm; 205 × 100 × 35mm receiver
9. Quality: a transmitter 15kg; sensor 0.45kg; receiver 0.45 kg
10. Conditions: Temperature: -10 ºC -40 ºC, humidity 5-90% RH, elevation <4500m.
IV.Company InformationHuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
V. Our Services1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2. We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.
