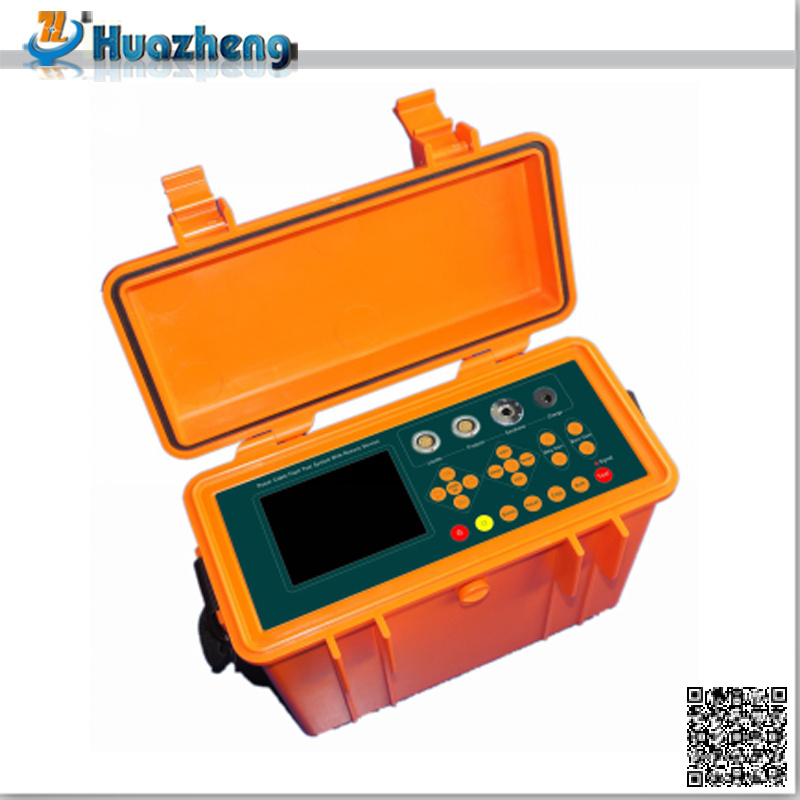

Electric Power High-Impedance Hz-8000 Underground Tdr Cable Fault Locator
| Price: |
US $ 3000-30000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
HZ-8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Hebei, China (Mainland) |
| Brand Name: |
Hz |
| Model Number: |
Hz-8000 |
| Blind: |
2m |
| Working Range: |
30km |
| Resolution: |
Low-Voltage Pulse Mode 1m; Pulse Current Mode 4m |
| Certificate: |
Ce ISO |
| Sampling Frequency: |
100MHz. |
| Measuring Mode: |
Low-Voltage Pulse, The Pulse Current |
| Warranty: |
1 Year |
| Test Mode: |
Point Test |
| Test Region: |
Forming Cable |
| Color: |
Grey |
Product Description

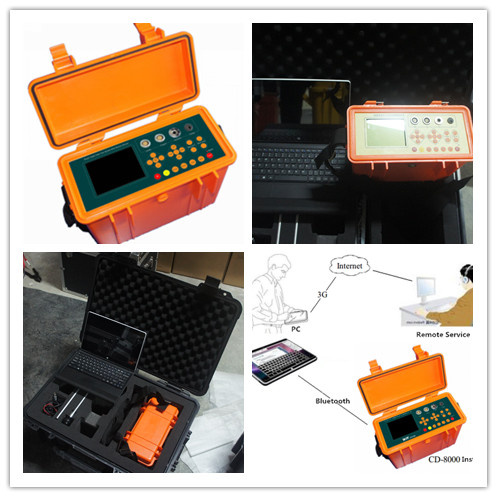

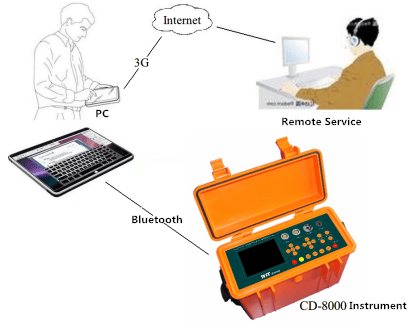

Electric Power High-Impedance Hz-8000 Underground Tdr Cable Fault LocatorI. Application of Electric Power High-Impedance Hz-8000 Underground Tdr Cable Fault LocatorHZ-8000 remote service power cable fault testing system,is used for power cable fault testing, is an innovative type, integrated device with a remote control function. It consists of the host and related accessories, tablet PCs, and remote service center. Cable fault location and harmony magnet synchronous point can be achieved under the guidance of the remote service center (including low-voltage pulse and pulse current mode). The host can also be used alone without the remote service. Intervention remote service can largely help users quickly master the use of equipment, help solve difficult problems, and improved the timeliness manufacturers service. II. The Function of Electric Power High-Impedance Hz-8000 Underground Tdr Cable Fault Locator HZ 8000 power cable fault tester has the following functions: low-voltage pulse rangingranging pulse currentsound, and magnetic synchronous point Compared to traditional split device, the device number, size, and weight of CD-8000 tester were significantly reduced. The instrument is powerful, easy to use, portable, is a traditional device replacement. III. Features of Electric Power High-Impedance Hz-8000 Underground Tdr Cable Fault Locator 1. Full-Featured: low-voltage pulse fault locationpulse current fault locationsound, and magnetic synchronous pinpoint2. The fault Location Function:low-pressure pulse method: for precise distance measurement of low resistance, short circuit, disconnection failure.Pulse Current law: for high resistance flashover fault-ranging, using a current coupler pickup signal from the ground line, the high-pressure part of the isolation, safe and reliable.3. Pinpoint Features:sound, and magnetic synchronous receiver, anti-interference ability.acoustic magnetic signal waveform display, easy to distinguish signal and noise.Cursor measuring magnetic sound delay, to accurately determine the distance of the point of failure.According to the initial polarity of the magnetic field waveforms at the same time point of the path detection.4. Large screen LCD, friendly interface, easy to use.5. Built-in SD card, memory capacity, you can import the computer for archiving, analysis and printing.6. Built-in Bluetooth communication modules, computer online.7. Built with tablet background software, which enables remote service through the 3G network.8. Built-in high-capacity lithium-ion battery with rapid charger.9. Power management: Depending on the function on different power paths to minimize power
consumption; if 15 minutes without any operation, the instrument will automatically shut down; when the battery voltage will automatically shut down to protect the battery.10. The integrated equipment, high degree of protection, small and portable. IV. Technical Index of Electric Power High-Impedance Hz-8000 Underground Tdr Cable Fault Locator1. Ranging Function:(1) measuring mode: low-voltage pulse, the pulse current.(2) Sampling frequency: 100MHz.(3) Resolution: Low-voltage pulse mode 1m; pulse current mode 4m.(4) low-voltage pulse mode emission voltage: 30V.(5) Working range: 30km.(6) blind: 2m.2. Sound, and Magnetic Synchronous Fixed function:(1) voice signal passband: center frequency of 400Hz, the bandwidth of 200Hz.(2) the signal gain: 80dB.(3) fixed-point precision: 0.1m.3. Power:(1) Battery: Built-in lithium-ion battery pack, the nominal voltage of 7.4V, capacity 3000mAH.(2) Power: 400mA, continuous use of time> 6 hours;(3) Charger: Input AC220V ± 10%, 50Hz; nominal output 8.4V, DC1A.(4) Charging time: <4 hours.4. Display: 320 × 240 dot matrix large LCD screen.5. Volume: 270mm × 150mm × 210mm.6. Quality: 1.5kg.7. Conditions: Temperature: -10 ºC -40 ºC, humidity 5-90% RH, elevation <4500m.V. Product Details of Electric Power High-Impedance Hz-8000 Underground Tdr Cable Fault Locator
VI. Company Information
We are ISO and CE certificated manufacturer and the brother company with Huazheng Electric. Besides electrical testing equipments, we also deal with ADSS/OPGW hardware fittings, indoor/outdoor vacuum circuit breakers, insulators, bird repellers, etc.
Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorate price, on-time delivery and our best service.
VII.Our Services1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2.We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.
VIII. Exhibition
IX. Customer Visit
X.Similar Recommendation| TDR Cable Fault locator |
| Cable Fault Pin Pointer |
| Cable Route Tracer |
| Cable Identificator |
