Prod Model: |
HZ-4000T2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Place Of Origin: |
Hebei, China (Mainland) |
Brand Name: |
Hz |
Model Number: |
Hz-4000t2 |
DC Voltage Output: |
0-32kv 0-16kv |
Output Energy: |
1536j |
Impact Capacitor: |
3UF 12UF |
Certificate: |
CE ISO |
Voltage Level: |
220V-220kv |
Structure: |
a One Body Trolley |
Warranty: |
1 Year |
Test Mode: |
Point Test |
Test Region: |
Forming Cable |
Color: |
Grey |
Product Description
China Supplier 2018 Best Selling Underground Power Cable Fault Locator

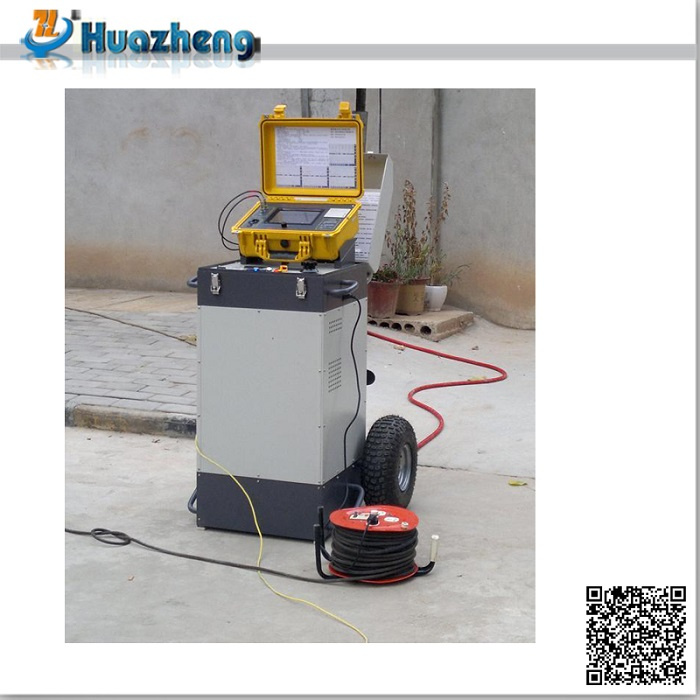

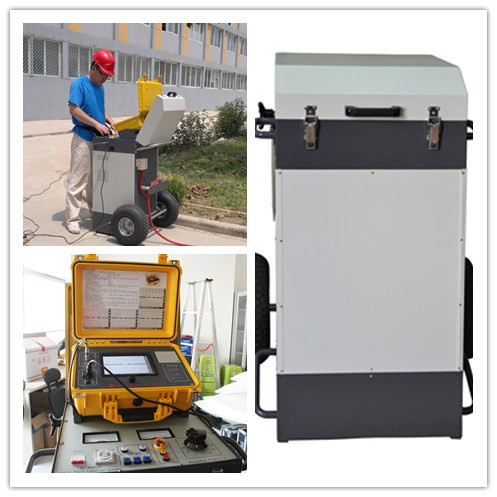

I. Introduction of China Supplier 2018 Best Selling Underground Power Cable Fault Locator1. It is a one body trolley structure, easy handling at site.
2. You can do site test without complex wiring, because all test modes and switching voltage levels are automatically switched by weak control internal high-voltage switches.
3. It can quickly locate and point low resistance, high impedance fault leakage, flashover faults in power cable with a variety of 220V-220KV voltage level.
II. Characteristics of China Supplier 2018 Best Selling Underground Power Cable Fault Locator1. It integrates multi-gear DC high-voltage generator, multi-gear high-voltage capacitor, arc-stabling units and a variety of signal acquisition in one body, which facilitates fault location operation.
2. Switching between three gear test modes, two gear voltage levels is controlled by low-voltage weak electricity.
3. World's leading test method makes difficult fault detecting become very simple.
4. The requirement to operators' level for technical equipment is low.
5. The DC voltage is up to 32kV.
6. Each stall of voltages, which is 16 / 32kV, can output up to 1536 J impact energy. It has longer ranging delay arc time and makes a loud voice on the fault point when locating.
7. It can do high impedance fault detection directly without burning.
8. Large wheels ensure a smooth, easy handling and site work.
III. General Parameters of China Supplier 2018 Best Selling Underground Power Cable Fault Locator Place of Origin | Hebei, China (Mainland) |
Brand Name | HZ |
Model Number | Hz-4000t2 |
DC Voltage Output | 0-32kv 0-16kv |
Output Energy | 1536j |
Impact Capacitor | 3UF 12UF |
Certificate | CE ISO |
Voltage Level | 220V-220kv |
Structure | a One Body Trolley |
Warranty | 1 Year |
IV. Company InformationWe are ISO and CE certificated manufacturer and the brother company with Huazheng Electric. Besides electrical testing equipments, we also deal with ADSS/OPGW hardware fittings, indoor/outdoor vacuum circuit breakers, insulators, bird repellers, etc.
Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorate price, on-time delivery and our best service.
V. Technical Indicators of 2015 Best Selling Underground Cable Fault Locator1. Test methods: Arc reflection method, current sampling, and DC output.
2. Types of sampling signals: Arc reflection method, current sampling, and low-voltage pulse.
3. DC voltage output:
0 ~ 32kV Negative Maximum output current: 76mA
0 ~ 16kV Negative Maximum output current: 152mA
4. Impact capacitor:
0 ~ 32kV 3μF Maximum output energy: 1536 joules
0 ~ 16kV 12μF Maximum output energy: 1536 joules
5. Ball-gap discharge: Weak electricity control. Discharge cycle can be adjusted within 3-12 seconds. It has a specially designed silencer, which meets the requirement of silence when fault happened to the initial endcable.
6. Protection:
Zero voltage position protection: To prevent misuse, and to protect the safety of personal and the test product;
Press "off" button, and it will release the remaining charge automatically through safety instrument inside to ensure safety.
7. It is equipped with extension cable tray, which can be composed of automotive cable fault location system.
