| Price: | US $ 1800-5800/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | kSPW |
|---|---|
| Max. Air Pressure: | 6bar |
| OEM Service: | Can Put Customers' Brand |
| Square Drive: | 1-1 / 2" |
| Accuracy: | ±5% |
| Characteristic: | Vertical Type, Electric Torque |
| Max Working Pressure: | 700 Bar |
| Delivery: | Expediting Service Available |
| Working Style: | Rotary Type |
| Type: | Pneumatic Torque Wrench |
| Usage: | Tighten and Loosen Bolts |
| Air Wrench Type: | Pneumatic Torque Wrench |
| Brand: | Kashon |

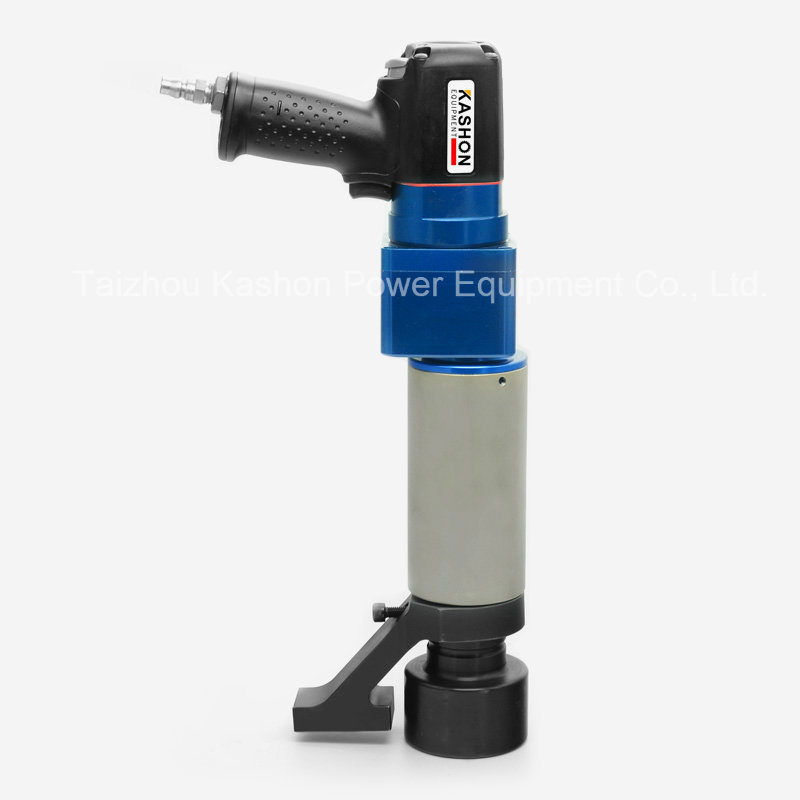

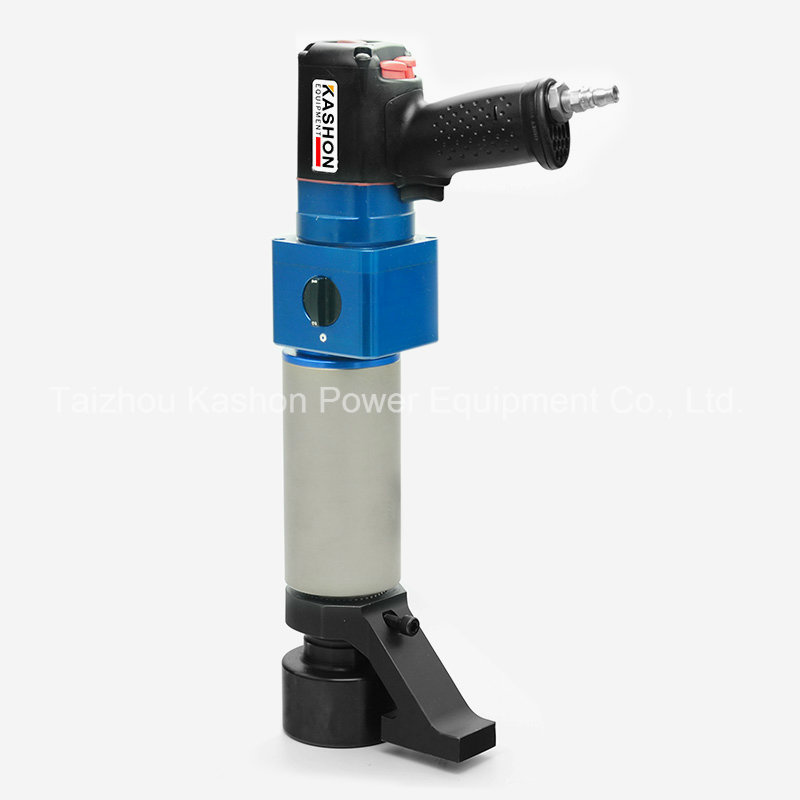

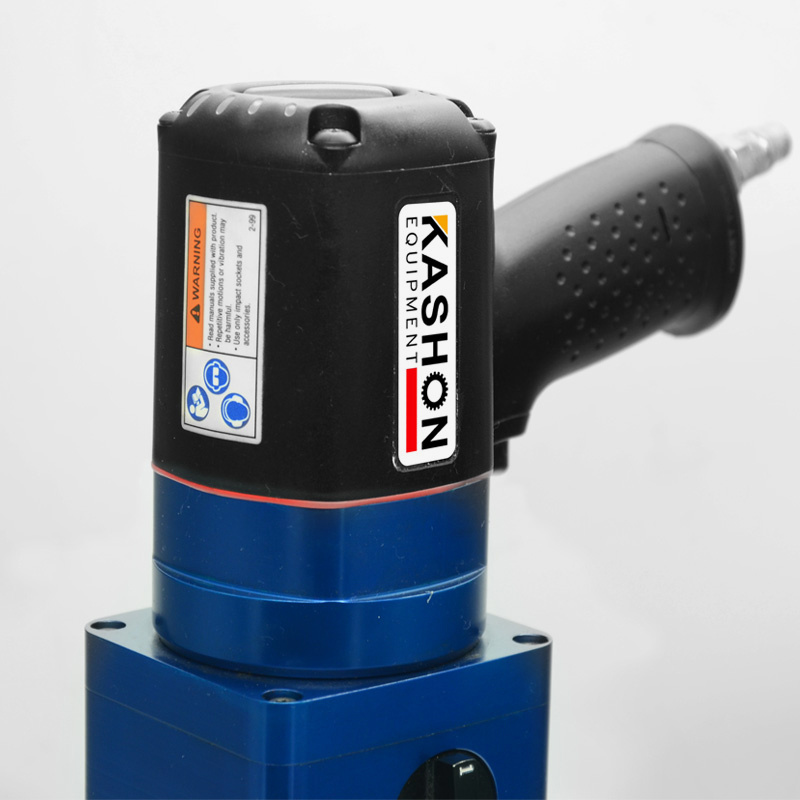

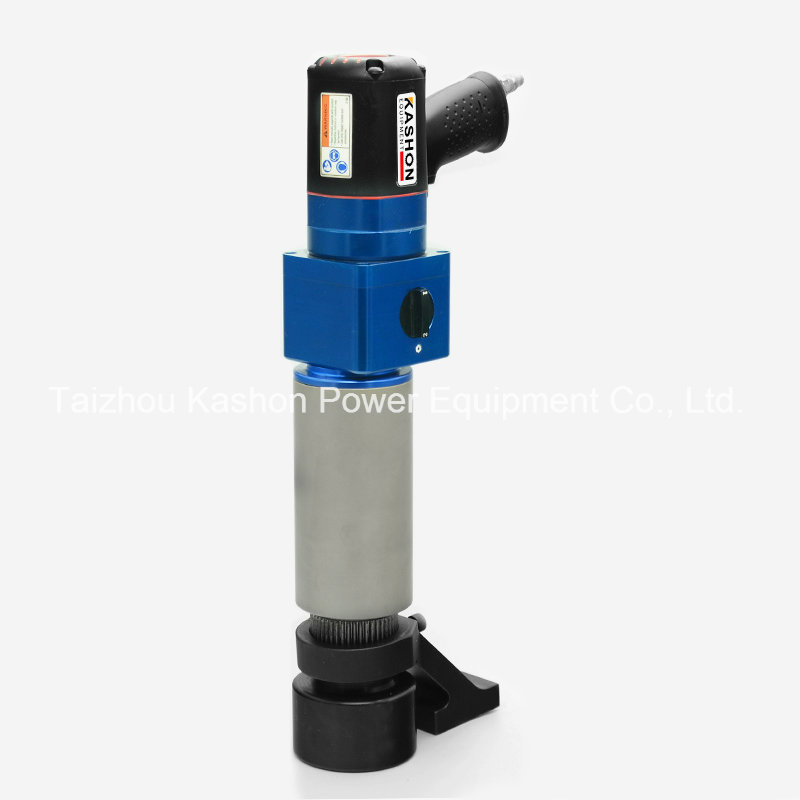

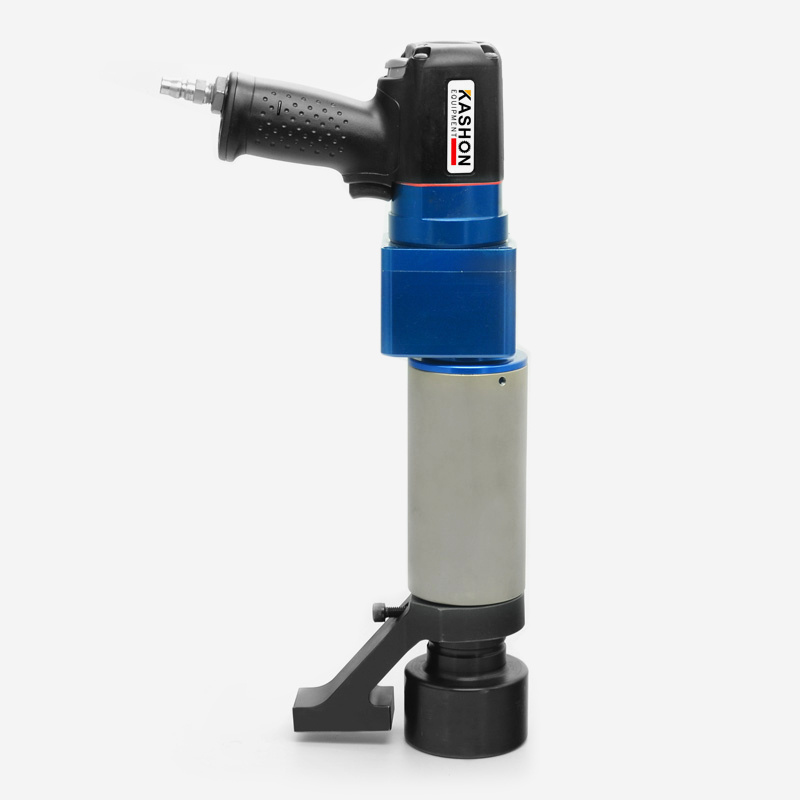

china mighty vertical type pneumatic torque wrench
Features:
More suitable for limited working space or the other special bolt conditions
Equipped with brake & cutoff system to protect the operator
High output and repeat accuracy:±5% and ±3%
6bar compressed air,air consumption under max.power is: 600L/min
Powerful and low noise,With manual 2-speed gearbox, high/low speed can be shifted freely
Set and control torque by adjusting the pressure ,convenient and high repeatability
Reverse pressure-bias motor provide the higher power and torque when removing or loosening bolts
After-sales service: 1 year guarantee, life-long maintenance.
Supply scope :1 pcs torque wrench,1pcs reaction arm,1 set air register kit ( including air register, hose and quick coupling), 1 pcs operating instructions,1 pcs test report
Specifications:
| Model | Min torque(N.m) | Max torque(N.m) | Drive S(mm) | D(mm) | L(mm) | K(mm) | M(mm) | Weight(Kg) | Idle speed (rpm) |
| KSPW-09S | 142 | 939 | 3/4" | 75 | 324 | 172 | 131 | 4.9 | 28 |
| KSPW-15S | 200 | 1550 | 1" | 77 | 358 | 172 | 165 | 5.9 | 20 |
| KSPW-30S | 500 | 3100 | 1" | 81 | 393 | 172 | 200 | 7.5 | 6 |
| KSPW-40S | 600 | 4300 | 11/2" | 88 | 411 | 172 | 218 | 8.9 | 4.1 |
| KSPW-60S | 800 | 6200 | 11/2" | 113 | 439 | 172 | 246 | 14.8 | 3.8 |
| KSPW-80S | 940 | 8300 | 11/2" | 120 | 451 | 172 | 258 | 16 | 1.2 |
| KSPW-100S | 1600 | 10100 | 11/2" | 128 | 463 | 172 | 270 | 18.8 | 1.4 |
| KSPW-120S | 1600 | 12200 | 11/2" | 128 | 463 | 172 | 270 | 18.8 | 1.4 |
Photos:
Company Information:
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
Electric and pneumatic torque wrenches(800-13500Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
