| Prod Model: |
STK-M1103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Core And Cavity Material: |
718h, Nak80, P20, Skd61 etc |
| Material: |
ABS, PP, PE, Pet, EVA, PMMA, PC, PU, Pa etc |
| Mould Steel: |
#45, #50, P20, H13, 718, 2738, Nak80, S136 etc |
| Mould Life: |
500000 Shots |
| Machine Size: |
80tons-1600tons |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Progressive Die |
| Application: |
Hardware |
| Installation: |
Fixed |
| Mould Cavity: |
Single-Cavity or Multi-Cavity |
| Plastic Material: |
ABS, PP, PE, Pet, EVA, PMMA, PC, PU, PA etc |
| Standard: |
Hasco,Dme,JIS,China Lkm |

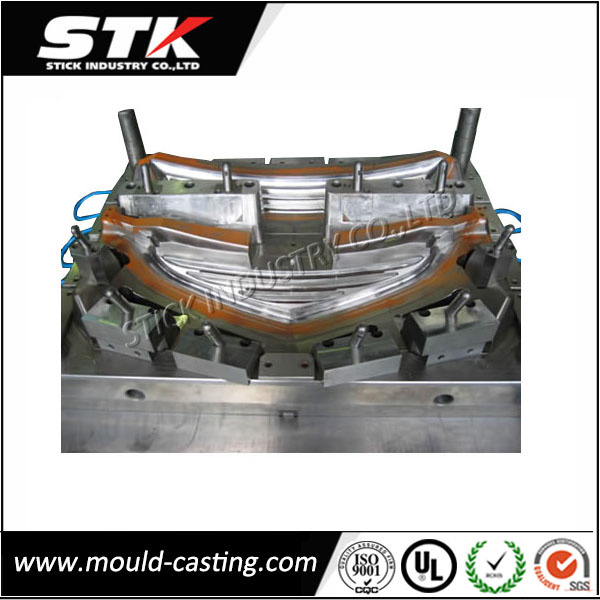

Product Description
1. Mould life: 500000-1000000 shots
2. Material: Steel, steel alloy such as P20, 8074, 2083 or NAK-55
3. Mould base: LKM, FUTA, HASCO, DME, etc.
4. Production Leadtime: 3-6 weeks depending on the complexity of drawings.
| 1 | PLASTIC INJECTION Mould standard | HASCO,DME,JIS,CHINA LKM |
| 2 | Mould base | LKM&Hasco&DME standard (A,B plate 1730,2311,2312,P20 ) |
| 3 | Material main core and cavity insert | DIN2312,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
| 4 | Hardness of steel | 46~56HRC |
| 5 | Material for Slider ,Lifter and all sub insert use | 1.2767 HRC |
| 6 | Cavity | Single-cavity ,Multi-cavity |
| 7 | A surface request: | EDM & High Polish |
| 8 | Gate | Cold runner,Yudo/DME/HASCO/Synventive Hot runner |
| 9 | Maximum mould size | 1500*1500 mm |
| 10 | Mould life time | 500000~+1,000,000 shots |
| 11 | Quality | ISO9001-2000 certification |
| 12 | Plastic Part material | PA,PA6/6+GF,ABS,POM,PC,PP,PET,TPE,PVC,HDPE etc |
| 13 | Lead time | 4~7 Weeks |
| 14 | Package | Wooden/Plywood case for tool ,PE bags add export carton for parts |
| 15 | Payment terms | T/T |
| 16 | Trade terms | EXW works, FOB XIAMEN, CIF |
| 17 | Export country | Europe countries,USA,Mexico,Australia ,Middle-east ,Asia etc |
| 18 | Value-added service | Polish,texture,painting,screen printing |
| 19 | As a professional Plastic Injection mould ,Die casting Mould & Moulding manufacturer, our range products are covered from Automobile,Electronic,Industrial,Household,Medical,Sport,Office etc |
| 19 | Clients project's 3D drawings or samples are highly appreciated |
| 20 | Welcome to visit our website |
We believe that the best way to ensure our success is by providing our customers consistent quality in a timely fashion and at a fair price.
Stick Industry was established in 2004, with factory located in Haicang district, Xiamen city, South East of China. The company has been in business for over 10 years, beginning as a small plastic mold and die casting mold workshop growing into an industrial leading, multi-plant molder with factory size over 10000 square meters and employees about 150.
Conveniently located in the south of China, our ISO 9001-2000 Certified facility economically services markets throughout the world including USA, Russia, Canada, Mexico, Brazil, Germany, Spain, Italy, Poland etc
In addition to outstanding growth in our die cast and injection molding department, our secondary machining operations have continued to grow to meet the varied needs of our customers, including: Drilling, tapping, turning, boring, milling, sanding, shot blasting, vibratory finish, and more.

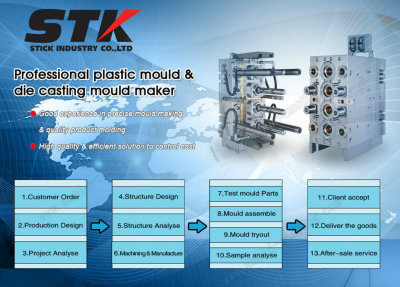

From concept to final production, from mechanical and electronic design to components sourcing, and from prototype manufacturing to mold design, our engineer team can jump in at any stage to complete your valuable project on time.
Our service include: Moulds, plastic injection molding, Aluminum/Zinc Die casting, CNC Machining, Sheet Metal Forming, Surface Treatments, Assembly and packaging.
We will pay great attention to your any question or enquiry.
If any questions, please feel free to contact us at any time.
