| Price: | US $ 0.15-2.16/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 87691 |
|---|---|
| Product Name: | Hydraulic Flange |
| Type: | Coupling |
| Application: | Hydraulic Systems Gas, Oil, Water |
| Color: | White, Yellow |
| Thread: | DIN, Jic, BSPP, BSPT, NPT |
| Brand Name: | Hua Tai |
| Service: | OEM ODM Service |
| Main Port: | Tianjin, Ningbo, Guangzhou, Shanghai |
| Business Type: | Manufacture |
| Salt Spray Testing: | 72hours |
| Standard: | BSW |
| Material: | Medium Carbon Steel |
| Connection: | Female |

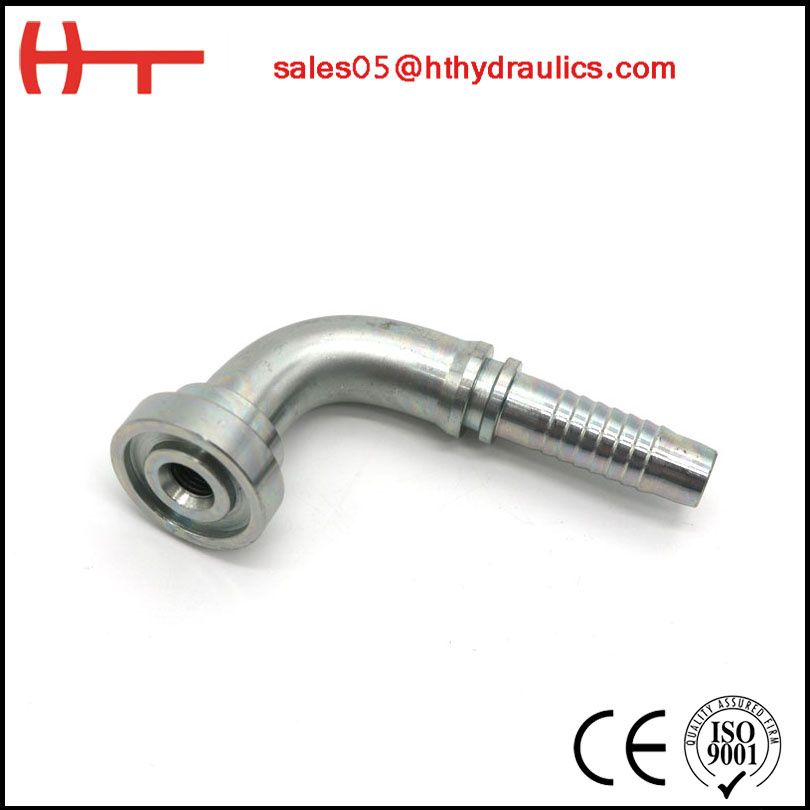

| Number:Hydraulic Flange 87691 | |||||||||

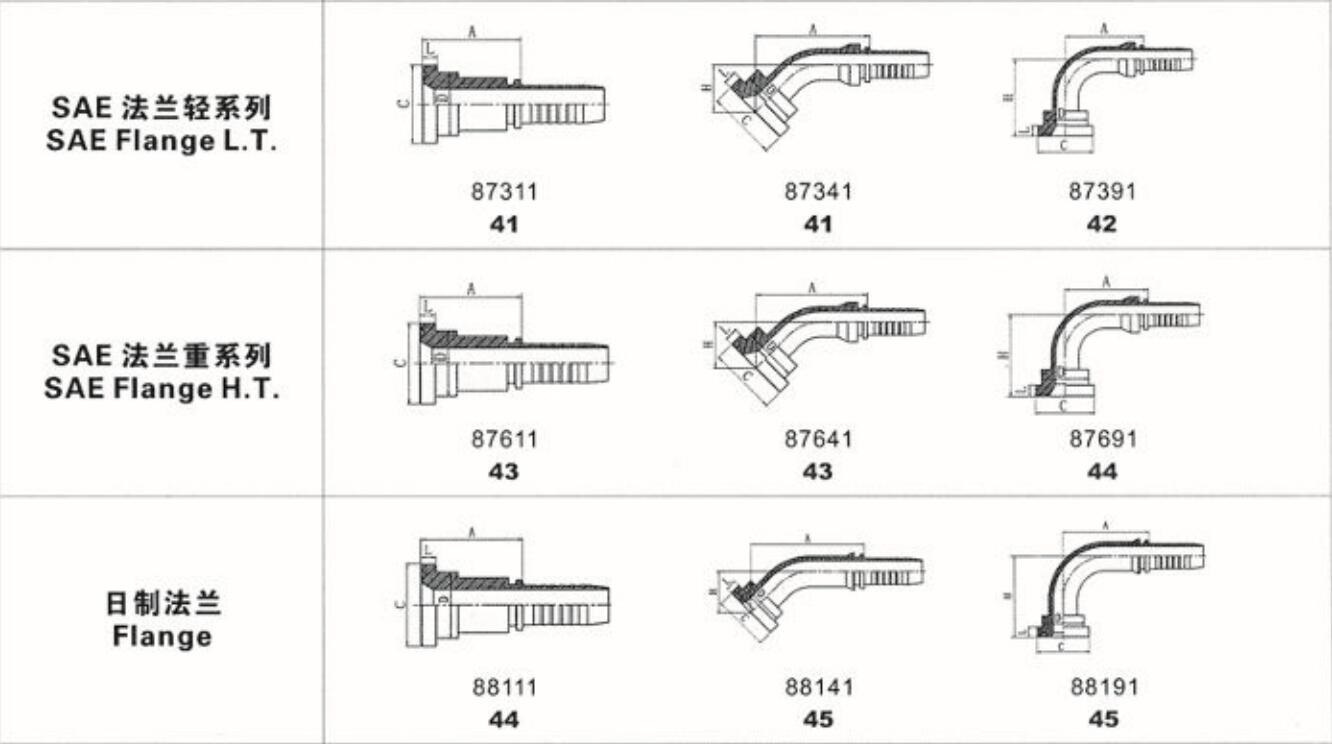

| Name:90° SAE Female 6000PSI ISO 12151-3--- SAE J516 | |||||||||
| Description: | |||||||||
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||||
| DN | DASH | A | C | D | H | L | |||
| 87691-08-08 | 1/2" | 12 | 8 | 41 | 31.7 | 24 | 48 | 7.75 | |
| 87691-12-10 | 3/4" | 16 | 10 | 56.5 | 41.3 | 32 | 56.5 | 8.76 | |
| 87691-12-12 | 3/4" | 20 | 12 | 66.2 | 41.3 | 32 | 66 | 8.76 | |
| 87691-16-12 | 1" | 20 | 12 | 66.2 | 47.6 | 38 | 69 | 9.53 | |
| 87691-16-16 | 1" | 25 | 16 | 78 | 47.6 | 38 | 74.5 | 9.53 | |
| 87691-16-20 | 1" | 32 | 20 | 91.5 | 47.6 | 38 | 85.5 | 9.53 | |
| 87691-20-16 | 1.1/4" | 25 | 16 | 78 | 54 | 44 | 78.5 | 10.29 | |
| 87691-20-20 | 1.1/4" | 32 | 20 | 91.5 | 54 | 44 | 89.5 | 10.29 | |
| 87691-24-20 | 1.1/2" | 32 | 20 | 91.5 | 63.5 | 51 | 94.5 | 12.57 | |
| 87691-24-24 | 1.1/2" | 40 | 24 | 109.4 | 63.5 | 51 | 108 | 12.57 | |
| 87691-32-24 | 2" | 40 | 24 | 109.4 | 79.4 | 67 | 116 | 12.57 | |
| 87691-32-32 | 2" | 50 | 32 | 131.8 | 79.4 | 67 | 136.3 | 12.57 | |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 87692-XX-XX. | |||||||||

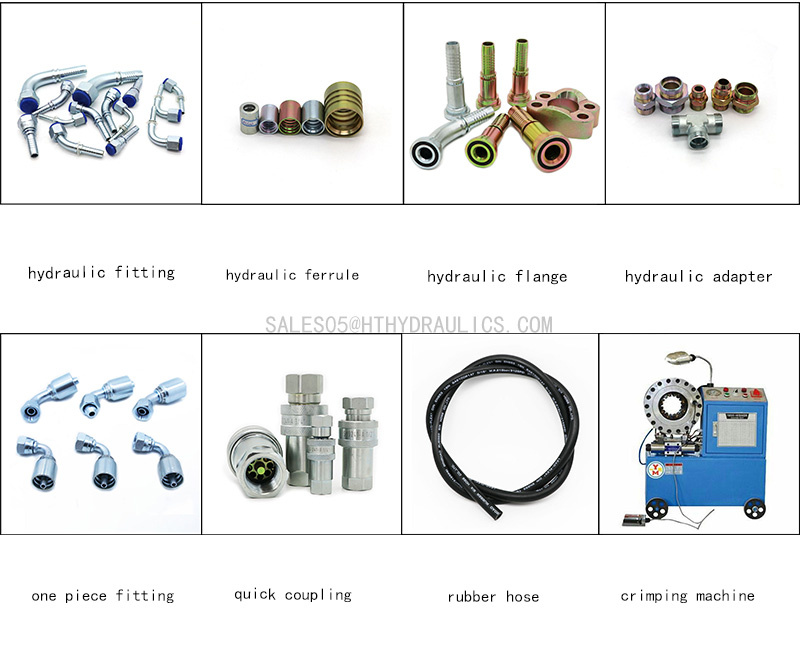

| Product Name | 1.Hydraulic Hose Fitting 2.Hydraulic Ferrule/Sleeve 3.Hydraulic Adapter 4.Hydraulic Flange 5. Integrated hose fitting/one picec fitting 6. Hydraulic Quick Coupling |
| Material | Carbon fiber or Stainless steel |
| Color Surface | nickel white or Zinc plating color Cr6free zinc, nickel, chrome, painting, hot galvanizing |
| Standard | Metric, DIN, JIC, BSP, BSPT, SAE, GAS, ORFS etc |
| Grade | Carbon Steel 45#,Stainless Steel,SUS201,SUS304,SUS316, |
| Connection | Male or Female |
| Thread | BSP BSPT METRIC JIC |
| Used | Heavy hydraulic equipment, Precision parts, machinery accessories, truck and auto parts, industrial parts, mining accessories, off-shore applicances, agricultral facilities and construction material etc.. |
| Volume | 0.022m³ for one carton |
| Weight | According to your order |
| Packaging Details | The normal package is carton box(Size:L*W*H). The carton can hold 300 big size ferrules and 500 small size ferrules. Or we can pack it according to customers special request. |
| Shipping Service | 1.Orders will be dispatched in 30 days after payment, depending on quantities. 2.We Always choose the most economical and reliable shipping company to make sure you receive the goods in time. 3.The tracking number will be offered once the consignment is shipped. 4.Professional customer service to answer your questions regarding you |

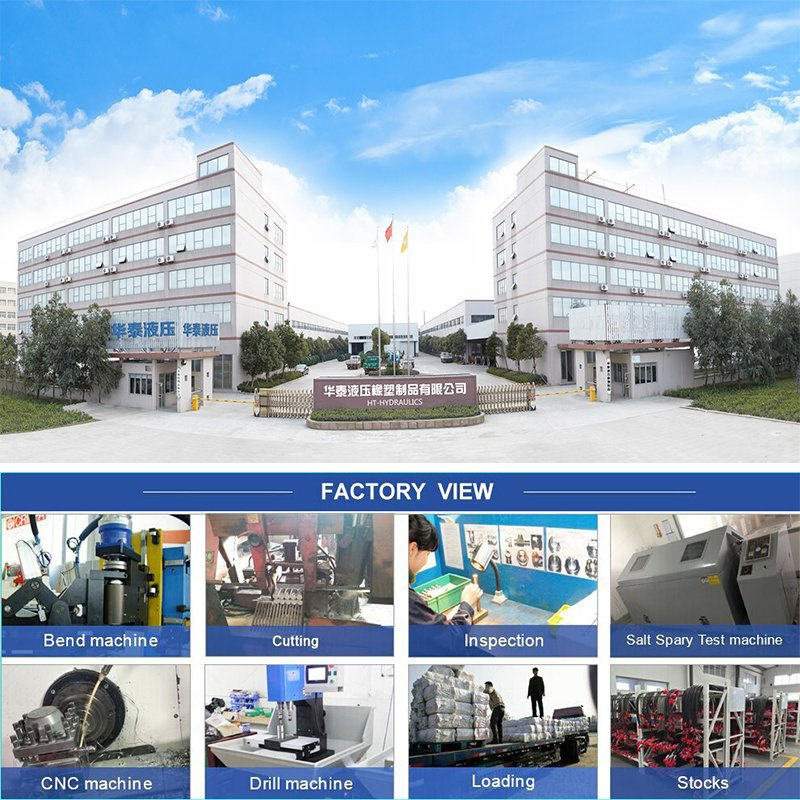

Jingxian Huatai Hydraulic Rubber Co., Ltd is located in Jingxian, Hebei Province which is well known as the hometown of hydraulic hose and tube. The company enjoys a superior geographical location, 300km far from the capital city Beijing and 1 hour by high speed rail train; 1000km far from Shanghai and 4 hours by high speed rail train. Moreover, the location is close to Tianjin and Qingdao ports and convenient for import and export.
We specialized in making Hydraulic fittings, Hydraulic adapters, Hydraulic couplings, Hydraulic hose fittings, Hydraulic ferrule, Hydraulic flange and so on, with high quality and the best price.
Our products are used in precision parts,machinery accessories,truck and auto parts,industral parts,mining accessories,off-shore applicances,agricultral facilities and construction material ect…
Other standard hose fittings are available according to customer's requirements.If you have any questions about our products , please contact me any time. Any suggestion about our factory or our products is appreciated! Welcome to visit!
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
