| Prod Model: |
1-20 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
CNC Carbide Hot Chatter Free End Mill Power Tools |
| Model No: |
End Mills |
| Brand: |
Preda |
| Material: |
Carbide |
| Precision: |
High Precision |
| Machine Type: |
CNC Machine |
| Suitable For: |
Wood, Plastic, Aluminum |
| Usage: |
Metal Machining |
| Flutes: |
2/4 Flutes |
| OEM: |
Accept |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description

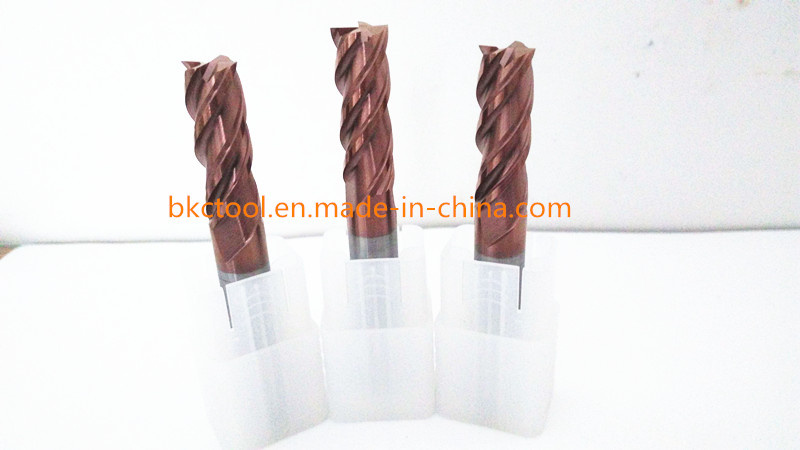

Product Description1. CNC Carbide Hot Chatter Free End Mill power tools

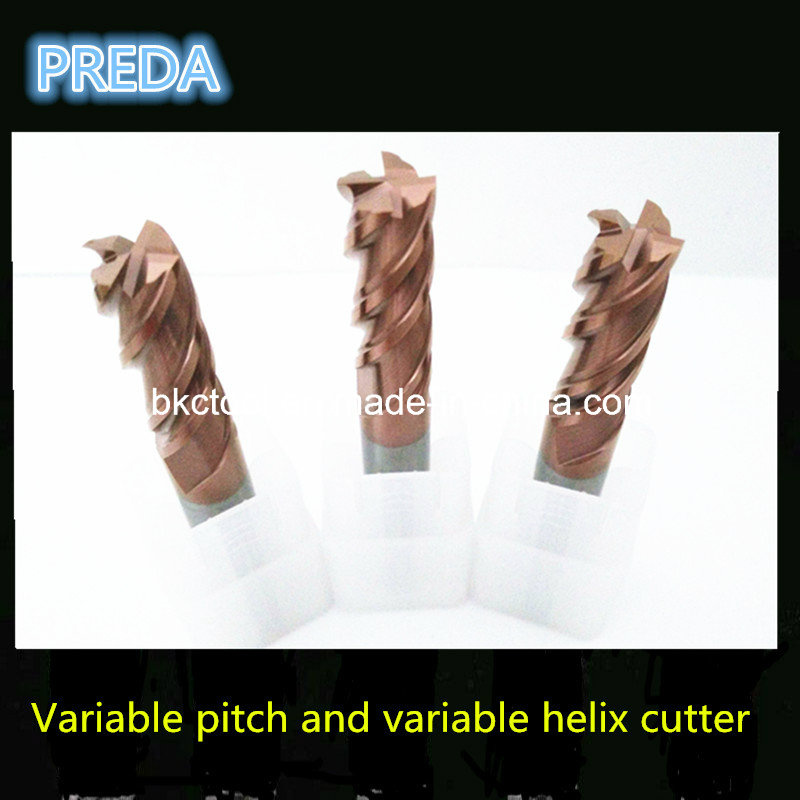

2. Variable pitch and variable helix cutter
3. HRC: 55
4. TICN Coating
5.1mm-25mm / 1/16" to 3/4 "
6.1/2/3/4/6 Flute
7 Micro grain 0.5-0.6um
Products specificationCNC Carbide Hot Chatter Free End Mill power tools
SurfaceTiCN/TiN/TiAlN/Uncoated
Flexural Strength2500-4000N/mm2
Controling ModeCNC
UsageMetal
Chemical Composition6%-12%Co-WC
Density14.45-14.90g/cm3
1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.
| Coating Classifying and Advantage |
| Item | Coating Type | AlTin | Tialn | TiSin | Naco |
| Characteristic | Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp.(ºC) | 900 | 800 | 1000 | 1200 |
| Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Specifications: | Outside Dia/Dc | Shank Dia/D | Flute Length/LC | Overall Length/L | Flute |
| (mm) | (mm) | (mm) | (mm) | (mm) |
| 1 | 4 | 3 | 50 | 2& 3 |
| 1.5 | 4 | 4 | 50 | 2& 3 |
| 2 | 4 | 6 | 50 | 2& 3 |
| 2.5 | 4 | 8 | 50 | 2& 3 |
| 3 | 4 | 9 | 50 | 2& 3 |
| 4 | 4 | 12 | 50 | 2& 3 |
| 5 | 6 | 15 | 50 | 2& 3 |
| 6 | 6 | 18 | 50 | 2& 3 |
| 8 | 8 | 20 | 60 | 2& 3 |
| 10 | 10 | 25 | 75 | 2& 3 |
| 12 | 12 | 30 | 75 | 2& 3 |
| 16 | 16 | 50 | 100 | 2& 3 |
| 20 | 20 | 55 | 100 | 2& 3
|

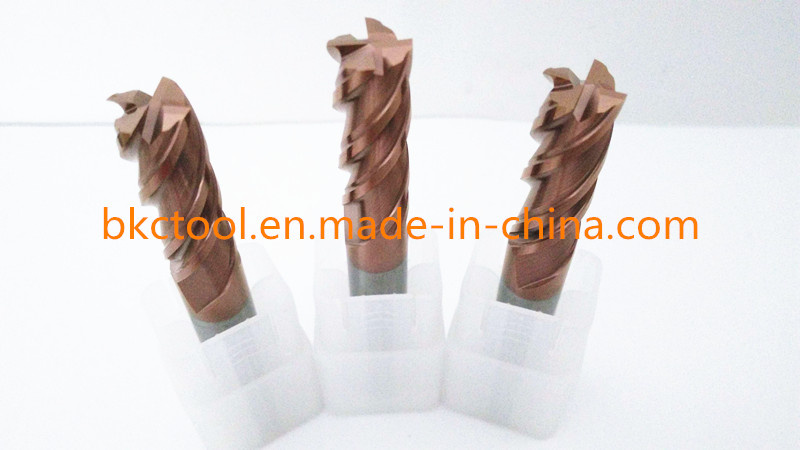

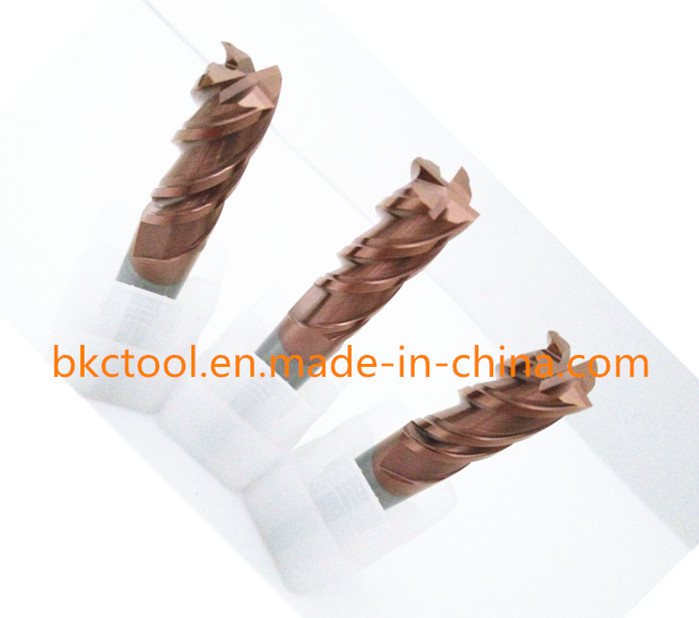

Product Show :

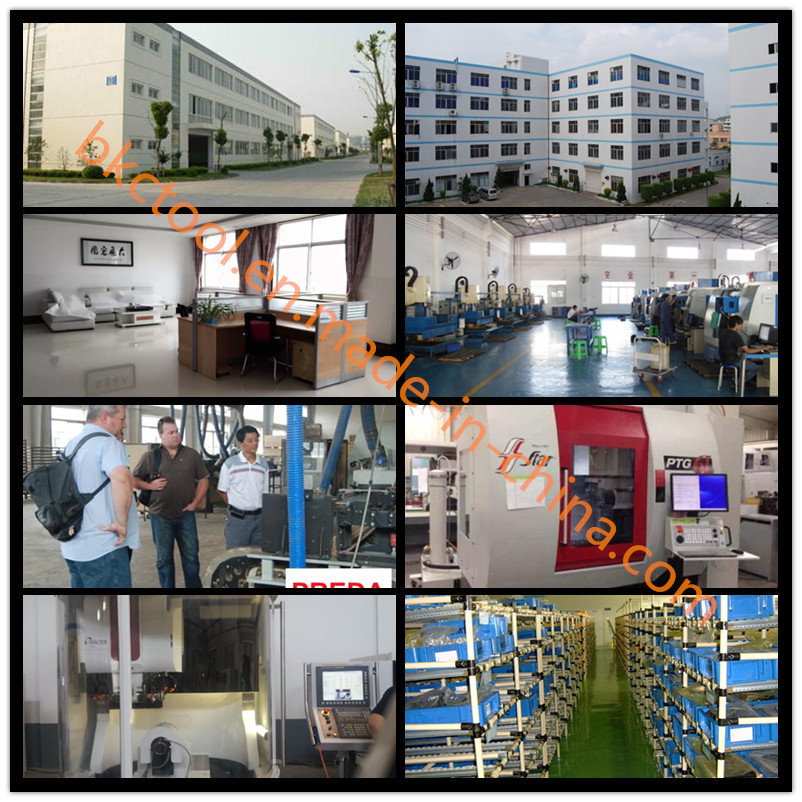

Company Details :
Package details :
CNC Carbide Hot Chatter Free End Mill power tools
FAQ:1. Are you manufacturer? Do you have factory?
---We are Professional manufacturer ,we have more than 15 years experience in this field.
2. Does free shipping is possible?
----We don't offer free shipping service, but we will give you some discount if you buy large quantity products.
3. Can you send products to our Forwarder in China?
----Yes, if you have forwarder in China, i will glad to send products to him/her.
4. Do you make OEM?
----Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
5. How about the delivery time?
----According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.
6. Can you produce carbide Special Tool ?
--- Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and sample
We are a professional manufacturer of good quality carbide cutting tools, with an experienced design team. Our company was founded in 2001.
At present, we use the best six-axis CNC grinding equipment from Germany to produce high-speed carbide end mills, which is suitable for cutting highly hard and soft metal.
It is our business policy to strive for the development and innovation of carbide end mills, provide high-quality products, and offer custom designs for meeting your various needs. We have gotten customer' S support and affirmation since we were established.
In order to allow more customers to know us, we are moving toward internationalization. With the combination of sophisticated technology and modern network marketing, we provide more and better service.
Welcome to our company. We will do our best to be professional in the precision cutting tool production, and create the best results for you.
We willstrive to provide you with high quality products and quality service, We can also accept any kinds of payment terms, such as T/T, Western Union, L/C, OA, D/P, Escrow etc.
"Quality first, Customer first" is our orientation, we sincerely invite you to our company for the bright future. You are welcome to contact us for future friendly business relationships so as to achieve mutual benefit.
Do not be hesitate to contact us if you have interest in our goods, because of different countries in different time difference, you may met businessmen are not online or out, making your enquiry in our mails would be highly appreciated and we will respond you soon.
