CNC Circular Slab Stone Cutting Machine

CNC Circular Slab Stone Cutting Machine
Price: US $ 22500-26500Set
Min Order: 1Set
Pay Type: L/C,T/T
Prod Model: CHJJ-1500
Column Of Diameter: ≥Φ600mm
Max Cutting Height: 1500mm
Max Cutting Width: 1300mm
Outline Dimension: 6300*5200*3200mm
Main Motor: 4kw
Gross Motor: 11kw
Gross Weight: 5000kg
Water Consumption: 4m3/H
Color: White,Blue
Type: CNC Cutting Machine
Usage: Marble
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic

Product Description








Product Description

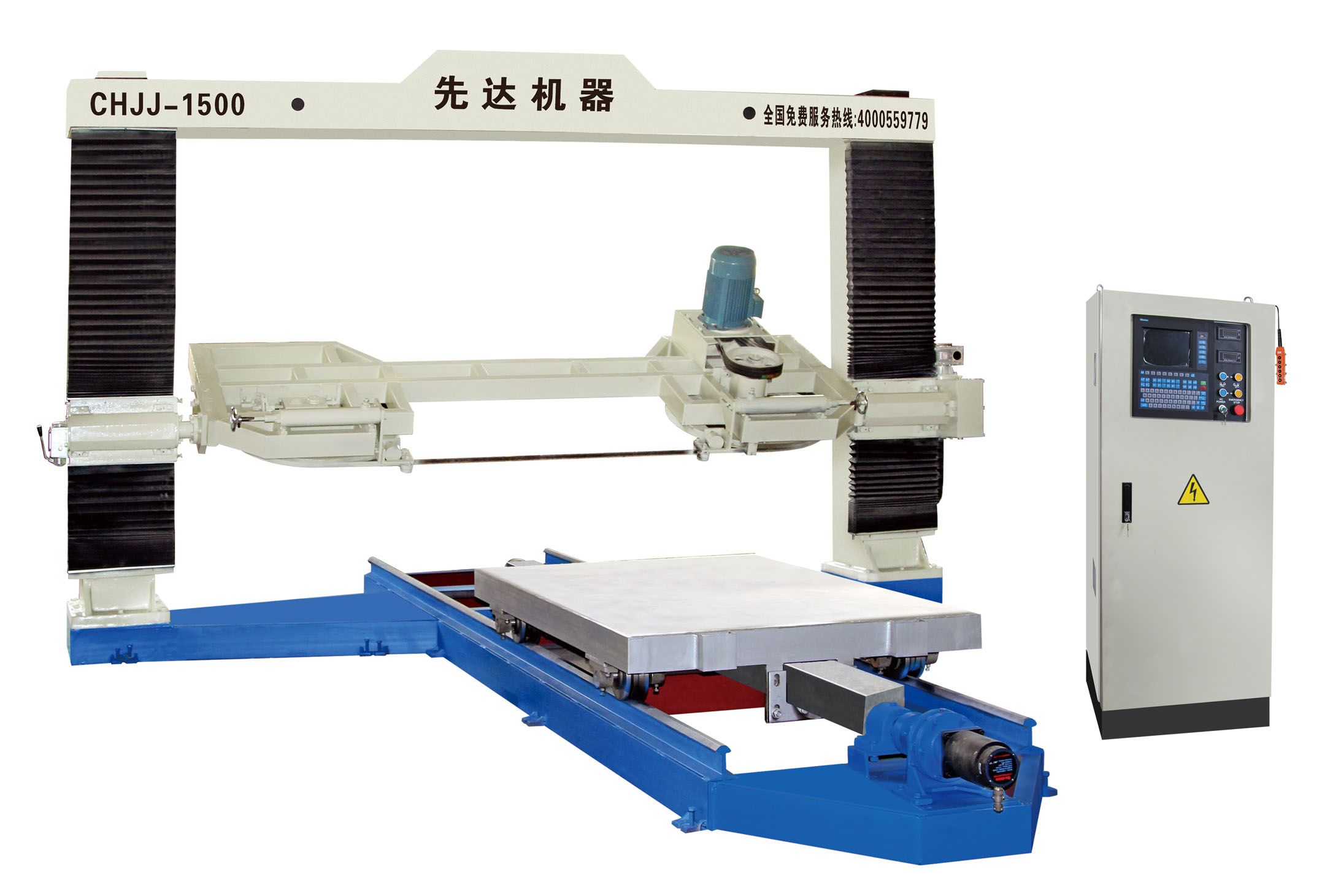

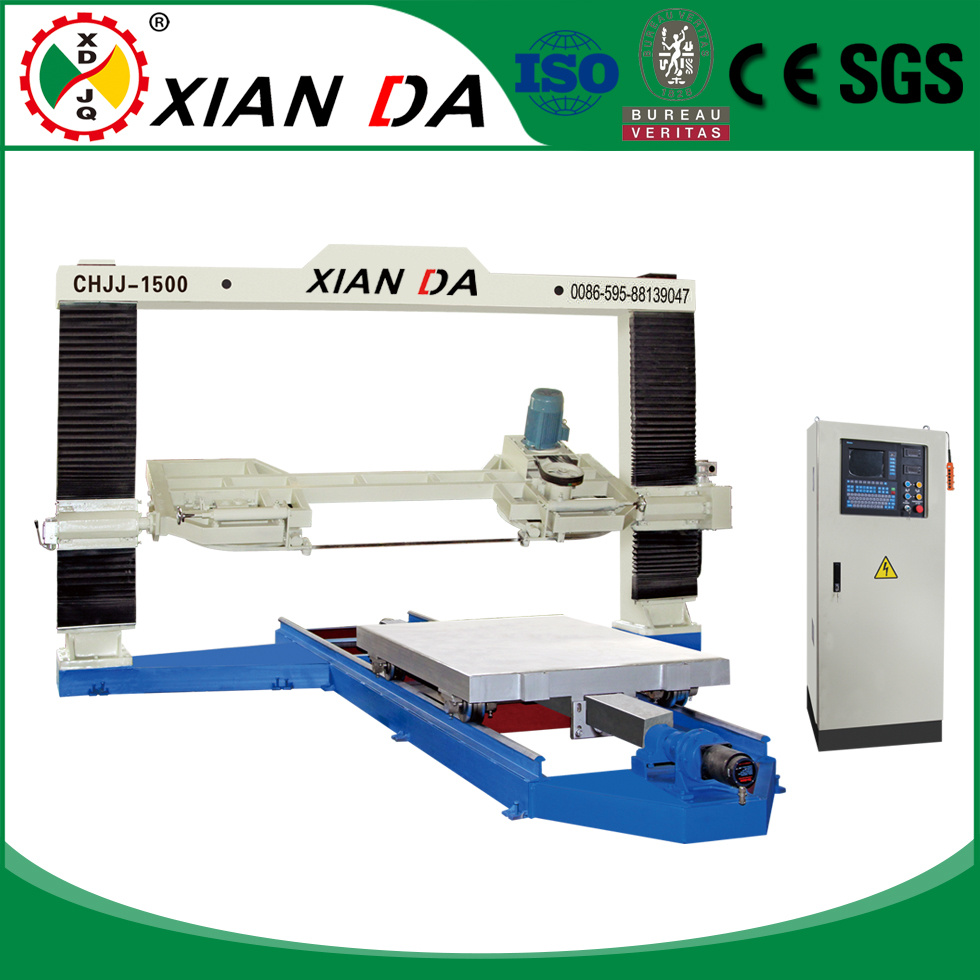

Xianda CHJJ-1500 CNC Circular slab stone cutting machine for mable adopts the latest structure design, the saw blade which operates around the central axis, slicing blocks is controled by the worktable automatic feeding. It has he features of lower energy consumption and small saw kerfs(3mm sawkerfs), saving blocks, simple operation, high precision and high efficiency. Maximum's processing diameter range is 600mm to 2000mm, which is the optimal choice for processing the circular arc slab stone material.

Technical Parameter
Parameter
Unit
CHJJ-1500
Column of diameter
mm
600
Max cutting height
mm
1500
Max cutting width
mm
1300
Outline dimension
mm
6300*5200*3200
Main motor
kw
4
Gross motor
kw
11
Gross weight
kg
5000
Water consumption
m3/h
4
Xianda Machinery



Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.


Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.

If you have any problem,just conact our sales department,customer service department,etc at any time.


Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.

With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.

Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".

Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
