| Price: | US $ 2.16-3/Piece |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | X1501 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

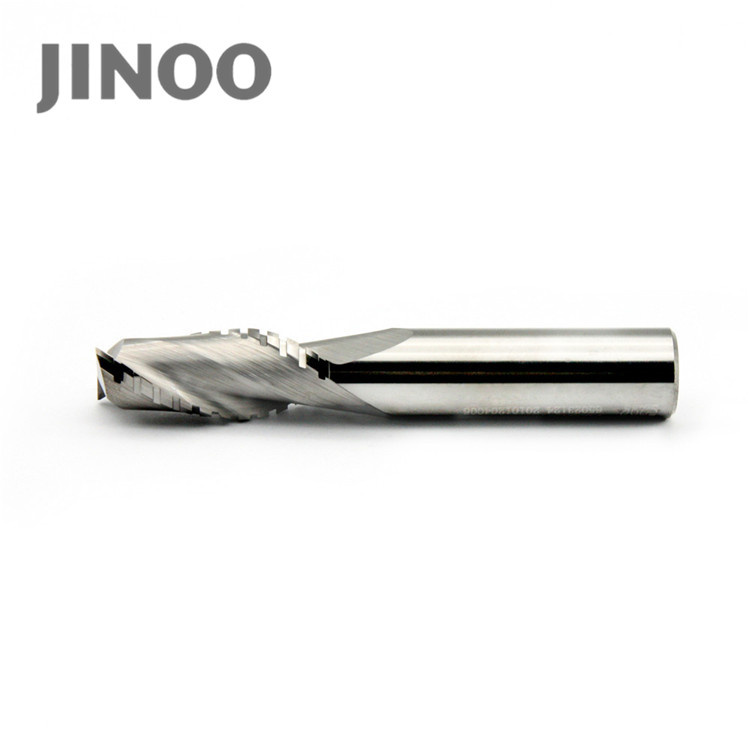

| Item: | Carbide End Mill |
| Material: | Carbide |
| Grain: | 0.4-1.0um |
| Precision: | High Precision |
| HRC: | 45-65 |
| Hra: | 92 |
| Flute Diameter: | 3mm |
| Cutting Length: | 8mm |
| Over Lengtn: | 50mm |
| Brand: | Jinoo |
| Process Usage: | Metal-Cutting CNC Machine Tools |
| Movement Method: | Linear Control |
| Control Method: | Closed-Loop Control |
| Numerical Control: | NC |
| Performance Classification: | High-End CNC Machine Tools |

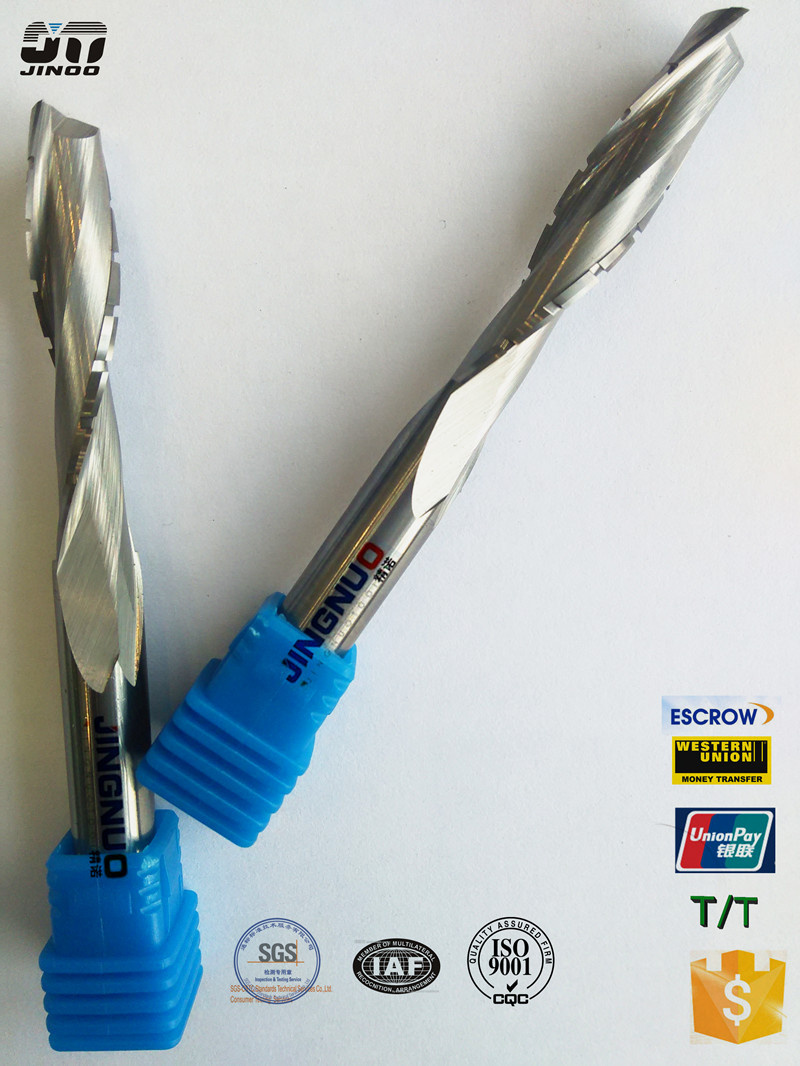

| Brand | 4 Flute Blue Nano Solid Carbide Cutting Tools End Mills For Metal |
| Tolerance | H6 |
| Angle | Helix angle 35 °, 45 ° |
| Suitable for | Mould steel , Cast Iron , Titanium alloy , Copper , and Aluminium etc |
| HRC | HRC45 , HRC50, HRC55 , HRC60 , HRC65 |
| Material | YG10X , GU25 &WF25 , Germany K44 &K40 , TSF22 |
| MG Grain size | 0.7um , 0.6um , 0.5um , 0.4um |
| CO | 10% , 10% , 12% , 10% |
Standard size product size
Order Number | Diameter | Cutting Length | Shank Diameter | Overall Length |
D1X3X4DX50X2F | 1 | 3 | 4 | 50 |
D1.5X4X4DX50X2F | 1.5 | 4 | 4 | 50 |
D2X6X4DX50X2F | 2 | 6 | 4 | 50 |
D2.5X7X4DX50X2F | 2.5 | 7 | 4 | 50 |
D3X8X3DX50X4F/ D3X8X4DX50X4F | 3 | 8 | 3/4 | 50 |
D3.5X10X4DX50X4F | 3.5 | 10 | 4 | 50 |
D4X11X4DX50X4F | 4 | 11 | 4 | 50 |
D4.5X13X6DX50X4F | 4.5 | 13 | 6 | 50 |
D5X13X5DX50X4F/ D5X13X6DX50X4F | 5 | 13 | 5/6 | 50 |
D6X15X6DX50X4F | 6 | 15 | 6 | 50 |
D8X20X8DX60X4F | 8 | 20 | 8 | 60 |
D10X25X10DX75X4F | 10 | 25 | 10 | 75 |
D12X30X12DX75X4F | 12 | 30 | 12 | 75 |
D14X45X14DX100X4F | 14 | 45 | 14 | 100 |
D16X45X16DX100X4F | 16 | 45 | 16 | 100 |
D18X45X18DX100X4F | 18 | 45 | 18 | 100 |
D20X45X20DX100X4F | 20 | 45 | 20 | 100 |
|
2. Advantage of end mill -----end mill
1. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC drilling machine and dry-type process machining.
3. The shank can be customized according to customers' requirements.
4. We supply different type of drills bits, such as twist drills, center drills, spot drills, coolant drill bits.

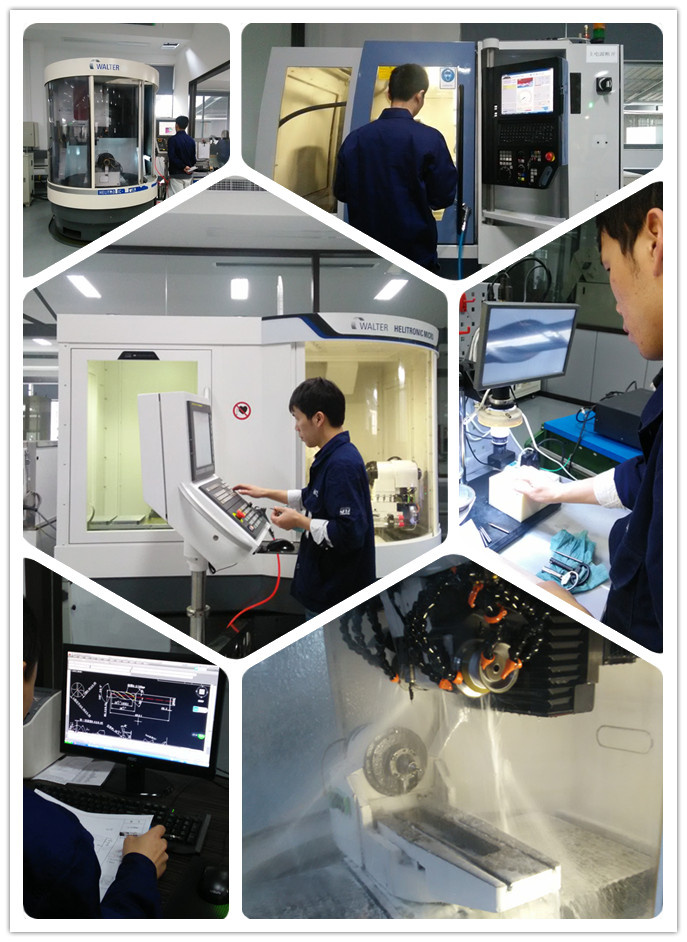

3. Workshop-----end mill
All tools are made by Walter and Helitronic Micro from Germany. ANCA from Australia, Rollomatic from Switzerland guarantee high quality and good performance.
Hot sales cnc coated solid carbide end mill tungsten carbide end mill
Every end mill is inspected by Mitutoyo measuring and inspecting machine.
1> White parts for protect the flute of cutters
2> Laser brand and demensions on the body of cutters, print labels.
3>1.One plastic pipe pack one piece, 10 pieces per group.
4> Sealed with air bubble wrap, pack into bigger carton.Other packing will be accept according to your needs.
5>Delivery time:1-3 weeks after the payment confirmed
Payment
Big order T/T or L/C at sight
Small order, TT, Westerm Union, Escrow
4.Jingnuo company
Changzhou Jingnuo Tools Co., Ltd
>> Established in 2006, the professional manufacturer in solid carbide tools in high precision and high quality.
>> Provide a variety of molding cutters for the companies who production of automobile, motorcycle engine, diesel engine, carburetor, compressor, mold industry and other manufacturers.
>> Mainly produce solid carbide: drills, milling cutters, reamers, reamer drills, boring tools, drilling tools, and we also can be designed a variety of strange tools for customers.
Products are mainly supporting the processing center, CNC machine tools and other precision machine tools.
5.Our Service
>> Trade term: EXW HS Code: 8207709000
>> Payment term: T/T (Bank tranfer), Western Union, PayPal.
>> Customized or special cutters are welcome
>> OEM orders are welcome
6.FAQ
1. Are you manufacturer? Do you have factory?
We are manufacturer, factory located in Changzhou City, Jiangsu Province, welcome to visit our factory!
2. What machine you use?
You can see Walter grinding machines in our factory, also have PARLEC detection machine.
3:Can I have a sample for testing?
Actually we think samples are not very important.You can buy from anywhere.But we think our
cargos will better then any others.
Samples will be 10% higher then the cargo.
4:Can I add my logo on the kitchen appliances?
Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter. so can print labels.
5. Can you send products to our Forwarder in China?
Yes, if you have forwarder in China, i will glad to send products to him/her.
6. How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.
7. After service:
1. If you are not satisfied with your purchase, you can exchange the item. The buyer is responsible for all further shipping costs.
2. The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.
3. Exchange Steps:All items must be returned in their original condition, in order to quality for an exchange.
1. Contact us via email or calls;
2. Provide details as much as possible about the proble you are having;
3. Authorization to return the item will be issued;
4. Return the item for agreed exchange.
4. Please kindly note that: We do not cover any items for damage after use or as the result of water damage.
