CNC Lathe Machine Price HTC32/Cxk32 with Power Tools

Name: CNC Lathe Machine Price HTC32/Cxk32 with Power Tools
Brand: tool-buy.com
SKU: 711147962
Availability: InStock
Rating: 4.3 (56 reviews)

Price:	US $ 10000-100000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Zhejiang Jingdian Numerical Control Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	HTC32/CXK32
Machine Type:	Slant Bed CNC Lathe
Max Swing Diameter:	400mm
Guideway:	Hiwin Linear Guideway
Spindle Bore Diameter:	47mm, A2-6
Main Motor:	5.5kw Servo Spindle Motor
Turret:	8 Station Electric Turret Optional
Chuck:	6 Inch Hydraulic Chuck
Spindle Speed:	3000rpm
Net Weight:	1900kg
System:	Fanuc, GSK, Knd, Simens
Type:	Horizontal Lathe
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe
Power Source:	Mechanical Drive
Controlling Mode:	CNC
Automatic Grade:	Automatic
Setting Mode:	Floor-type
Precision:	High Precision
Certification:	TUV BV

Product Description

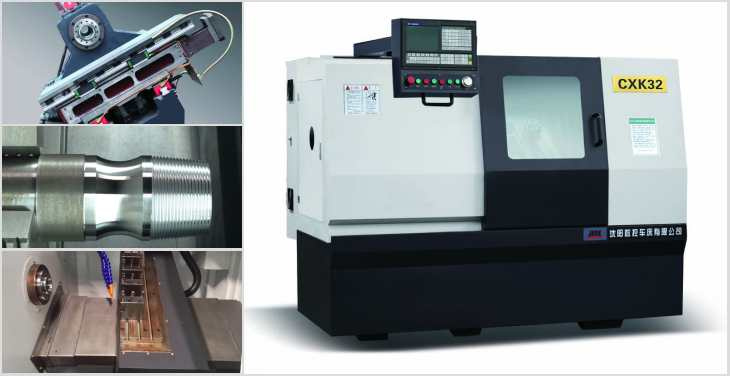

CXK32 HTC32 JDSK CNC Lathe Slant bed CNC Turning Center
Please see the machine video in Youtube address,
https://youtu.be/Z5pYK1ZaaGQ

http://v.youku.com/v_show/id_XMTI3NDY4ODYwNA==.html

Main Features:

1. HTC series slant bed CNC lathe adopt GSK, Fanuc system to achieve machine two axis' control. It is a type of small precision CNC lathe with high accuracy level, high rigidity and cost-performance.

2. This machine use 30 degree one-piece casting structure, with easy chip removal and operation. High precision through hole type spindle structure, P4 level spindle specified bearing, stable running and stepless speed change, high performance converter, frequency motor can realize constant line speed cutting. Machine full protection design can effectively prevent oil and water leakage.

3. It can finish internal and external cylinder, cone surface, metric and inch threading and meet different processing needs, suitable for processing dishes and short shaft parts with high precision.

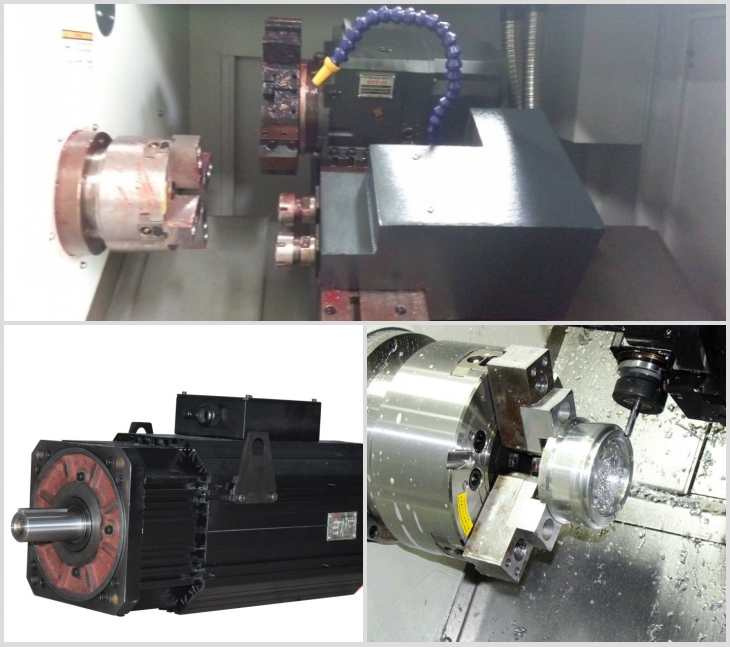

Standard Configuration:
1. Frequency converter: INOVANCE

2. Type of guideway: Taiwan HIWIN Linear guideway

3. Ball screw:Taiwan HIWIN Optional

4. Turret: 8 Station Electric Turret Optional

5. Spindle type: Sleeve Spindle,

6. Spindle motor: 5.5KW MK Servo motor

7. Chuck:Taiwan 6 inch Hollow hydraulic chuck,
8. Tailstock: Hydraulic Tailstock

9. Control system:GSK, KND, Simens, Fanuc

10. Electric parts:Schneider Electric

Optional Configuration:
1.NSK or C&U bearing
2.Hiwin Ballscrew
3.8 station electric turret
4. Servo spindle
5.Auto feeder, chip conveyor
6. Hydraulic power chuck
7. Live tools

Main Specifications:

Item	Unit	HTC32/CXK32
Max. swing dia. over bed	mm	Φ400mm
Max. swing dia. over carriage	mm	Φ180mm
Max. machining diameter	mm	Φ320mm
Type of Spindle nose		A2-5
Spindle speed	r/min	50-3000r/min
Spindle bore dia.	mm	Φ47
Distance between spindle center to ground	mm	1020mm
Main motor power	kw	5.5kw

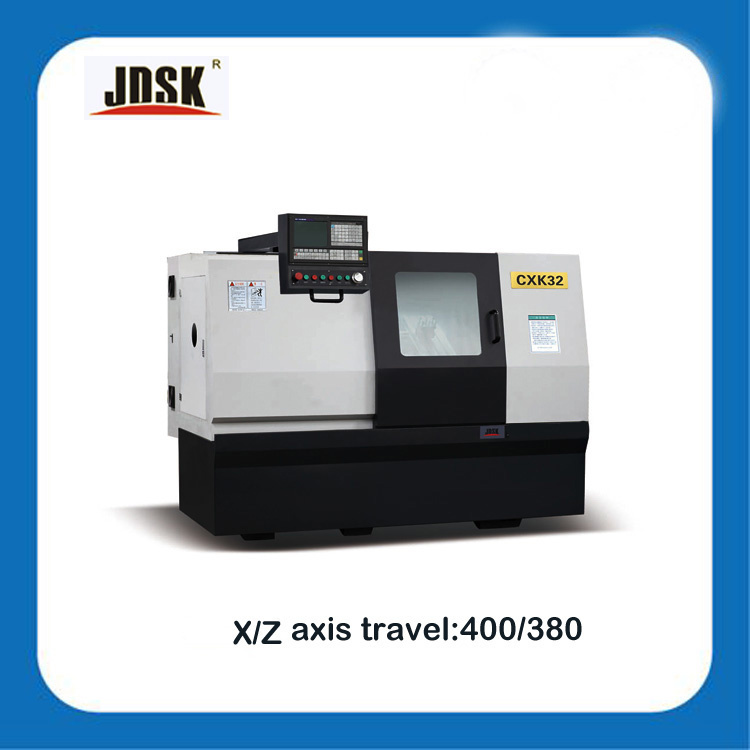

Max. travel	mm	X axis: 400mm
		Z axis: 380mm
Max. rapid movement speed	mm/min	X: 12000
	mm/min	Z: 20000
Guideway type		Linear guideway
Turret type		Gang type tool post
Net Weight		1900kg

ABOUT JDSK

Zhejiang Jingdan Numerical Control Equipment Co., Ltd, short for JDSK, is specialized in producing CNC lathe, CNC Vertical lathe, Slant Bed, high speed and precision CNC lathe, CNC Turning Center, as well as specialized cnc lathe machine, VMC etc. With factory area of more than 98000 square meters and more than 260 employees, including 35 high educated technicians and 8 senior engineers. JDSK has an excellent production team. 30% of products are exported to oversea market. We are one of the largest machine tools manufactures in Zhejiang, China.

Our Sales Service:

1.24 hours on Internet and Telephone, free instruction and problem solving.

2. Free training how to use.

3. User-friendly English manual or operating video for machine using and maintaining.

4. on-the-spot training and installation can be met if required.

5. We always deliver machinery on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.

If you have any question, please feel free to contact,
Contact
Erik Lin:
Tel: +86 13758658538

Zhejiang Jingdian Numerical Control Equipment Co., Ltd (JDSK) is specialized in production of CNC lathes, CNC CNC machine, powder metallurgy parts and production line, assemble line etc. With factory area of more than 98000 square meters, JDSK own an excellent production team which consist of more than 260 employees, including 35 high educated technicians and 8 senior engineers. It enables us to be a reliable and competent machine tools manufacturer in Zhejiang.

JDSK has a complete set of production facility, we have metalworking plant, assembly commissioning workshop, painting workshop and sheet-metal workshop etc., and thus, we are considered to be one of the modern professional enterprises integrated with scientific research, production, distribution and service.

Meanwhile, we invested and introduced foreign advanced detection equipment and CNC gantry guideway and surface grinding machine, vertical machining center, high precision circular grinding machine, boring machining center and large laser cutting machine and so on.

Adherence to principle of taking product quality as center, market as guide and customer oriented service, we try to ensure the pre-sales, sales, after-sales service timely and effectively to every customer. JDSK can send service personnel to help customers for the machine commissioning and installation and providing technical training according to the customers' demands, with 24-hour tracking service, our maintenance personnel can provide customers the most satisfactory service at the shortest time.

And now usher in the new decade, JDSK intend to expand the market abroad, 30% of the products are exported overseas market last year, and the volume will rapidly increase in the near future.
