Taiwan Linear Slant Bed CNC Lathes with Live Tools Power Tools

Taiwan Linear Slant Bed CNC Lathes with Live Tools Power Tools
Price: US $ 10500-20000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: HTC32
Machine Type: Taiwan Linear Slant Bed CNC Lathes with Live Tools
Max Swing Diameter: 400mm
Spindle Bore: 47mm, A2-5
Turret: Gang Type Tool Post

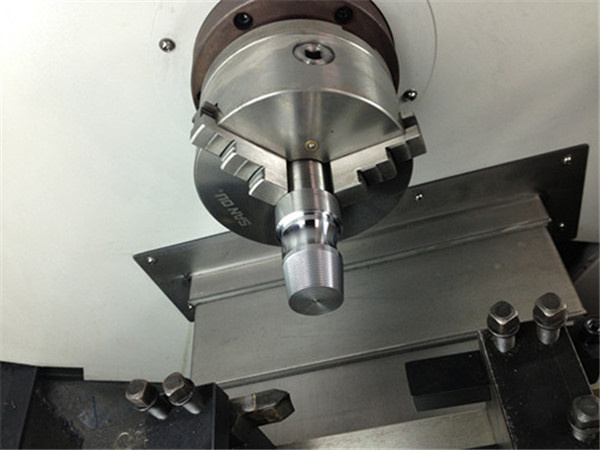

Chuck: 6" Chuck
Spindle Speed: 50-3000rpm
CNC Controller: GSK, Fanuc, Siemens
Processing: Steel, Brass, Al, Stainless Steel
Machine Dimension: 1740*1140*1670mm
Net Weight: 1800kg
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

Taiwan Linear Slant bed CNC lathes with live tools power tools
Check the CNC lathe machine video at following web:

https://youtu.be/SQ_We3CwluM
https://youtu.be/jJJY4mA7iXY
https://youtu.be/6-p8eo4perM




Product Features

1. Sheet metal full protection design can fully ensure operator's safety.
2. Machine bed adopt high quality resin sand casting and aging treatment.
3. Centralized lubrication unit, to make the machine parts get sufficient lubrication and extend machine service life time.
4. Using linear guiderail to make machine long time of stability and high precision

5. Popular full enclosed guards with interlock offer a waterproof and chip-free environment.
6. It can finish internal and external cylinder, cone surface, metric and inch threading and satisfy different processing needs.

Standard Configuration
1. GSK, Fanuc, Siemens CNC control system ( Optional)
2. Servo Drive
3. Hiwin Linear Guideway
4. HRB bearing
5. 5.5KW Inovance converter
6. Schneider Electric for key parts
7. Hydraulic collet

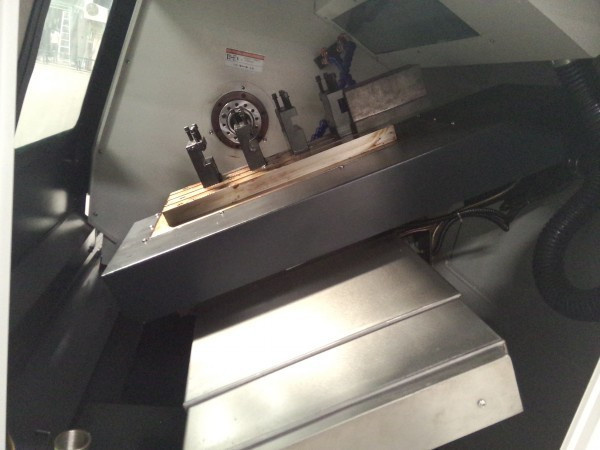

8. Gang type tool post

Optional Accessories
1.NSK or C&U bearing
2.Hiwin Ballscrew
3.4/6 station electric turret
4. Servo spindle
5.Auto feeder, chip conveyor
6. Hydraulic power chuck
7.servo tools

Technical Specifications

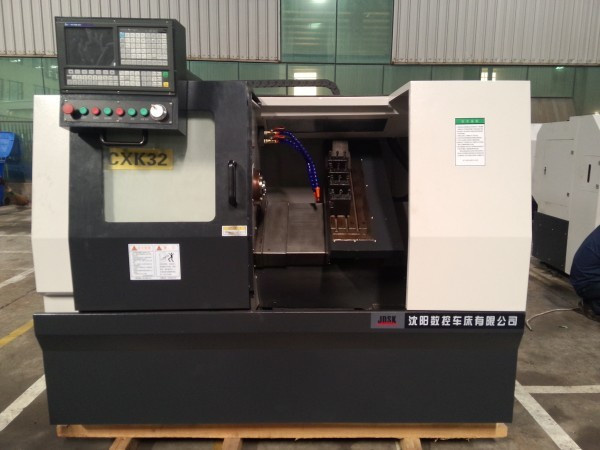

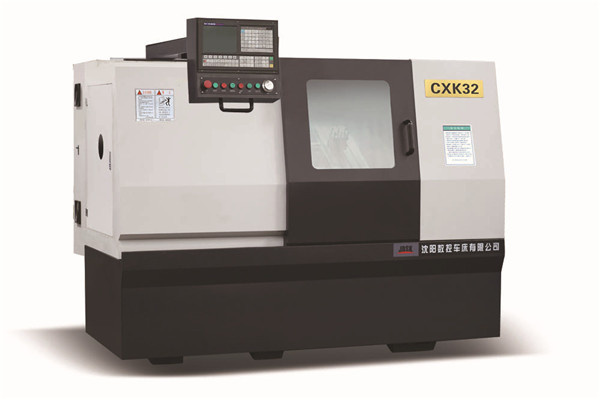

ItemUnitCXK32
Max. swing dia. over bedmmΦ400mm
Max. swing dia. over carriagemmΦ180mm
Max. machining diametermmΦ320mm
Type of Spindle nose A2-5
Spindle speedr/min50-3000r/min
Spindle bore dia.mmΦ47
Distance between spindle center to groundmm1020mm
Main motor powerkw4kw
Max. travelmmX axis: 400mm
  Z axis: 380mm
Max. rapid movement speedmm/minX: 12000
 mm/minZ: 20000
Guideway type Linear guideway

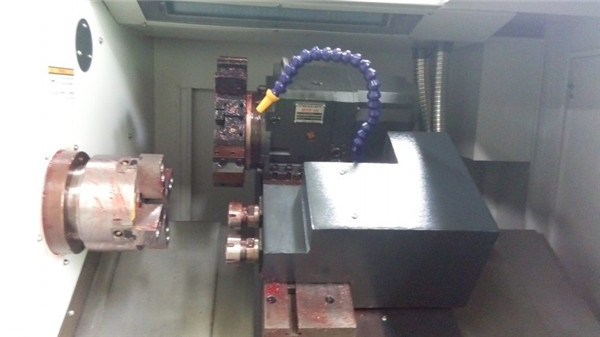

Turret type  Gang type tool post
Net Weight  1800kg

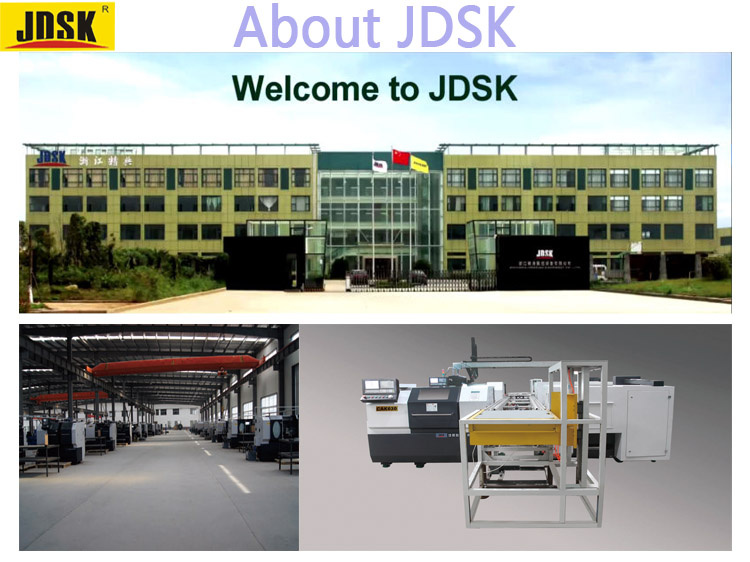

About JDSK

Zhejiang Jingdan Numerical Control Equipment Co., Ltd, short for JDSK, is specialized in producing CNC lathe, CNC Vertical lathe, Slant Bed, high speed and precision CNC lathe, CNC Turning Center, as well as specialized cnc lathe machine, VMC etc. With factory area of more than 98000 square meters and more than 260 employees, including 35 high educated technicians and 8 senior engineers. JDSK has an excellent production team. 30% of products are exported to oversea market. We are one of the largest machine tools manufactures in Zhejiang, China.


Our Sales Service

1.24 hours on Internet and Telephone, free instruction and problem solving.

2. Free training how to use.

3. User-friendly English manual or operating video for machine using and maintaining.

4. on-the-spot training and installation can be met if required.

5. We always deliver machinery on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.
If you are interested in our CNC lathe machine, pls Contact
Sophie Wang :
Tel:+86 13586227825



Zhejiang Jingdian Numerical Control Equipment Co., Ltd (JDSK) is specialized in production of CNC lathes, CNC CNC machine, powder metallurgy parts and production line, assemble line etc. With factory area of more than 98000 square meters, JDSK own an excellent production team which consist of more than 260 employees, including 35 high educated technicians and 8 senior engineers. It enables us to be a reliable and competent machine tools manufacturer in Zhejiang.

JDSK has a complete set of production facility, we have metalworking plant, assembly commissioning workshop, painting workshop and sheet-metal workshop etc., and thus, we are considered to be one of the modern professional enterprises integrated with scientific research, production, distribution and service.

Meanwhile, we invested and introduced foreign advanced detection equipment and CNC gantry guideway and surface grinding machine, vertical machining center, high precision circular grinding machine, boring machining center and large laser cutting machine and so on.

Adherence to principle of taking product quality as center, market as guide and customer oriented service, we try to ensure the pre-sales, sales, after-sales service timely and effectively to every customer. JDSK can send service personnel to help customers for the machine commissioning and installation and providing technical training according to the customers' demands, with 24-hour tracking service, our maintenance personnel can provide customers the most satisfactory service at the shortest time.

And now usher in the new decade, JDSK intend to expand the market abroad, 30% of the products are exported overseas market last year, and the volume will rapidly increase in the near future.
