Prod Model: |
CK6440 |
Machine Type: |
CNC Lathe Machine |
Max Swing Diameter: |
440mm |
Spindle Bore: |
56mm, A2-6 |
Turret: |
8 Station Hydraulic Turret, 12 Station Live Turret |
Chuck: |
8" Hydraulic Chuck |
Spindle Speed: |
50-3000rpm |
CNC Controller: |
GSK, Fanuc, Siemens |
Processing: |
Steel, Brass, Al, Stainless Steel |
Machine Dimension: |
2570*1620*1940mm |
Net Weight: |
3000kg |
Type: |
Horizontal Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Single-tool Holder CNC Lathe |
Power Source: |
Electric |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Setting Mode: |
Floor-type |
Precision: |
High Precision |
Product Description

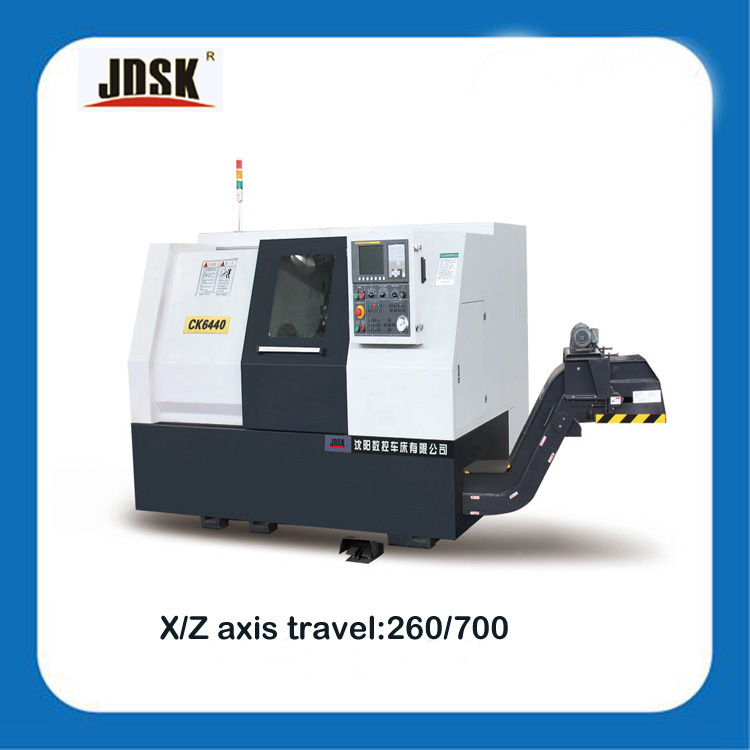

CNC Turning Milling Machine CNC Lathe with power tool
Standard Configuration
1.GSK, Fanuc, Siemens CNC control system ( Optional)
2. Servo Drive
3.Hiwin Linear Guideway
4.HRB bearing
5.7.5KW servo spindle motor
6.Schneider Electric for key parts
7.8" hydraulic chuck
8. 8 station hydraulic turret
Optional Accessories
1.NSK or C&U bearing
2.Hiwin Ballscrew

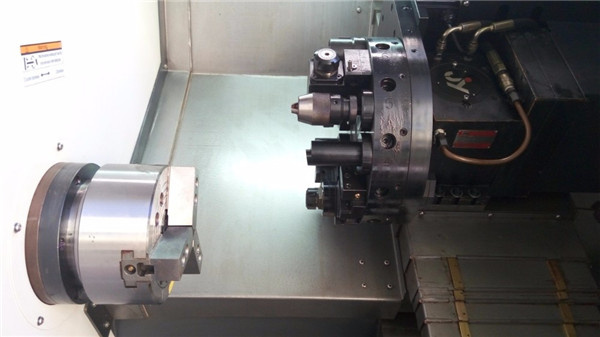

3.12 station live turret with live tools
4.Fanuc servo spindle
5.Auto feeder, chip conveyor
Check the machine video at following web:https://youtu.be/L2EBIhXGLeo
https://youtu.be/E77G2rBhlRcProduct Features1. Sheet metal full protection design can fully ensure operator's safety.
2. Machine bed adopt high quality resin sand casting and aging treatment.
3. Centralized lubrication unit, to make the machine parts get sufficient lubrication and extend machine service life time.
4. Using linear guiderail to make machine long time of stability and high precision
5. Popular full enclosed guards with interlock offer a waterproof and chip-free environment.
6. It can finish internal and external cylinder, cone surface, metric and inch threading and satisfy different processing needs.
Technical SpecificationsItem | Unit | CK6440 CNC lathe machine |
Max. swing dia. over bed | mm | Φ440mm |
Distance between centers | mm | 650 |
Max. turning length | mm | 500 |
Spindle bore dia. | mm | Φ56 |
Type of Spindle nose | | A2-6 |
Spindle head collet taper | | MT-6 |
Spindle speed | r/min | Mechanical spindle≤3000r/min |
| | Motorized spindle≤5000r/min |
Max. stroke of tailstock quill | mm | 45 |
Max. travel | mm | X axis: 260mm |
| | Z axis: 700mm |
Max. rapid movement speed | mm/min | X: 18000 |
| mm/min | Z: 30000 |
Min setting unit | mm | X: 0.001 |
| | Z: 0.001 |
Turret type | | 8 Station Electric Turret (Standard) |
| | 12 Station Electric Turret (Optional) |
| | 12 Station Live Turret (Optional) |
Chuck type | | 8 inch Hydraulic chuck |
Tailstock type | | Hydraulic tailstock |
Type of guideway | | Linear guideway |
Main motor Power | kw | 7.5 |
Machine Dimension (L*W*H) | mm | 2570*1620*1940 |
Net Weight | kg | 3000 |
| | |
Optional configurations | 1 | Chip conveyer |
| 2 | Auto bar feeder |
| 3 | System Optional |
About JDSKZhejiang Jingdan Numerical Control Equipment Co., Ltd, short for JDSK, is specialized in producing CNC lathe, CNC Vertical lathe, Slant Bed, high speed and precision CNC lathe, CNC Turning Center, as well as specialized cnc lathe machine, VMC etc. With factory area of more than 98000 square meters and more than 260 employees, including 35 high educated technicians and 8 senior engineers. JDSK has an excellent production team. 30% of products are exported to oversea market. We are one of the largest machine tools manufactures in Zhejiang, China.
Our Sales Service
1.24 hours on Internet and Telephone, free instruction and problem solving.
2. Free training how to use.
3. User-friendly English manual or operating video for machine using and maintaining.
4. on-the-spot training and installation can be met if required.
5. We always deliver machinery on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.
If you are interested in our CNC lathe machine, pls contact Sophie at :
