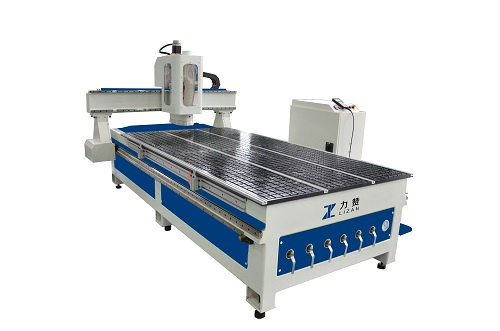

CNC Machine CNC Engraving Machine CNC Cutter
| Price: |
US $ 5000-9800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
LZ-48 |
| Color: |
Green or Blue |
| Controller: |
DSP Controller |
| Rail: |
Taiwan Rail |
| Motor: |
Stepper Motor |
| Rack: |
Germany Racks |
| Reducer: |
Taiwan |
| Table: |
T-Slot Vacuum Table |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
Product Description
Application:1.Woodworking industry:All kinds of door, windows, cabinet, craft door, paint-free door, screen, wave board processing,
2.Advertisement industry:Suitable for processing all kinds of design of rich and colorful model, Suchas labels.Architectural molds, badge, engraving plate, exhibition boards, doorplate.Direction board, decoration and so on.

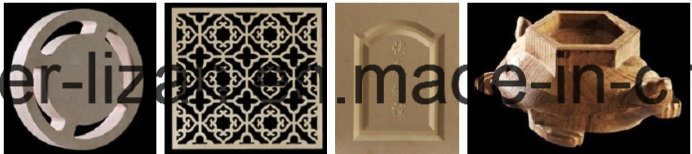

3.Handcraft industry:Apply to engraving patterns and characters on all kinds of materials, such as wood, bamboo, marble, organic board, double color board.
4.Other industry:Relief carving, photograph craving, openwork engraving, plane engraving, cutting and milling bottom etc.| Machine size | 1320×2540mm |
| Work Envelope | 1280×2440mm |
| Repositioning resolution | ±0.05mm |
| Resolution | ±0.025mm |
| Power of Spindle | 4.5KW |
| Spindle speed | 0-1800(24000)rpm/Min |
| Max.speed | 35m/Min |
| Max.cutting speed | 20m/Min |
| Bridge clearance | 200mm |
| Working voltage | AC380V/50Hz |
| Command code | HPGL G Code |
| Package | Steel panel or plywood box |
Jinan DLM CNC Router Company with more than 5 years manufacturing experience in CNC non-metal computer machining center, and attachment technology research, machinery, parts procurement, production and assembly, software development, electric wiring, business sales, repair and after-sale service, etc. Owing abundant application experience and excellent technical team, can quickly resolve any technical issues about CNC equipment and provide the technical resources of CNC machining processing practice experience.
We offer a comprehensive range of highly-efficient products castering for the needs of different industrial sectors. All of our products feature solid structure, best quality components, superio machining techiques and complete reliability. We marketour products through a strong network extending to the whole world market, including but not limited to Russia, Australia, New Zealand, USA, Brazil, Middle East, South East Asia. Our machines are widely used in various industries, furniture manufacturing, electronic industries, construction industries, audio and musical instruments, stationary gifts, advertisenment engrave, mold, high-speed train, yacht and boats, aircraft industry, machine produce, etc.
