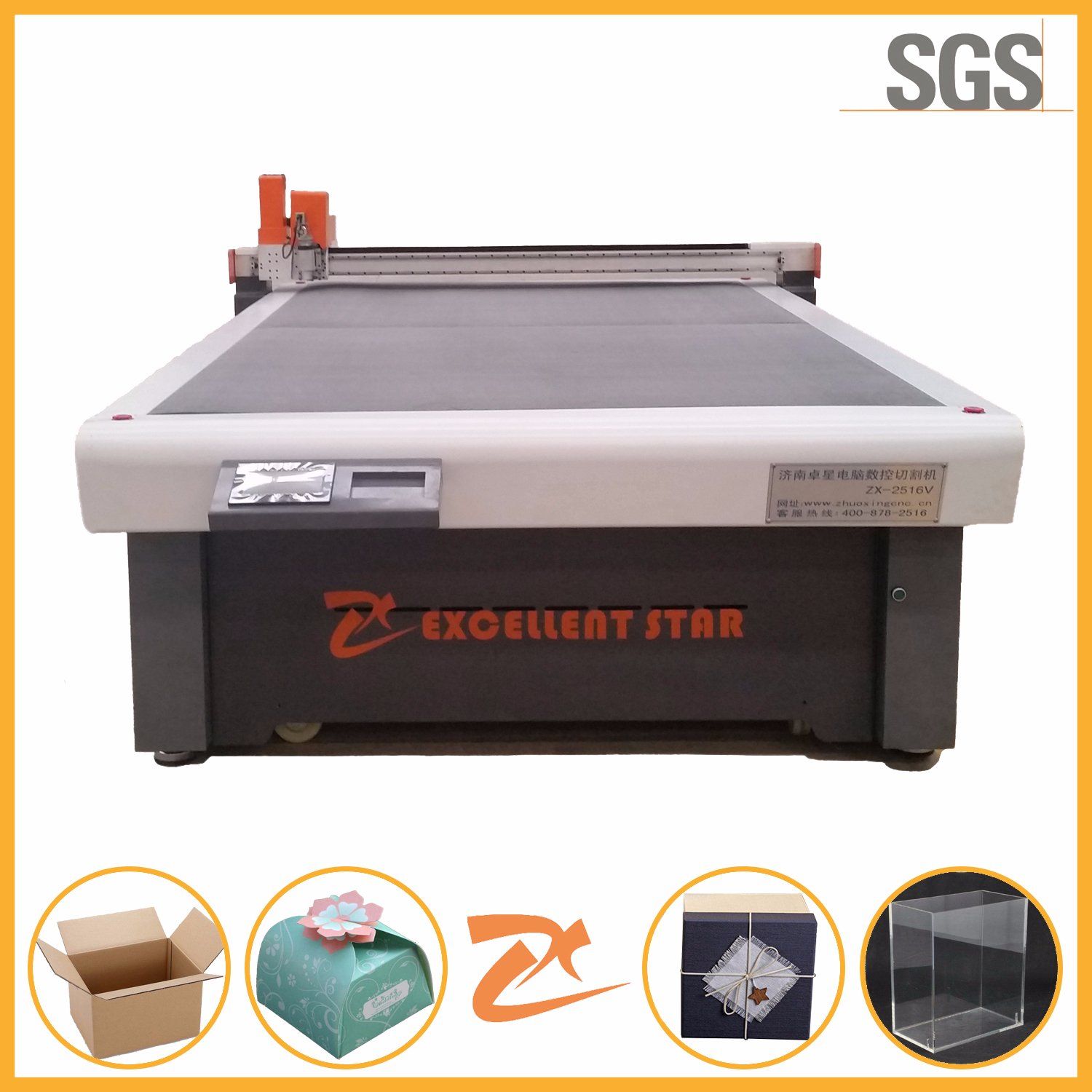

CNC Oscillating Knife Carton Box Cutting Machine 2516
| Price: |
US $ 18500-35000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ZX-2516V |
| Working Area: |
2500*1600mm (L*W) |
| Cutting Thickness: |
0.1-18.0mm(Depend on Material) |
| Max Cutting Speed: |
1000mm/S |
| Translational Velocity: |
1200mm/S |
| Cutting Method: |
Oscillating Knife Cutting |
| Functions: |
Cutting, Creasing, V-Cutting, Milling Cut |
Product Description
CNC Oscillating Knife Carton Box Cutting Machine 2516The machine can cut corrugated paper, kraft paper, hardboard, card paper, honeycomb paperboard, acrylic, PVC and etc.
It also realizes creasing lines, V-shaped cutting and punching. Almost meet any requirement in package industry.Machine controlled by computer, cutting quickly and accurately.
High effective cutting save time and avoide errores of manual working.
Use blade instead of laser, there would no black and hard edge, no bad smoke, more environmental protection and safer. Also the unit price of blade is so much cheaper than laser tube.
Parameter configuration| Model no. | ZX-2516V |
| Working area | 2500×1600mm(L*W) |
| Machine size | 3230x2255x1240mm(L*W*H) |
| Cutting thickness | 0.1-18.0mm(depend on material) |
| Cutting precision | 0.1-0.3mm(depend on material) |
| Max cutting speed | 1000mm/s |
| Translational velocity | 1200mm/s |
| Transmission interface | RJ-45 |
| Rated power | 11KW |
| Working voltage | AC 220V 380V±10%, 50HZ |
| Fixed type | Intelligent vacuum adsorption |
| Drive system | Fuji servo motor, HIWIN linear guideway, rack drive |
| Safty device | Infrared sensors, rapid response, safe and reliable |
| Control panel | Liquid crystal display |
| Cutting extent | Full cut, kiss cut, dot cut |
| Applicative material | Corrugated paper, hardboard, card paper, honeycomb paperboard, acrylic, PVC and other flexible materials |
| Standard configuration | vibrating knife cut head, angling cutter, punching tool, creasing wheel, red light pointing |
| Other optional configuration | hobbing cutting head, milling cutter, half blade cutter, drawing pen, scanner, automatic feeding, V-shaped cutter, MARK camera |
| Operating characteristic | Can work offline; 24 hours continuous and efficient working |

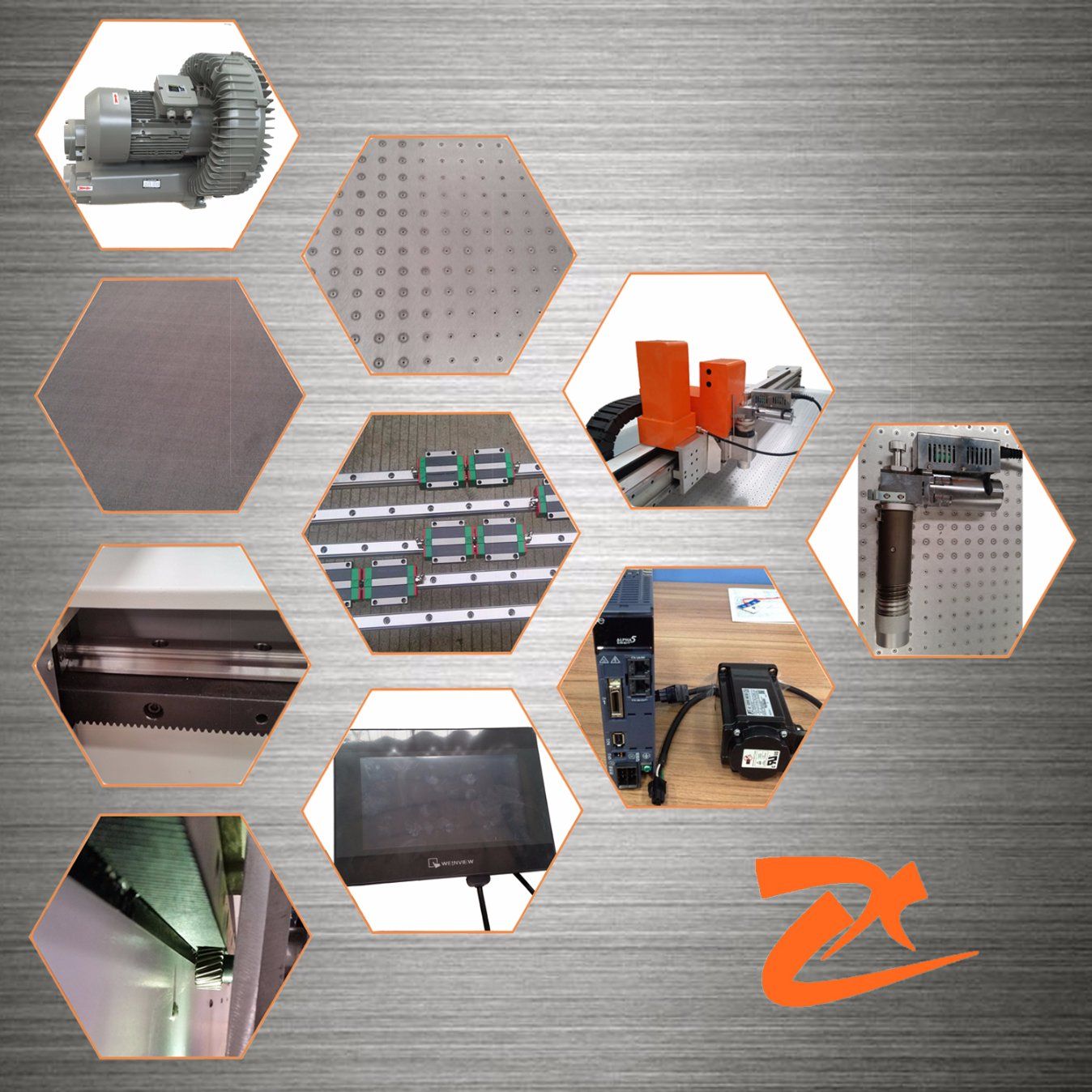

Detail pictures
Package and transportation
Our advantage and servise1. We are manufacturer, so we accept customization and support machine design for your particular request for different purpose or material and etc.
2. We have professional technician, they can help when you need any technological support.
3. Self-development knife head and purpose made high quality knife realize perfect cutting, and more durable than others.
4. With our patented correction system, cutting more exact.
5. We promise to use the best quality components, also support customization.
6. A free operation training in our factory, welcome to visit, and if you don't have enough time, we will send you a training video.
7. One year guarantee, and life-time technological guidance.
8. Consumables(like blade, table cover) always supply at cost price.
9. You can use build-in routine make your design or any CAD & CAM software, any output format is DXF or PLT can be recognized.
10. Welcome to send us materials, we will finish cut and show you the result.Company profileJinan Excellent Star intelligent technology CO.,LTD. is the first company engaged in independent research, produce, market, and after-sales services of vibrating cutting machine in north of China.
From develop the first generation digital cutting machine with our own proprietary intellectual property rights to now the fifth generation, we promote the market demands, fill the void.
And always keep in the forefront of our industry through unceasing innovation. We promise to offer
the best product at same price,
the best price at same quality.
Jinan Zhuoxing Intelligent Technology Co., Ltd. is a key state enterprise specialized in research and development, production, sales and service of CNC cutting equipment for leather industry and industry CAD/CAM system.
From the research and development of the first generation of CNC cutting machine with independent intellectual property rights to the birth of the fifth generation of new cutting machine of ZHUOXING, it has promoted the market demand and made up the industry gap. Through the unceasing innovation and refinement, ZHUOXING always walks in the forefront of the industry, and its products have been exported to Europe, South Korea, India, Malaysia, Vietnam, Hong Kong, Taiwan and other countries and regions, and the global network marketing strategy has been realized.
In the future, ZHUOXING will lead more national enterprises to complete industry upgrade from quantity to quality, trademark to brand, labor-intensive to technological innovative, make more "made in China" into "created in China", help our national enterprises stand in the new highs, and fight for better international market.
We supply different kinds of products. High quality and favorable price. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
