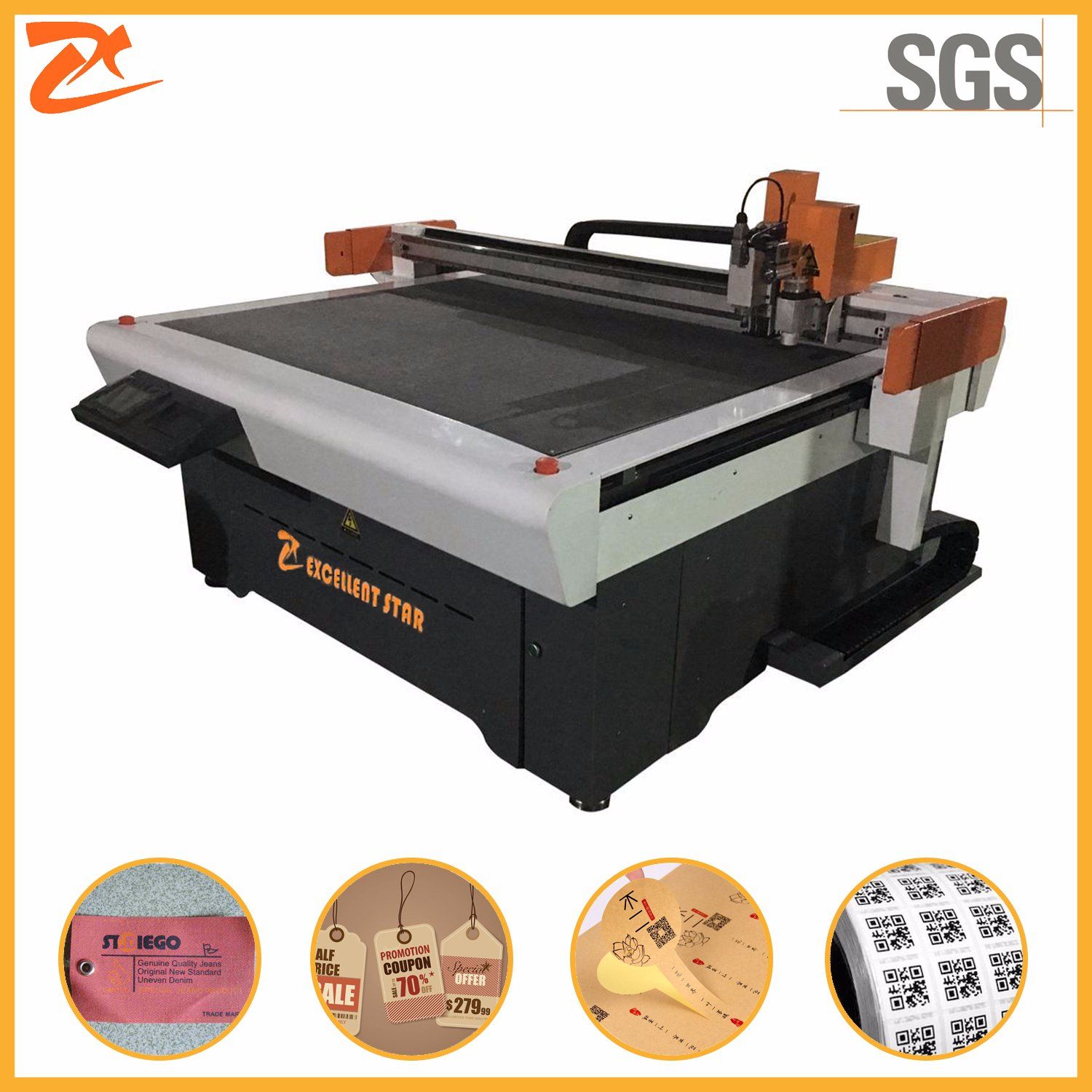

Digital Label Cutting Machine Knife Cutting Machine No Laser on Need Die 1214
| Price: |
US $ 17000-33000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ZX-1214V |
| Working Area: |
1200*1400mm (L*W) |
| Cutting Thickness: |
0.1-18.0mm(Depend on Material) |
| Cutting Precision: |
0.1-0.3mm(Depend on Material) |
| Max Cutting Speed: |
1000mm/S |
| Working Voltage: |
AC 220V 380V |
| Cutting Type: |
Blade, No Die, No Laser |
| Drive System: |
FUJI Servo Motor, Hiwin Linear Guideway |
| Safety Device: |
Infrared Sensors, 4 Emergency Stop Buttons |
Product Description
Application: label cutting
No matter is leather label, fabric label, PVC, or any kind of paper, the machine can all handle.
And it cuts no need die, saving a lot cost of that, when need any sample, it could finish cutting in minutes, also lightening the burden of storage.
Cut with blade but not laser, so there's no black and hard edge, no bad smoke, more enviromental protection and safer. Also, unit price of blade is much cheaper than laser tube.
Controlled by computer, cut accurate, avoid errors of manual working.
Parameter configuration| Model no. | ZX-1214V |
| Working area | 1200×1400mm(L*W) |
| Machine size | 1930x2055x1240mm(L*W*H) |
| Cutting thickness | 0.1-18.0mm(depend on material) |
| Cutting precision | 0.1-0.3mm(depend on material) |
| Cutting extent | Full cut, kiss cut, dot cut |
| Max cutting speed | 1000mm/s |
| Translational velocity | 1200mm/s |
| Working voltage | AC 220V 380V±10%, 50HZ |
| Rated power | 11KW |
| Transmission interface | Ethernet |
| Control panel | Liquid crystal display |
| Fixed type | Intelligent vacuum adsorption |
| Drive system | Fuji Servo motor, Hiwin linear guideway, rack drive |
| Safty device | Infrared sensors, 4 emergency stop buttons, rapid response, safe and reliable |
| Applicative material | PVC, polyester, fabric, kraft paper, cardboard, rubber, leather and other flexible materials |
| Standard configuration | half knife cutter, vibrating knife cut head, 30 pcs of blade, automatic tracing-edge, red light pointing |
| Other optional configuration | punching tool, MARK camera, V-shaped cutter, milling cutter, drawing pen, scanner, automatic feeding |
| Operating characteristic | Can work offline; 24 hours continuous and efficient working |

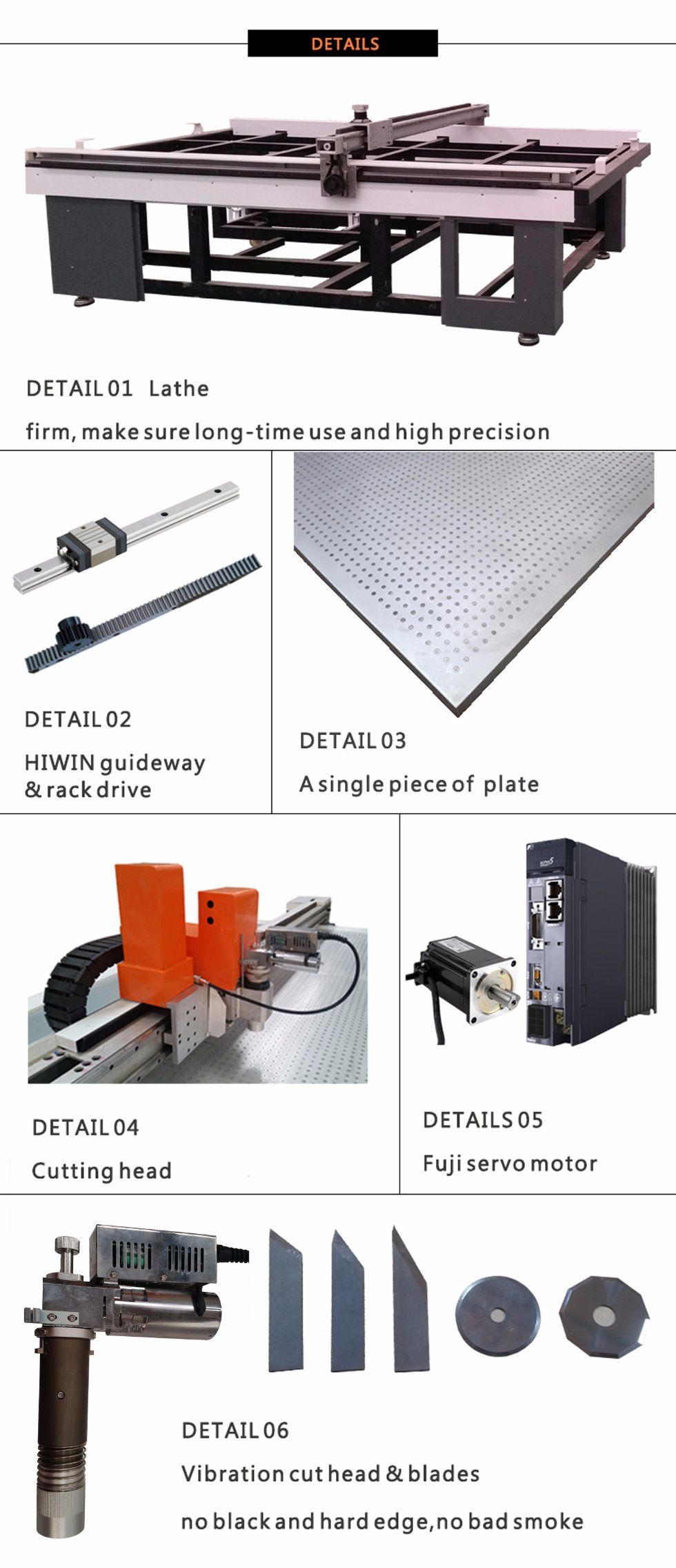

Detail pictures
Package and transportation
Our advantage and servise
1. We are manufacturer, so we accept customization and support machine design for your particular request for different purpose or material and etc.
2. We have professional technician, they can help when you need any technological support.
3. Self-development knife head and purpose made high quality knife realize perfect cutting, and more durable than others.
4. With our patented correction system, cutting more exact.
5. We promise to use the best quality components, also support customization.
6. A free operation training in our factory, welcome to visit, and if you don't have enough time, we will send you a training video.
7. One year guarantee, and life-time technological guidance.
8. Consumables(like blade, table cover) always supply at cost price.
9. You can use build-in routine make your design or any CAD & CAM software, any output format is DXF or PLT can be recognized.
10. Welcome to send us materials, we will finish cut and show you the result.Company profileJinan Excellent Star intelligent technology CO.,LTD. is the first company engaged in independent research, produce, market, and after-sales services of vibrating cutting machine in north of China.
