| Prod Model: |
ZX-1214V |
| Working Area: |
1200*1400mm (L*W) |
| Cutting Thickness: |
0.1-18.0mm(Depend on The Material) |
| Cutting Precision: |
0.1-0.3mm(Depend on The Material) |
| Working Voltage: |
AC 220V 380V |
| Rated Power: |
11kw |
| Max Cutting Speed: |
1000mm/S |
| Translational Velocity: |
1200mm/S |
| Safety Device: |
Infrared Sensors, 4 Emergency Stop Bottons |
| Drive System: |
FUJI Servo Motor, Hiwin Linear Guideway |
| Fixed Type: |
Intelligent Vacuum Adsorption |
| Type: |
Leather Cutting Machine |
| Certification: |
SGS |
Product Description

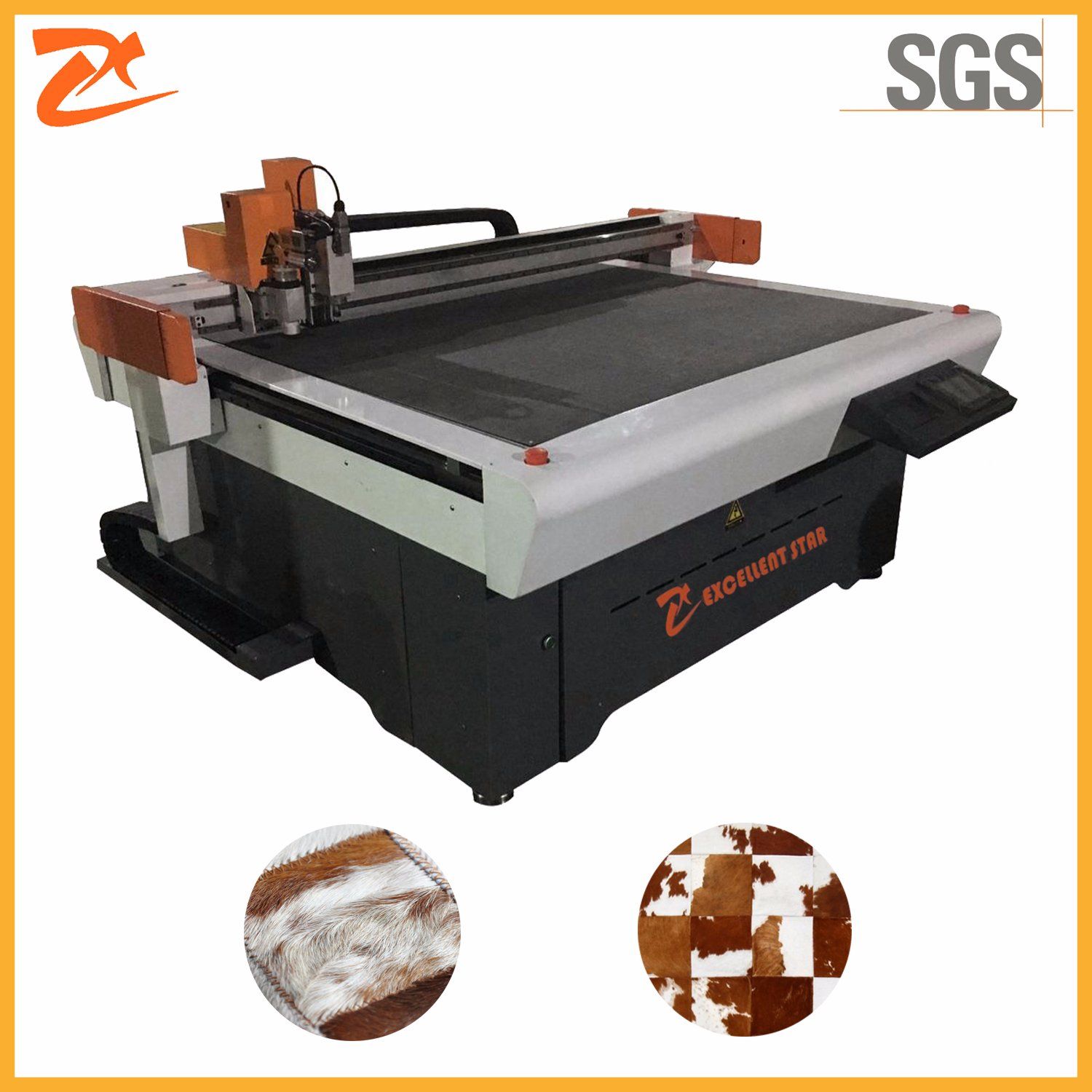

leather area rug cutting making machine knife cut no laser dieless 1214
Application industry: carpet, area rug
This machine controlled by computer, no matter which kind of leather, what shape,
upload design to computer, it will cut quickly and accurately, avoid errors of manual
working.
It uses knife instead of laser, so there's no black and hard edge, no bad smoke, also
unit price of blade is much cheaper than laser tube.
Parameter configuration| Model no. | ZX-1214V |
| Working area | 1200×1400mm(L*W) |
| Machine size | 1930x2055x1240mm(L*W*H) |
| Cutting thickness | 0.1-18.0mm(depend on material) |
| Cutting precision | 0.1-0.3mm(depend on material) |
| Max cutting speed | 1000mm/s |
| Translational velocity | 1200mm/s |
| Transmission interface | RJ-45 |
| Rated power | 11KW |
| Working voltage | AC 220V 380V±10%, 50HZ |
| Fixed type | Intelligent vacuum adsorption |
| Drive system | Fuji servo motor, HIWIN linear guideway, rack drive |
| Safty device | Infrared sensors, 4 emergency stop buttons, rapid response, safe and reliable |
| Control panel | Liquid crystal display |
| Cutting extent | Full cut, dot cut |
| Applicative material | leather, artificial leather, sheepskin, cowhide and other similar materials |
| Standard configuration | vibrating knife cut head, 30 pcs of blade, red light pointing |
| Other optional configuration | hobbing cutting head, punching tool, creasing wheel, drawing pen, scanner, ccd camera, automatic feeding |
| Operating characteristic | Can work offline; 24 hours continuous and efficient working |

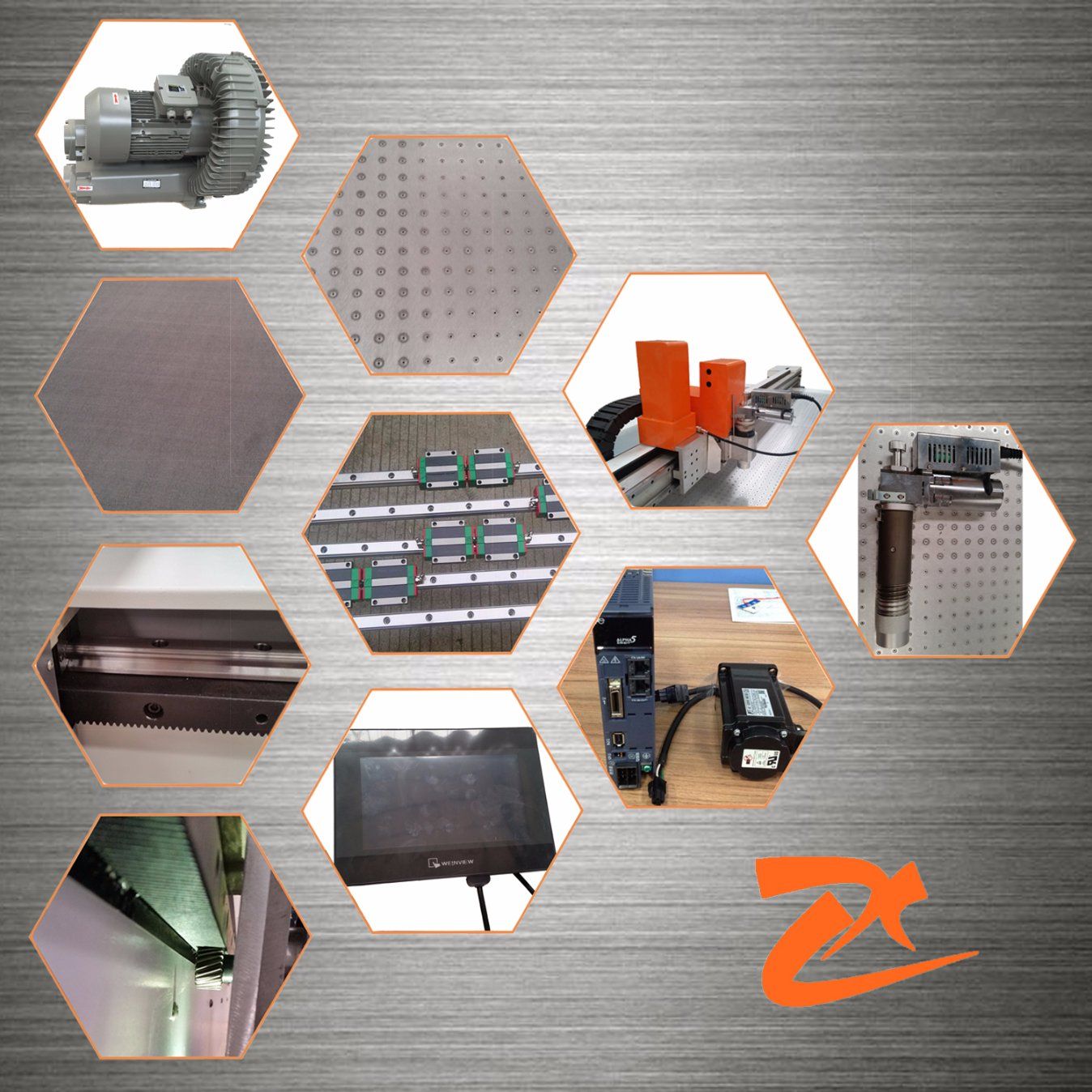

Detail pictures

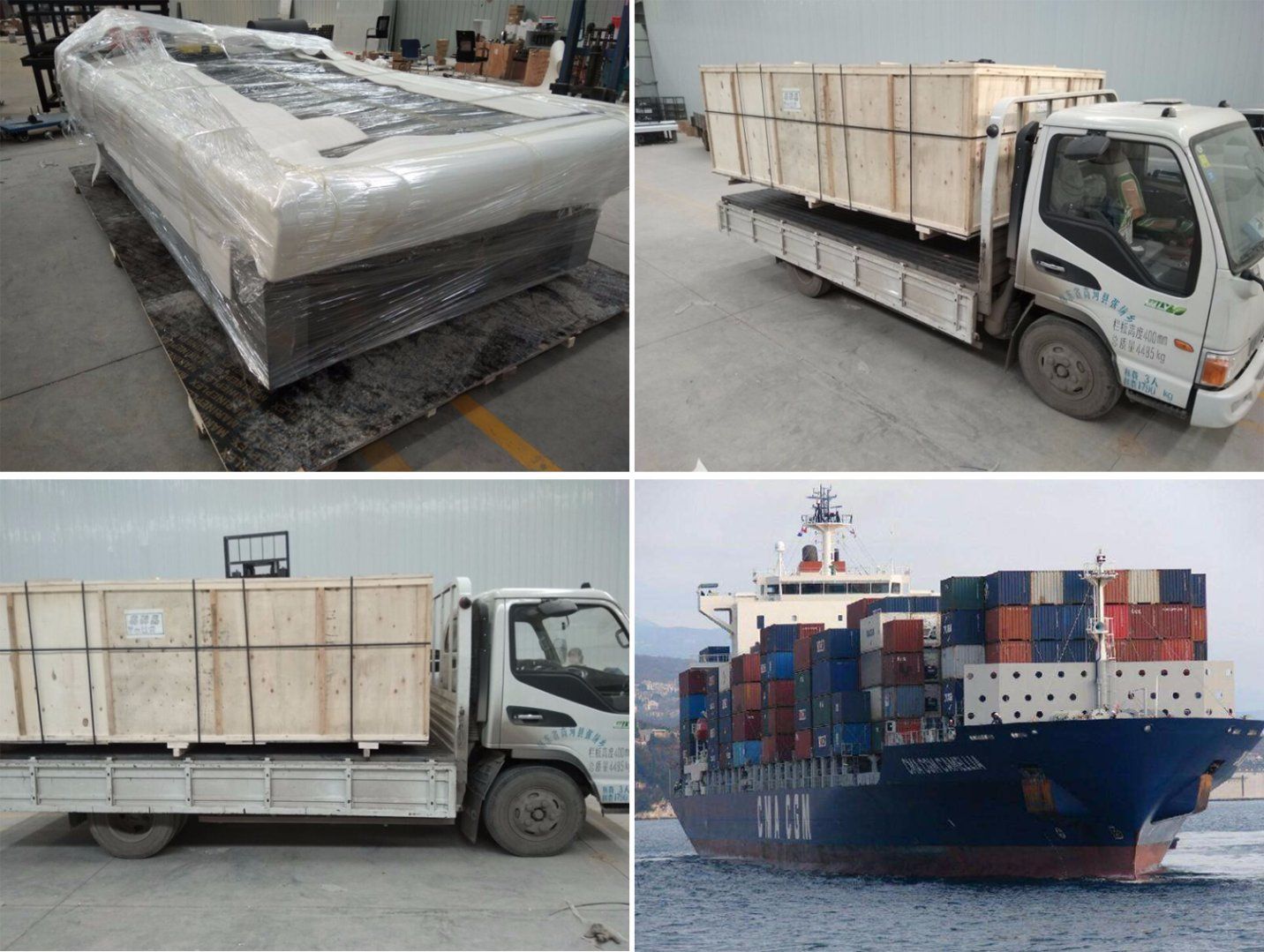

Package and transportation
Our advantage and servise1. We are manufacturer, so accept customization and support machine design for particular
request for different purpose or material.
2. We have professional technician, they can help when you need any technological support.
3. Self-development knife head and customized high quality knife realize perfect cutting,
and more durable than normal.
4. With our patented correction system, cutting more exact.
5. We promise to use the high quality components, also support customization.
6. Any output format is DXF or PLT can be recognized by the machine.Pre-sales Service1).Professional support of machine if needed.
2).Sample testing support.
3).View Factory.
After-Sales Service1).One year free warranty(except consumable parts), main parts are free of charge when
problems happened because of quality problem during this period.
2).Life time free maintenance service.
3).Consumable parts(like blade, table cover) alway supply at cost price when needed.
4).A free operation training in our factory, and if don't have enough time, we will send a
detailed training video.
5).24 hours online service, free technical support with different languages.

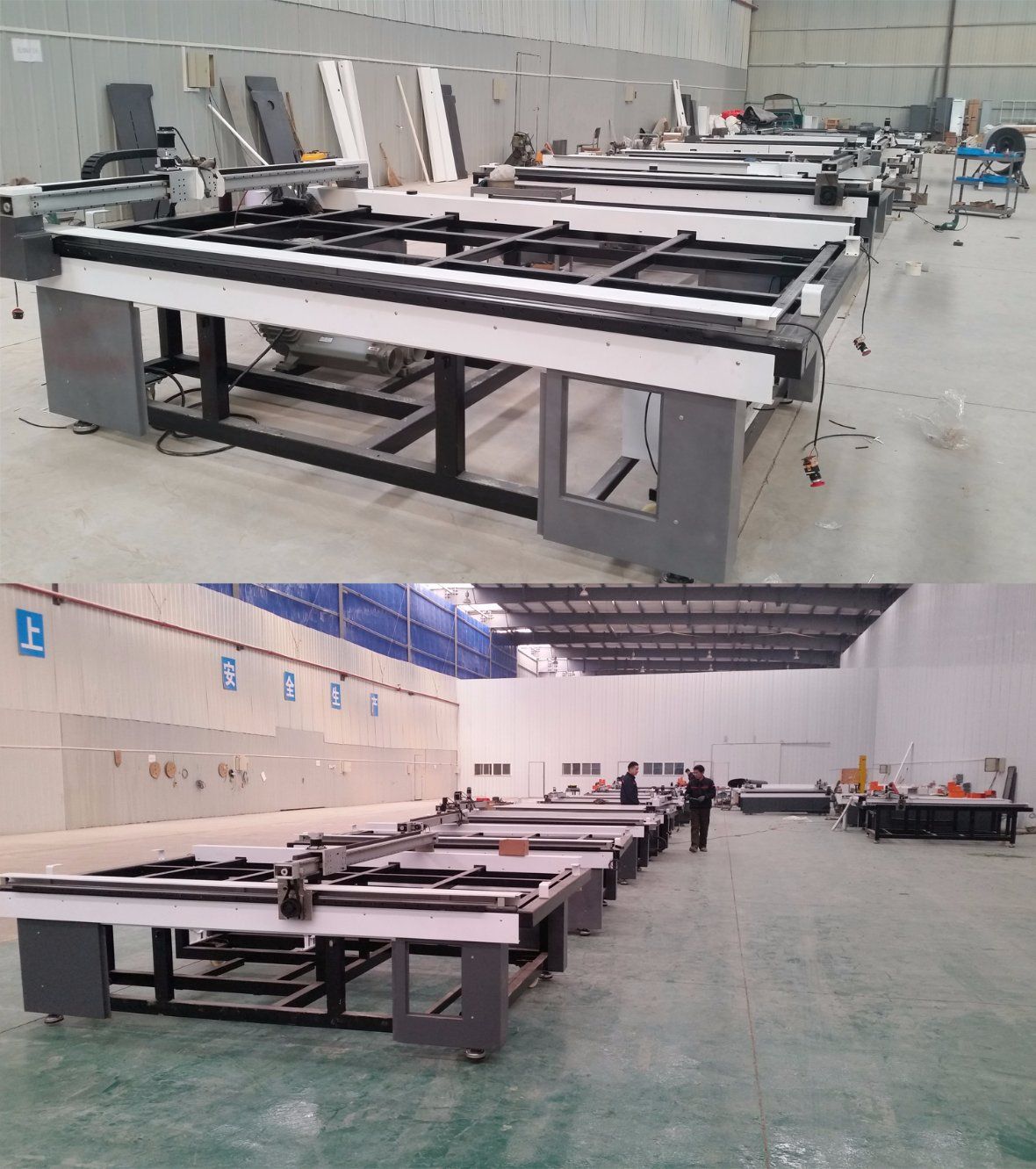

6).Door to door technical support when needed.Company profileJinan Excellent Star intelligent technology CO.,LTD. is the first company engaged in
independent research, produce, market, and after-sales services of vibrating
cutting machine in north of China.
From develop the first generation digital cutting machine with our own proprietary
intellectual property rights to now the fifth generation, we promote the market
demands, fill the void.
And always keep in the forefront of our industry through unceasing innovation.If you could kindly provide us a few information, that would be very helpful for us.
1. which kind of material is going to cut?
2. what's the thinkness about the material?
3. what's the size of original material?
