CNC Plasma Cutting Machine, CNC Cutting Machine, Plasma Cutter
| Price: |
US $ 6000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
FM1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Material: |
Iron, Steel, Aluminum Sheets, Galvanized Sheets, T |
| Working Area: |
1300mm*2500mm |
| Power Supply: |
Hua Yuan 100A |
| Controller: |
Start Controller +Start Automatic Height-Adjustm |
| Motor: |
Stepper Motor |
| Rail: |
Taiwan Hiwin Square Rail |
| Transmission: |
Rack Gears |
| Working Dictate: |
G-Code |
| Typeset Software: |
Type3(English) |
| Anexternal Device: |
Air Compressor and Water Cooling System |
Product Description
FM1325 cnc plasma cutting machine cnc cutting machine plasma cutter
Features of cnc plasma cutting machine:
1. Huayuan Plasma power and cutting gun with high quality, made by famous factories in China.
2. Cutting mouth, little and tidy and avoid second trimming.
3. Applied for metal sheet, aluminium sleet, stainless sheet, Titanium sheet and so on
4. High cutting speed, high precision, and low cost.
5. Plasma power: 20A-300A / 380V, the plasma power can be adjusted.
6. Plasma source adopts advanced integrated module control system, it ensures the high precision and stability.
7. With unique handling with breakpoint and interruption of power supply, it can move forward and backward according to the track.
8. Support Wentai, ARTCAM softwares, Type3 produce standard G code way document, also can change software to read AUTOCAD softwares
9. The control system uses the U-disk exchange processing document, easy to operate.
10. When machine working with water pump and tank provide circulating water cooling.
11. Difference with other factory plasma cutting machine, this machine use screw-ball as drive mode, whic provide high precision for this machine.

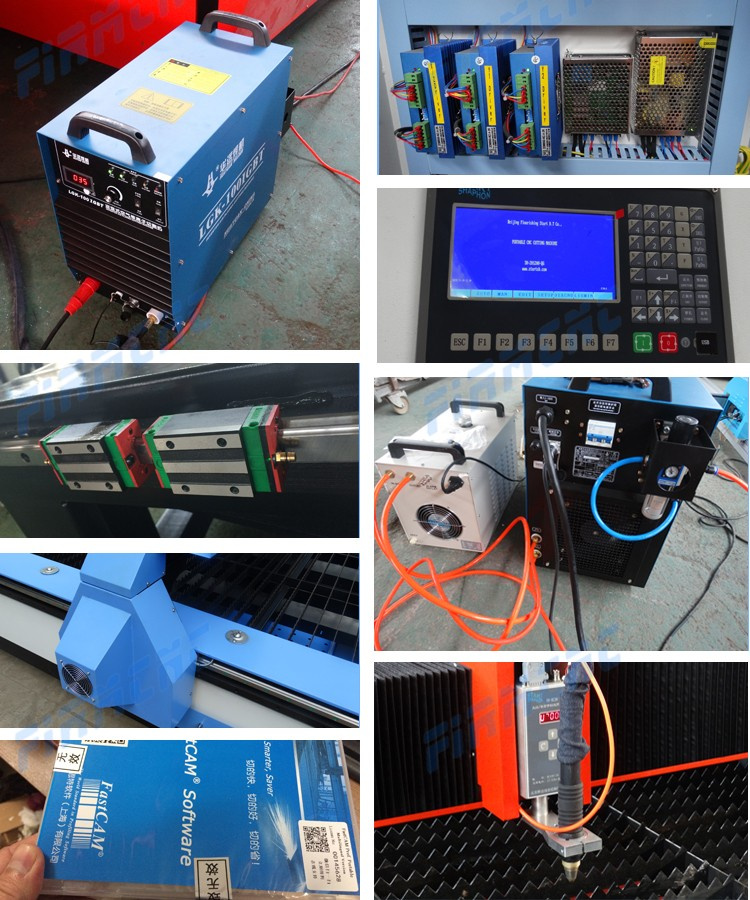

Configuration of cnc plasma cutting machine

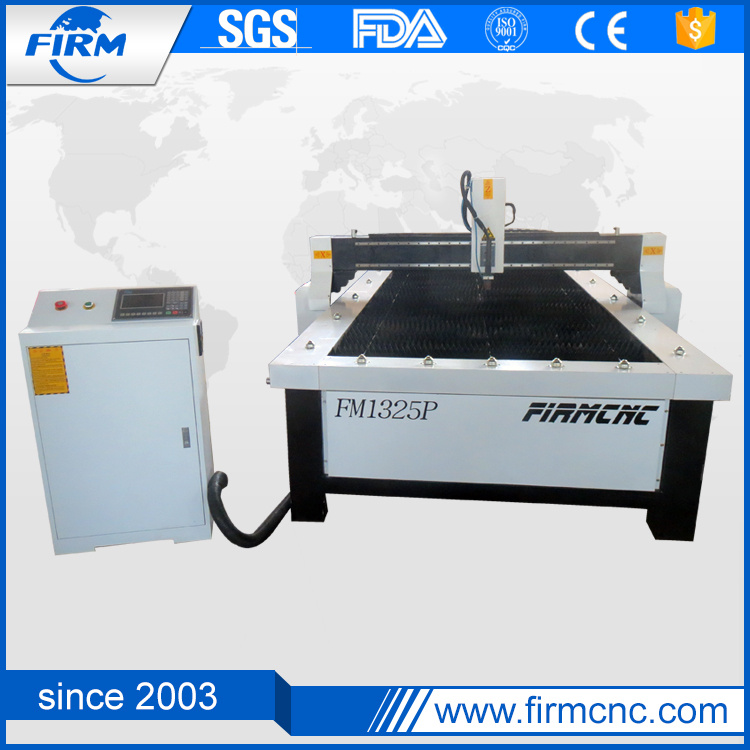

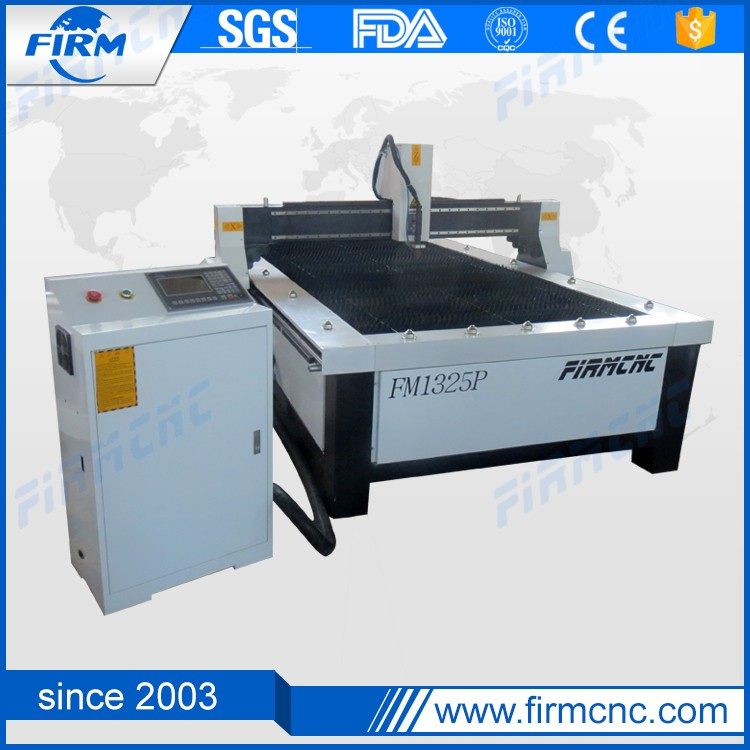

CNC Plasma Cutting Machine FM1325P
1.Working Area 1300*2500mm
2.Hua yuan 100A power supply
3.Start controller
4.Start Automatic height-adjustment
5.Stepper motor
6.Square rails
7.Chinese cutting head
8.Heavy machine structure
9.Transmission - Rack Gears
10.Working Dictate - G-Code
11.Typeset Software - Type3(English)
12.Working form - Untouched Arc Striking
13.Voltage - 3 phase 380V
14.Air compressor included
15.Water cooling system included
16.50 electrodes included
Package of cnc plasma cutting machine
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Our service:
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!
FAQ
Q1: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q2: How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal.
Q3: Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q4: How about Guarantee & After Sales Service?
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or msn, skype etc.
Q5: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine havesomeproblem.While we also supply free after-service forever, so any doubts,just let us know, we will give you solutions in 24 hours.
Technical specification| Model | FM-1325A | FM-1330A | FM-1530A |
| Working area (X-Y) | 1250mmx2450mm | 1250mmx2450mm | 1500mmx3000mm |
| Working material | Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates |
| Working Thickness | 0.5-6mm or Customize |
| Cutting Speed | 0-6000mm/min |
| Power | 8.5kw |
| Input Voltage | 380V 50HZ |
| Plasma Current | 60A or Customize |
| Connecting Way | USB |
| Working Mode | Untouched arc striking |
| Cooling method | With water pump and tank provide circulating water cooling |
| Z axis travel | 0-70mm |
| The automatic elastic raise | 0-5mm |
| Rail guide | Precision work round |
| Transmit way | Taiwan imported ball screw |
| Operation language | Chinese or English |
| Command | G code, *uoo, *mmg, *plt |
| Optional power source | America Hypertherm and America Thermadyne |
| Spare parts | Electrode ,Electricity nozzle and Water jacket |
