Prod Model: |
FM-1325P |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working Material: |
Iron, Steel, Aluminum Sheets, Galvanized Sheets, T |
Working Thickness: |
0.5-60mm |
Power: |
5kw |
Cooling Method: |
Water Pump |
Software: |
Fastcam |
Working Area: |
1300X2500mm |
Control System: |
Start Control System |
Plasma Generator: |
Huayuan/Hypertherm |
Working Voltage: |
380V 3p/220V 2p |
Product Description

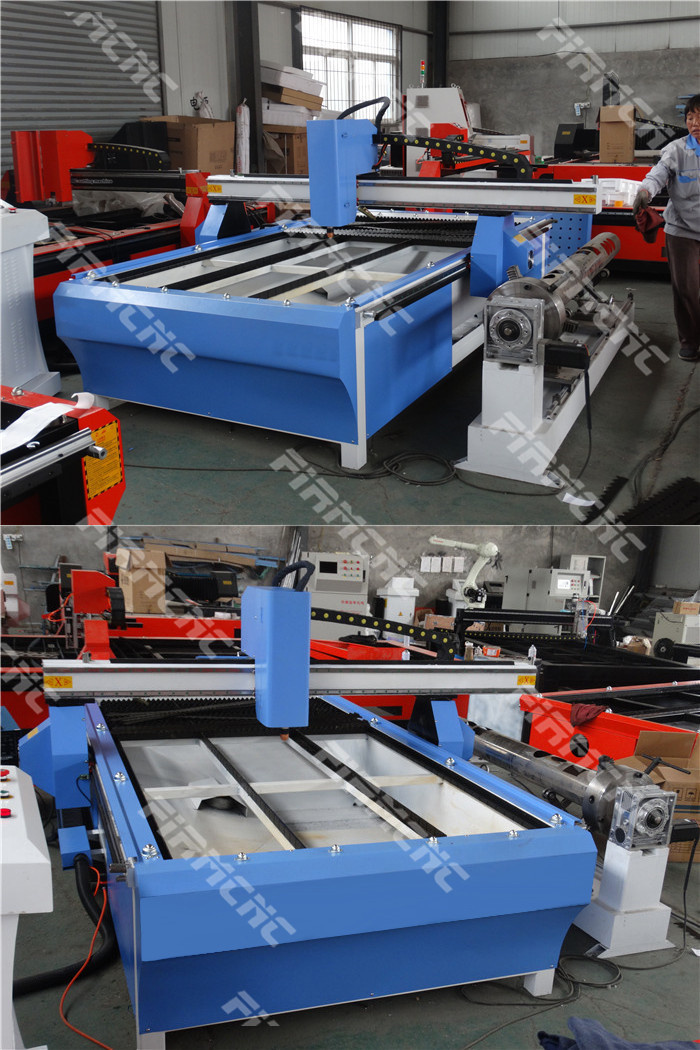

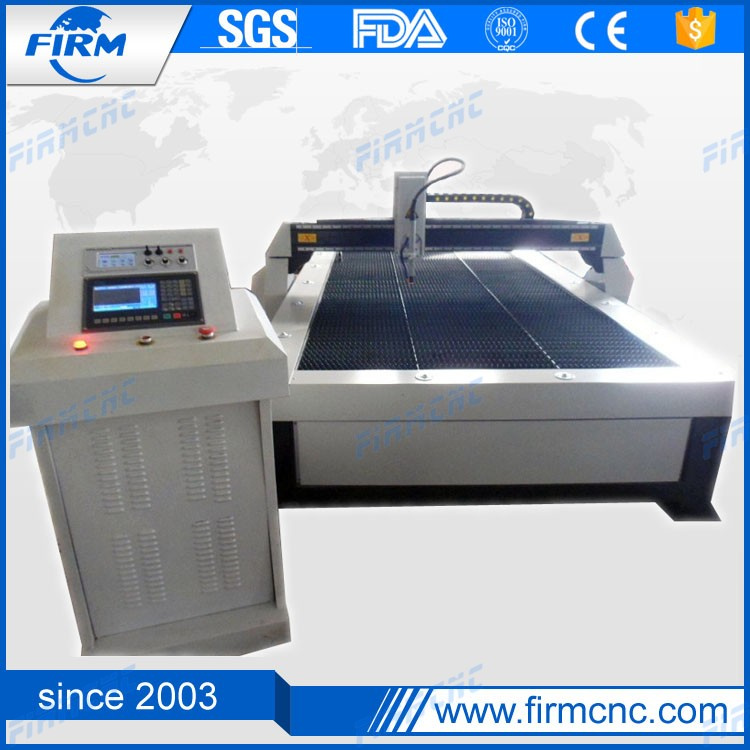

1325 CNC Metal Plasma Cutting Machine Plasma Cutter for Round Tube

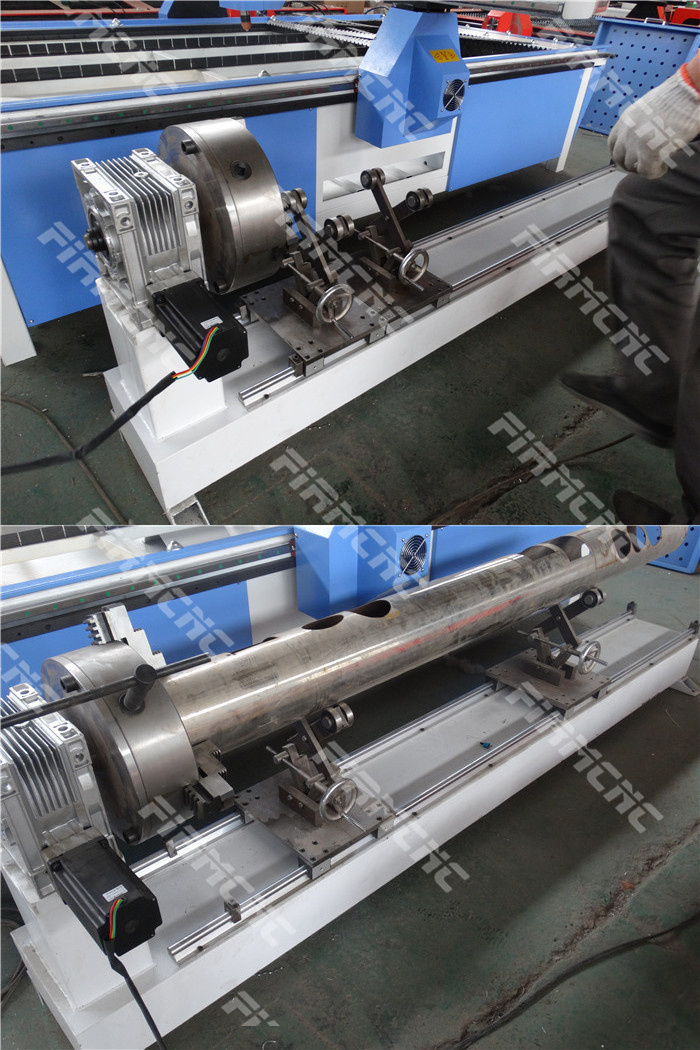

Rotary system:
Machine Introduction:
This machine is from Jinan Firm CNC Equipment Co., Ltd.It is a type of plasma cutting machine.This kind of cnc plasma cutting machine is specially developed for metal cutting ,working size can be customized upon requirements,this cnc plasma cutting machine is characterized of easy operation,compact structure and low cost.
Features:
1.Plasma adopts full welded structure, solid and reasonable, the operation is simple, durable in use.
2.Its cutting speed is fast , high precision.It cut a small mouth, neat, no dregs.On the basis of traditional CNC system,improved the control method of cutting, avoid the secondary finishing machining.
3.It can on board metal processing at the same time, save costs and save space.
4.The CNC system is high configuration.Automatic arc, stable performance, the success rate of 99% or more.
5.Clean dust by itself, the replacement of security
6.Gantry double drive structure,gear transmission without clearance,high quality linear rail,
ensure high accuracy and fast speed.
7.Be able to cut aluminum,steel and any other conductive metal at max speed of 8000mm/min.
8.Compatible with any design software.
9.Start controlling system with user friendly control panel make the machine possible to
operate off-line.

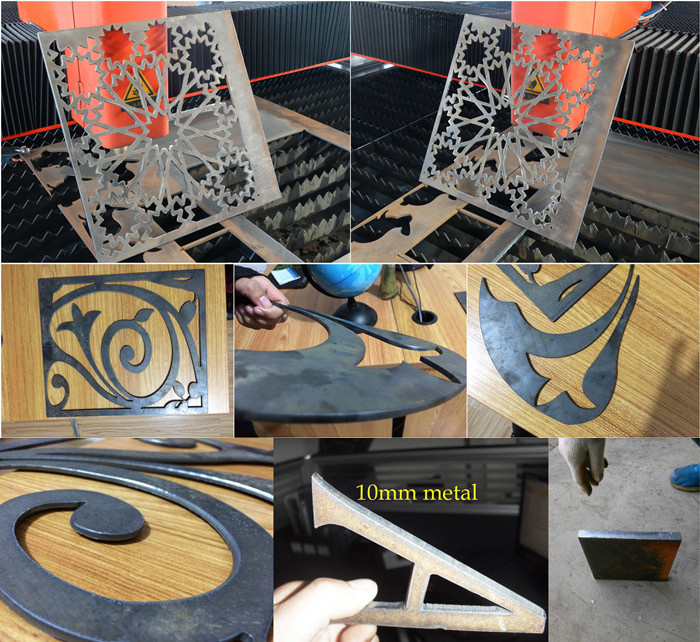

Applications:
1)Applicable Industries: Processing shells of machinery and electronic products,
advertising signs, electrical accessories, board cutting.
2)Applicable materials: steel,galvanized sheet,copper and so on.
Technical Data:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300mmx2500mm |
2 | plasma power supply | 65A/100A/160A/200A |
3 | Cutting thickness | (65A)0.5-4mm;(100A)4-6mm;(120A)6~8mm;(160A)8~10mm;(200A)16~25mm |
4 | X,Y axis | gear transmission, HIWIN square guide rail |
5 | X,Y Traveling Positioning Accuracy | ±0.02/300mm |
6 | Cutting Speed | 0-8000mm/min |
7 | Plasma Generator | Huayuan/Hypertherm |
8 | Frame | Welded Structure |
9 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
10 | Working Form | Untouched Arc Striking |
11 | Working Voltage | 3-Phase 380V |
12 | Control system | Start control system(optional: DSP) |
13 | Software | Fastcam |
14 | Document Transmission Form | USB Interface |
15 | Drive Motors | Stepper System (optional:servo motor) |
16 | optional | (1).USA hyepertherm plasma power (2).Can select working size ,such as 1500*3000mm, 2000*3000mm,2000*4000mm,2000*6000mm (3).Driver system:can select Leadshine hybrid servo motors and drivers,or Delta servo drivers,or YASKAWA servo motors and drivers |

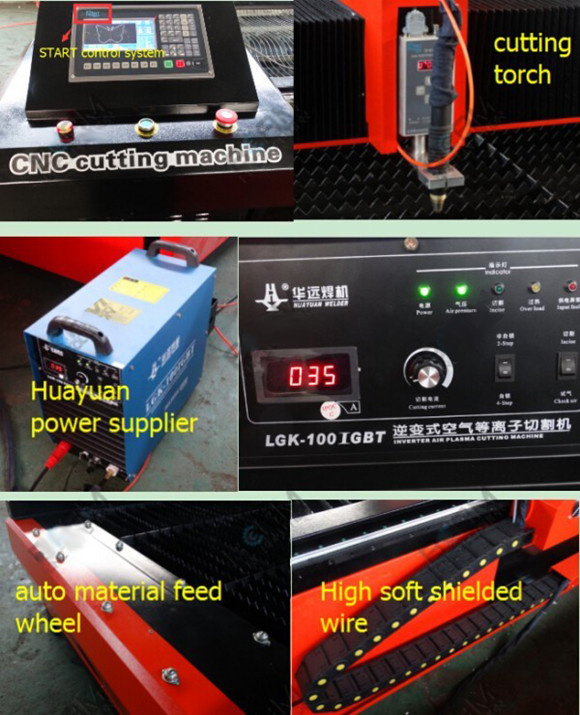

Details:
Our Company:
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,laserengraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
Packing & shipment :
Save space as much as possible for container loading.
- Inside:Water-proof Plastic Film Package With Foam Protection
- Outside:Solid Seaworthy Wood Box Package
- Below: Steel Tube
Our service:
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
