Hot Sale CNC Plasma Cutting Machine Metal Cutter FM1530
| Price: |
US $ 7000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
FM1530 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Thickness: |
0.5-6mm or Customize |
| Cutting Speed: |
0-6000mm/Min |
| Connecting Way: |
USB |
| Working Mode: |
Untouched Arc Striking |
Product Description
Hot Sale CNC Plasma Cutting Machine Metal Cutter FM1530
Features
1. Plasma power and cutting gun with high quality, made by famous factories in China.
2. Cutting mouth, little and tidy and avoid second trimming.
3. Applied for metal sheet, aluminum sleet, stainless sheet, Titanium sheet and so on
4. High cutting speed, high precision, and low cost.
5. Plasma power: 20A-60A / 380V, the plasma power can be adjusted.
6. Plasma source adopts advanced integrated module control system; It ensures the high precision and stability.
7. With unique handling with breakpoint and interruption of power supply, it can move forward and backward according to the track.
8. Support Wentai, ARTCAM soft wares, Type3 produce standard G code way document, also can change software to read AUTOCAD softwares.
9. The control system uses the U-disk exchange processing document, easy to operate.
10. When machine working with water pump and tank provide circulating water cooling.
11. Difference with other factory plasma cutting machine, this machine use screw-ball as drive mode, which provide high precision for this machine.
Technical specificationParameter
Model | FM-1325A | FM-1330A | FM-1530A |
| Working area (X-Y) | 1300*2500mm | 1300*3000mm | 1500mmx3000mm |
| Working material | Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates |
| Working Thickness | 0.5-6mm or Customize |
| Cutting Speed | 0-6000mm/min |
| Power | 8.5kw |
| Input Voltage | 380V 50HZ |
| Plasma Current | 60A or Customize |
| Connecting Way | USB |
| Working Mode | Untouched arc striking |
| Cooling method | With water pump and tank provide circulating water cooling |
| Z axis travel | 0-70mm |
| The automatic elastic raise | 0-5mm |
| Rail guide | Precision work round |
| Transmit way | Taiwan imported ball screw |
| Operation language | Chinese or English |
| Command | G code, *uoo, *mmg, *plt |
| Optional power source | America Hypertherm and America Thermadyne |
| Spare parts | Electrode ,Electricity nozzle and Water jacket |

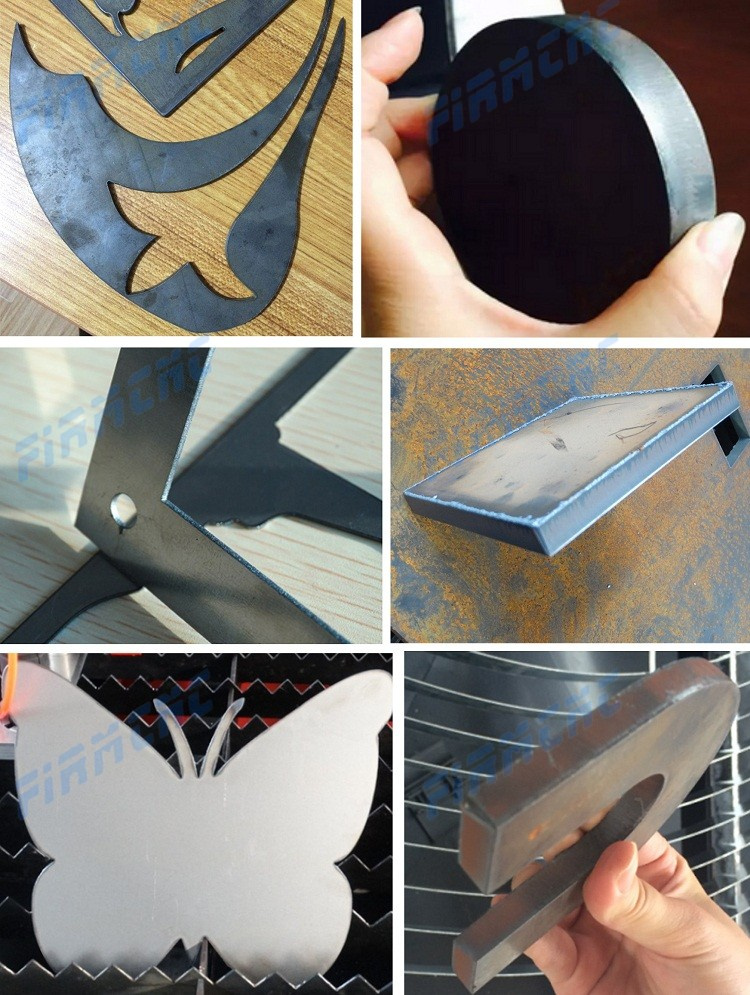

Applications IndustryWidely used in the industries as aerospace, agricultural machinery, construction machinery, railway manufacturing, elevator manufacturing,special construction vehicle, tool manufacturing, oil machinery manufacturing, food machinery, decorated advertizing, foreign processing serviceand all kinds industries related to mechanical manufacturing.Cutting materialsFor iron, aluminum, galvanized sheet, white sheet, titanium plate and other metal plates.Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.
Programming SoftwareFASTCAM programming software based on AutoCAD automatic programming and material system.FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.

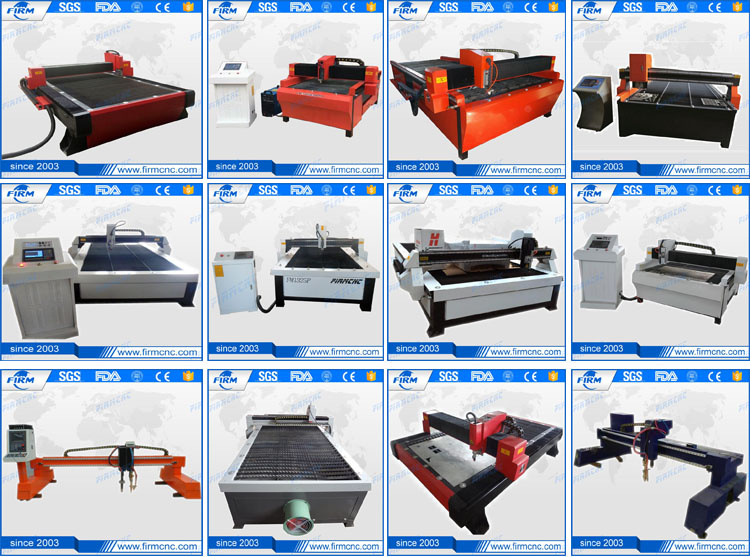

Company InformationFIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.Other related plasma cutting machine for your reference# Heavy duty cnc plasma cutting machine# Economic type cnc plasma cutting machine# Gantry cnc plasma cutting machine# Flame plasma cutting machine# cnc plasma cutting machine with smoke fan
