| Prod Model: |
TZJD-6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
600mm*900mm*230mm |
| Color: |
Red/White/Blue/, as Demands |
| Machine Structure: |
Germany Ball Screw |
| Working Table: |
T-Slot with PVC Board |
| Guide Rail: |
Taiwan Hiwin Linear Guide Rail |
| Spindle Power: |
1.5kw/2.2kw/3kw Water-Cooling |
| Control Card: |
Ncstudio/DSP |
| Software: |
Type3/Artcam/Ucancam/Caxa/Proe, etc |
| Drive Motor: |
Stepper/Servo |
| Woring Voltage: |
Single-Phase 220V/50Hz |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Point to Point Control |
| Control Method: |
Open-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
| Certification: |
FDA BV |
Product Description

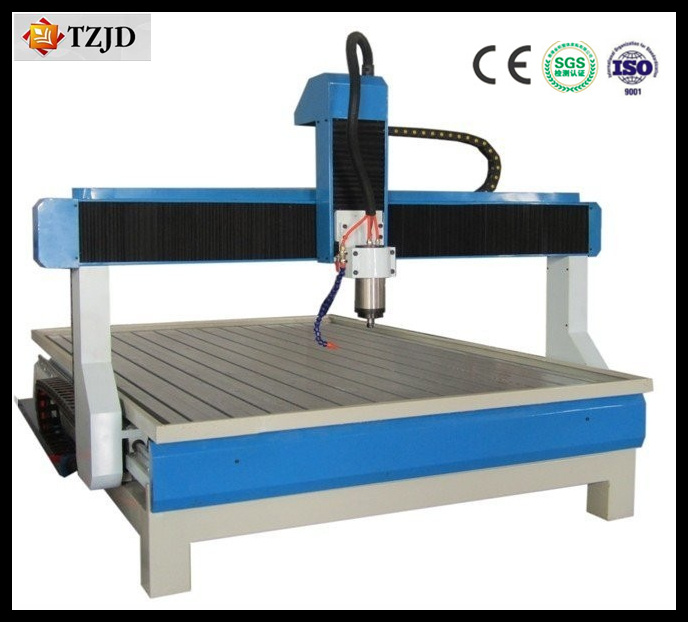

TZJD-6090 CNC Router Engraving machine Cutter (CE SGS FDA ISO BV)
1. Machine features:1) Germany Ball Screw Nut, guarantee the working clearance is very small.
2) Broken-point memory ensures the continuity of work when inciddent happens;
3) Gantry movement ensures the undeformation after a long-time work as well as a higher accuracy; Solid gantry, well structure of lathe bed, stable lathe table.
4) Auto-oiling system, confirm the power was uniform in these three axis.

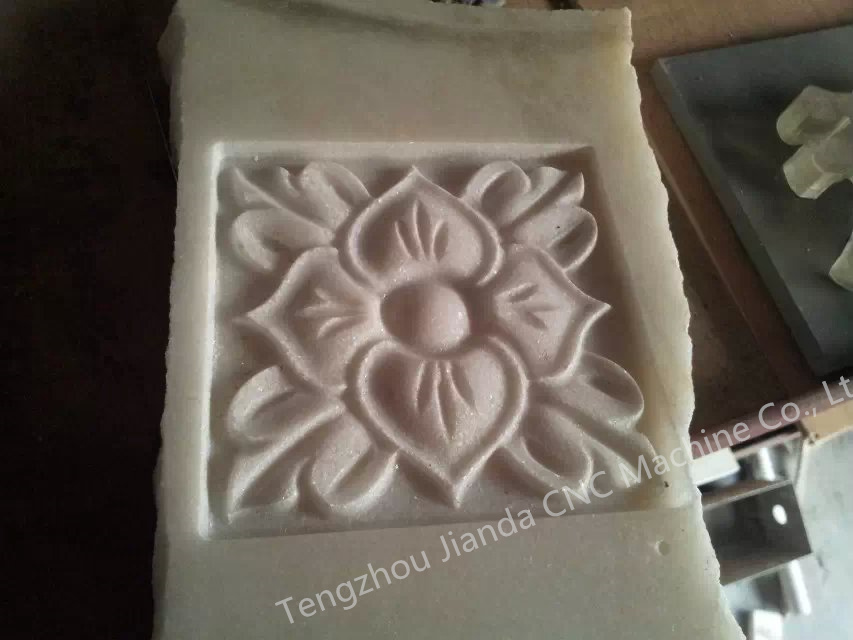

5) Mainly used for breast-plate engraving, & cut 2cm thickness organic glass easily.
6) Cast steel structure, solid without distortion.
7) Water-cooling spindle with low noise and guarantee long time mass processing.
8) Tool sensor system, save your time.
9) Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
2. Applicable industry:Advertisement industry, handicraft industry, various types of man-made plate, LED, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model, light equipment mold processing, sign and mark, acrylic board processing, PCB circult board, department cards.

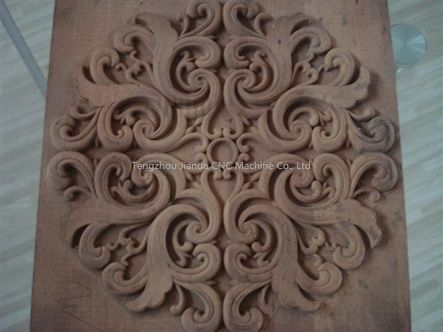

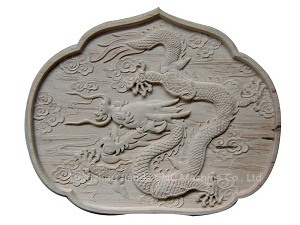

3. Applicable material:Acryl, wood, Aluminum, 3D technology, copper, PVC board, MDF board, PCB Board, breastplate, indoor & outdoor decoration, etc.
CNC Router Engraving machine, Advertising CNC Router, CNC Advertising Engraving machine, Advertising Engraving Cutting machine, CNC Router, CNC Enraving machine.
4. Technical parameters: | Description | Parameter |
| TZJD -6090 |
| Working Area (X*Y*Zmm) | 600mm* 900mm* 230mm |
| Max Engraving Speed | 6000mm/min |
| Frame | Cast Square tube welding |
| XYZ travelling positioning accuracy | ± 0.03/300mm |
| XYZ repositioning accuracy | ± 0.02mm |
| Spindle power(KW) | 1.5 KW /2.2KW/3KW |
| Max. Power Consumption(Without spindle) | 1.2KW |
| Spindle Speed | 6000-24000rpm |
| Resolution | 0.005mm |
| Repeatability | 0.01mm |
| Voltage | AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
| Drive motor | Stepper(option:Servo motor) |
| Working table | T-Slot with PVC board |
| Working Dictate | G Code*.u00*.mmg*.plt |
| Operating system | Nc-studio /DSP optional |
| Software environment | Windows98/2000/xp |
| Interface | USB |
| Flash memory | 128M(U Disk) |
| Software Compatability | Type3,,Ucancam,Artcam Software) |
| Running Environemt | Temperature: 0- 45 |
| Relative humidity: 30% -75% |
| Machine available |
Dust collector system,
spindle cover,
Japan Panasonic Servo motor(OPTIONAL),
vacuum absorption table & vacuum pump system(OPTIONAL),
Auto-oiling system,
Tool-sensor,
Japan Omron Emergency stop and Schneider switch. |
5. Packages: Solid seaworthy wood box package with steel belt.6. Guarantee and After-sales service:1) The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged. 2) Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.7. Traning to use:1) We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc. 2) We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer. 8. Company information:Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine,advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine,cylinder engraving machine, etc. The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. our machines have already exported to USA, Canada, England, Australia, Russia, India and so on. 9. FAQ: 1) How long is the delivery time? For standard machines, it would be 5-8 days; For non-standard machines and customized machines according to client s specific requirements, it would be 8 to 15 days. 2) How about the payment terms? T/T, West Union, L/C3) Do You Arrange Shipment For The Machines? Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents. 4) If some problems happened to this machine during warranty period, what should I do? We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours. 5) What is the MOQ? MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port. 10. Contact information:Mobile: +86-18615627569 11. Machine accessories:| Name | Specification | Quantity | Unit |
| NC-studio control software CD | In CD | 1 | piece |
| NC-studio control card | | 1 | piece |
| Data wire | | 1 | piece |
| Spanner | 19-22 | 1 | piece |
| Spanner | 27-30 | 1 | piece |
| Allenwrench | | 1 | suit |
Cutting tools
(2mm, 3mm, 3.175mm, 4mm, 6mm, 8mm, 12.7mm.....etc these different size cutters.
ER16 ER20 these size collets) | | 1 | suit |
| Water pump | WP3550 | 1 | piece |
| Power line | 2*2.5 | 3 | meters |
Artcam/
Artcam software | In CD | 1 | suit |
Type3/
Type3 software | In CD | 1 | suit |
| Water tank | | 1 | piece |
| Brush | 3# | 1 | piece |
| Emergency button | | 1 | piece |
| Limit switch | | 3 | piece |
| clamps | | 6 | piece |
| User manual | In CD | 1 | piece |
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.
The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.
Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.
Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.
Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
