Laser Engraving and Cutting Machine, Laser Engraver, Laser Cutter

Prod Model:	TZJD-1290
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red/White/Blue/, as Demands
Working Area:	1200mm*900mm
Laser Tube:	40W/60W/80W/100W/130W/150W
Cooling System:	Water-Cooled System, Water-Chiller System
Necessary:	Red-DOT Position System
Available:	up & Down System, Auto-Focus Device
Working Table:	Honeycomb Type
Guide Rail:	Taiwan Hiwin Square Linear Guide
Software:	Laserwork
Control Card:	Ruida
Engraving Machine Type:	Laser Engraving Machine
Usage:	Plastic
Laser Type:	CO2
Control:	CNC
Current:	AC
Certification:	FDA

Product Description

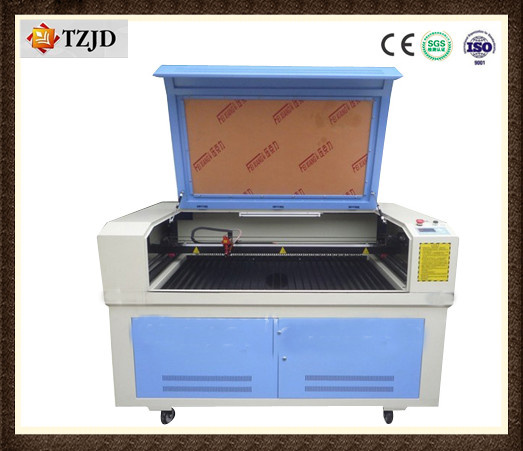

Laser Engraving and Cutting machine, Laser Engraver, Laser Cutter TZJD-1290

1. Continuous & rapid curve cutting function; Selecting shortest path function.
2. Adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type, and the life time of the laser tube can be over 10000 hours.
3. The mechanical structure is strong and stable, making the machine to run at high precision.
4. The electrical ability is stable, the engraving speed is high, and the precision is high.
5. Advanced DSP control system, professional motion control chip, consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot.
6. LaserCut software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.
7. USB Interface, with mass storage device; Improve working-speed & working efficiency
8. Taiwan HIWIN linear guide rail.

Applicable industry:
Label processing, Embroidery, advertising, decoration, arts and crafts, electronics, electric appliances, mould industry, packing industry, etc.

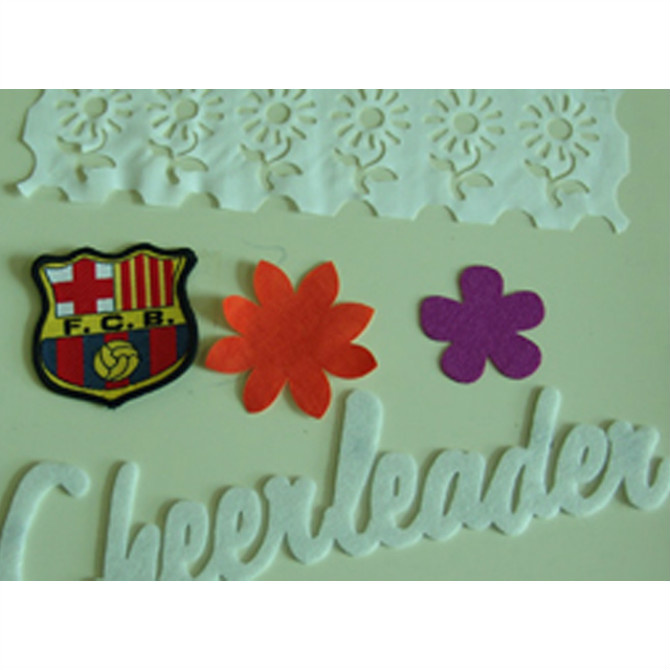

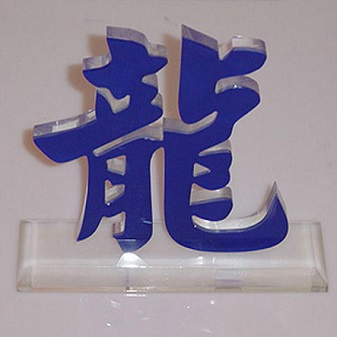

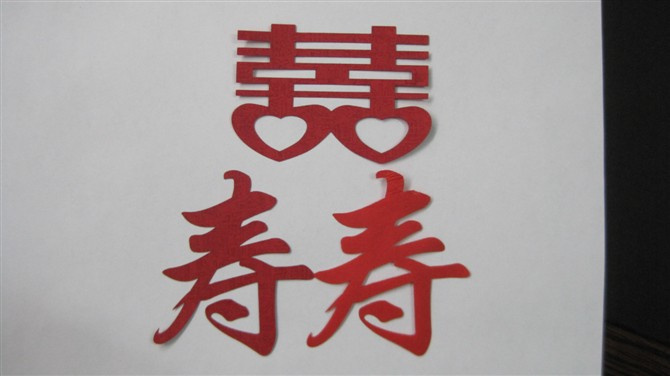

Applicable Materials:
Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, embroidery, leather, synthetic leather, artificial leather, glass, marble, crystal, etc.

Laser Engraving and Cutting machine, Laser Engraving machine, Laser Cutting machine, Laser Carving machine, CO2 Laser Engraver, Laser Cutter, High Precision Laser Engraving Cutting machine.

Model	TZJD-1290
Working  area	1200mm*900mm
Laser  power	60w/80w/100w/130w/150w
Laser  type	CO2  Sealed  laser  tube  ,   10.6μ m,   water-cooled
Cooling  type	Water-cooling/Water  chiller
Engraving  speed	0-60000mm/min
Cutting  speed	0-50000mm/min
Total  power	2KW/H
Drive  motors	Stepper/Servo(option)
Laser  output  control	0-100%  set  by  software
Min.   engraving  size	Chinese:   2.0mm*2.0mm,       English  letter:     1.0mm*1.0mm
Highest  scanning  precision	4000DPI
Locating  accuracy	≤ +0.01mm
Controlling  software	DSP  control  system
Operating  software	LaserWork
Graphic  format  supported	DST  PLT  BMP  DXF  DWG  AI  LAS, etc
Compatible  software	CORELDRAW, PHOTOSHOP,   AUTOCAD, TAJIMA, etc.
Color  separation	Yes
Drive  system	High-precision  3-phase  stepper  motor
Auxiliary  equipments	Exhaust  fan  and  air  exhaust  pipe,   red-dot  position  system,   focus  lens  &   reflection  mirrors,   auto-focus  device,   up  &   down  device.
Power  supply	Ac110v/AC220V± 10%,   50HZ/60HZ
Working  environment	Temperature: 0-45,   Humidity  5-95%(No  condensate  water)
Packing  size	1.93m*1.54m*1.35m
Net  weight	450KG
Machine  available	rotary  device,   honeycomb  worktable,   etc.
