High Power Advertising CNC Machine CNC Engraver Cutter

Prod Model:	TZJD-6090
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Area:	600mm*900mm*200mm
Color:	Blue, White, Also as Demands
Structure:	Germany Ball Screw
Working Table:	T-Slot Table with PVC Board
Drive Motor:	Stepper, Servo
Cooling Method:	Water-Cooled System
Controller:	DSP Handle
Software:	Type3, Artcam
Interface:	USB
Software Surroundings:	Windows98/2000/XP/7
Process Usage:	CNC Non-Conventional Machine Tools
Movement Method:	Point to Point Control
Control Method:	Open-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools
Certification:	FDA BV

Product Description

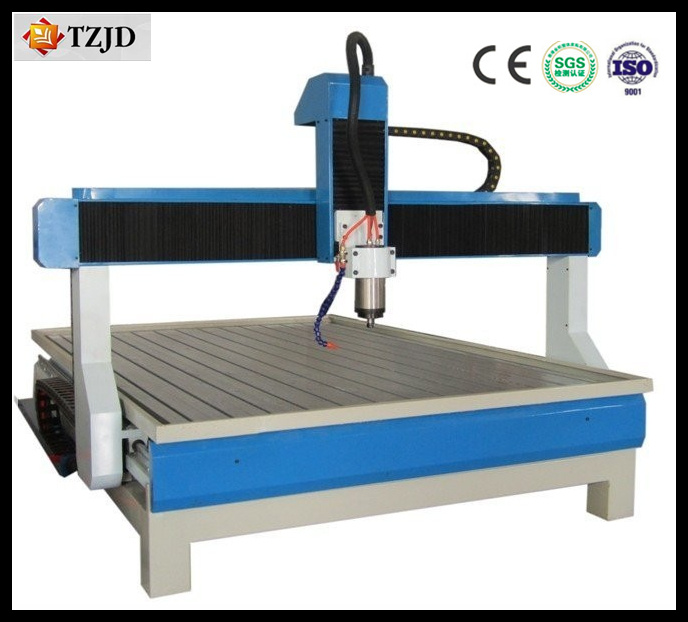

High Power Advertising CNC Machine CNC Engraver Cutter TZJD-6090

1. Machine features:
1) Germany Ball Screw Nut, guarantee the working clearance is very small.
2) Broken-point memory ensures the continuity of work when inciddent happens.
3) Gantry movement ensures the undeformation after a long-time work as well as a higher accuracy; Solid gantry, well structure of lathe bed, stable lathe table.
4) Auto-oiling system, confirm the power was uniform in these three axis.
5) Mainly used for breast-plate engraving, & cut 2cm thickness organic glass easily.
6) Cast steel structure, solid without distortion.
7) Water-cooling spindle with low noise and guarantee long time mass processing.
8) Tool sensor system, save your time.
9) Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.

2. Applicable industry:
Advertisement industry, handicraft industry, various types of man-made plate, LED, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model, light equipment mold processing, sign and mark, acrylic board processing, PCB circult board, department cards.

3. Applicable material:

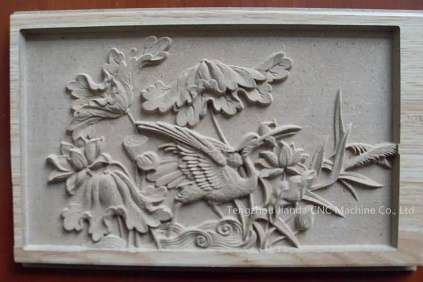

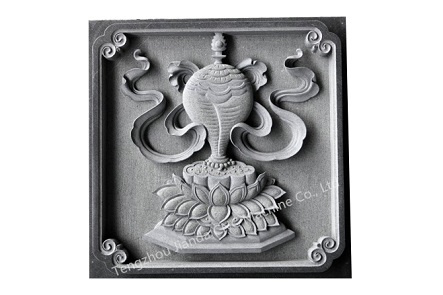

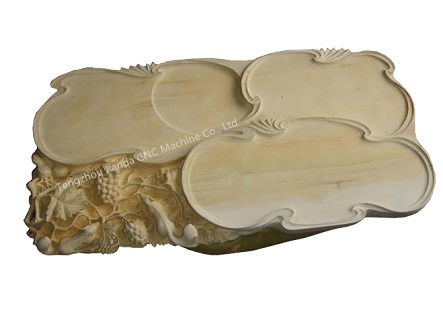

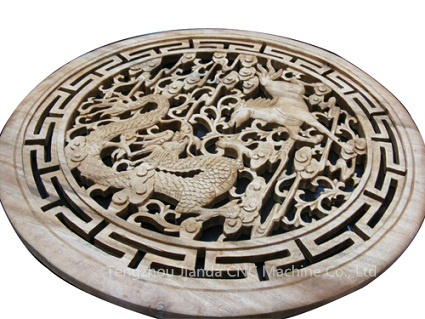

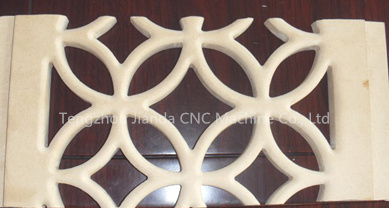

Acryl, wood, Aluminum, 3D technology, copper, PVC board, MDF board, PCB Board, breastplate, indoor & outdoor decoration, etc.





Advertising engraving cutting machine, CNC engraver cutter, CNC router, CNC engraving machine, advertising CNC router, advertising equipment, advertising engraver, advertising engraving machine, advertising carver.

4. Technical parameters:

Description	Parameter
	TZJD -6090
Working Area (X*Y*Zmm)	600mm* 900mm*200mm
Max Engraving Speed	6000mm/min
Frame	Cast  Square tube welding
XYZ travelling positioning accuracy	0.03/300mm
XYZ repositioning accuracy	0.02mm
Spindle power(KW)	1.5 KW /2.2KW/3KW
Max. Power Consumption(Without spindle)	1.2KW
Spindle Speed	6000-24000rpm
Resolution	0.005mm
Repeatability	0.01mm
Voltage	AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motor	Stepper(option:Servo motor)
Working table	T-Slot with PVC board
Working Dictate	G Code*.u00*.mmg*.plt
Operating system	Nc-studio /DSP optional
Software environment	Windows98/2000/xp
Interface	USB
Flash memory	128M(U Disk)
Software Compatability	Type3,,Ucancam,Artcam Software)
Running Environemt	Temperature: 0-45
	Relative humidity: 30% -75%
Machine available	Dust collector system,  spindle cover,  Japan Panasonic Servo motor(option),  vacuum absorption table & vacuum pump system(option),  Auto-oiling system,  Tool-sensor,  Water tank system, etc.

5. Packages: Solid seaworthy wood box package with steel belt.

6. Guarantee and After-sales service:
1)  The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
2)  Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.

7. Traning to use:
1)  We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc.
2)  We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer.

8. Company information:
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine,advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine,cylinder engraving machine, etc. The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

9. FAQ:
1) How long is the delivery time?
For standard machines, it would be 5-8 days; For non-standard machines and customized machines according to client s specific requirements, it would be 8 to 15 days.

2) How about the payment terms?
T/T, West Union, L/C

3) Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

4) If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.

5) What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.

10. Contact information:
Mobile: +86-18615627569

11. Machine accessories:

Name	Specification	Quantity	Unit
NC-studio control software CD	In CD	1	piece
NC-studio control card		1	piece
Data wire		1	piece
Spanner	19-22	1	piece
Spanner	27-30	1	piece
Allenwrench		1	suit
Cutting tools (2mm, 3mm, 3.175mm, 4mm, 6mm, 8mm, 12.7mm.....etc these different size cutters. ER16 ER20 these size collets)		1	suit
Water pump	WP3550	1	piece
Power line	2*2.5	3	meters
Artcam/ Artcam software	In CD	1	suit
Type3/ Type3 software	In CD	1	suit
Water tank		1	piece
Brush	3#	1	piece
Emergency button		1	piece
Limit switch		3	piece
clamps		6	piece
User manual	In CD	1	piece
