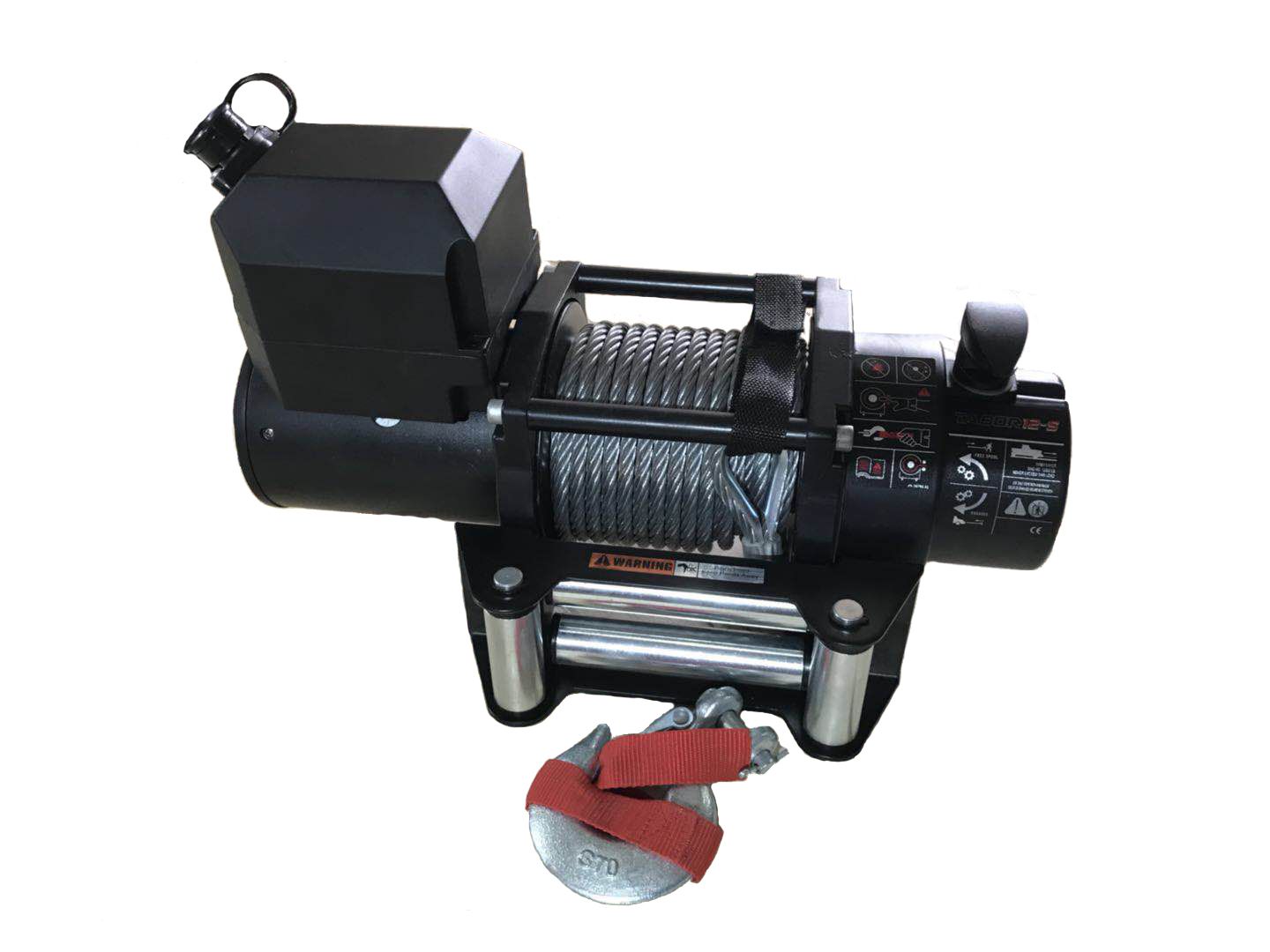

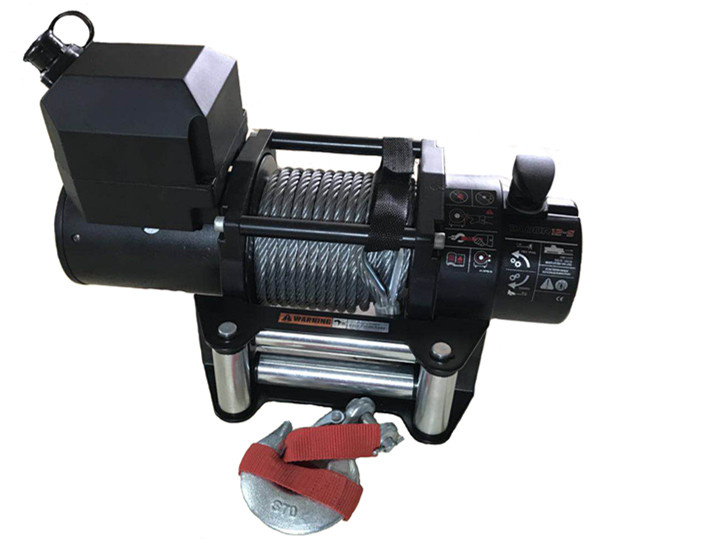

This compact 4x4 off road winch designed to "Rock Crawler" , Small size series wound motor with big horsepower , short drum makes winch more portable ,high performance gears ---steel gears make winch more durable and strength . Gear ratio :216:1 ,fast speed winch
8000 LBS Features and Specifications : PN: XM-TE931 Single line rated pull: 8000lbs (3624 kgs) Motor: 4.8hp/3.6 kw series -wound Braking action: Automatic locking with motor Clutch: Turning &Sliding ring gear Gear train : 3 -stage planetary Gear ratio: 216: 1 Switch: Wire remote control with black hand bar and Wireless remote control Fairlead: 4 -way roller Synthetic rope: Ф9.0x 50 ft (Ф9.0 x 15m ) Weight: 65 pound (28.5kg ) Overall dimension: 17.3" x 9.32" x 6.3" (439.4mm x 236.7mm x 160mm) Mounting bolt pattern: 6.45" x 4.5" (164mm x 114.3mm) Line Speed And Amp Draw ( First Layer )
Line Pull
lb
NO
4000
6000
8000
9500
kg
LOAD
1812
2718
3624
4304
Line speed
ft/min
33.60
20.90
14.33
10.90
8.86
m/min
10.24
6.38
4.37
3.28
2.70
Motor current
Amps
72
152
198
256
328
Line Pull And Cable Capacity
Layer of cable
1
2
3
4
Rated line pull per layer
lb
9500
6850
5985
4250
kg
4304
3105
2711
1925
Length of cable on drum
ft
8.2
19.1
37
50
m
2.5
5.8
11.3
15
