| Prod Model: |
XM-XU608 |
| Weight: |
35.50 Kg |
| Warterproof: |
IP67 |
| Durable Cycle: |
10000 Times |
| Warranty: |
13 Months |
| Pulling: |
13500lb |
| Type: |
Electric Winch |
| Power Type: |
Series Motor DC |
| Certification: |
RoHS |
| Pull Direction: |
Forward and Backward |
| Brand: |
Xi Man |
| Applicable Environment: |
All |
| Working Voltage Of Electric Winch: |
12 or 24 V |
| Electric Winch Model: |
Truck Jeep Trailer |
Product Description

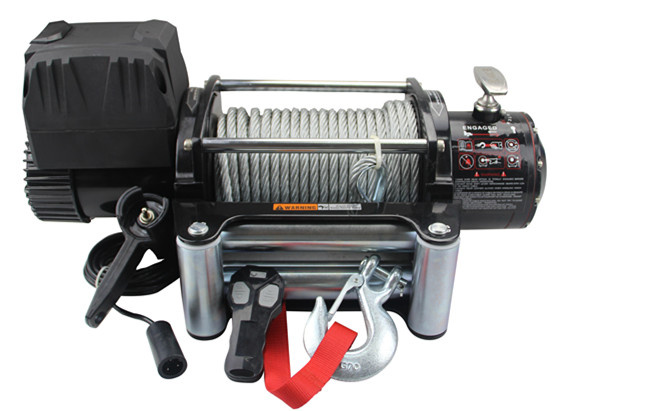

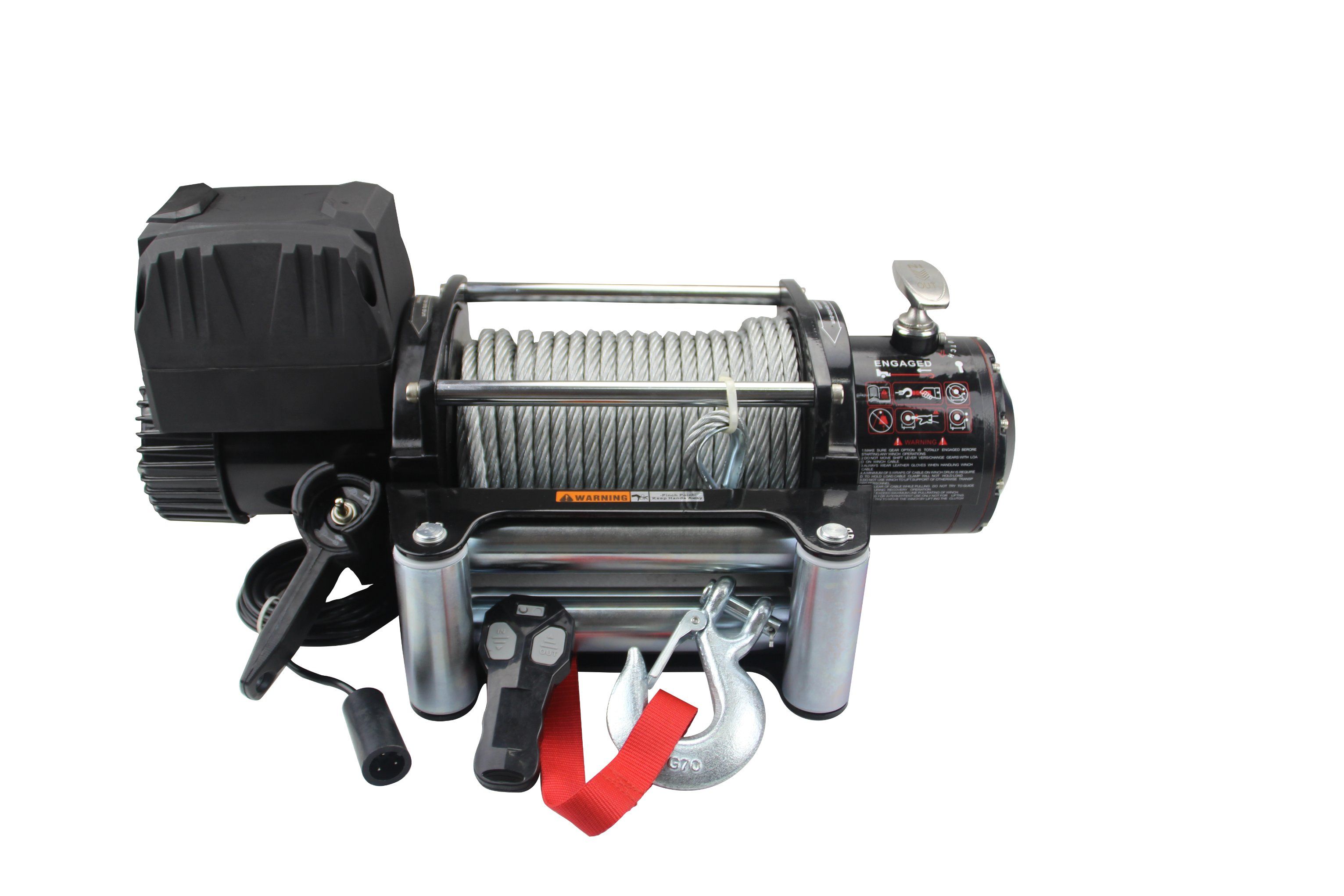

This is HEAVY WEIGHT winch for 4x4 off road riders . Fast speed ,high torque ,big horsepower sealed series wound motor . Bigger two supporting aluminum brackets with waterproof o-rings . . Big T-shape clutch bar can be laser etched logo and make clutch "IN" or " OUT " easily .All steel gears to increase the strength and durable of them and run smoothly and quietly . Synthetic rope for this winch model is acceptable !
OEM is available !
13,500 LBS Features and Specifications :
PN : XM-XU608
Performance: 12 or 24 VDC
Single line rated pull: 13,500lbs ( 6116kg)
Motor: 7.0hp/5.85 kw series -wound , fast speed
Braking action: Automatic locking with motor
Clutch: Rotating ring gear ,stainless T-clutch handle
Gear train : 3 -stage planetary ,all metal ,smooth weld planetary plate
Gear ratio: 265: 1
Remote Switch: 12ft ,wire remote control with black handbar ,
wireless remote control included
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 Gauge 72"(1.83m)
Fairlead: 4-way roller fairlead (Forged hawse optional)
Drum: 3.5"/8.8"(89mm x 224mm)
Steel cable: 25/64" x 85" (Ф10 x 24.5 m )
Weight: 105 pound (49kg )
Overall dimension: 22.9" x 6.7" x 7.2" (582mm x 170mm x 182mm)
Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )
| Line Pull | lb | NO | 4000 | 6000 | 8000 | 10000 |
| kg | LOAD | 1812 | 2718 | 3624 | 4304 | 6116 |
| Line speed | ft/min | 43.2 | 9.2 | 8.2 | 6.9 | 5.9 | 4.2 |
| m/min | 13.2 | 2.8 | 2.5 | 2.1 | 1.9 | 1.3 |
| Motor current | Amps | 75 | 180 | 230 | 280 | 340 | 420 |
Line Pull And Cable Capacity
| Layer of cable | | 1 | 2 | 3 | 4 |
| Rated line pull per layer | lb | 13500 | 10800 | 9000 | 7200 |
| kg | 6116 | 4892 | 4077 | 3270 |
| Length of cable on drum | ft | 15.8 | 32.3 | 58.70 | 65.7 |
| m | 5.21 | 10.70 | 19.30 | 21.80 |
Optional accessories :
Winch gloves ,winch cover , snatch block ,tow hook , ...ect .
