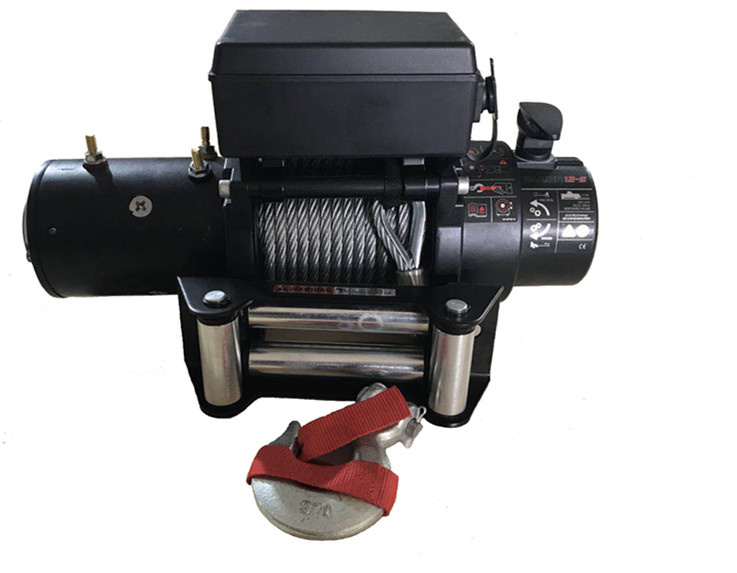

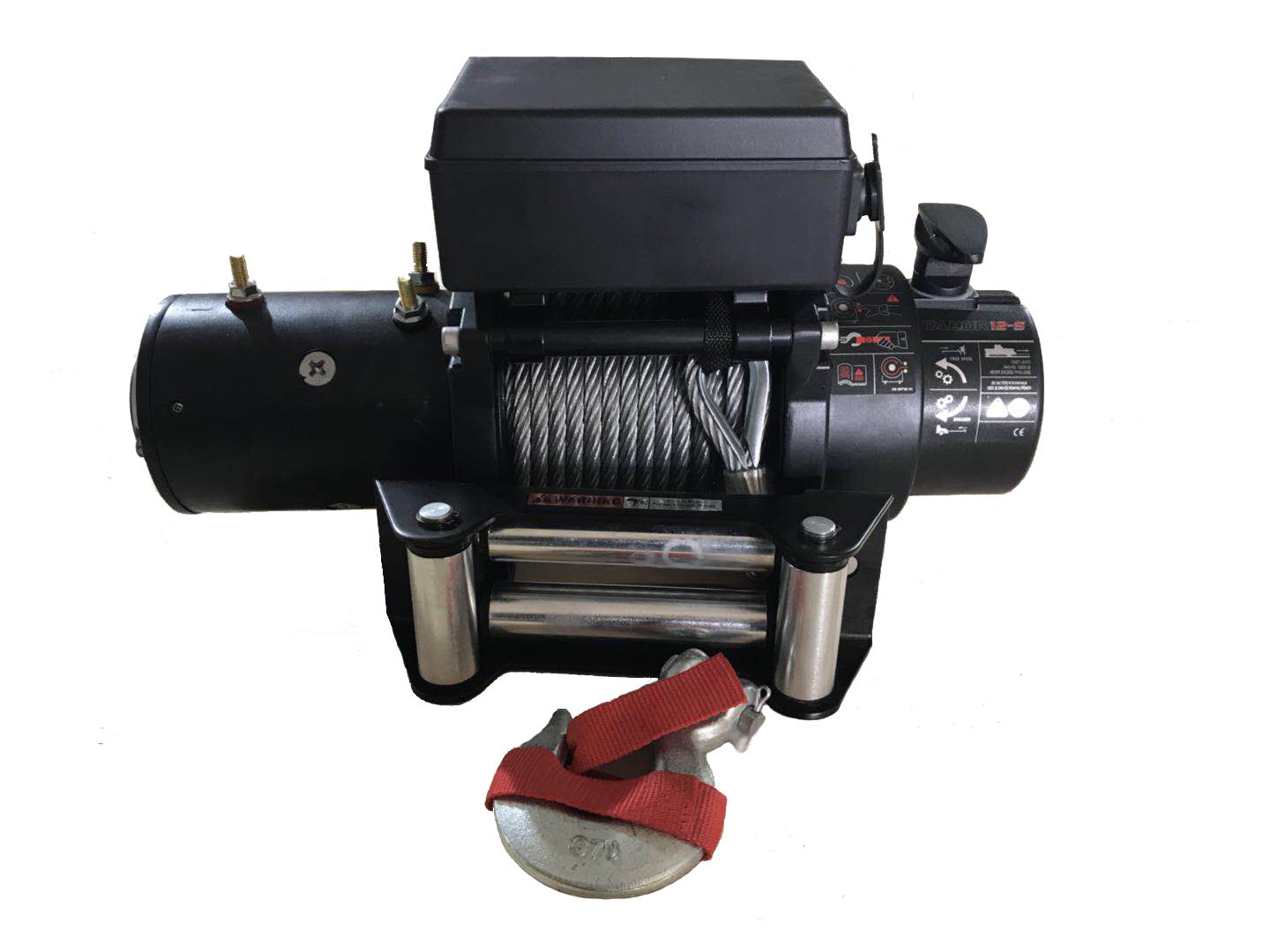

Compact Design Power Winch with 8000lb Pulling for Rock Crawler
| Price: |
US $ 138-149/Piece |
| Min Order: |
24/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XM-TE932 |
| Pulling: |
8000 Lb |
| Warranty: |
13 Months |
| Type: |
Electric Winch |
| Power Type: |
Series Motor DC |
| Certification: |
RoHS |
| Pull Direction: |
Forward and Backward |
| Electric Winch Model: |
Side X Side Rock Crawle |
| Brand: |
Xi Man |
| Applicable Environment: |
Wherever |
Product Description
This compact 4x4 off road winch designed to "Rock Crawler" , Small size series wound motor with big horsepower , short drum makes winch more portable ,high performance gears ---steel gears make winch more durable and strength . Gear ratio :216:1 ,fast speed winch Synthetic rope is available for this model too .
OEM winch service is acceptable all the time .8000 LBS Features and Specifications :PN : XM-TE932Single line rated pull: 8000lbs (3624 kgs)Motor: 4.8hp/3.6 kw series -wound Braking action: Automatic locking with motor Clutch: Turning &Sliding ring gear Gear train : 3 -stage planetary Gear ratio: 216: 1 Switch: Wire remote control with black hand bar and Wireless remote control Fairlead: 4 -way roller Synthetic rope: Ф9.0x 50 ft (Ф9.0 x 15m )Weight: 65 pound (28.5kg ) Overall dimension: 17.3" x 9.32" x 6.3" (439.4mm x 236.7mm x 160mm) Mounting bolt pattern: 6.45" x 4.5" (164mm x 114.3mm)Line Speed And Amp Draw ( First Layer )| Line Pull | lb | NO | 4000 | 6000 | 8000 | 9500 |
| kg | LOAD | 1812 | 2718 | 3624 | 4304 |
| Line speed | ft/min | 33.60 | 20.90 | 14.33 | 10.90 | 8.86 |
| m/min | 10.24 | 6.38 | 4.37 | 3.28 | 2.70 |
| Motor current | Amps | 72 | 152 | 198 | 256 | 328 |
Line Pull And Cable Capacity| Layer of cable | | 1 | 2 | 3 | 4 |
| Rated line pull per layer | lb | 9500 | 6850 | 5985 | 4250 |
| kg | 4304 | 3105 | 2711 | 1925 |
| Length of cable on drum | ft | 8.2 | 19.1 | 37 | 50 |
| m | 2.5 | 5.8 | 11.3 | 15 |
Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!
OEM service on winch is available all the time.
We are looking forward to hearing from you.
Thanks
