| Prod Model: |
LQ-DCD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Graininess: |
1000# |
| Shape: |
Round |
| Customized: |
Customized |
| Usage: |
Drilling |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
| Specification: |
16-500mm |
| Brand: |
Keen |
| Saw Blade External Diameter: |
16-500mm |
| Item: |
Concrete Drill Bit |
| Material: |
Diamond Segment |
Product Description

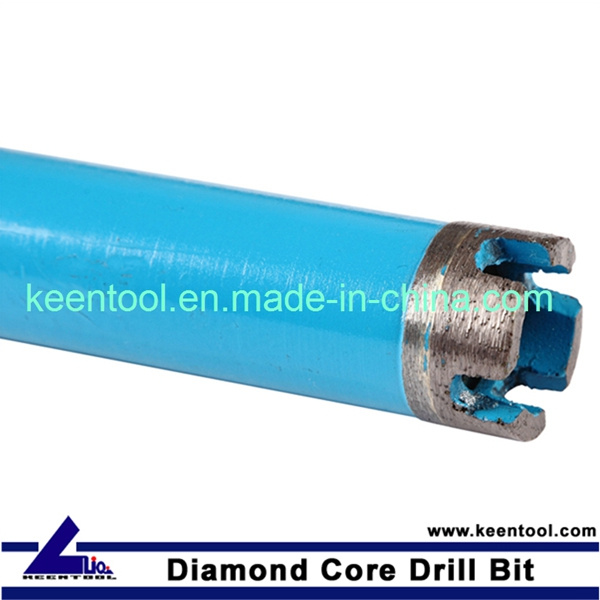

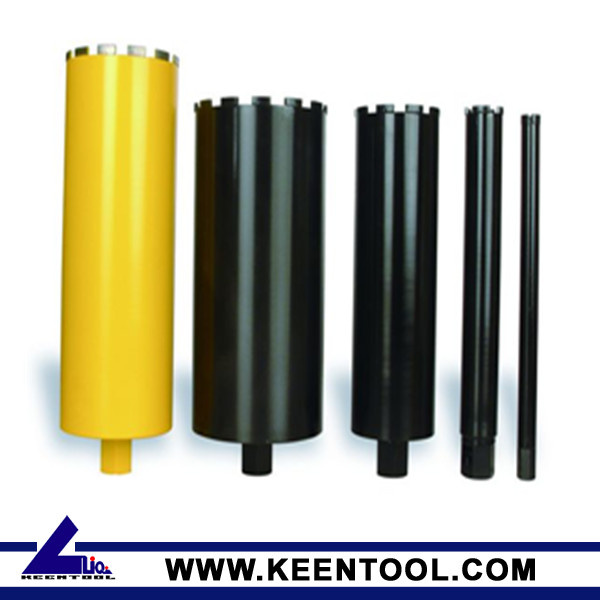

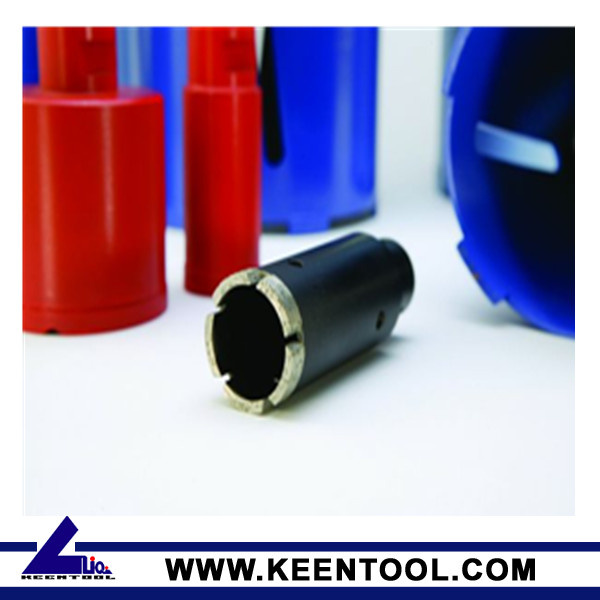

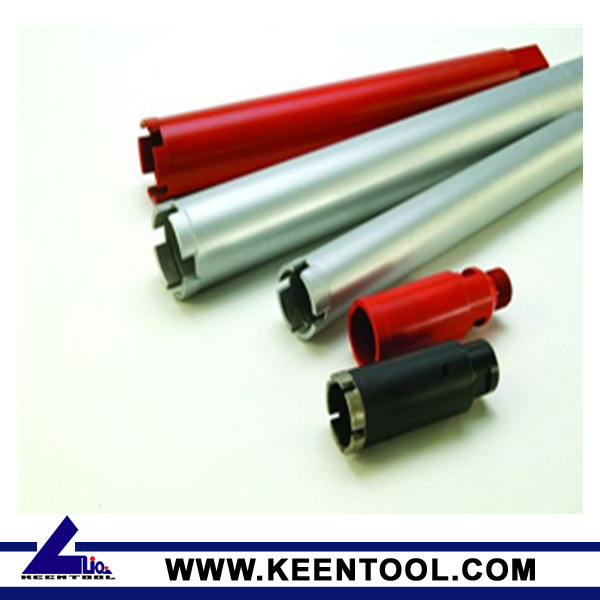

KEENTOOL offers different size of drill bit for drilling granite, marble, concrete and wall. With years of research and application of diamond core drill bits, we are pride of being able to offer high performance diamond core drill for different drilling use.
Main features of diamond core drill bits:
1. High frequency welding / Laser welding technology for wet/dry drilling application.
2. Ideal for general purpose drilling, such as concrete, aggregate concrete, reinforced concrete, brick and rocks.
3. Different thread to fit on core rigs or hand hold core drill machine.
|
Diameter |
Segment Dimensions |
Segment Nos. |
Length |
Thread |
Remarks |
|
Inch |
mm |
|
1 |
25 |
16×3.3×10 |
3 |
300-500mm |
1-1/4"-7 UNC |
Brazed/Laser welded |
|
1 1/4 |
32 |
16×3.3×10 |
4 |
300-500mm |
1-1/4"-7 UNC |
|
1 1/2 |
38 |
20x3.3x10 |
4 |
300-500mm |
1-1/4"-7 UNC |
|
1 3/4 |
44 |
20x3.5x10 |
5 |
300-500mm |
1-1/4"-7 UNC |
|
2 |
51 |
20x3.5x10 |
6 |
300-500mm |
1-1/4"-7 UNC |
|
2 1/2 |
64 |
20x3.5x10 |
8 |
300-500mm |
1-1/4"-7 UNC |
|
3 |
76 |
20x3.5x10 |
9 |
300-500mm |
1-1/4"-7 UNC |
|
3 1/2 |
89 |
20x3.5x10 |
10 |
300-500mm |
1-1/4"-7 UNC |
|
4 |
102 |
20x3.8x10 |
12 |
300-500mm |
1-1/4"-7 UNC |
|
4 1/2 |
114 |
20x4.2x10 |
13 |
300-500mm |
1-1/4"-7 UNC |
|
5 |
127 |
20x4.2x10 |
15 |
300-500mm |
1-1/4"-7 UNC |
|
5 1/2 |
140 |
24x4.2x10 |
14 |
300-500mm |
1-1/4"-7 UNC |
|
6 |
152 |
24x4.5x10 |
15 |
300-500mm |
1-1/4"-7 UNC |
|
7 |
178 |
24x4.5x10 |
17 |
300-500mm |
1-1/4"-7 UNC |
|
8 |
203 |
24x4.5x10 |
18 |
300-500mm |
1-1/4"-7 UNC |
|
9 |
229 |
24x5x10 |
19 |
300-500mm |
1-1/4"-7 UNC |
|
10 |
254 |
24x5x10 |
20 |
300-500mm |
1-1/4"-7 UNC |
|
12 |
305 |
24x5.5x10 |
20 |
300-500mm |
1-1/4"-7 UNC |
