Construction Industry Diamond Cutting Wire Saw/Diamond Cutting Tool
| Price: |
US $ 30-50/Meter |
| Min Order: |
50/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ROC-GS110R |
| Reinforcement: |
Rubber+Flat Spring |
Product Description
Product Dexcription The construction diamond wire is used mainly for cutting reinforced concrete or for controlled demolition.

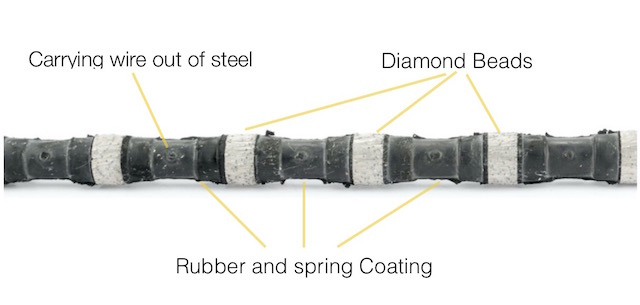

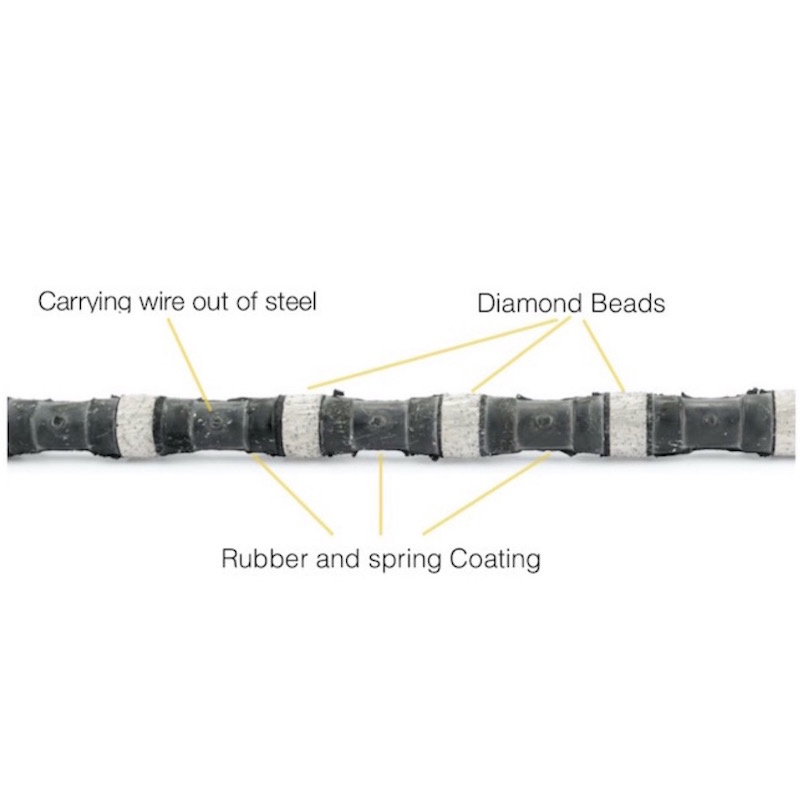

It is essentially composed of three main components:- Steel cable with different diameter which is made in Germany

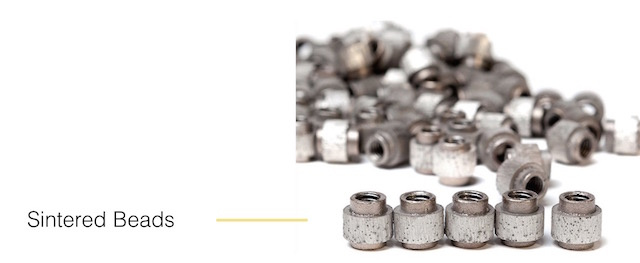

- Sintered Diamond beads

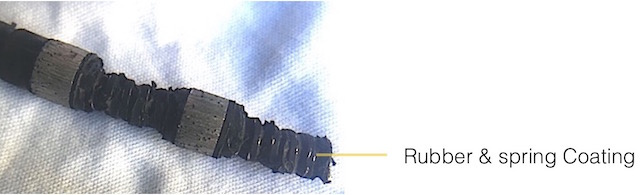

- Assembly with rubber and spring
SpecificationApplication | Art No. | Specification (mm) | Beads/M | Reinforcement |
To be widely used for cutting reinforced and highly reinforced concrete | ROC-C110R | ¢11.0×6.5 | 40 | Rubber+Spring |
ROC-C105R | ¢10.5×6.5 | 40 | Rubber+Spring |
Cutting Material | Linear Speed (M/S) | Cutting Speed (M2/H) | Cutting Life (M2/M) |
Reinforced Concrete | 24-26 | 2-3 | 3-5 |
Highly Reinforced Concrete | 20-24 | 1-3 | 2-4 |
Beads Spec. | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
¢11.0 | 6.5 | 11 | Sintered |
¢10.5 | 6.5 | 11 | Sintered |
Advantage:
• Flexibility
• No Vibration
• Low Noise
• Excellent Precision
• Safety
• Possibility to work in confined spaces
Feature:
Keentool studied the materials to be cut to design the bond and select diamond according to strength grading of cement, diameter and density of steel reinforced;
Keentool wires use the top quality steel cable from Germany;
Keentool developed special rubber and the technology of vulcanization, with strong flat spring between beads to make sure our diamond wire can work in most hard-working conditions

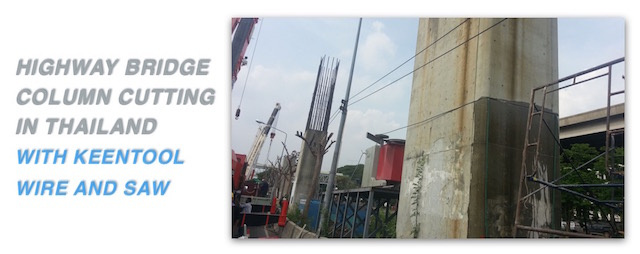

Case Presentation of how our diamond wire work in worldwire projects
WHY CHOOSE US- Keentool studies the materials and project to be cut based on the Strength Grading of Cement and Reinforcement Density to figure out the optimal bond formula and select the best diamond matrix for the diamond beads, which assures the wire will cut the material with fast speed and low square meter cutting cost.
- The top quality 4.8mm diameter Germany steel cable copper plated with 133pcs (7x19pcs), makes sure the wire will cut smoothly with no or very low fault rate in wire break
- The special developed black rubber with advanced equipment and technology of vulcanization, reinforced with the strong flat spring between each beads, makes sure the diamond wire will work perfectly even in the most hard work conditions with no assembly failure.
Feel difference and you'll make a difference !
Let us work with you together !
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
