Copper Sheet Circular Slitting Cutter for Slitting Machine
| Price: |
US $ 1-260/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
customized |
| Product Name: |
Steel Slitting Cutting Blade |
| Material Of Plate: |
Steel, Aluminum, Copper, etc |
| Sheet Thickness Of Cutting Blade: |
0.1m/Mt-3.2t/Mt |
| Standard Hardness Of Cutting Blade: |
HRC58--61 |
| Precision: |
0.003mm |
| Material Of Blade Sleeve: |
S45c, S50c, 65mn |
| Thickness Of Blade Spacer: |
0.09-100mm |
| Hardness Of Blade Spacer: |
0.47+/- 2 HRC |
| Material Of Blade Separator: |
SKD-61(4Cr5MoSiV1), 40crmo, Cr12 |
| Style Of Cutting Tools: |
Customized |
Product Description

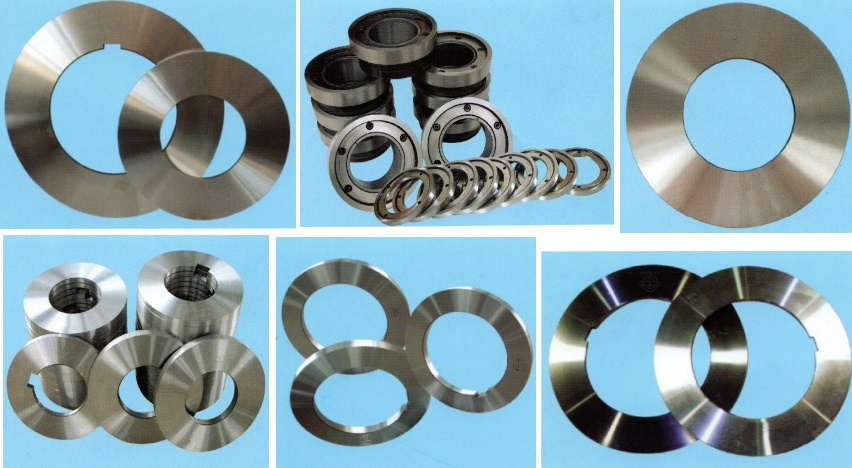

Copper sheet circular slitting cutter for slitting machine
Steel Slitting Cutting Blade

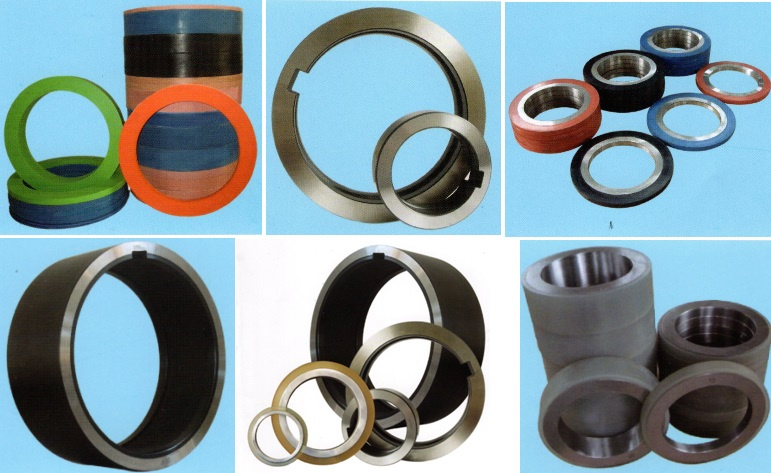

Steel Slitting Blade Spacer

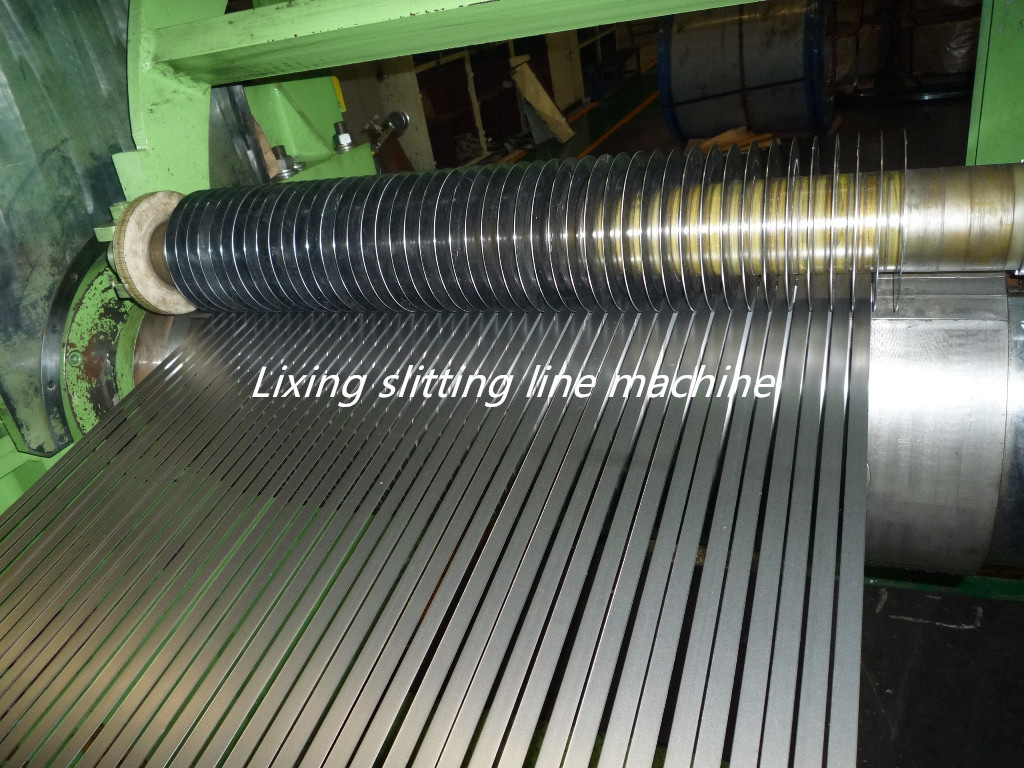

Steel Sheet Slitting Line Machine
Introduction of steel cutting knife/blade
With the high development of iron and steel industrial, all walks of life have put a higher and higher requirement on cutting precision. As an enterprise dealing with metal sheer, they should provide precision sheer to customers, which not only meets customers but also brings a good profit to enterprise themselves.
Based on its rich experience and advanced facilities, we are to supply high quality slitting cutters and accessories. This product, made of high speed tool steels like SKD, SLD, SKH, is uniquely processed and made.Application of steel slitting cutting blade

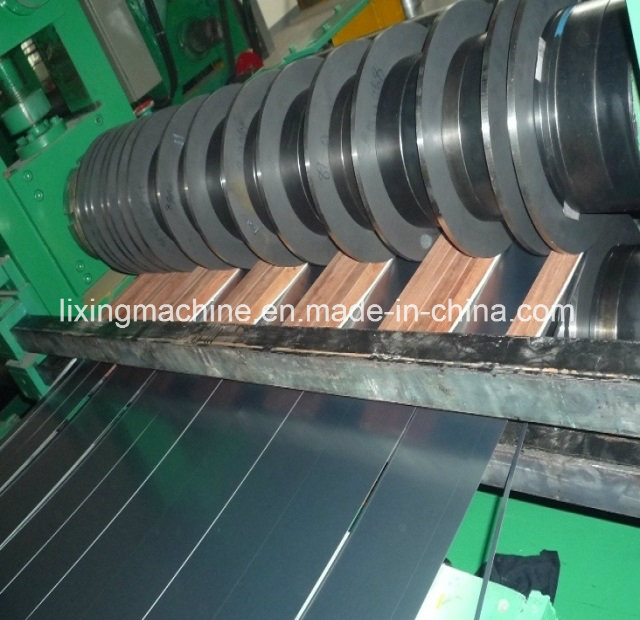

The slitting cutting knife is especially most used in high speed cutting lines, for example, cold and hot rolling, acid milling, silicon steel sheet, stainless steel, silicon steel slice and steel strip.
The slitting cutter is the most important stage in the whole production, and thus a very high precision is required on the blade.
The surface of the blade is smithed, machined, through heat treatment and is specially grinded by high precision grinding machine while a strict quality and inspection control is performed to ensure the parallelism tolerance of finished products within 0.003mm..Materials commonly used and plate applicableA. SKD-11 cold tolling steelSKD-11 is applicable to cold or hot rolling plate, stainless steel, galvanized plate, aluminium sheet, steel plate etc.. SKD-11 is of toughness, friction resistance etc..SKD-11 plates and thickness applicable:SKD-11
(Cr12Mo1V1) | Material of steel | Sheet thickness | Standard hardness |
| Aluminium or copper plate | 0.3m/mt--3.2t/mt | HRC60--61 |
| Stainless steel | 0.1m/mt--1.2t/mt | HRC60--61 |
| Stainless steel | 1.2m/mt--2.0t/mt | HRC58--59 |
| Cold or hot rolled plate | 0.1m/mt--2.0t/mt | HRC60--61 |
| Cold or hot rolled plate | 2.0m/mt--3.2t/mt | HRC58--59 |
B. H13(H13K) hot tolling steelH13(H13K) is applicable to hot rolling plate, acid plate, stainless steel, medium-plate, ship plate etc.. H13(H13K) is of high temperature strength and well balanced blade etc..
H13(H13K) plates and thickness applicable:H13K
(4Cr5mOSiV1W) | Material of steel | Sheet thickness | Standard hardness |
| Hot rolled, acid plate | 2m/mt--4t/mt | HRC57--58 |
| Hot rolled, acid plate | 5m/mt--7t/mt | HRC55--56 |
H13K
(4Cr5mOSiV1) | Stainless steel | 8m/mt--12t/mt | HRC53--54 |
| hot rolled,medium plate | 15m/mt--20t/mt | HRC50--51 |
C. SLDSLD, whose toughness and friction resistance is twice of SKD-11; is kind of material of good cutting ability. It is applicable in cutting such as materials of stainless steel, high-carbon steel, high-manganese steel etc..SLD plates and thickness applicable:SLD
(7Cr7Mo3V2Si) | Material of steel | Sheet thickness | Standard hardness |
| Stainless steel | 0.1m/mt--1.2t/mt | HRC61--62 |
| Stainless steel | 1.21m/mt--2.0t/mt | HRC59--61 |
| High-carbon and manganese steel | 0.32m/mt--1.5.0t/mt | HRC62--63 |
| High-carbon and manganese steel | 1.51m/mt--2.5t/mt | HRC60--61 |
| High-carbon and manganese steel | 2.5m/mt--3.52t/mt | HRC58--59 |
Related Products

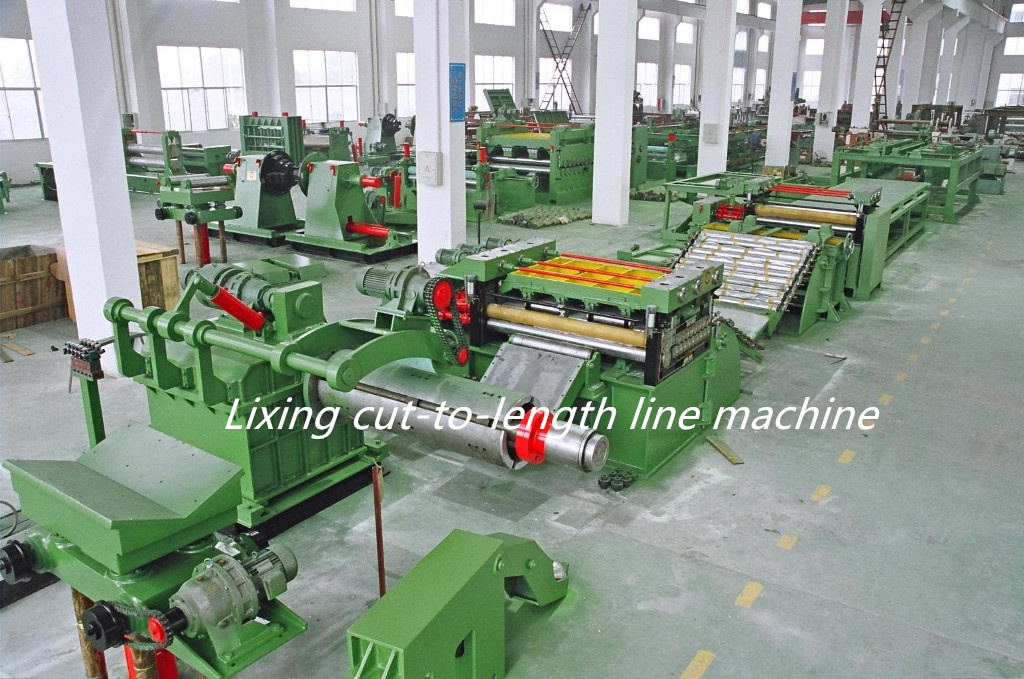

A. Cut to Length Machine

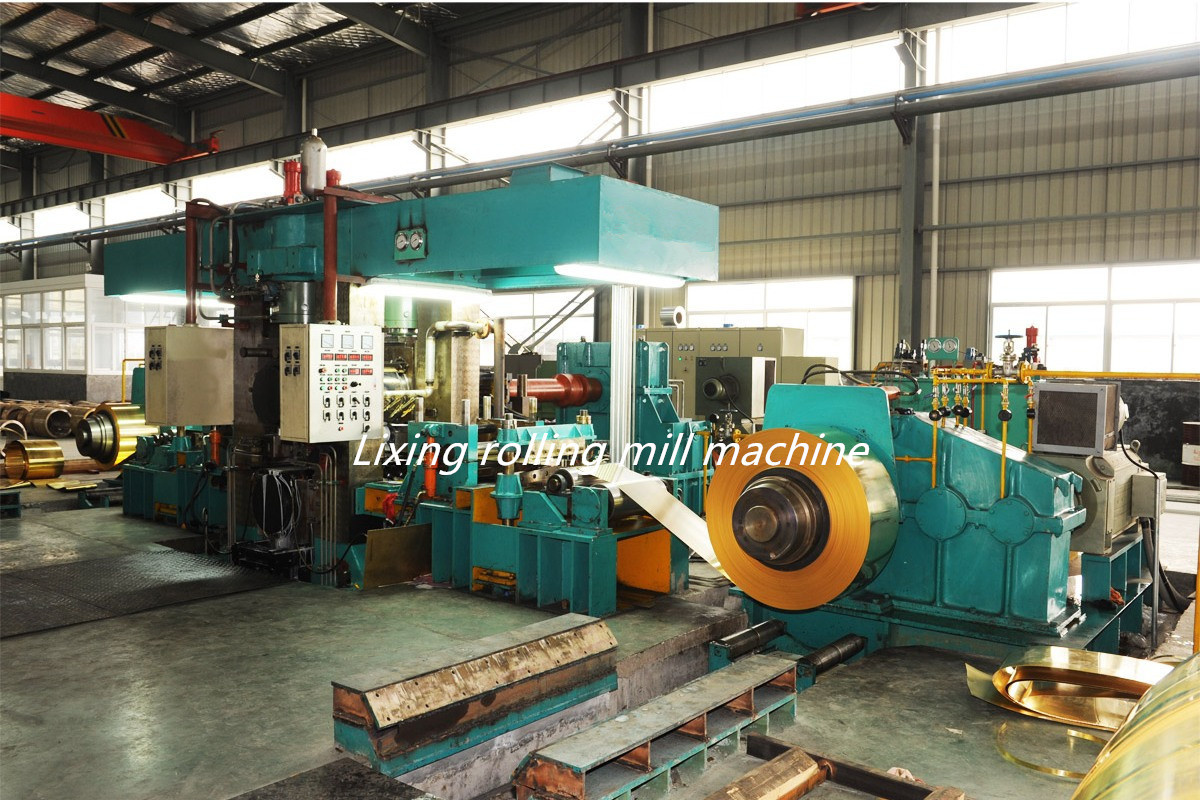

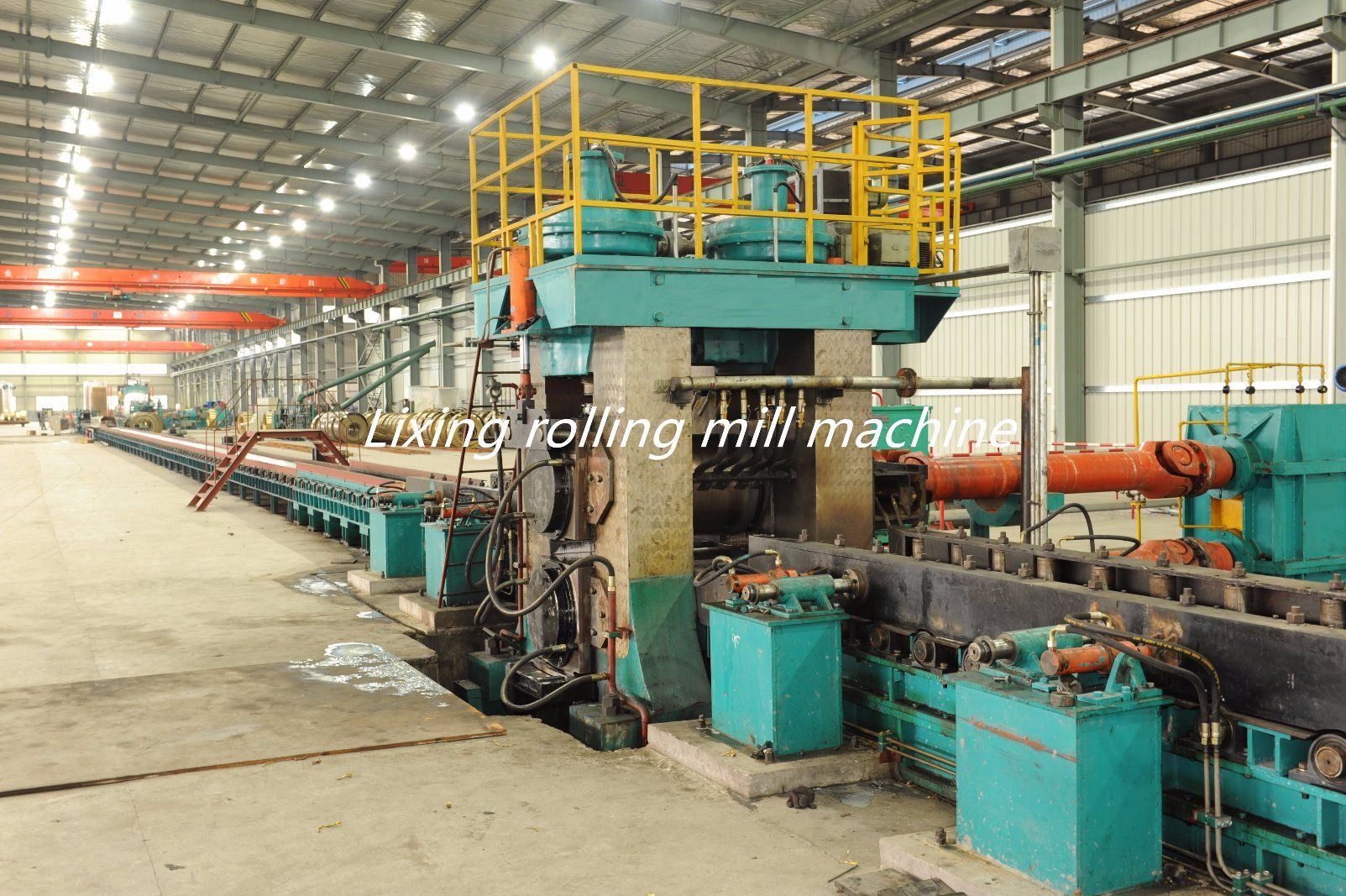

B. Rolling Mill Machine
