Flying Saw for High Frequency Steel Pipe Welding Machine
| Price: |
US $ 1500-25000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Product Name: |
Aulixiary Equipment for Steel Pipe Welding Machine |
| Steel Pipe Diameter: |
10-219mm |
| Uncoiler Strip Width: |
250-1050mm |
| Uncoiler Strip Thickness: |
3-10mm |
| Shear Welder Strip Width: |
420-830mm |
| Shear Welder Strip Thickness: |
3-9mm |
| Loop Diameter: |
2.5-16m |
| Loop Strip Width: |
60-1000mm |
| Loop Strip Thickness: |
0.5-16mm |
| Customized: |
Non-Customized |
Product Description

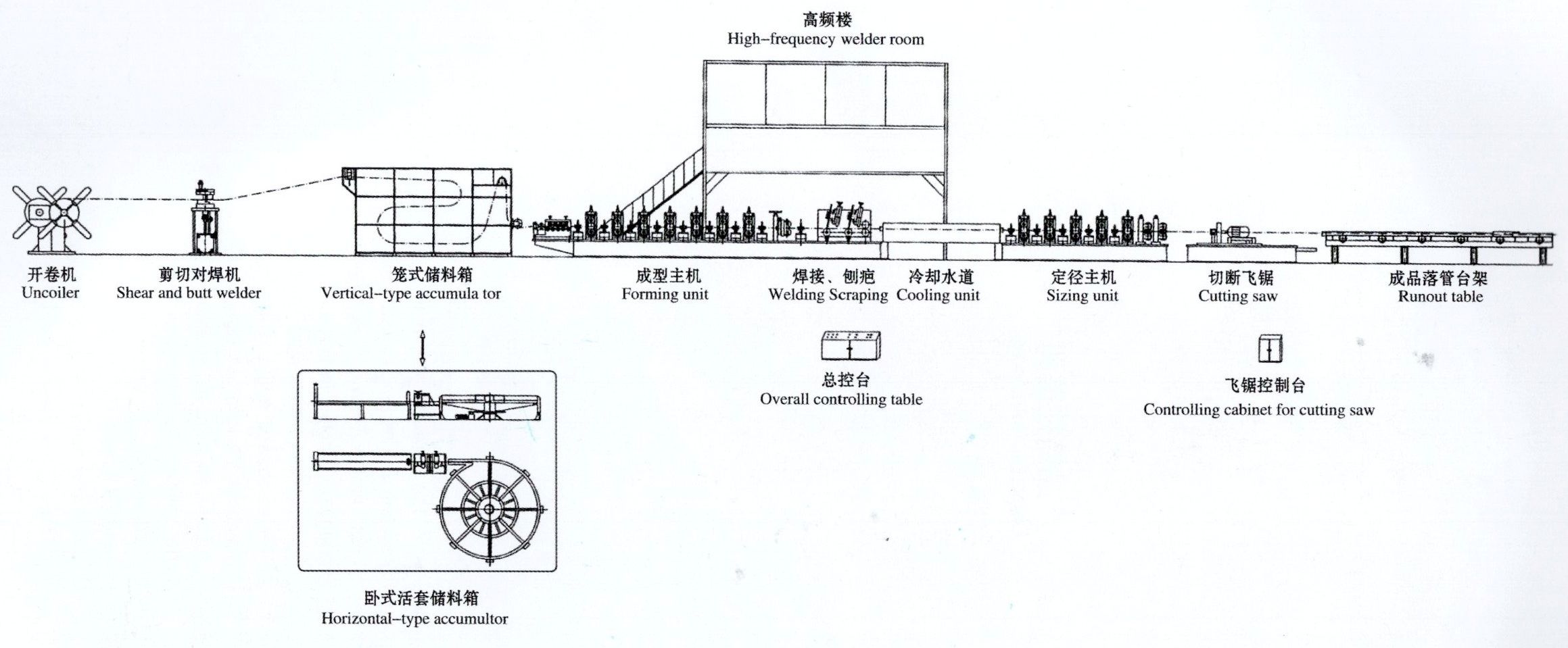

Aulixiary equipment for High Frequency Steel Pipe Welding Machine
--Flying saw for High Frequency Steel Pipe Welding Machine

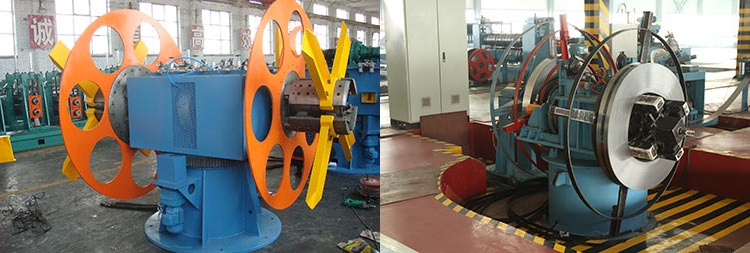

1. Uncoiler/Uncoiling machine
Product description
Uncoiling machine is the main supplementary equipment in the welded pipe production line, it is used to support the steel strip and supply raw material for production, thus to assure the continuously production of the whole production line, brake style is controlled by whole linkage control, ensuring that the steel strip won't fall off during the production.
This machine consists of pedestal, double cones which can be contracted and expanded, rotary brace, pneumatic brake and electric control system. One of the cones is on-line, the other one is in preparative position. It can be circumrotated 180oTechnical parameters | Product Name | Model | Steel strip width(mm) | Steel strip thickness(mm) |
| Single-head manual uncoiler | / | <=250 | <=3 |
| Double-head manual uncoiler | YJ32 | <=100 | <=4 |
| YJ60 | <=200 | <=4 |
| YJ400 | <=420 | <=3 |
| Single-lead simple uncoiler | YJ550 | <=550 | <=3 |
| YJ750 | <=750 | <=3 |
| Hydraulic uncoiler | Double-head | <=1050 | <=10 |
| Single-head | <=1050 | <=10 |

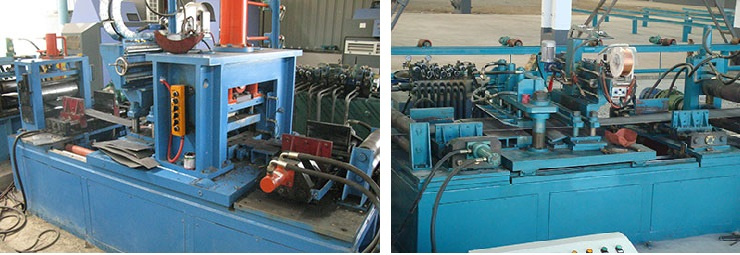

2. Shearing and but welder
Product descriptionIt is the essential equipment in ERW pipe and cold rolling production line; mainly used to cut off irregular ends in the beginning and the end of the steel strip, weld the ends, thus to ensure the continuous of the production.Technical parameters | Product Name | Model | Steel strip width(mm) | Steel strip thickness(mm) |
| Shearing and butt welder | YJ480 | <=420 | <=3 |
| YJ550 | <=520 | <=3 |
| Simple | <=500 | <=3 |
| Shearing machine | YJ600 Double column | <=580 | <=6 |
| YJ600 Double column | <=780 | <=8 |
| YJ600 Double column | <=830 | <=9 |

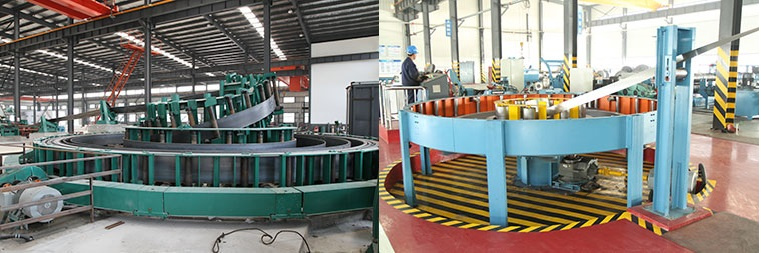

3. Loop/Accumulator
Product descriptionThe accumulator is the main supplementary equipment in the high frequency welded pipe and cold rolling production line. It stores certain amount of steel strips and leaves more time for the shearing and butt welder to shear and weld the ends of the strips. Thus ensures the continuous production process.Technical parameters | No. | Diameter(m) | Steel strip width(mm) | Steel strip thickness(mm) |
| 1 | 2.5 | 60-180 | 0.5-2.0 |
| 2 | 3.5 | 60-230 | 0.8-2.5 |
| 3 | 4.0 | 60-350 | 0.8-3.0 |
| 4 | 4.2 | 80-400 | 0.8-3.5 |
| 5 | 4.5 | 100-400 | 0.8-4.0 |
| 6 | 4.8 | 100-450 | 1.0-4.5 |
| 7 | 5.0 | 120-500 | 1.0-5.0 |
| 8 | 5.5 | 150-600 | 1.0-5.5 |
| 9 | 6.0 | 180-700 | 1.2-6.0 |
| 10 | 8.0 | 200-800 | 1.5-8.0 |
| 11 | 10 | 300-800 | 2.0-10.0 |
| 12 | 12 | 500-900 | 5.0-12.0 |
| 13 | 16 | 500-1000 | 6.0-16.0 |

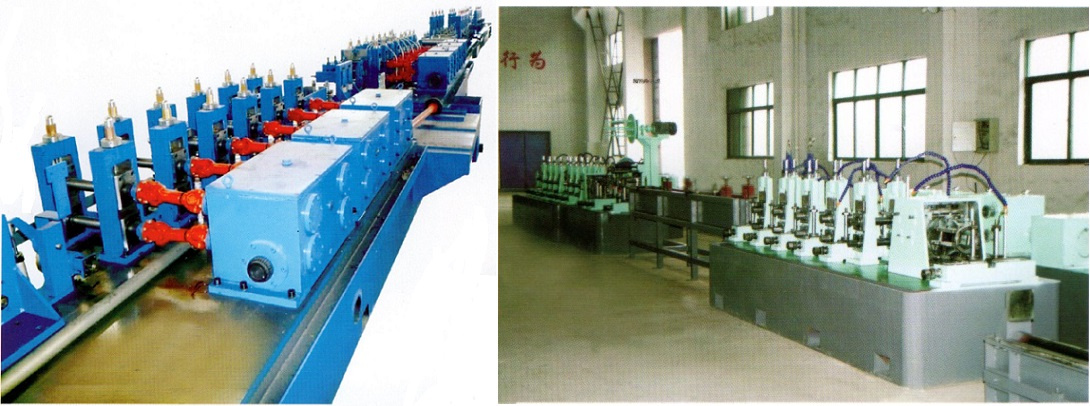

4. Forming and sizing mill
Product descriptionForming and sizing mill is the main equipment in the welded pipe production line. This line can continuously process certain specification length of steel strips into pipe barrel and weld it into pipe. It can not only produce round pipe but also can produce deformed pipe. This line utilizes roll forming principle to produce certain specification of steel pipes. That is feeding the machine with steel strip of a certain specification, then use forming roll to crimp the steel strip into pipe-blank. After high frequency induction-heating, cooling, sizing and straightness correcting then you can get the steel pipe of required specification.Technical parameters | No. | Diameter(m) | Steel strip width(mm) | Steel strip thickness(mm) |
| 1 | 8-16 | 0.3-1.0 | 80-100 |
| 2 | 10-26 | 0.5-1.5 | 80-100 |
| 3 | 14-38 | 0.6-1.8 | 80-100 |
| 4 | 20-63.5 | 0.8-3.0 | 70-80 |
| 5 | 32-70 | 1.0-3.0 | 70-80 |
| 6 | 40-80 | 1.0-3.5 | 60-70 |
| 7 | 50-90 | 1.5-4.0 | 50-60 |
| 8 | 60-120 | 2.0-5.0 | 40-60 |
| 9 | 60-130 | 1.5-5.5 | 20-60 |
| 10 | 80-165 | 2.0-6.0 | 20-50 |
| 11 | 89-219 | 3.0-8.0 | 20-45 |

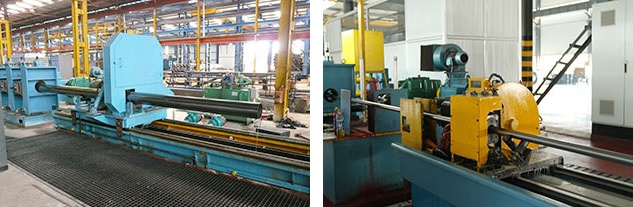

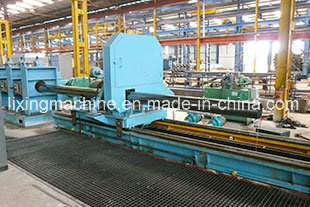

5. Flying saw
Product descriptionFlying saw is the important equipment in the welded pipe production line; it is used for automatically and precisely adjusting and fixing dimensions to cut all different forms of pipe materials during its high speed running to produce the required steel pipe of certain length. The fixed-ruler is good at synchronous performance and reliable mechanical transmission, so this machine is integrated the merits of high-speed, well performance and high precision.!! Any inquiry, please contact us.
