Stainless Steel Coil Slitting Cutter for Slitting Machine

Stainless Steel Coil Slitting Cutter for Slitting Machine
Price: US $ 1-260/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram
Prod Model: customized
Product Name: Steel Slitting Cutting Blade
Material Of Plate: Steel, Aluminum, Copper, etc
Sheet Thickness Of Cutting Blade: 0.1m/Mt-3.2t/Mt
Standard Hardness Of Cutting Blade: HRC58--61
Precision: 0.003mm
Material Of Blade Sleeve: S45c, S50c, 65mn
Thickness Of Blade Spacer: 0.09-100mm
Hardness Of Blade Spacer: 0.47+/- 2 HRC
Material Of Blade Separator: SKD-61(4Cr5MoSiV1), 40crmo, Cr12
Style Of Cutting Tools: Customized

Product Description


Stainless Steel Coil Slitting Cutter for slitting machine

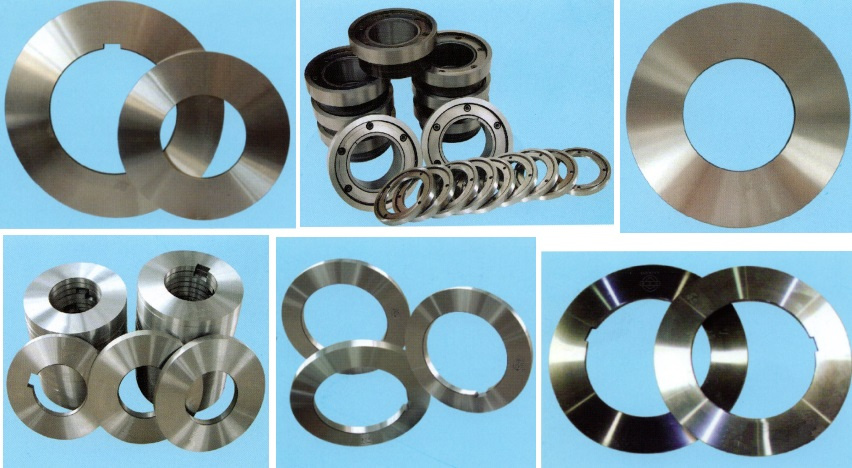

                                                          Steel Slitting Cutting Blade

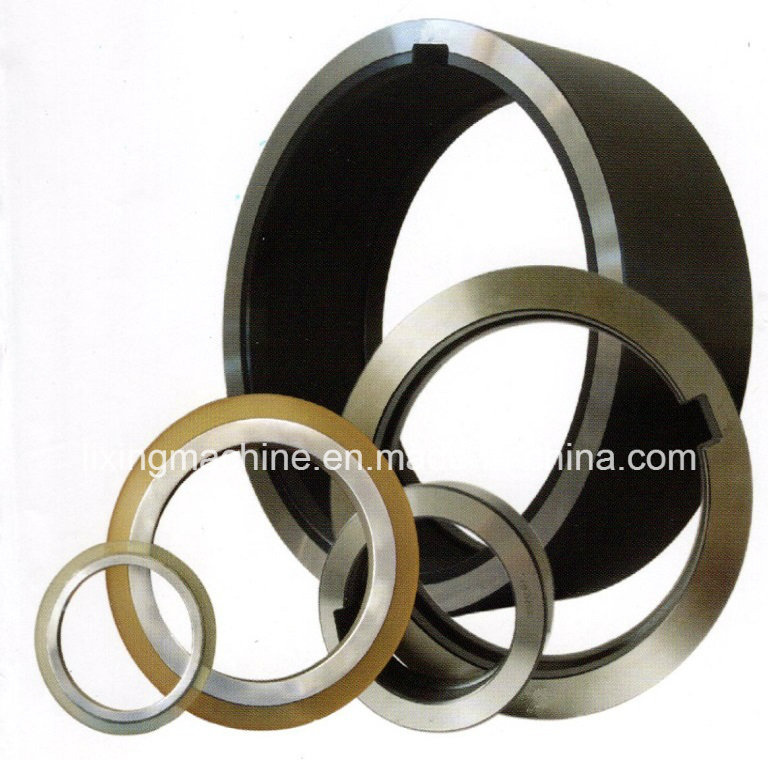

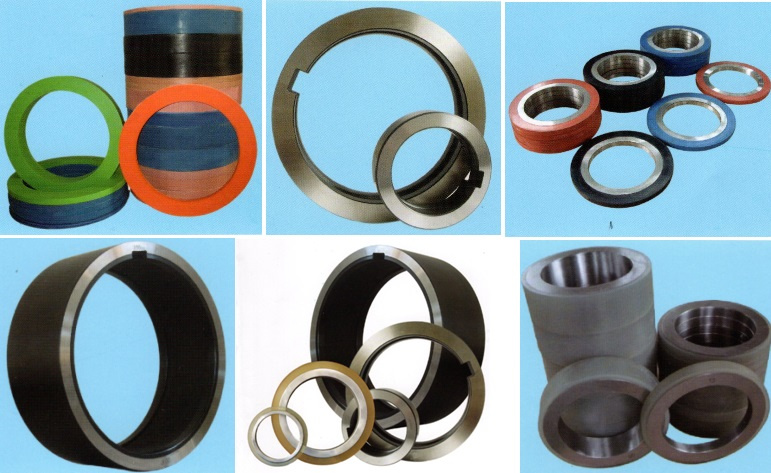

                                                              Steel Slitting Blade Spacer

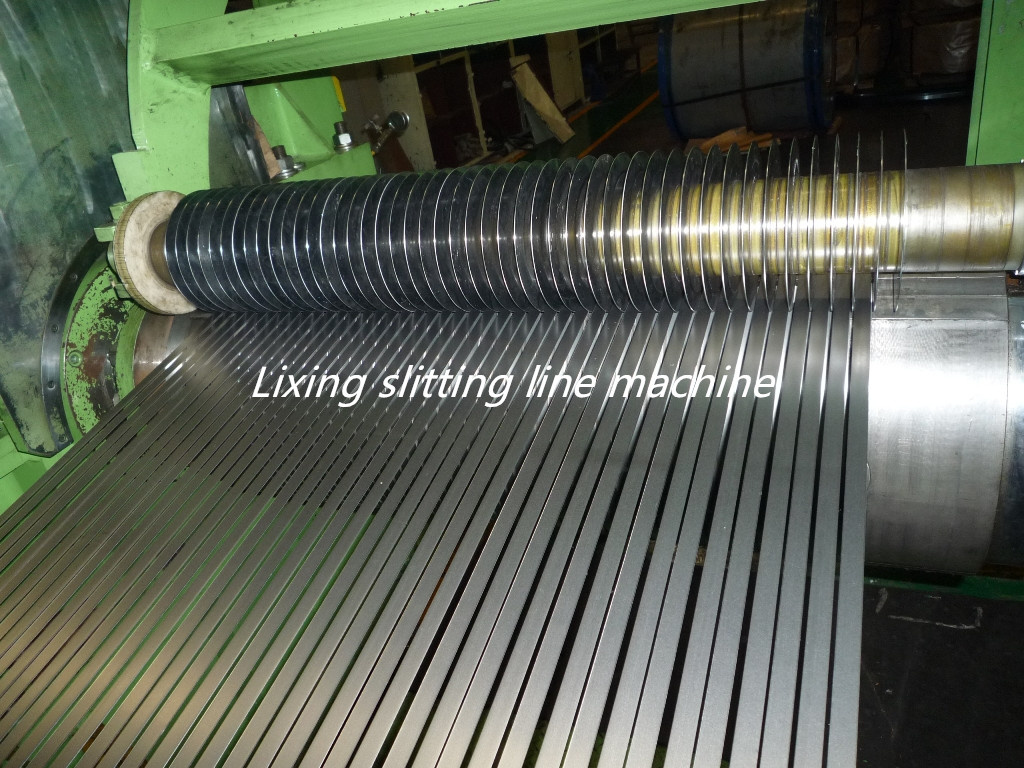

                                          Steel Sheet Slitting Line Machine


Introduction of steel cutting knife/blade
With the high development of iron and steel industrial, all walks of life have put a higher and higher requirement on cutting precision. As an enterprise dealing with metal sheer, they should provide precision sheer to customers, which not only meets customers but also brings a good profit to enterprise themselves.
Based on its rich experience and advanced facilities, we are to supply high quality slitting cutters and accessories. This product, made of high speed tool steels like SKD, SLD, SKH, is uniquely processed and made.



Application of steel slitting cutting blade
The slitting cutting knife is especially most used in high speed cutting lines, for example, cold and hot rolling, acid milling, silicon steel sheet, stainless steel, silicon steel slice and steel strip.
The slitting cutter is the most important stage in the whole production, and thus a very high precision is required on the blade.
The surface of the blade is smithed, machined, through heat treatment and is specially grinded by high precision grinding machine while a strict quality and inspection control is performed to ensure the parallelism tolerance of finished products within 0.003mm..


Materials commonly used and plate applicable

A. SKD-11 cold tolling steel
SKD-11 is applicable to cold or hot rolling plate, stainless steel, galvanized plate, aluminium sheet, steel plate etc.. SKD-11 is of toughness, friction resistance etc..
SKD-11 plates and thickness applicable:
SKD-11
(Cr12Mo1V1)
Material of steelSheet thicknessStandard hardness
Aluminium or copper plate0.3m/mt--3.2t/mtHRC60--61
Stainless steel0.1m/mt--1.2t/mtHRC60--61
Stainless steel 1.2m/mt--2.0t/mtHRC58--59
Cold or hot rolled plate0.1m/mt--2.0t/mtHRC60--61
Cold or hot rolled plate2.0m/mt--3.2t/mtHRC58--59

B. H13(H13K) hot tolling steel
H13(H13K) is applicable to hot rolling plate, acid plate, stainless steel, medium-plate, ship plate etc.. H13(H13K) is of high temperature strength and well balanced blade etc..
H13(H13K) plates and thickness applicable:
H13K
(4Cr5mOSiV1W)
Material of steelSheet thicknessStandard hardness
Hot rolled, acid plate2m/mt--4t/mtHRC57--58
Hot rolled, acid plate5m/mt--7t/mtHRC55--56
H13K
(4Cr5mOSiV1)
Stainless steel8m/mt--12t/mtHRC53--54
hot rolled,medium plate15m/mt--20t/mtHRC50--51

C. SLD
SLD, whose toughness and friction resistance is twice of SKD-11; is kind of material of good cutting ability. It is applicable in cutting such as materials of stainless steel, high-carbon steel, high-manganese steel etc..
SLD plates and thickness applicable:
SLD
(7Cr7Mo3V2Si)
Material of steelSheet thicknessStandard hardness
Stainless steel0.1m/mt--1.2t/mtHRC61--62
Stainless steel1.21m/mt--2.0t/mtHRC59--61
High-carbon and manganese steel0.32m/mt--1.5.0t/mtHRC62--63
High-carbon and manganese steel1.51m/mt--2.5t/mtHRC60--61
High-carbon and manganese steel2.5m/mt--3.52t/mtHRC58--59

Related Products

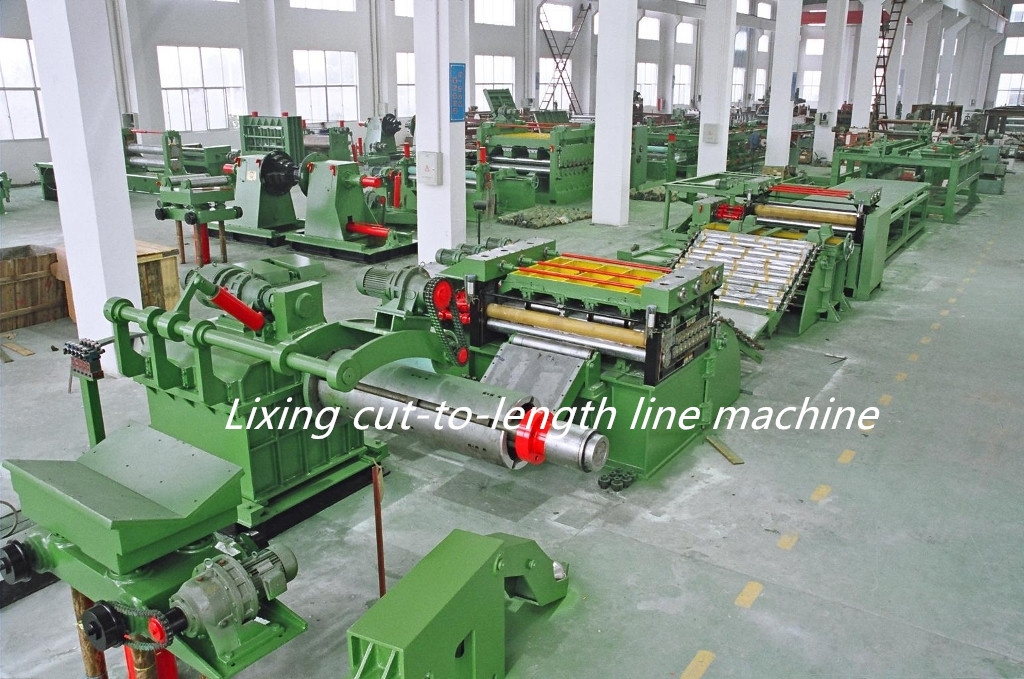

A. Cut to Length Machine

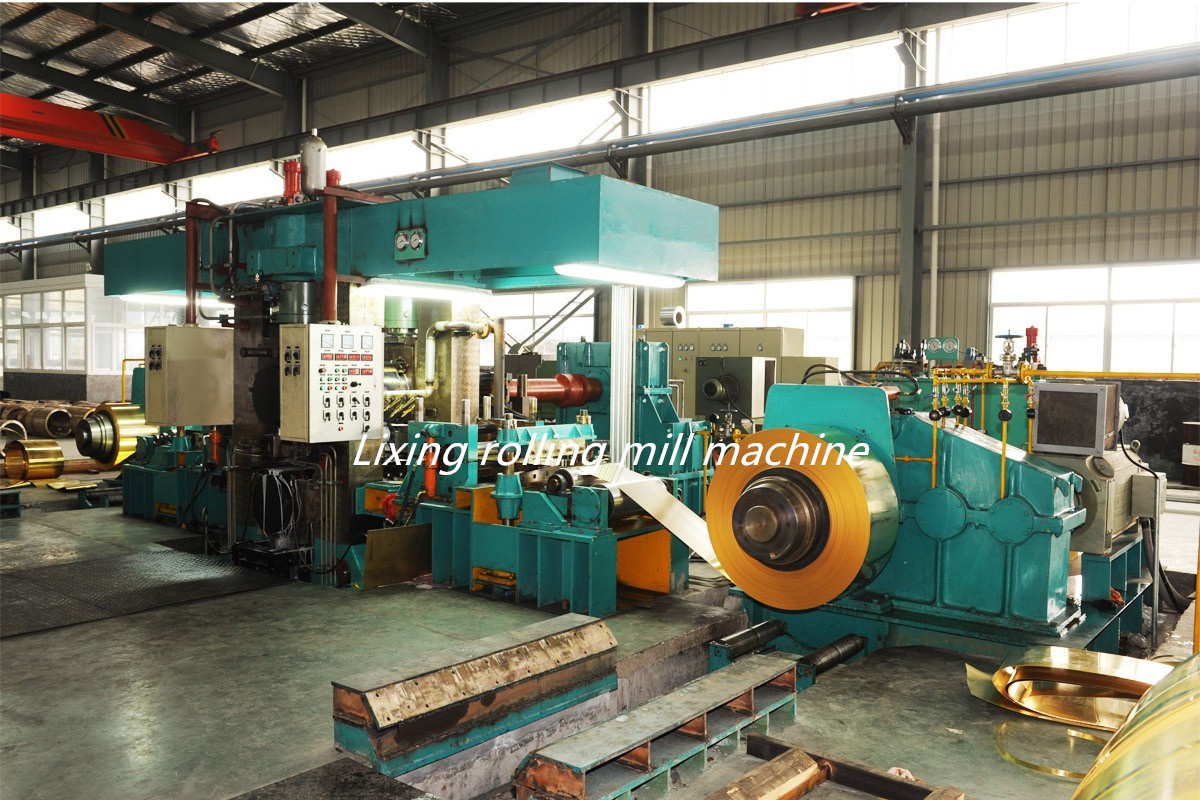

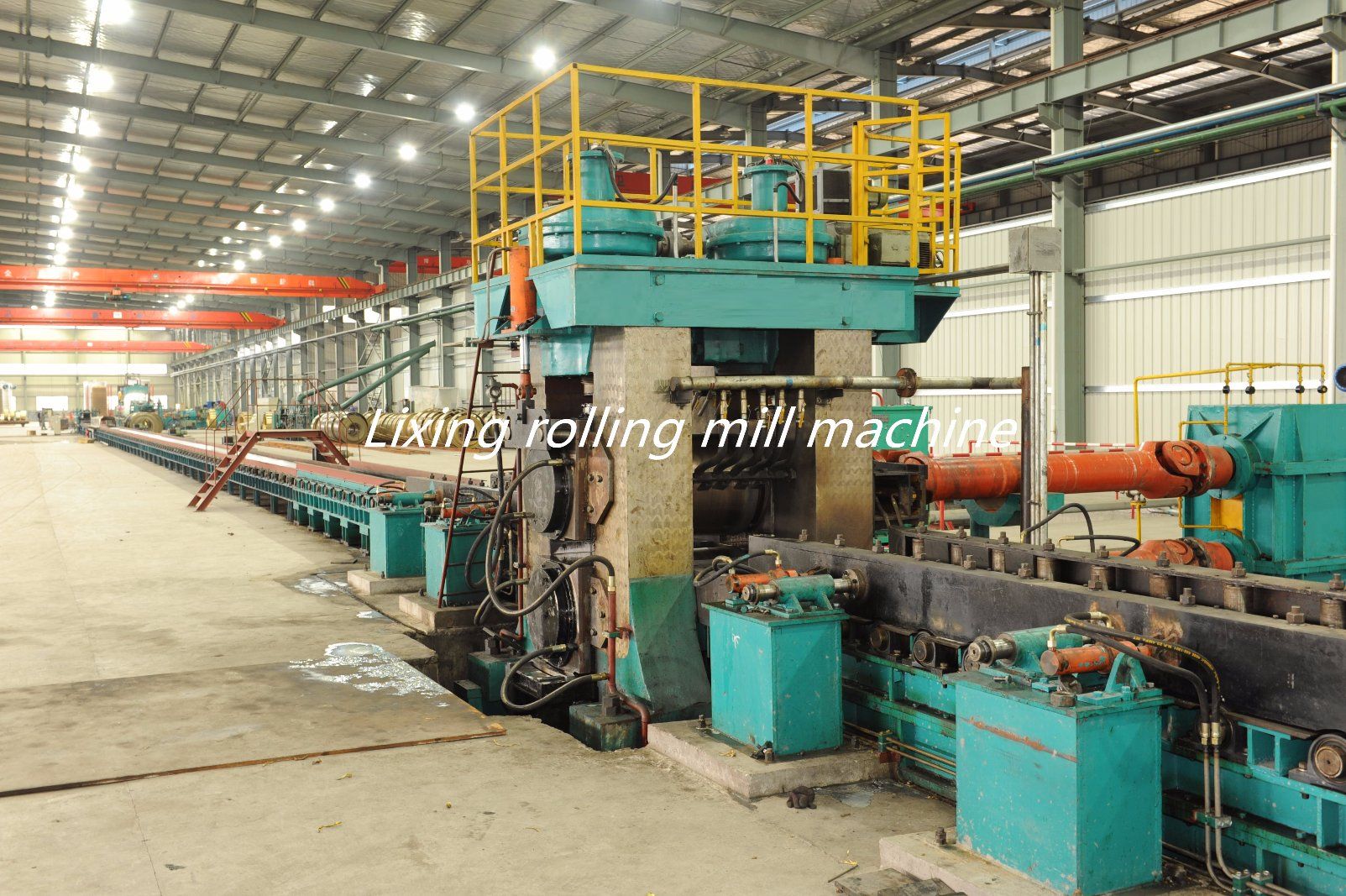

B. Rolling Mill Machine



Company Introduction

Lixing Metallurgy Machinery Co., Ltd, professionally works on production of slitter such as disk metal slitter, cable material cutter and metal band cutter, plane shear series, cold rolled steel shaper serious and bending machine with three and four rollers.

Company covers 18,500m2. It can produce more than 60 cutter sets in diversified types annually. At present there are over 100 employees including 35 technicians. Our equipments reach international advancement, which are achieved by experienced and professional boasts completed processing machines and strong competence concerning technology and processing ability. It has worked on production for over 30 years.

Our equipment are more economic and practical compared with equivalent imported ones. In addition we can provide quick-response and high-efficiency after-sales service and trained technical around personnel. Our products are popular around China and won unanimous appraisals from customers.
