Core Drilling Machine for Mining Sampling
Price: |
US $ 9800-25000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
GXY-1 |
Diesel: |
Diesel Engine Model S1100t10.3kw,2200r/Min |
Lifting Capacity: |
25kn |
Product Description

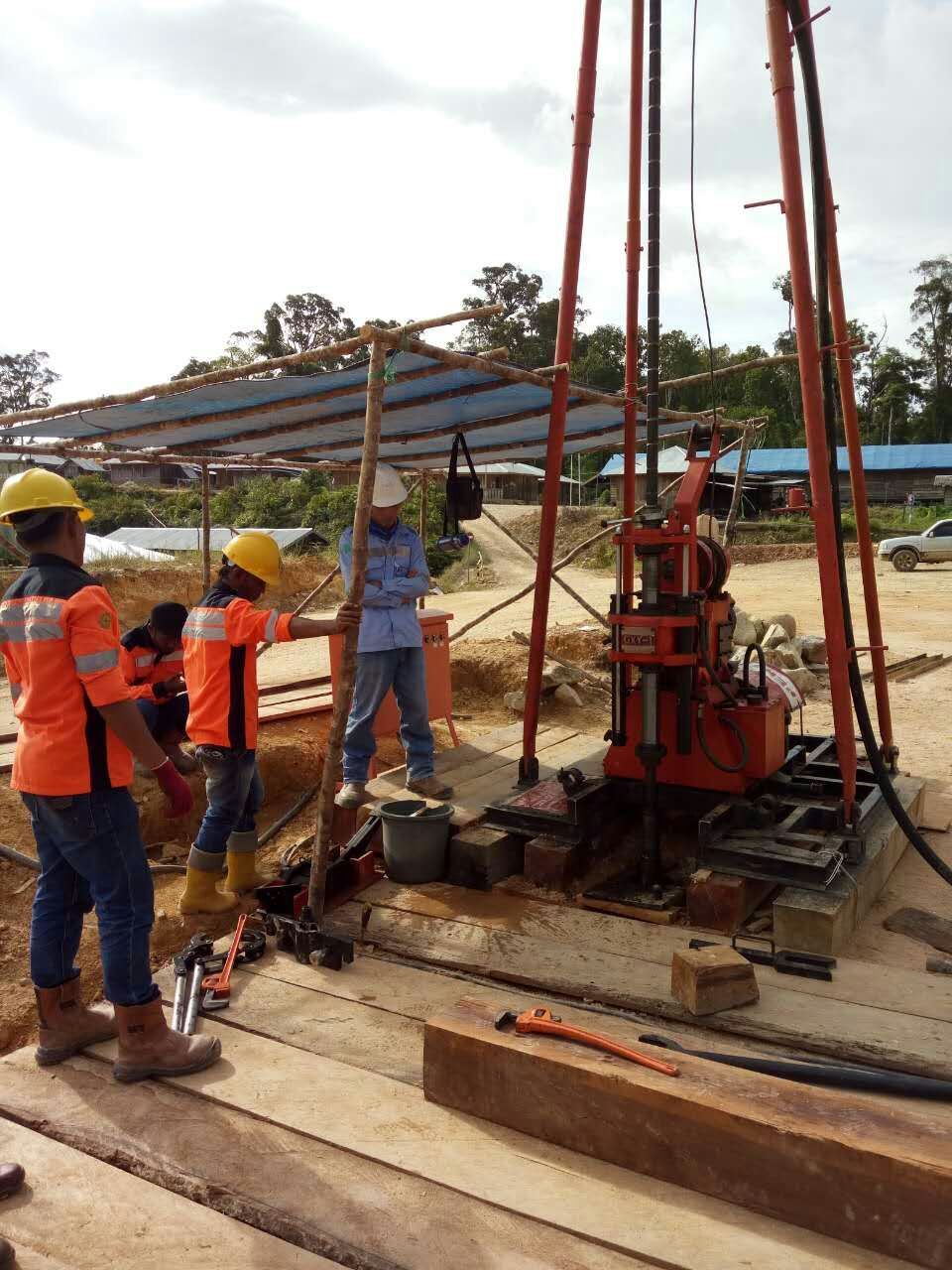

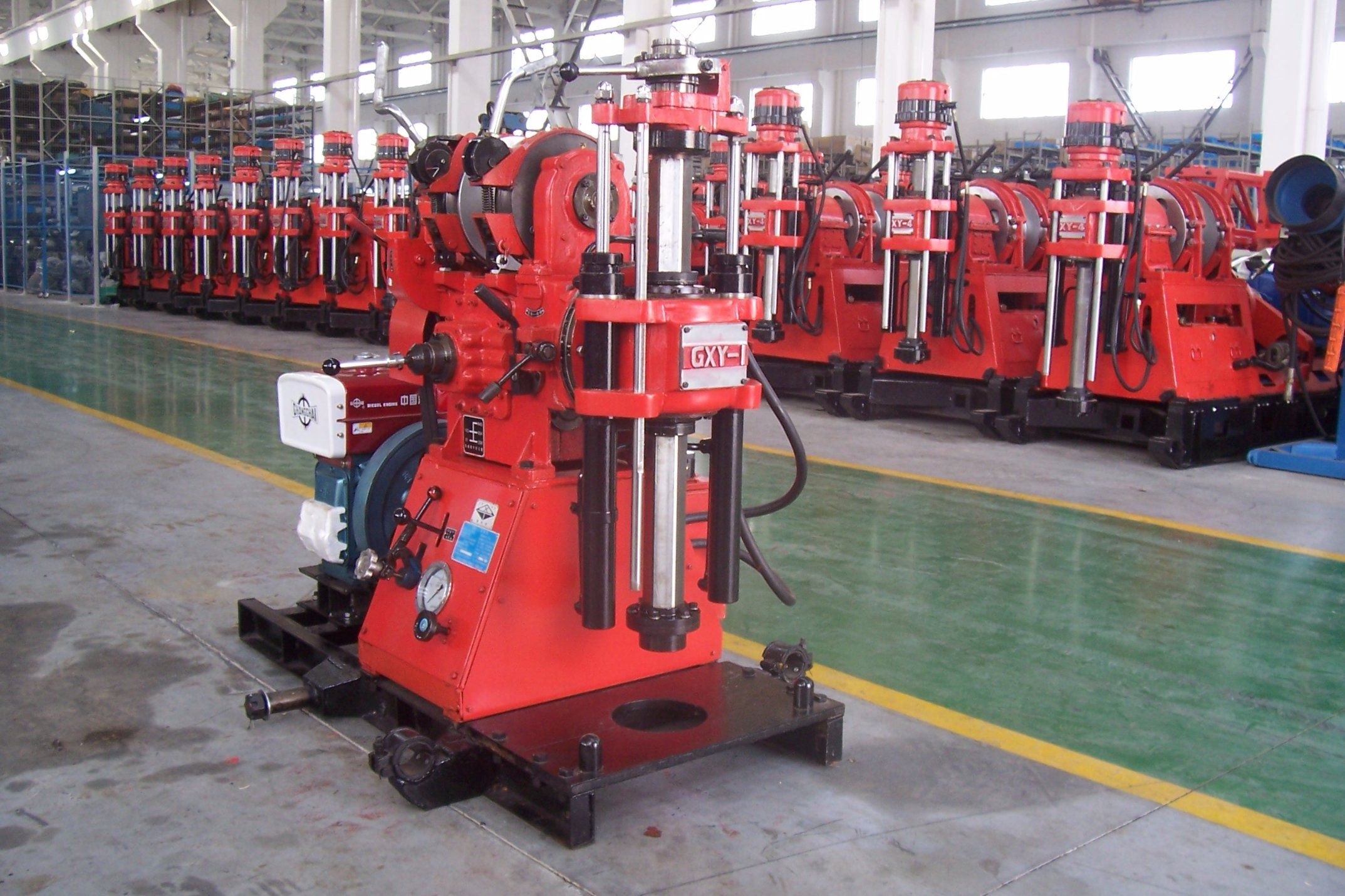

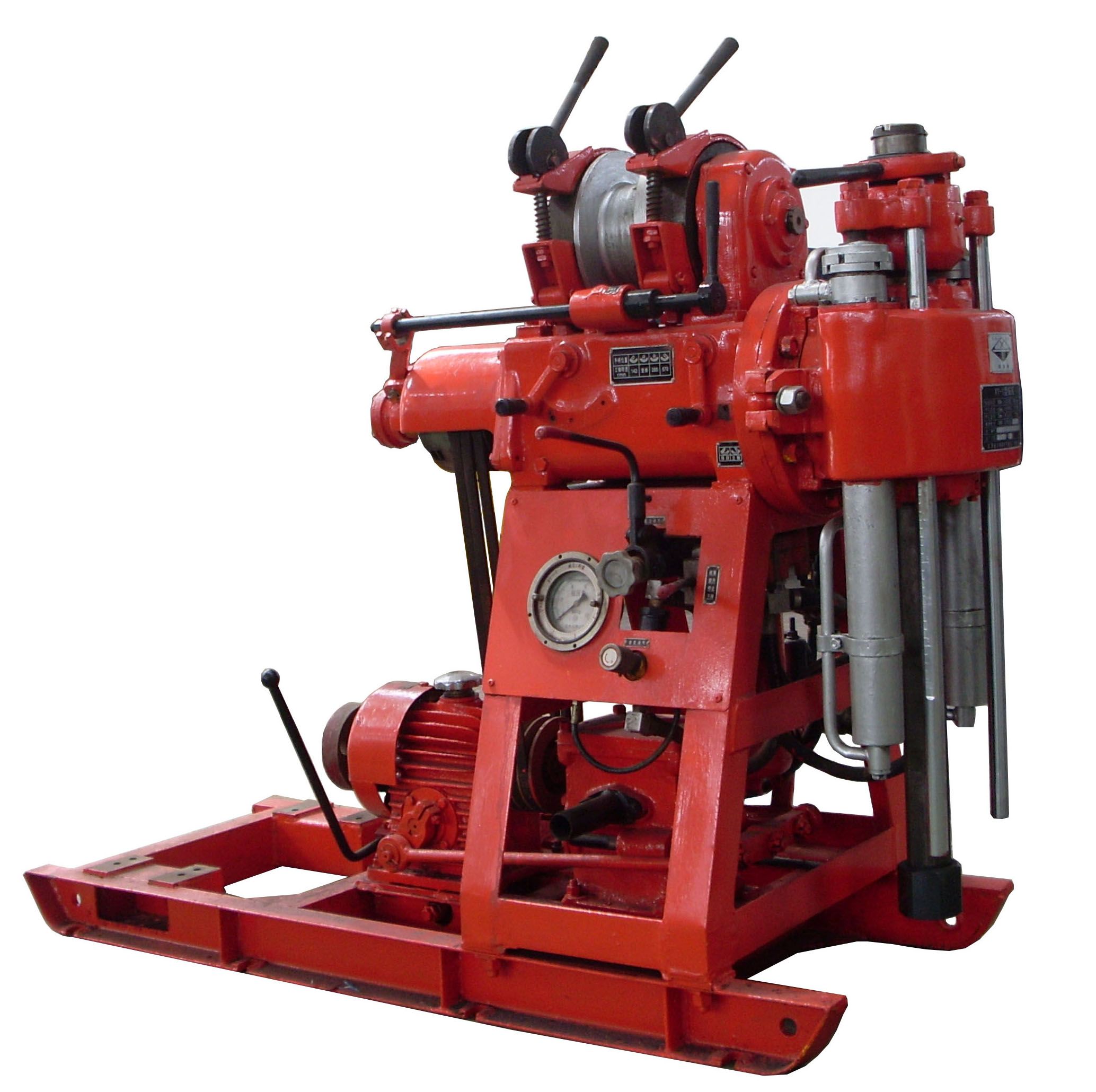

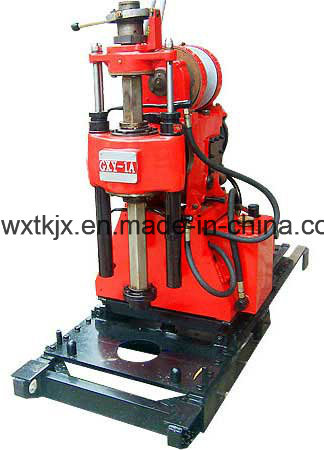

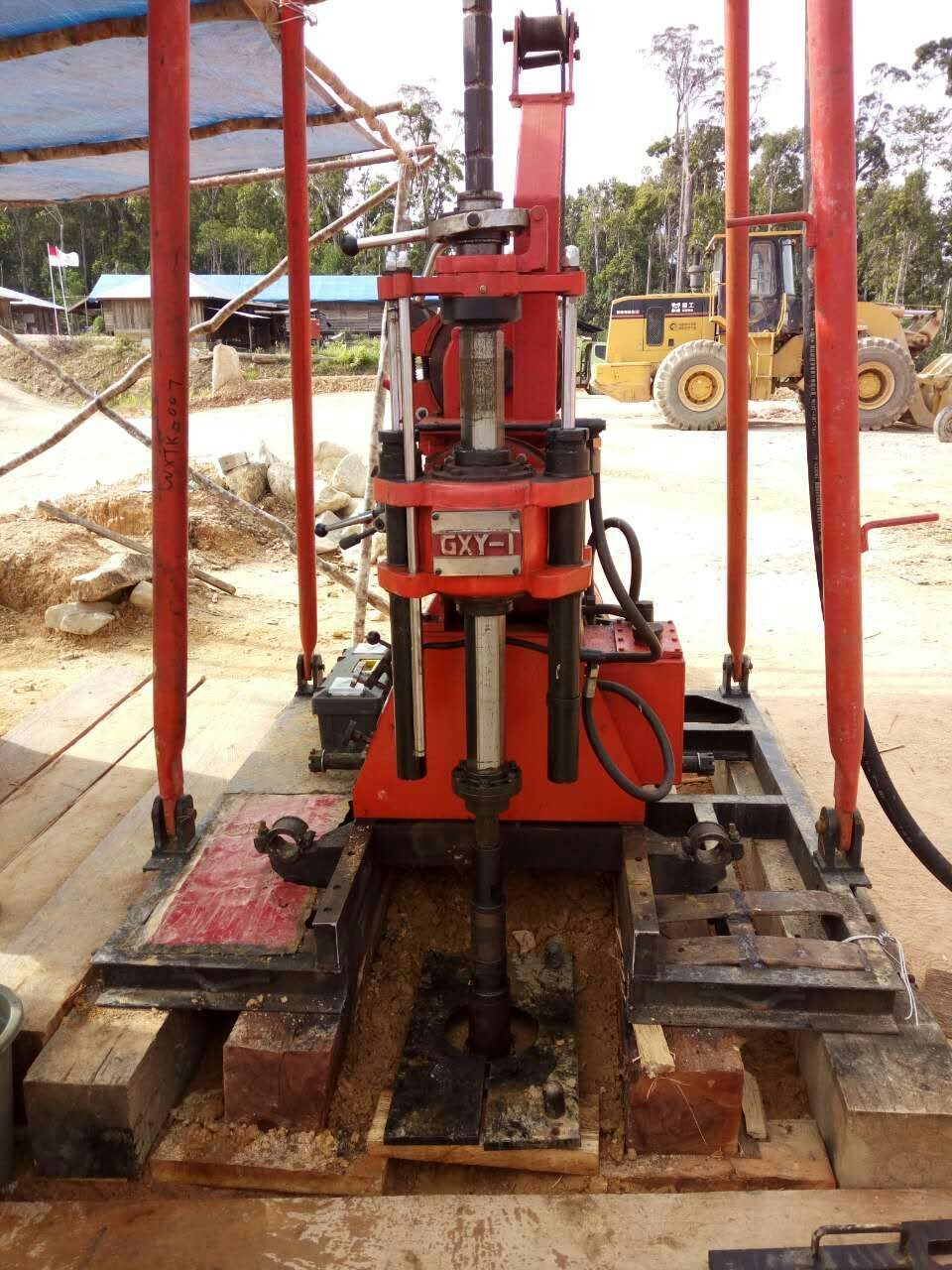

GXY-1 CORE DRILLING RIGDescription: 1. Model GXY-1 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral's survey and
exploration, water discharge tunnel,it is aso could for explore coal mine.
2. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in500kg, it can be moved easily especially in mountain area.
Specification:Type | GXY-1 |
Hole depth | 150m |
Hole diameter | 110mm |
Final hole diameter | 75mm |
Diameter of drill rods | Φ42/50mm |
Drilling angle | 90°-75° |
Dimension(L*W*H) | 1640*1030*1440mm |
Weight(without power unit) | 500KG |
Rotary head | Direct rotary speed | 142;285;570 r/min |
Feeding stroke | 450mm |
Lifting capacity | 25kN |
Feeding capacity | 15kN |
Max. Torque | 1200N.m |
Hoist | Running speed of drum | 55;110;220 r/min |
Max. lifting capacity, single line | 10KN |
Diameter of steel wire rope | 9.3mm |
Capacity of drum | 27m |
Mud pump(Horizontal Single-acting) | Max. displacement | 77L/min |
Max. pressure | 1.2Mpa |
Stroke | 100m |
Stroke per Minute | 96min |
Diameter of liner | 80mm |
Oil pump (YBC-12/80 Gear pump) | Pressure | 8Mpa |
Displacement | 8ml/r |
Speed | 1500r/min |
Power unit | Electric motor Model Y132M-4 | 7.5KW,1440r/min |
Diesel engine Model S1100 | 10.3KW,2200r/min |
Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.
Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.
Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.
We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.
Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
