| Prod Model: |
SHC-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: |
Thermoplastic and Aluminum Alloy |
| Conductor Range: |
4X70-95mm2 |
| IEC Standard: |
Nfc33-040 |
| Conductor: |
2 or 4 Conductor Clamp |
| Dielectric Voltage: |
4kv in Air |
| Suitable Cable Use: |
Aerial Bundle Cable |
| Operating Temperature: |
Resistant to 6kv 1minute Immersion |
| Breaking Load: |
12kn |
| Material: |
Plastic |
| Certification: |
SGS |
| Type: |
Cable Clamp |
| Flame Retardant: |
High |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Application
These products are designed to hang the LV ABC insulated lines using an insulated neutral messenger
Description

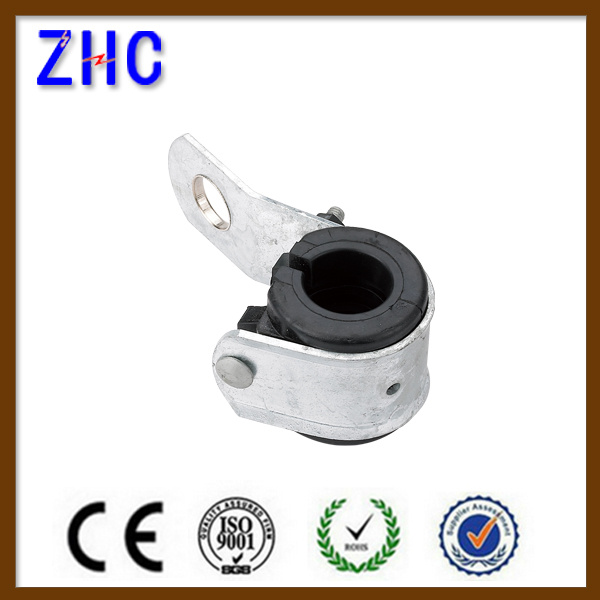

The assembly is made of the suspension clamp itself equipped with an adjustable grip device, the body is linked to the aluminium alloy die casted bracket by a movable link
Suspension clamp and movable link are made of anti UV stabilized black thermoplastic fiber glass reinforced.
This assembly is ready to be installed on the pole using either one bolt M16 or 2stainless steel straps 20x0.7mm
Features & Benefits
Range taking 4x70-95mm2
Delivered as one assembly
No tool needed for the installation thanks to the adjustable grip device
Equipped with a movable link which allows articulation between the clamp and the bracket
End stops on the bracket to ensure movement limitation of the clamp
Bracket is specially designed to install directly the pulley on it during LV ABC lines erection
All the components are not losable Perfomances
This suspension assembly is in line with the French standard NF C 33 040 and the new European standard EN 50483-3
Mechanical tests (breaking load of 12kN)
Slip tests on cables (no slippage below 300N)
Dielectric voltage test (4kV in air)
Environmental tests (climatic and corrosion)
| CODE | CONDUCTORRANGE(MM2) | STANDARD |
| ZC94 | 16-95MM2 | NFC33-040 |
| ZC95 | 16-95MM2 | NFC33-040 |
| 1.1A | 16-95MM2 | NFC33-040 |
| 1.1B | 16-95MM2 | NFC33-040 |
| ES54-14 | 16-95MM2 | NFC33-040 |
| PS1500 | 16-95MM2 | NFC33-040 |
| SHC-1 | 4X16-35 | NFC33-040 |
| SHC-2 | 4X120+50 | NFC33-040 |
| SHC-3 | 4X50-70 | NFC33-040 |
| SHC-4 | 4X50-70 | NFC33-040 |
| SHC-5 | 4X70-95 | NFC33-040 |
| SHC-6 | 4X70-95 | NFC33-040 |
