Popular Used Plastic Anchor Clamp for Aerial Bundle Cable
| Price: |
US $ 0.5-2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
DCR-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: |
Nylon Plus Fiber Glass |
| International Standard: |
Nfc33-041 |
| Loading Capacity: |
800n |
| Suitable Cable Use: |
Aerial Bundle Cable |
| Voltage: |
10kVA |
| Wire Scope: |
2X4/4X25 |
| Material: |
Plastic |
| Certification: |
ISO |
| Type: |
Cable Clamp |
| Flame Retardant: |
High |
| Customized: |
Customized |
| Condition: |
New |
Product Description

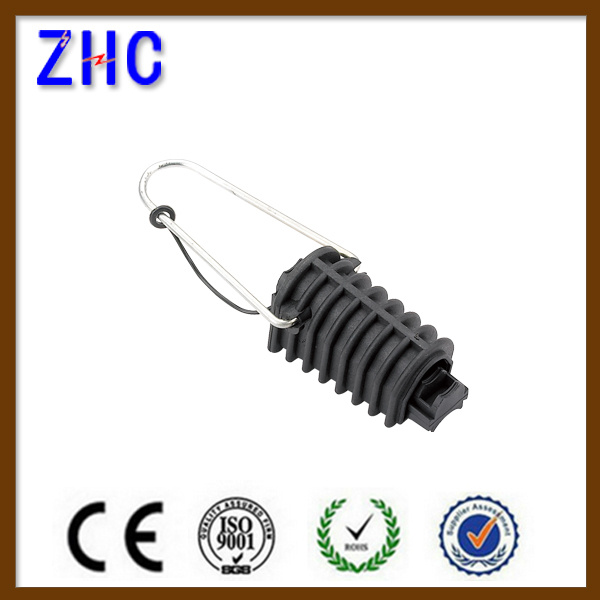

Features of Anchor ClampMaterial: nylon plus fiber glass, stainless steel
Product property: They are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp. They are in accordance with NFC 33-041

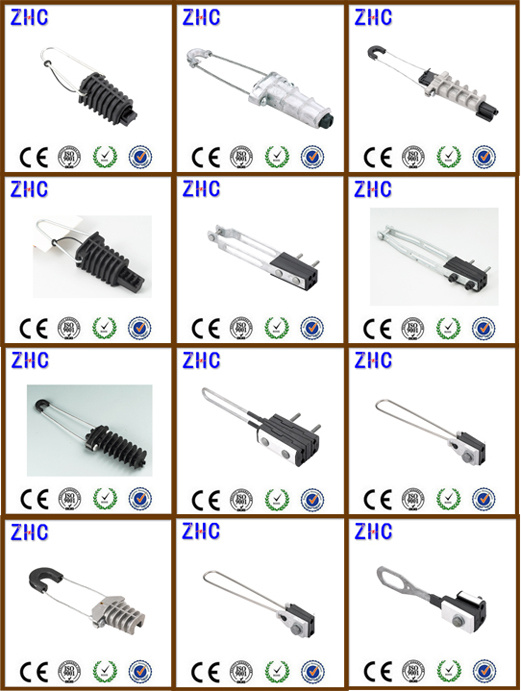

Similiar Products of Anchor Clamp

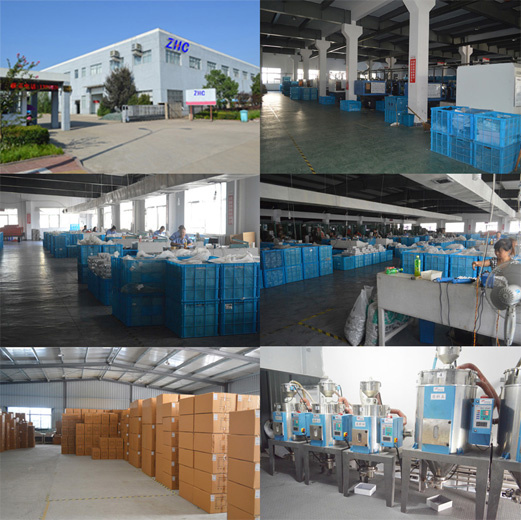

Factory of Anchor Clamp

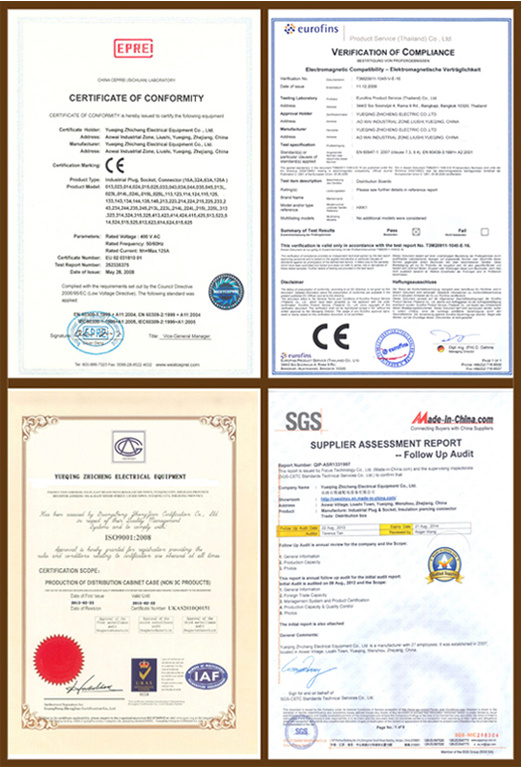

Certificate of Anchor Clamp
Full Range of Anchor Clamp| Code | Material | Cross Section (mm2) | Breaking Load | Standard |
| PAM-06 | Aluminum Alloy | 16-20mm2 | 800N | NFC33041 |
| PAM-07 | Aluminum Alloy | 16-25mm2 | 800N | NFC33041 |
| PAM-08 | Aluminum Alloy | 16-25mm2 | 1KN | NFC33041 |
| DR1500 | Aluminum Alloy | 54.6-70mm2 | 1.5KN | NFC33041 |
| DR1600 | Aluminum Alloy | 54.6-70mm2 | 1.2KN | NFC33041 |
| JBG-1 | Aluminum Alloy | 54.6-70mm2 | 1.2KN | NFC33041 |
| STA | Nylon + Fibre glass | 1x10/1x16 mm2 | 300N | NFC33041 |
| STB | Nylon + Fibre glass | 2x16/2x25mm2 | 300N | NFC33041 |
| STC | Nylon + Fibre glass | 4x16/4x25mm2 | 300N | NFC33041 |
| STD | Nylon + Fibre glass | 1x16/1x70mm2 | 300N | NFC33041 |
| LA1 | Nylon + Fibre glass | 4x16/4x25mm2 | 300N | NFC33041 |
| LA2 | Nylon + Fibre glass | 2x6/ 2x16mm2 | 300N | NFC33041 |
| DCR-1 | Nylon + Fibre glass | 2x4/4x25mm2 | 300N | NFC33041 |
| DCR-2 | Nylon + Fibre glass | 2x4/4x25mm2 | 300N | NFC33041 |
| 2.1 | Nylon + Fibre glass | 16-25mm2 | 300N | NFC33041 |
| PA1500 | Nylon + Fibre glass | 25-50mm2 | 800N | NFC33041 |
| PA2000 | Nylon + Fibre glass | 54.6-70mm2 | 800N | NFC33041 |
| NES-B1 | Mild Steel | 4x16-50mm2 | 1.5KN | NFC33041 |
| NES-B2 | Mild Steel | 4x25-120mm2 | 1.5KN | NFC33041 |
| NES-B3 | Mild Steel | 4x25-120mm2 | 1.5KN | NFC33041 |
| NES-B4 | Mild Steel | 4x95-150mm2 | 1.5KN | NFC33041 |
| ZC116 | Aluminum Alloy | 4X25-35mm2 | 1.5KN | NFC33041 |
| ZC117 | Aluminum Alloy | 4x50-120mm2 | 1.5KN | NFC33041 |
| ZC118 | Aluminum Alloy | 4x50-120mm2 | 1.5KN | NFC33041 |
| ZC157 | Aluminum Alloy | 2x16-35mm2 | 1.5KN | NFC33041 |
| ZC158 | Aluminum Alloy | 4x16-35mm2 | 1.5KN | NFC33041 |
| ZC160 | Aluminum Alloy | 2x16-35mm2 | 1.5KN | NFC33041 |
| ZC161 | Aluminum Alloy | 4x16-35mm2 | 1.5KN | NFC33041 |
About US:
Our company in the R&D, manufacture and sale of low voltage electric applicants, such as industrial plug, aerial fittings, switches, distribution box and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1. We already get the certificate of ISO9001, CE, SGS, RoHS
2. We have 10 years of manufacture and 8 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Spain, India, Thailand, south American, MID-east market and so on.
How to Order?
1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed...
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. TT or L/C at sight.
2.30% deposit and 70% against shipping documents.
Warranty:
1. We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.
Based on mutual benefit, our company development business with more than 50 countries, our main market is south amercian, north Africa, Middle East Asian, south east Asian, east Europe.
