NFC ADSS Optical Fiber Aluminum Alloy Anchoring Clamp

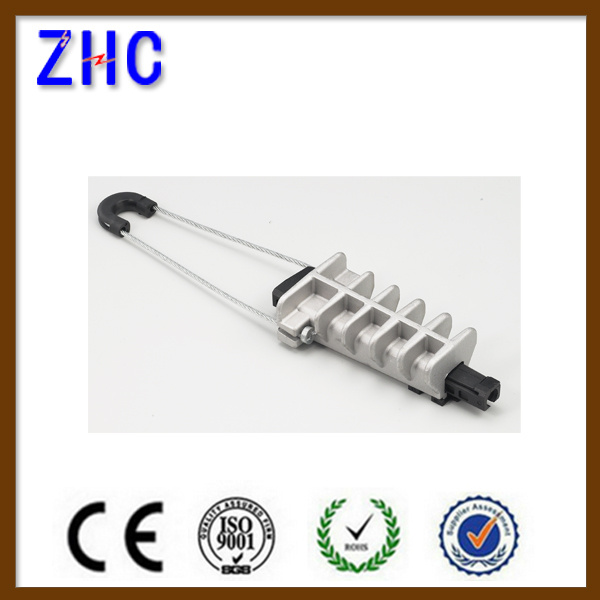

Name: NFC ADSS Optical Fiber Aluminum Alloy Anchoring Clamp
Brand: tool-buy.com
SKU: 638540625
Availability: InStock
Rating: 4.4 (40 reviews)

Price:	US $ 2-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Yueqing Zhicheng Electrical Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	DR1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire Scope:	54.6-70mm2
Body Material:	Aluminum Alloy
Cable Clamp Material:	Nylon Plus Fiber Glass
Loading Capacity:	1.5kn
IEC Standard:	Nfc33-041
Standard:	ANSI
Material:	Aluminium
Connection:	Anchoring

Product Description

Features of Anchoring Clamp

Material: High strength aluminum allloy, nylon plus fiber glass, stainless steel

Material: High strength aluminum allloy, nylon plus fiber glass, stainless steel

Product property: They are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp. They are in accordance with NFC 33-041

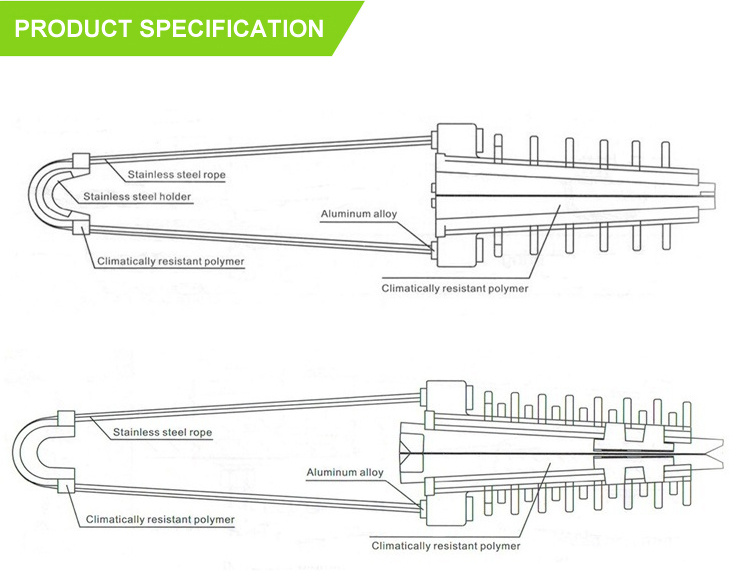

Drawings of Anchoring Clamp

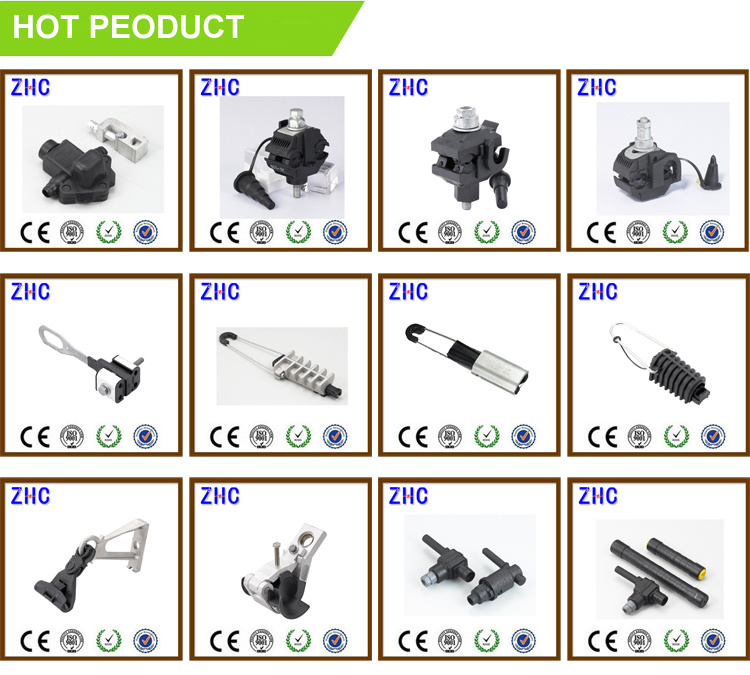

Similar products of Anchoring Clamp

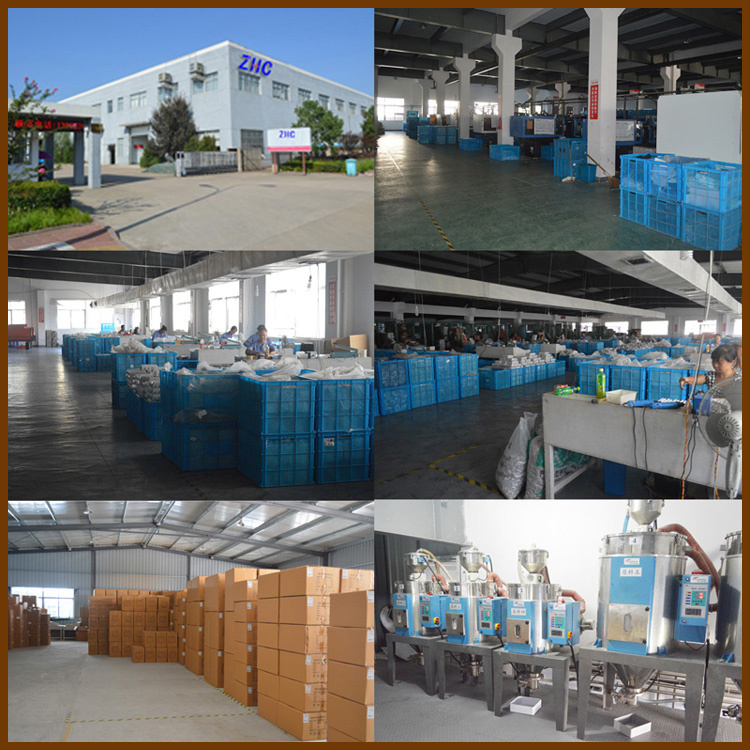

Factory of Anchoring Clamp

Certificate of Anchoring Clamp

Full Range of Anchoring Clamp

Code	Material	Cross Section (mm2)	Breaking Load	Standard
PAM-06	Aluminum Alloy	16-20mm2	800N	NFC33041
PAM-07	Aluminum Alloy	16-25mm2	800N	NFC33041
PAM-08	Aluminum Alloy	16-25mm2	1KN	NFC33041
DR1500	Aluminum Alloy	54.6-70mm2	1.5KN	NFC33041
DR1600	Aluminum Alloy	54.6-70mm2	1.2KN	NFC33041
JBG-1	Aluminum Alloy	54.6-70mm2	1.2KN	NFC33041
STA	Nylon + Fibre glass	1x10/1x16 mm2	300N	NFC33041
STB	Nylon + Fibre glass	2x16/2x25mm2	300N	NFC33041
STC	Nylon + Fibre glass	4x16/4x25mm2	300N	NFC33041
STD	Nylon + Fibre glass	1x16/1x70mm2	300N	NFC33041
LA1	Nylon + Fibre glass	4x16/4x25mm2	300N	NFC33041
LA2	Nylon + Fibre glass	2x6/ 2x16mm2	300N	NFC33041
DCR-1	Nylon + Fibre glass	2x4/4x25mm2	300N	NFC33041
DCR-2	Nylon + Fibre glass	2x4/4x25mm2	300N	NFC33041
2.1	Nylon + Fibre glass	16-25mm2	300N	NFC33041
PA1500	Nylon + Fibre glass	25-50mm2	800N	NFC33041
PA2000	Nylon + Fibre glass	54.6-70mm2	800N	NFC33041
NES-B1	Mild Steel	4x16-50mm2	1.5KN	NFC33041
NES-B2	Mild Steel	4x25-120mm2	1.5KN	NFC33041
NES-B3	Mild Steel	4x25-120mm2	1.5KN	NFC33041
NES-B4	Mild Steel	4x95-150mm2	1.5KN	NFC33041
ZC116	Aluminum Alloy	4X25-35mm2	1.5KN	NFC33041
ZC117	Aluminum Alloy	4x50-120mm2	1.5KN	NFC33041
ZC118	Aluminum Alloy	4x50-120mm2	1.5KN	NFC33041
ZC157	Aluminum Alloy	2x16-35mm2	1.5KN	NFC33041
ZC158	Aluminum Alloy	4x16-35mm2	1.5KN	NFC33041
ZC160	Aluminum Alloy	2x16-35mm2	1.5KN	NFC33041
ZC161	Aluminum Alloy	4x16-35mm2	1.5KN	NFC33041

How to Order?
1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed.

FAQ:

Terms of Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Terms of Payment:
1. For bulk order, TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.
3. Sample order we accept payment such as paypal, western union, visa card.

Warranty:
1.We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .

About US:

Our company in the R&D, manufacture and sale of low voltage electric applicants, such as industrial plug, aerial fittings, switches, distribution box and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.

1. We already get the certificate of ISO9001, CE, SGS, RoHS

2. We have 10 years of manufacture and 8 years exporting experience.

3. We have completely sales service system, ensure every detail is going smooth.

4. We have new designed products each year by our R&D Department.

5. Perfect testing system ensure each product is qualified.

6. We have a good reputation in Russia, Spain, India, Thailand, south American, MID-east market and so on.

How to Order?

1. Please let us know what kind of model.

2. Proforma invoice (PI) will be sent to you.

3. Please check and confirm the PI.

4. Once we confirmed the order, please pay the discussed deposit soon.

5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.

6. OEM/ODM is welcomed...

Shipping:

1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).

2. We Provide Drop shipping Service.

3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.

4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.

5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:

1. TT or L/C at sight.

2.30% deposit and 70% against shipping documents.

Warranty:

1. We provide 2 year quality warranty.

2. If the product is defective, please notify us within 3 days of delivery.

3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.

Based on mutual benefit, our company development business with more than 50 countries, our main market is south amercian, north Africa, Middle East Asian, south east Asian, east Europe.
