Crawler Mounted Efficient Diamond Core Drill

Crawler Mounted Efficient Diamond Core Drill
Price: US $ 20000-40000/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: XY-400C
Usage: Water Well
Power Type: Diesel
Type: Core Drilling Rig
Condition: New

Product Description

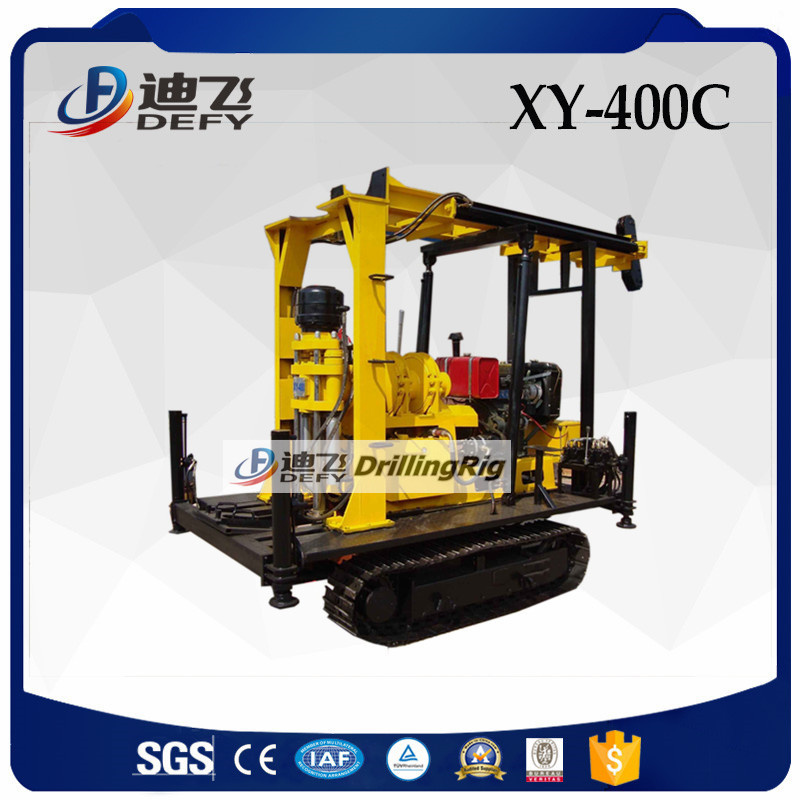

Model XY-400C Crawler Mounted Efficient Diamond Core Drill

Features:
1. XY-400C has 8 grades forward rotation speed and 2 grades reverse rotation speed
2.  Centralized control panel makes operation can be done by one person only.
3. Equipped with the bottom hole pressure indicator, easy to master the situation inside the hole
4. 400m drilling depth meet the usual water well and core sampling projects.
5. Different movable chassis for choice,such as crawler,wheel trailer,tractor or truck.

Technical Parameters:
1. Main Parameters
Max. Drilling Depth400m
Diameter of drill pipeΦ42,Φ50,Φ60,Φ76
Angle of vertical spindle0°~90°
Drilling capability
Φ75mm drill diameterMax. Depth 400m
Φ168mm drill diameter

 Max. Depth 220m
Φ273mm drill diameterMax. Depth 130m
Φ400mm drill diameterMax. Depth 100m
Φ600mm drill diameterMax. Depth 30m

2. Vertical Spindle
Rotation speedForward 8 grades50-1150r/min
Reverse 2 grades29-137r/min
Spindle stroke600mm
Spindle bore62mm
Hoisting capability6000kg
Max. Torque2800N.m
3. Main hoist
Lifting speed of single wire0.5-1.9m/s
Diameter of wire rope14.0mm
Carry capacity of single wire4000kg
Diameter of winding drum300mm
Volume of winding drum50m
Lifting capability of single wire3000kg
4.Auxiliary Hoist
Winding drum140mm
Diameter of steel wire rope6mm
Volume of winding drum450m
5. Mud pump(as per your choice)
Horizontal triplex mud pumpBW-200II
Displacement200L/min
Working pressure50kg/cm² @ 5MPa
Diameter of water inlet hose65mm
Diameter of water outlet hose38mm
6.Power supply(choose one between the following two)
Diesel engine17.6kw (24HP)
Electrical motorY160L-4,18.5kw
7. Weight and Dimension of main drilling rig
Weight3000kg
Dimension3980×1950×2750mm


Our Services:
1. One year quality warranty.
2. Operation Manual or CD.
3. Free training; After-sale support works.
4. Accessories all year around.
5. Visit reception.
6. Volume-discount when order quantity is big.


ModelDrilling CaliberMax. depthFeature
XY-10075~300mm100mDisassemble drill tower;
Small in size.
XY-13075~300mm130m
XY-15075~400mm150m
XY-18075~400mm180m
XY-20075~400mm200m
XY-200F75~400mm200mMounted on Trailer
XY-200C75~400mm200mMounted on Crawler
XY-400F75~600mm400mMounted on Trailer
XY-400C75~600mm400mMounted on Crawler
XY-600F75~600mm600mMounted on Trailer
XY-600C75~600mm600mMounted on Crawler

Contact us:
 ***********
Ms. Sophie Nie
Mobile: +86-15639080652


Web: www.zzdefy.com.cn
         www.zzdefydrillrig.com

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.

Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advices whenever you need.

Benefiting from the excellent performance of our drilling rigs, as well as our professional service, we have established friendly business relations with clients all over the world. Our products are serving for projects in Africa, South America, United States, Asia and so on. We cordially look forward to cooperating with you, let's work together to realize win-win result!
