Crawler Type DTH Hammer Drill

Prod Model:	Defy DFQ-100
Application:	Water Well, Blast Hole, Geothermal Hole, etc
Max Drilling Depth:	100m
Fully Hydraulic:	Yes
Drilling Caliber:	105-150mm
Weight:	2200kg
Power:	24kw
Gas Consumption:	15~18 M3;/Min
Apply To Rock Hardness:	F=6-12
Qualification:	BV, SGS
Usage:	Blast Hole, Geothermal Hole
Type:	Rotary Drilling Rig
Condition:	New
Power Type:	Diesel or Electric

Product Description

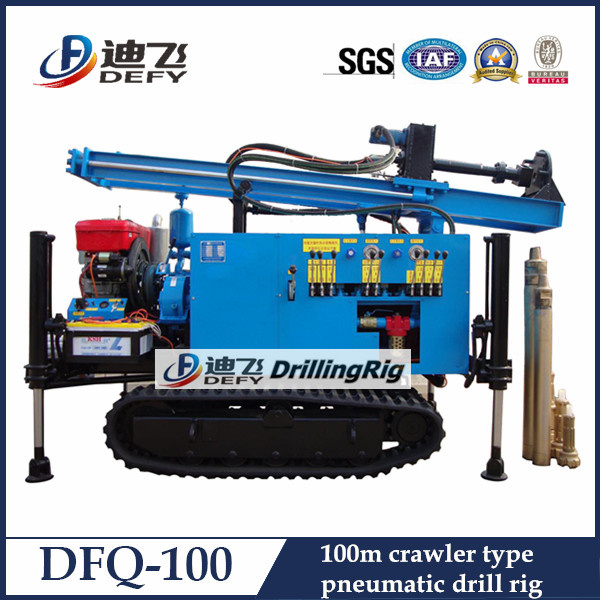

crawler type dth hammer drill

Brief Introduction

DFQ-100 dth hammer drill is the new type drilling machine. It can be used in water well, blast hole, borehole, geothermal hole, foundation hole and other drilling work. This machine is especially professional in drilling rocks such as gravel, granite, basalt, with dth hammer drill bits.
As a professional manufacturer, our products keep updating all the time as we not only by our own research and development but aslo attach great importance to our clients' feedback. Thanks to the high performance of the machine, it has made great profits to the users. The high efficiency is the great profit at the same time.

Features

1.Crawler type, easily to move around, adopts verious working conditions.

2.Fully hydraulic system, high efficiency and more reliable.

3.Integrated drilling tower lifted by hydraulic, no need to install before working.

4.Strong flush ability, ensure the high drilling efficiency.

5.Diesel or electric motor could be customized according to working condition

Technical Parameter

No.	Item	DFQ-100
1	Drilling caliber	Φ105-150mm
2	Max. drilling depth	100m
3	Work pressure	1.05-2.0 MPa
4	Gas consumption	15-18 m³/min
5	Impacter	DHD340\350
6	Apply to rock hardness	f=6-12
7	Power	24Kw/2300rpm
8	Rotary torque	1050N.m
9	Weight	2200 Kg
10	Dimension	3200x1770x2050mm

Buyer Concerns:
1. Q: How could I know whether you are a Manufacturer or Trading company?
     A: We master the technology, and constantly adjust our products according to the market trend and customer feedback, ensure product quality. As a professional drilling equipment manufacturer, you are welcomed to visit our factory to see and try your machine by yourself before purchasing.
2. Q:  How to buy your drilling machine?
    A:  After confirming the goods you want, deposit for ordering the goods, then the good prepared for confirmation, payment balance, and then shipment.
3. Q: What do I need to do after payment?
    A: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;
         b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick up the goods;All documents for customs clearance will be sent to you by international express after shipment.
4. Q: I am not familar with a new machine, how to use it?
     A: First, the machine is not too complex to make people feel fuzzy. Second, we provide operation manual and DVD to guide you. Then, we also provide Free training in our factory if you were possible to come;
         We provide engineers for overseas technic support;
         We provide 24 hours/7 days technic support all year around.
5. Q: How can I change the broken parts if the machine got problems?
    A:We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.
    All accessories of our machinery is available at Factory-price all Year around. We always do our best to solve our customers' worries.
