| Prod Model: |
CSM8 series |
| Color: |
Customized |
| Application: |
Machinery & Hardware |
| Type For Pipe And Tube Bending Machine: |
Horizontal Hydraulic Pipe Bender |
| Model: |
Csm8 |
Product Description

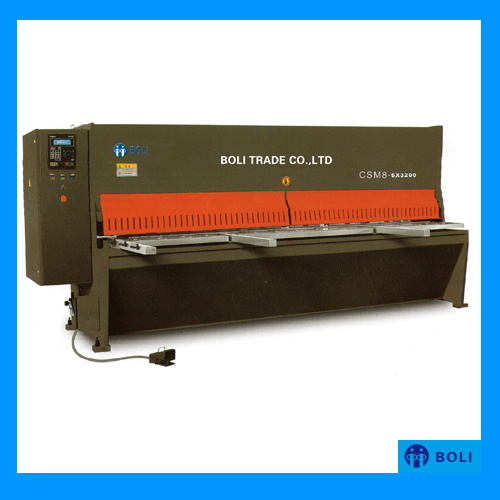

CSM8 series CNC Guillotine Shear
Features:
> CSM8 series CNC shear can automatically adjust its rake angle, shearing length, blade gap and back gauge travel.
> there are four cutting edges on upper and low blades.
> the whole frame is treated with annealling.
> the shear uses DELEM DAC360 CNC control system from Holland, and pneumatic back material support device.
Specification:
| Model | Max. Shearing Thickness | Max. Shearing Width | worktable height | shearing angle | number of stroke | back gauge adjustment | Main Motor Power |
| mm | mm | mm | ° | min -1 | mm | KW |
| CSM8-6*2500 | 6 | 2500 | 800 | 30′-1°30′ | 16-35 | 20-600 | 7.5 |
| CSM8-6*3200 | 6 | 3200 | 800 | 30′-1°30′ | 14-35 | 20-600 | 7.5 |
| CSM8-6*4000 | 6 | 4000 | 800 | 30′-1°30′ | 10-30 | 20-600 | 7.5 |
| CSM8-6*5000 | 6 | 5000 | 900 | 30′-1°30′ | 10-30 | 20-800 | 11 |
| CSM8-6*6000 | 6 | 6000 | 1000 | 30′-1°30′ | 8-25 | 20-800 | 11 |
| CSM8-8*2500 | 8 | 2500 | 800 | 30′-2° | 14-30 | 20-600 | 11 |
| CSM8-8*3200 | 8 | 3200 | 850 | 30′-2° | 12-30 | 20-600 | 11 |
| CSM8-8*4000 | 8 | 4000 | 900 | 30′-2° | 10-25 | 20-600 | 11 |
| CSM8-8*5000 | 8 | 5000 | 1000 | 30′-2° | 10-25 | 20-800 | 15 |
| CSM8-8*6000 | 8 | 6000 | 1050 | 30′-2° | 8-20 | 20-800 | 15 |
| CSM812*2500 | 12 | 2500 | 840 | 30′-2° | 12-25 | 20-800 | 15 |
| CSM8-12*3200 | 12 | 3200 | 900 | 30′-2° | 12-25 | 20-800 | 15 |
| CSM8-12*4000 | 12 | 4000 | 940 | 30′-2° | 8-20 | 20-800 | 15 |
| CSM8-12*5000 | 12 | 5000 | 1000 | 30′-2° | 8-20 | 20-1000 | 22 |
| CSM8-12*6000 | 12 | 6000 | 1060 | 30′-2° | 6-20 | 20-1000 | 30 |
| CSM8-16*2500 | 16 | 2500 | 840 | 30′-1°30′ | 12-20 | 20-800 | 22 |
| CSM8-16*3200 | 16 | 3200 | 900 | 30′-1°30′ | 12-20 | 20-800 | 22 |
| CSM8-16*4000 | 16 | 4000 | 940 | 30′-1°30′ | 8-15 | 20-800 | 22 |
| CSM8-16*5000 | 16 | 5000 | 1000 | 30′-1°30′ | 8-15 | 20-1000 | 30 |
| CSM8-16*6000 | 16 | 6000 | 1100 | 30′-1°30′ | 6-15 | 20-1000 | 37 |
| CSM8-20*2500 | 20 | 2500 | 900 | 30′-3° | 10-20 | 20-800 | 30 |
| CSM8-20*3200 | 20 | 3200 | 950 | 30′-3° | 10-20 | 20-800 | 30 |
| CSM8-20*4000 | 20 | 4000 | 1100 | 30′-3° | 8-15 | 20-800 | 30 |
| CSM8-20*5000 | 20 | 5000 | 1100 | 30′-3° | 8-15 | 20-1000 | 37 |
| CSM8-20*6000 | 20 | 6000 | 1200 | 30′-3° | 6-15 | 20-1000 | 37 |
| CSM8-25*2500 | 25 | 2500 | 900 | 30′-1°30′ | 8-15 | 20-800 | 37 |
| CSM8-25*3200 | 25 | 3200 | 950 | 30′-1°30′ | 8-15 | 20-800 | 37 |
| CSM8-25*4000 | 25 | 4000 | 1100 | 30′-1°30′ | 6-12 | 20-1000 | 37 |
| CSM8-32*2500 | 32 | 2500 | 1000 | 30′-4° | 6-12 | 20-1000 | 55 |
| CSM8-32*3200 | 32 | 3200 | 1100 | 30′-4° | 8-12 | 20-1000 | 55 |
| CSM8-40*2500 | 40 | 2500 | 1200 | 30′-4° | 4-10 | 20-1000 | 55 |
| CSM8-40*3200 | 40 | 3200 | 1200 | 30′-4° | 4-10 | 20-1000 | 55 |
Our company supplies different kinds of machines. High quality and favorable price. We're pleased to
Get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality
First, service first, continuous improvement and innovation to meet the customers" For the
Management and " Zero defect, zero complaints" As the quality objective. We have a good sales and
Design team for satisfy customer's inquire, all equipment must use higher standard for produce the
Machine. Before leave the manufacture, we have professional engineer will arrive
The factory for check each machine, confirm the quality, after get the engineer's
Agreement we will export the machine to customer
