| Prod Model: |
HS8 series |
| Model: |
HS8 |
| Color: |
Optional |
| Work Principle: |
Guillotine Cutting , Hydraulic Drive |
| Power: |
Electricity |
Product Description

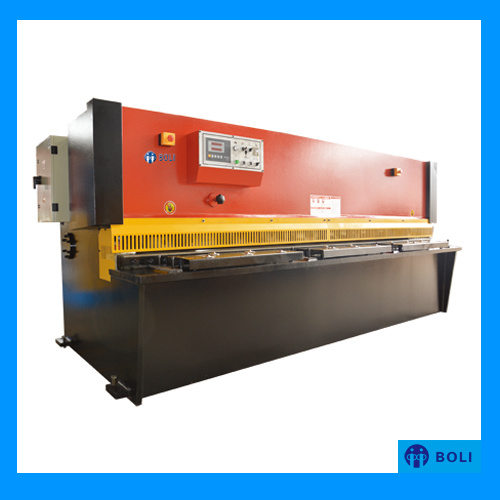

HS8 series Hydraulic Guillotine Shear
Features:
> Entire welded frame, press with tempering.
> Hydraulic drive, reservoir return stroke.
> Three point supporting rolling guide to insure quality.
> Square blade with long life.
> Blade clearance adjusting indicated, easy for adjusting.
> Light alignment device.
> Stepless adjusting up blade stroke.
> Railing guards.
> Digital display: back gauge size and shear times.
> Adjustable shear angle.
Specification:
| Model | Max. Shearing Thickness | Max. Shearing Width | worktable height | shearing angle | number of stroke | back gauge adjustment | Main Motor Power |
| mm | mm | mm | ° | min -1 | mm | KW |
| HS8-6*2500 | 6 | 2500 | 800 | 30′-1°30′ | 16-35 | 20-600 | 7.5 |
| HS8-6*3200 | 6 | 3200 | 800 | 30′-1°30′ | 14-35 | 20-600 | 7.5 |
| HS8-6*4000 | 6 | 4000 | 800 | 30′-1°30′ | 10-30 | 20-600 | 7.5 |
| HS8-6*5000 | 6 | 5000 | 900 | 30′-1°30′ | 10-30 | 20-800 | 11 |
| HS8-6*6000 | 6 | 6000 | 1000 | 30′-1°30′ | 8-25 | 20-800 | 11 |
| HS8-8*2500 | 8 | 2500 | 800 | 30′-2° | 14-30 | 20-600 | 11 |
| HS8-8*3200 | 8 | 3200 | 850 | 30′-2° | 12-30 | 20-600 | 11 |
| HS8-8*4000 | 8 | 4000 | 900 | 30′-2° | 10-25 | 20-600 | 11 |
| HS8-8*5000 | 8 | 5000 | 1000 | 30′-2° | 10-25 | 20-800 | 15 |
| HS8-8*6000 | 8 | 6000 | 1050 | 30′-2° | 8-20 | 20-800 | 15 |
| HS8-12*2500 | 12 | 2500 | 840 | 30′-2° | 12-25 | 20-800 | 15 |
| HS8-12*3200 | 12 | 3200 | 900 | 30′-2° | 12-25 | 20-800 | 15 |
| HS8-12*4000 | 12 | 4000 | 940 | 30′-2° | 8-20 | 20-800 | 15 |
| HS8-12*5000 | 12 | 5000 | 1000 | 30′-2° | 8-20 | 20-1000 | 22 |
| HS8-12*6000 | 12 | 6000 | 1060 | 30′-2° | 6-20 | 20-1000 | 30 |
| HS8-16*2500 | 16 | 2500 | 840 | 30′-1°30′ | 12-20 | 20-800 | 22 |
| HS8-16*3200 | 16 | 3200 | 900 | 30′-1°30′ | 12-20 | 20-800 | 22 |
| HS8-16*4000 | 16 | 4000 | 940 | 30′-1°30′ | 8-15 | 20-800 | 22 |
| HS8-16*5000 | 16 | 5000 | 1000 | 30′-1°30′ | 8-15 | 20-1000 | 30 |
| HS8-16*6000 | 16 | 6000 | 1100 | 30′-1°30′ | 6-15 | 20-1000 | 37 |
| HS8-20*2500 | 20 | 2500 | 900 | 30′-3° | 10-20 | 20-800 | 30 |
| HS8-20*3200 | 20 | 3200 | 950 | 30′-3° | 10-20 | 20-800 | 30 |
| HS8-20*4000 | 20 | 4000 | 1100 | 30′-3° | 8-15 | 20-800 | 30 |
| HS8-20*5000 | 20 | 5000 | 1100 | 30′-3° | 8-15 | 20-1000 | 37 |
| HS8-20*6000 | 20 | 6000 | 1200 | 30′-3° | 6-15 | 20-1000 | 37 |
| HS8-25*2500 | 25 | 2500 | 900 | 30′-1°30′ | 8-15 | 20-800 | 37 |
| HS8-25*3200 | 25 | 3200 | 950 | 30′-1°30′ | 8-15 | 20-800 | 37 |
| HS8-25*4000 | 25 | 4000 | 1100 | 30′-1°30′ | 6-12 | 20-1000 | 37 |
| HS8-32*2500 | 32 | 2500 | 1000 | 30′-4° | 6-12 | 20-1000 | 55 |
| HS8-32*3200 | 32 | 3200 | 1100 | 30′-4° | 8-12 | 20-1000 | 55 |
| HS8-40*2500 | 40 | 2500 | 1200 | 30′-4° | 4-10 | 20-1000 | 55 |
| HS8-40*3200 | 40 | 3200 | 1200 | 30′-4° | 4-10 | 20-1000 | 55 |
