Debur Ceramic Brush for PCB High Effiecent

Name: Debur Ceramic Brush for PCB High Effiecent
Brand: tool-buy.com
SKU: 820114125
Availability: InStock
Rating: 4.4 (146 reviews)

Price:	US $ 650-700/Piece
Min Order:	4/Piece
Pay Type:	T/T

Contact Supplier

Guangzhou Jiejun Electronic Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	400# 600# 800#
Grit:	600#
Hard Of EVA Sponge:	25-30degree
Copper Reduction:	0.45um
Ra(Um):	0.25um
Rz(Um):	2.0um
Type:	Roller Brush
Shape:	Long
Usage:	PCB Manufacturing
Wire Material:	Ceramic Abrasive Material
Application:	PCB Manufacturing and Hardware

Product Description

Ceramic Brush for PCB Surface Finishing
Jiejun's products was recognised by their high quality thanks to an accurate selection of raw material and continuous quality control.

Areas of PCB surface treatment application:

Removing residual copper "nodules" after plating

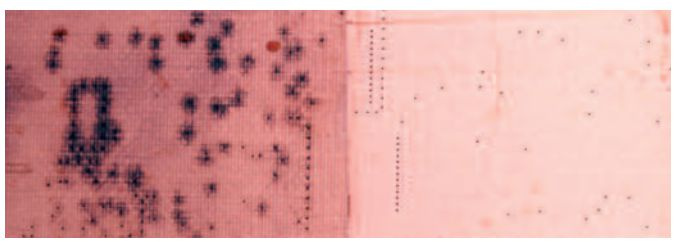

Removal of built-up resin ink spots in SBU process
Removing black oxide from IVH(internal via holes) and BVH(blind via holes) process
Finishing for BGA process
Burr removal piror to plating

Removing residual copper "nodules" after plating

Removal of built-up resin ink spots in SBU process

Removing black oxide from IVH(internal via holes) and BVH(blind via holes) process

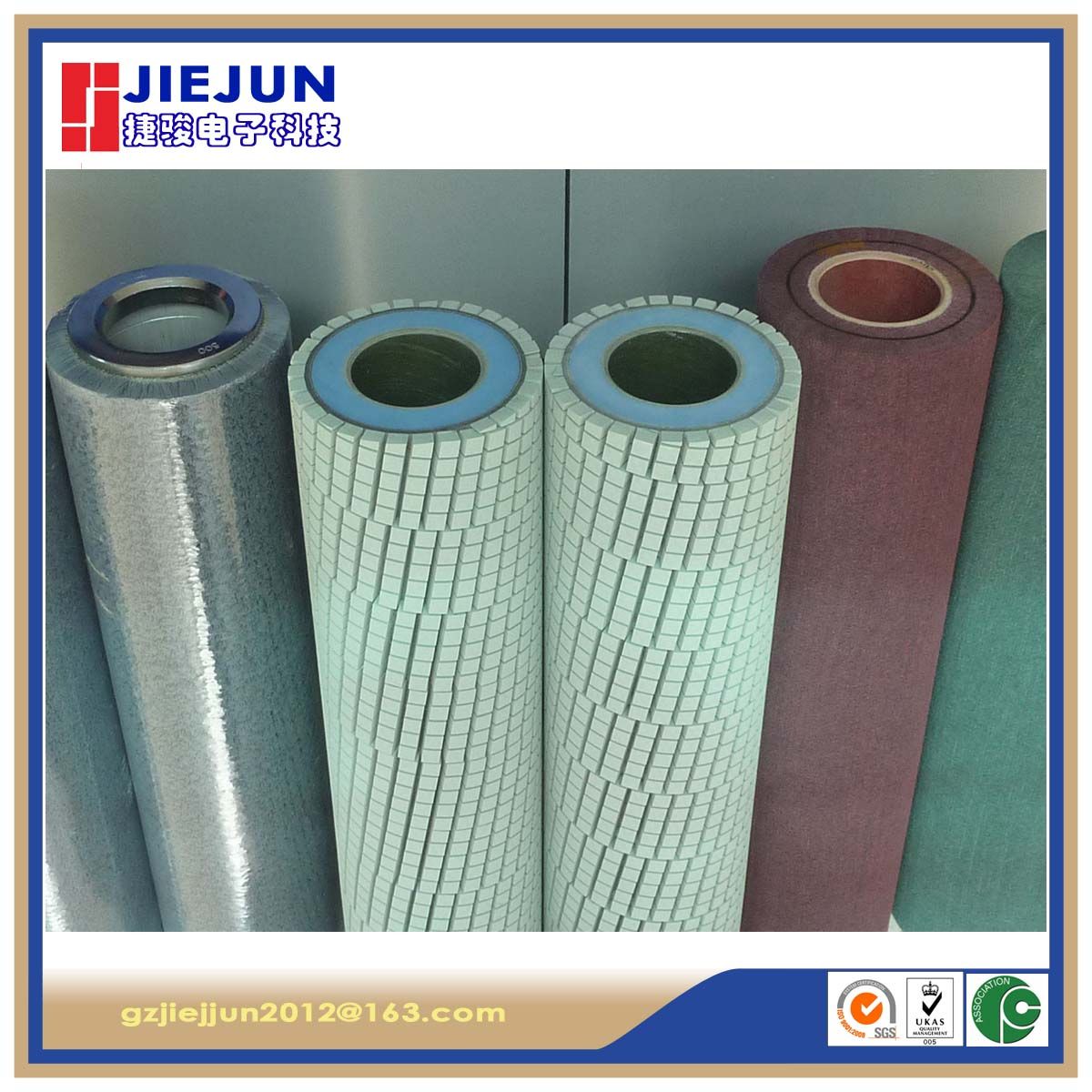

Ceramic brush
jiejun Tech. the unique company produces ceramic brush which was adopted by advanced imported technology from Japan. we seek the goal of "low costs high efficiency".

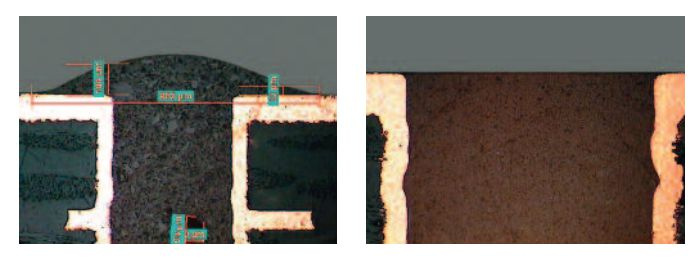

Superior ceramic strength by production with the new bonding method(long-life formation - Removal of hole plugging ink of PCB circuit board
- Precision grinding of surface following copper plating
- Leveling build-up product grinding
- Removal of bur and other dust - precision grinding of other large surfaces

Usage:
1.To remove the plugging ink, resin, and black film.
2.To smooth the surface of build up, IVH, Pre-preg.
3.To smooth the surface of additive-processd PCB.

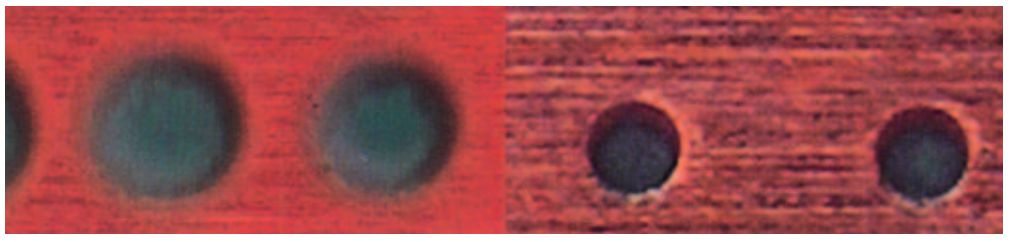

4.To deburr the hole and to remove foreign matter after plated.
5.To polish the surface of SUS press plate.
Features:
1.Long life (2-4times life)and high efficiency.
2.Very uniform finishing quality of treated surface.
3.No damages on edges of the hole.
4.Perfect preparation for next process.
5.Impact resistance, high dencity construct.
6.No plugging the hole which would be caused by non-woven brush.
The size and grit can be customized:
Size:    2"*5"*650--1400mm
            3"*6"*610--1400mm
Grit:    240#-3000#

product series	grit#	400#	600#	800#	1200#	2000#
B6	copper reduction(um)	0.6	0.45	0.4	0.2	0.15
	Ra(um)	0.3	0.25	0.2	0.15	0.1
	Rz(um)	2.6	2	1.5	1.3	0.9
B10	copper reduction(um)	1.1	0.7	0.6	0.45	0.25
	Ra(um)	0.35	0.25	0.15	0.15	0.1
	Rz(um)	2.5	1.8	1.4	1.3

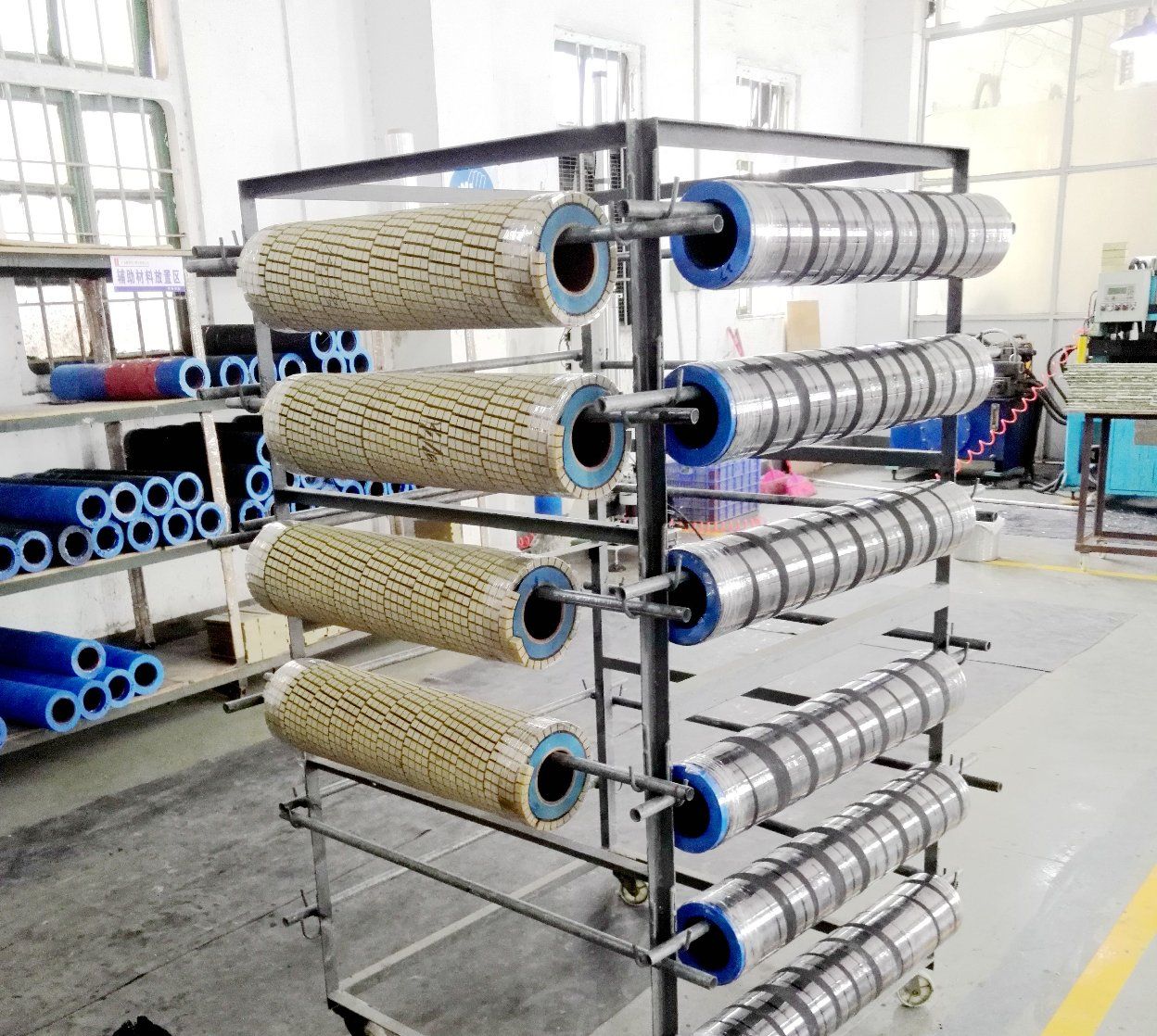

Ceramic Brush producing workshop

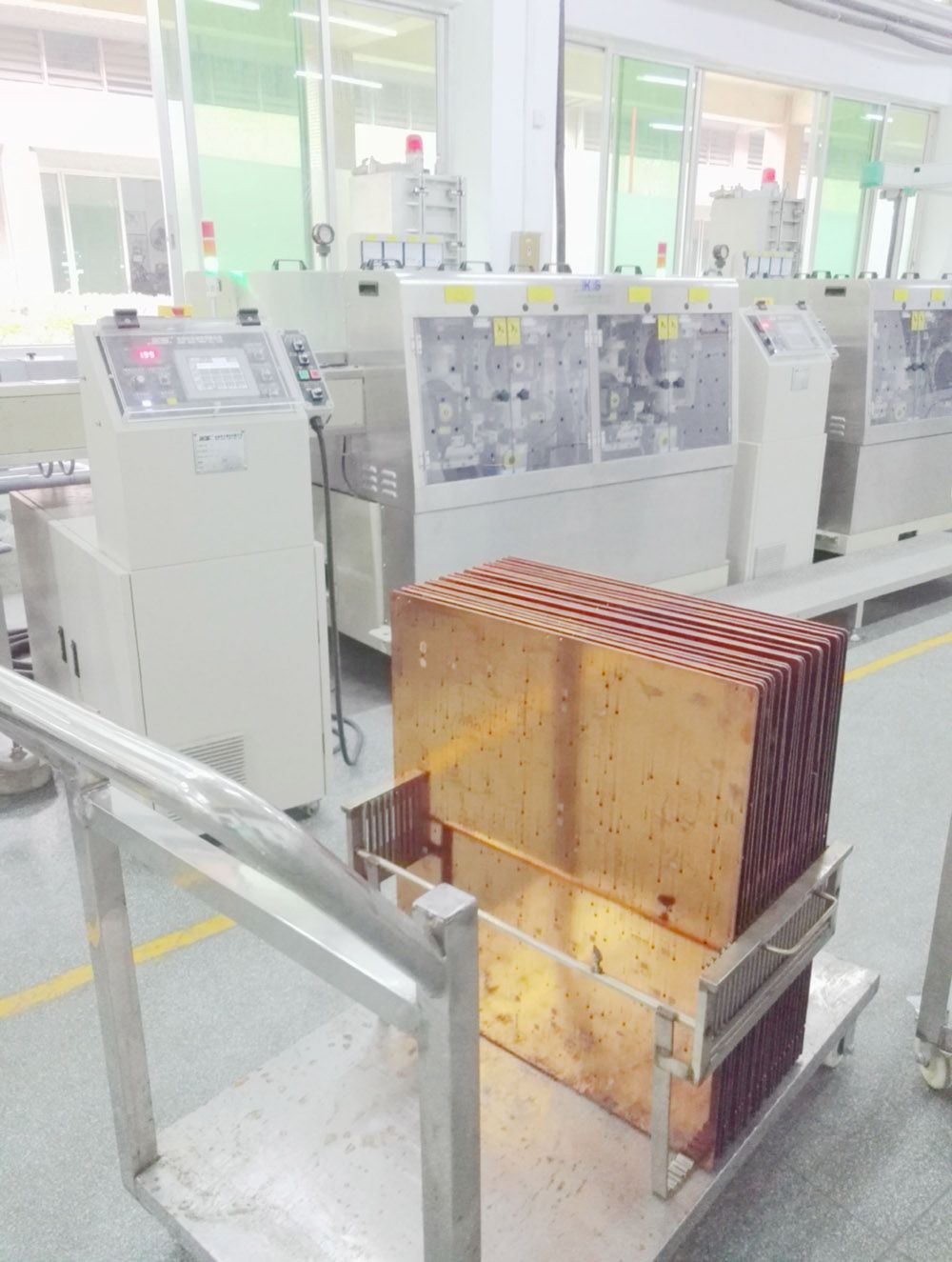

OEM PCB FINISHING LINE

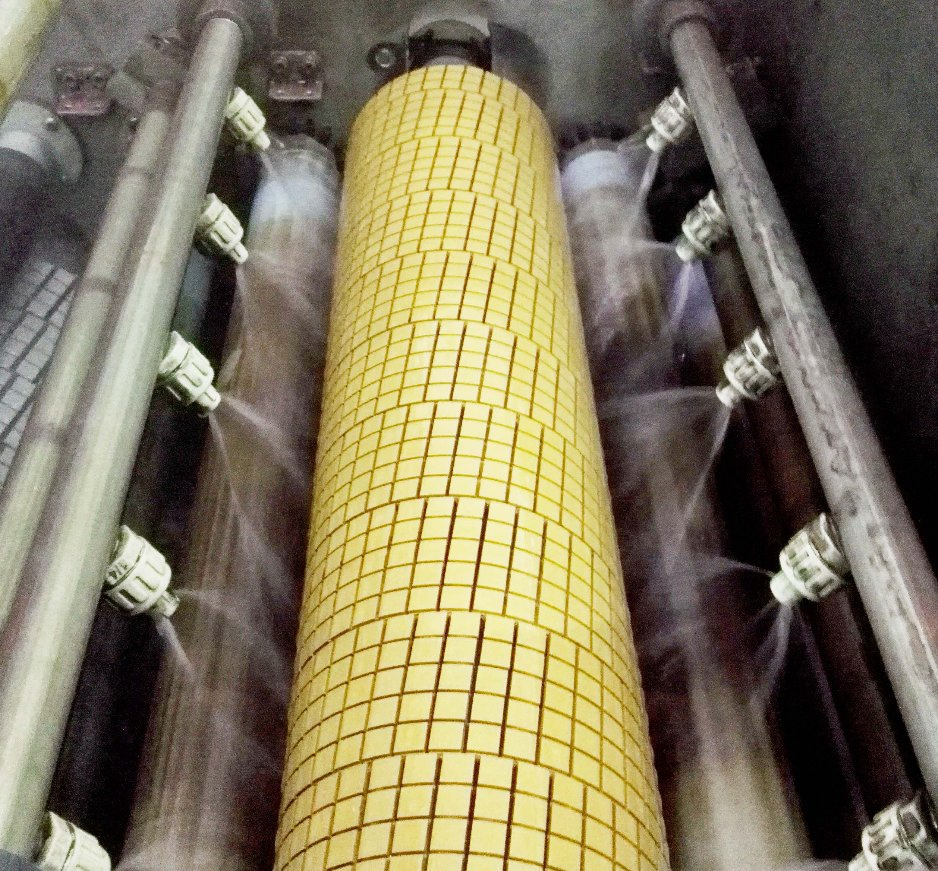

Ceramic brush assembed on the grinding machine

Guangzhou Jiejun Electronic Technology Co., Ltd is a professional corporation specializes in developing, producing and promoting the abrasive brush roll which are used in PCB industry for more than 10 years. It has attracted a large number of top technical talents. Jiejun also undertake the process of plugging hole at vacuum condition and removing exceeded resin for our PCB clients.

The very close cooperation with major PCB manufactures and many famous machine manufactures and rich experience on removing exceeded resin have allowed Jiejun to achieve a deep knowlege on this field, which lead us sum up the best solution to our customers needs.

Through our year by year's effort, Jiejun has become a leader in PCB abrasive industry. Our company also gets high reputation from our client, special in the largest PCB manufactures, such as FOUNDER, TRIPOD, Elec & Eltek.

Company to "manage the high demand, development and manufacture of high quality starting point" for the purpose to serve the constantly updated PCB demand.

We sincerely hope to cooperate with you in this filed. Hand in hand, create brilliance!
