| Prod Model: |
LQ-600C |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe |
| Finishing: |
Ti-Coated |
| Item: |
for Natural Stone |
| Bore: |
50/60/100/150/200mm |
| Segment: |
Sintered Diamond Segment |
| Welding: |
High Frequency Welding |
| Diameter: |
300-4200mm |
| Application: |
Marble and Granite |
| Certification: |
SGS,CE,a&V |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Welding |
| Kind: |
Handheld Saw |
| Specification: |
300-4200mm |
| Brand: |
Keen, Keentool |
Product Description
Quanzhou Keen Diamond Tool Co., Ltd is a professional and competitive manufacturer of kinds of diamond tools, especially in the field of diamond wire, diamond saw blade, diamond segments, diamond fickert abrasives and diamond core drill bits etc.
Quanzhou Keen Diamond Tool Co, Ltd designs the high performance diamond dry cutters for dry cutting of granite, marble, concrete etc. The diamond dry cutting discs are mainly used in hand tools to cut and Polish the granite, marble without coolant water.
Main types of cutting machinery:
Electric angle grinder/ Hand-hold
Table Saw/Portable masonry saw, Bench Saw Electric and petrol High Speed Saw/Hand-hold
Joint Cutter/Floor Saw/Walking Machine
Wall tracking saw
Bridge Cutting Machine

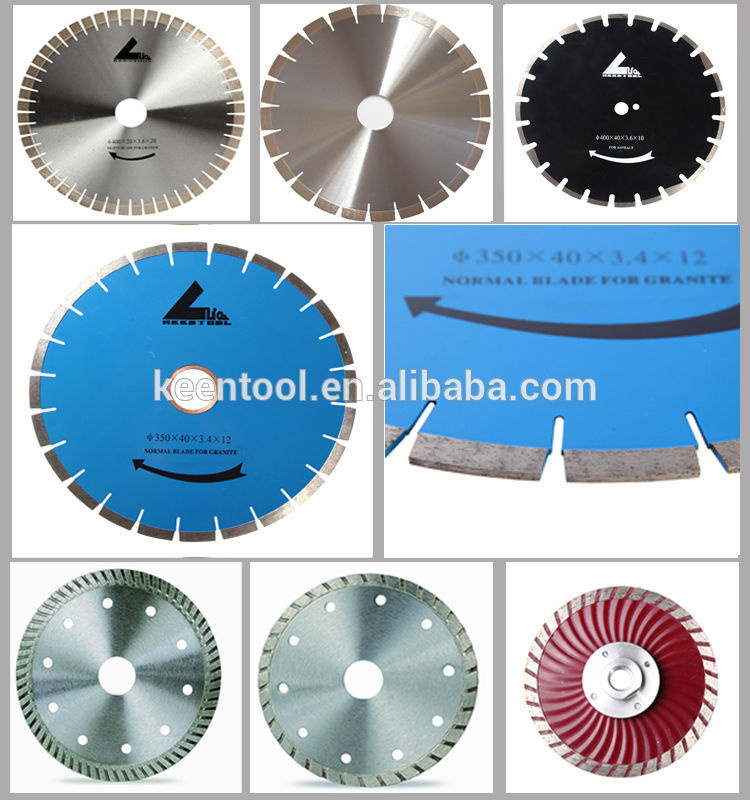

| Diamond Blades for Granite/Marble |
| Diameter | Length
(mm) | Width
(mm) | Height
(mm) | Segment No. | Arbor size
(mm) |
| Inch | Metric(mm) |
| 12" | 300 | 40 | 3.0 | 10/12/15/20 | 21 | 50/60 |
| 14" | 350 | 40 | 3.2 | 10/12/15/20 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15/20 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15/20 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15/20 | 36 |
| 24" | 600 | 40 | 4.5 | 10/12/15/20 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15/20 | 50 |
| 32" | 800 | 40 | 6.0 | 10/12/15/20 | 57 |
| 36" | 900 | 24 | 6.5/7.5 | 13/15 | 64 | 100 |
| 40" | 1000 | 24 | 6.5/7.5 | 13/15 | 70 |
| 48" | 1200 | 24 | 7.0/8.0 | 13/15 | 80 |
| 64" | 1600 | 24 | 8.2/9.2 | 13/15 | 108 |
| 72" | 1800 | 24 | 9.0/10.0 | 13/15 | 120 |
| 80" | 2000 | 24 | 9.5/10.5 | 13/15 | 128 |
| 110" | 2500 | 24 | 11/12 | 15/20 | 140 |
| 120" | 3000 | 24 | 11/12 | 15/20 | 160 |
| 135" | 3500 | 24 | 12.5/13.5 | 15/20 | 180 | 150/200 |
| 155" | 4000 | 24 | 13.5/14.5 | 15/20 | 200 |
| 165" | 4200 | 24 | 13.5/14.5 | 15/20 | 210 |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:

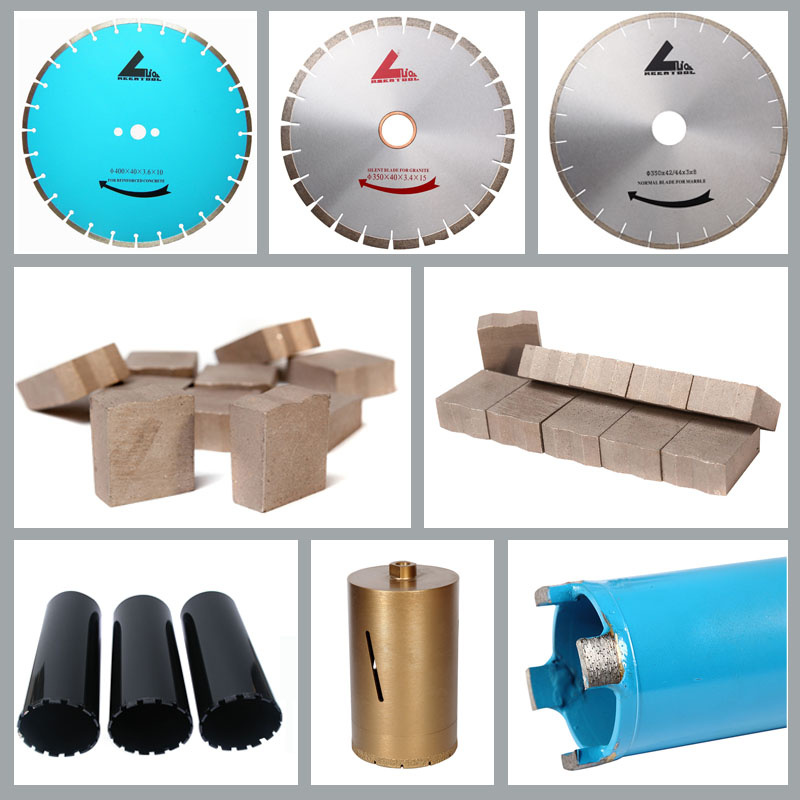

Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
