| Prod Model: |
CNMG1204, TNMG1608, DNMG1504, SNMG1204, CCMT09T3 |
| ISO Standard: |
K10,K05,K20,M10,M20,P20,P30 etc |
| Processing Category: |
Finshing,Semi Finishing,Rough Machiniing etc |
| Color: |
Black,Yellow,Gold,Gray,Cyan-Blue etc |
| Features: |
Good Wear Resistance, High Precision |
| Sample: |
Free |
| Delivery Time: |
15-20days |
| ODM/OEM: |
Accepted |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
| Certification: |
SGS |
Product Description

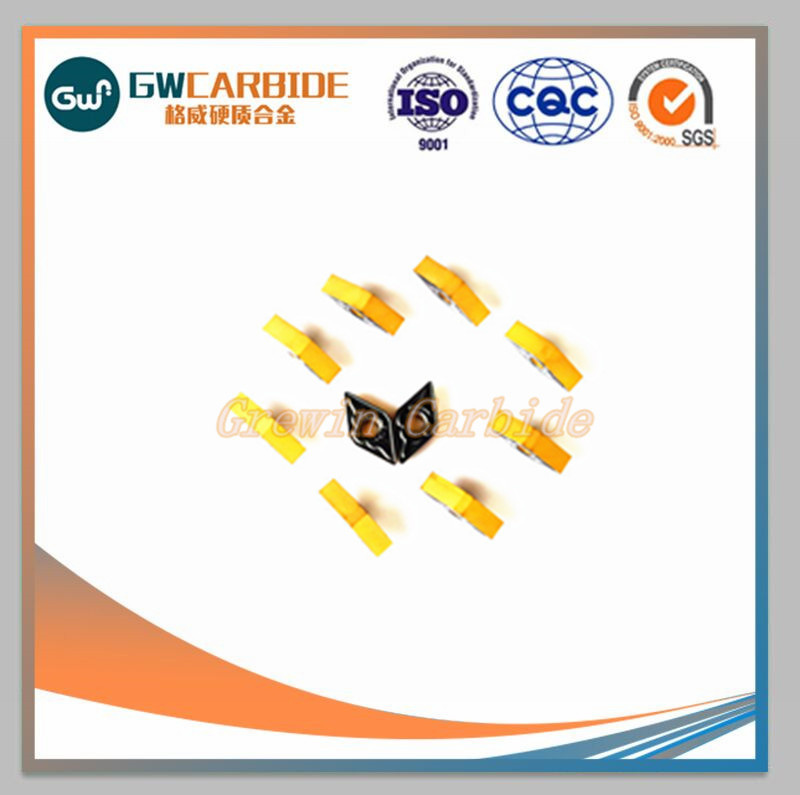

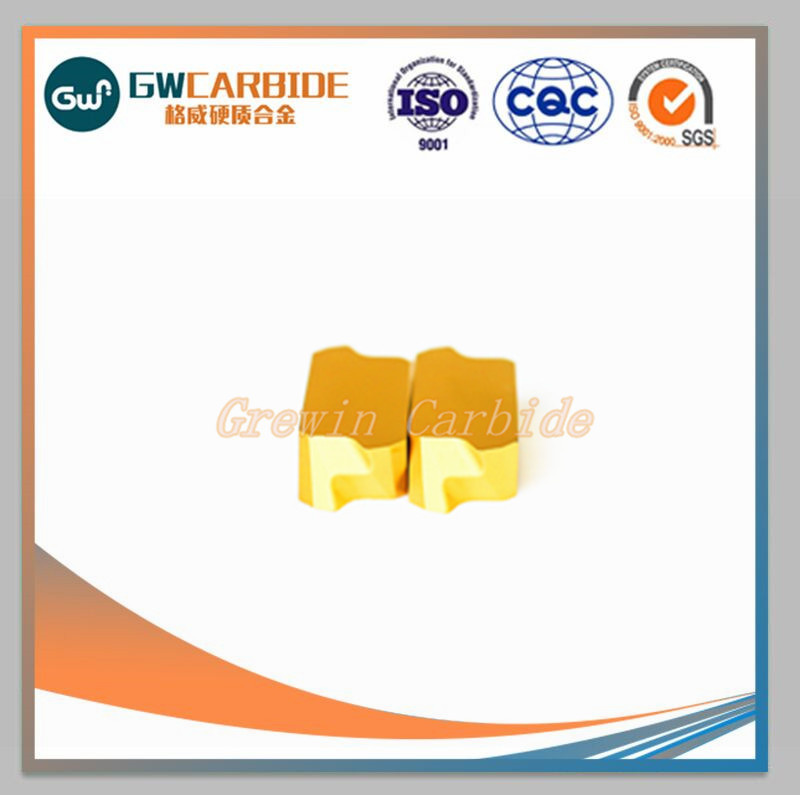

Tungsten carbide insert with PVD coating
Main Products
Aluminum turning inserts:
CCGX, DCGX, TCGX, VCGX, SCGX, SEHT, APKT.
Turning inserts:

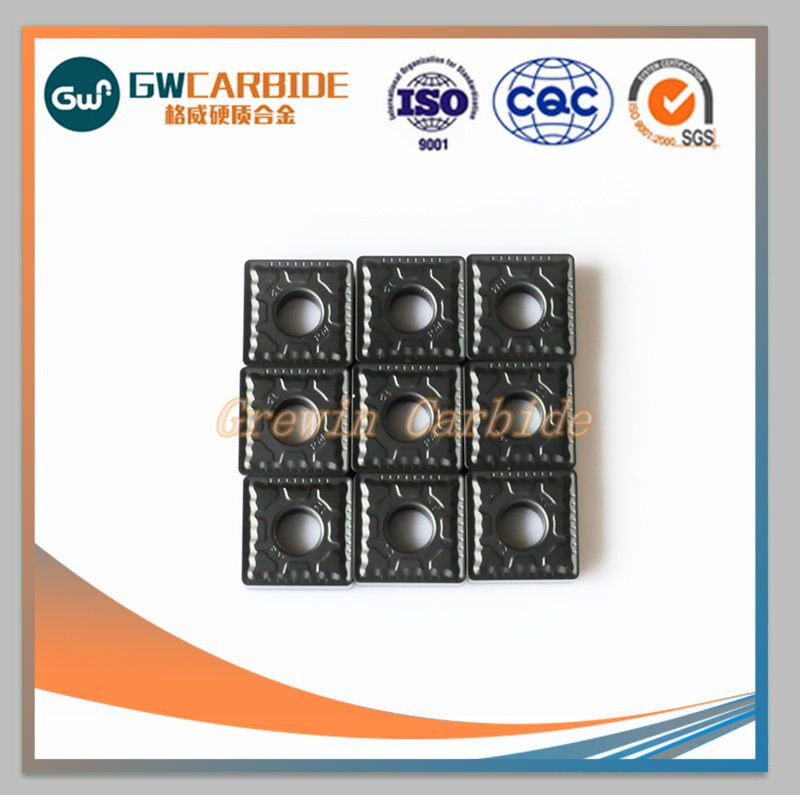

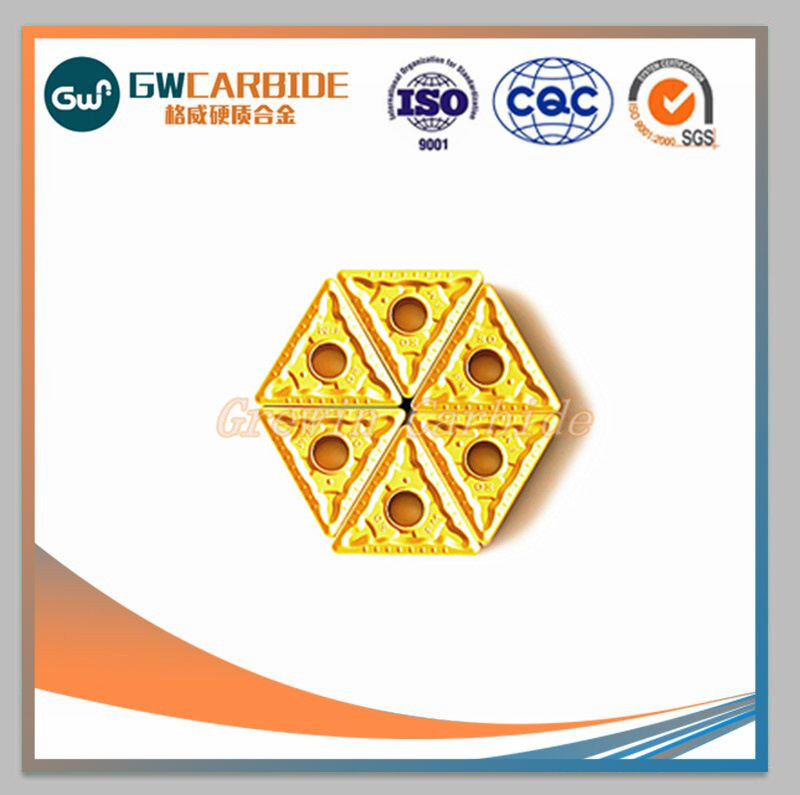

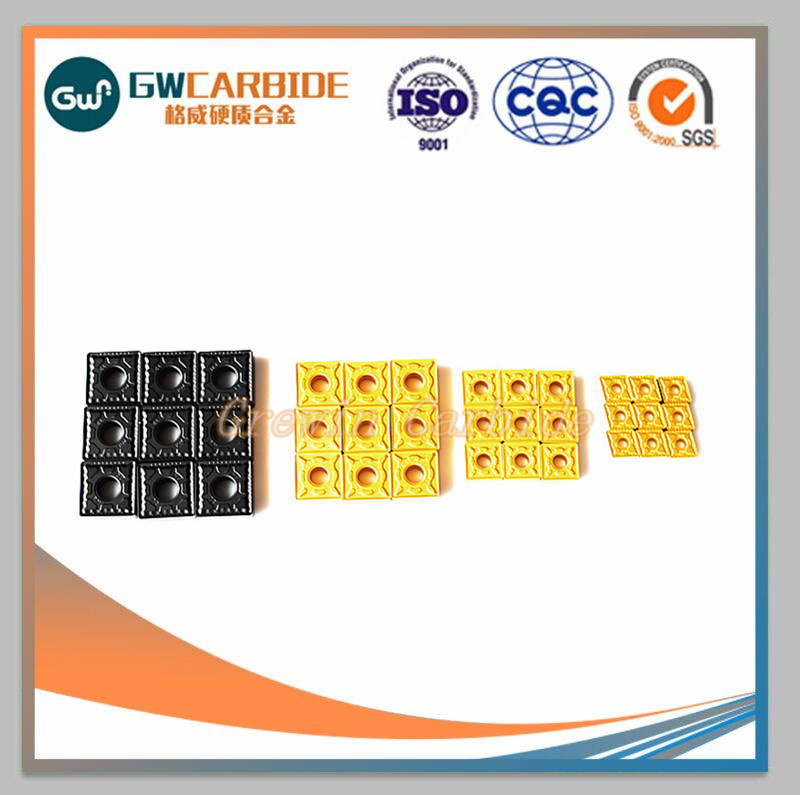

CNMG, SNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA,
TNUN, WNMG, DCMT, RPMT
Cermet and Ceramics inserts:
SEKN, SPKN, SPRN, SEEN, TNGG, CNMG, SNMG, TNMG, CCMT, DNMG, WNUN,
WNMG
Milling inserts:
SEKN, SPKN, RDKW, RPMW, TPCN, TPKN, TPAN, APKT, APKT
Grades
| Grade | ISO Code | Density
g/cm3 | Hardness
HRA | T.R.S
MPa | Applications recommended |
| YG3 | K05 | 15.10 | 92.0 | 1400 | Suitable for finishing of cast iron and nonferrous metal. |
| YG6X | K10 | 14.95 | 92.5 | 2200 | The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
| YG6 | K15 | 14.95 | 91.5 | 2400 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| YG8 | K20 | 14.80 | 90.0 | 2900 |
| YW1 | M10 | 13.30 | 92.5 | 2100 | Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel. |
| YW2 | M20 | 13.10 | 92 | 2400 | The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
| YT15 | P10 | 11.4 | 92.0 | 2100 | Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed. |
| YT14 | P20 | 11.6 | 91.5 | 2100 | Suitable for the finishing and semi-finishing of steel and cast steel. |
| YT5 | P30 | 13.0 | 90.5 | 2400 | Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
Standard Inserts ModelTYPE
| Dimension ( mm ) |
| L | I.C | S | d | r |
CCMT
| ( ISO ) | ( ANSI ) |
| 060202 | 21.50 | 6.4 | 6.35 | 2.38 | 2.8 | 0.2 |
| 060204 | 21.51 | 6.4 | 6.35 | 2.38 | 2.8 | 0.4 |
| 09T304 | 32.51 | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 |
| 09T308 | 32.52 | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 |
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.5 | 0.4 |
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.5 | 0.8 |
| TYPE | Dimension ( mm ) |
| L | I.C | S | d | r |
CNMA
| ( ISO ) | ( ANSI ) |
| 090304 | 321 | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 |
| 90308 | 322 | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 |
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 |
| 190612 | 643 | 19.3 | 19.05
| 6.35 | 7.94 | 1.2 |
| TYPE | Dimension ( mm ) |
| L | I.C | S | d | r |
CNMG
| ( ISO ) | ( ANSI ) |
| 090304 | 321 | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 |
| 90308 | 322 | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 |
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 |
| 190612 | 643 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 |
| TYPE | Dimension ( mm ) |
| L | I.C | S | d | r |
CNMM
| ( ISO ) | ( ANSI ) |
| 090304 | 321 | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 |
| 90308 | 322 | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 |
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 |
| 190612 | 643 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 |
Call us or email us for catalogue with detail sizes sheet.
