| Prod Model: |
DS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Keentool |
| Item: |
Diamond Tip Drill Bits |
| Diameter: |
300-4200 Mm |
| Used For: |
Granite and Marble |
| Shape: |
Customize |
| Finishing: |
Ti-Coated |
| Dimension: |
Various Sizes for Granite/Marble |
| Type: |
Diamond Tools |
| Material: |
Diamond and Metal Powder |
| Certification: |
SGS |
Product Description
Universal diamond segments for single blade, multi-blade, frame saws, gangsaw, core drills for cutting natural stone and other construction materials.
KEENTOOL produces and export kinds of diamond saw blades for wet & dry cutting of natural stone like granite, marble etc, as well as construction materials like concrete, reinforced concrete, and asphalt.
Our product have following advantage:
1. High quality
2. Easy and smooth cutting
3. Long lifespan
4. Stable performance
5. Top competitive price
Please inform us the following when place an order:
1. Cutting material(Granite, marble, concrte etc)
2...Diemnsion of diamond segment you required
3. No. Of segment per blade.
4. Diameter of the saw blade.
5. The total horserpower wire saw blade machine.

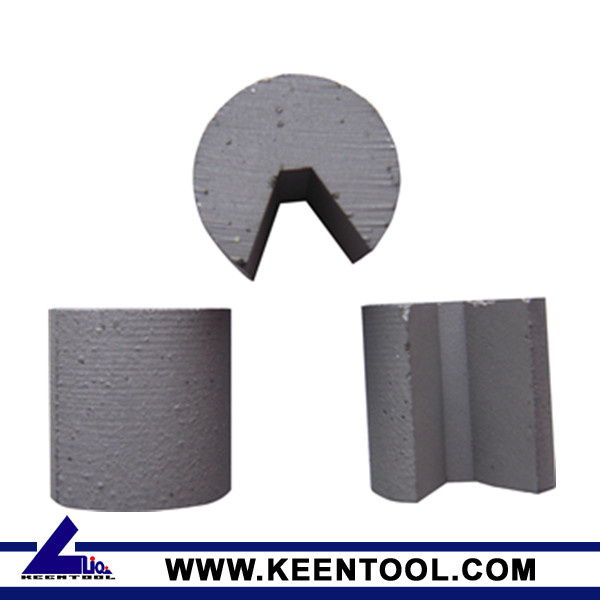

Diamond segment for granite and marble
| Diamond Saw Blade Segments for Diamond blades |
| Diameter of blade | Length
(mm) | Width
(mm) | Height
(mm) |
| Inch | Metric(mm) |
| 12" | 300 | 40 | 3.0 | 10/12/15/20 |
| 14" | 350 | 40 | 3.2 | 10/12/15/20 |
| 16" | 400 | 40 | 3.4 | 10/12/15/20 |
| 18" | 450 | 40 | 3.6 | 10/12/15/20 |
| 20" | 500 | 40 | 4.0 | 10/12/15/20 |
| 24" | 600 | 40 | 4.5 | 10/12/15/20 |
| 28" | 700 | 40 | 5.0 | 10/12/15/20 |
| 32" | 800 | 40 | 6.0 | 10/12/15/20 |
| 36" | 900 | 24 | 6.5/7.5 | 13/15 |
| 40" | 1000 | 24 | 6.5/7.5 | 13/15 |
| 48" | 1200 | 24 | 7.0/8.0 | 13/15 |
| 64" | 1600 | 24 | 8.2/9.2 | 13/15 |
| 72" | 1800 | 24 | 9.0/10.0 | 13/15 |
| 80" | 2000 | 24 | 9.5/10.5 | 13/15 |
| 110" | 2500 | 24 | 11/12 | 15/20 |
| 120" | 3000 | 24 | 11/12 | 15/20 |
| 135" | 3500 | 24 | 12.5/13.5 | 15/20 |
| 155" | 4000 | 24 | 13.5/14.5 | 15/20 |
| 165" | 4200 | 24 | 13.5/14.5 | 15/20 |
|
|
|
|
|
Universal size for Gang Saw
Size: 20*5.2/4.6/8*10mm |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
