| Prod Model: |
LQ-1200C |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe |
| Item: |
Diamond Saw Blade |
| Type: |
Diamond Tool |
| Finishing: |
Ti-Coated |
| Raw Material: |
Steel Core with Segment |
| Used For: |
Marble,Granite, Slate etc Cutting |
| Diameter: |
300-4200mm |
| Material: |
Silent Core with Sintered Segment |
| Certification: |
CE,SGS,a&V |
Product Description
DescriptionQuanzhou Keen Diamond Tool Co., Ltd is a professional and competitive manufacturer of kinds of diamond tools, especially in the field of diamond wire, diamond saw blade, diamond segments, diamond fickert abrasives and diamond core drill bits etc.
Diamond circular saw blades are widely used for cutting rough blocks and slabs. Quanzhou Keen Tool Co is one of the best supplier of diamond circular saw blades for uniersal use and professional cutting, such as for cuting granite, marble, sandstone, travertine, limestone and other hard materials like concrete. We aim to offer the best cutting blades with outstanding performance of good cutting effiency, long lifespan and smooth cutting without EDGE damage. Different size of diameter range from 300~4200mm, both multi-blades and single blade are available.
When place order for block cutting diamond saw blades or Segments please inform the following:
1) Diameter (Inch or mm)
2) Inner Hole Size (Inch or mm)
3) Installation hole (If, need drawing)
4) Segment No. (how many PCS segment per blade)
5) Segment Size (L x W x H, if possible please inform Steel Core Thickness)
6) Use of SAW blade (For Granite, or marble, or limestone, or Sandstone. Or other material)
7) Quantity NO. (How many PCS, or how many sets segments)
8) Machine Powder/RPM (If possible)
9) Feed Speed (M/Minute)
10) Expected Cutting Depth (how many mm per time, forward or backward)
11) Coolant System (Water or Oil, how many liters/Minute, etc. )
12) Expected Shipping Date
13) Special Requirements (If)
Technical Data| Diamond Blades for Granite/Marble |
| Diameter | Length
(mm) | Width
(mm) | Height
(mm) | Segment No. | Arbor size
(mm) |
| Inch | Metric(mm) |
| 12" | 300 | 40 | 3.0 | 10/12/15/20 | 21 | 50/60 |
| 14" | 350 | 40 | 3.2 | 10/12/15/20 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15/20 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15/20 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15/20 | 36 |
| 24" | 600 | 40 | 4.5 | 10/12/15/20 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15/20 | 50 |
| 32" | 800 | 40 | 6.0 | 10/12/15/20 | 57 |
| 36" | 900 | 24 | 6.5/7.5 | 13/15 | 64 | 100 |
| 40" | 1000 | 24 | 6.5/7.5 | 13/15 | 70 |
| 48" | 1200 | 24 | 7.0/8.0 | 13/15 | 80 |
| 64" | 1600 | 24 | 8.2/9.2 | 13/15 | 108 |
| 72" | 1800 | 24 | 9.0/10.0 | 13/15 | 120 |
| 80" | 2000 | 24 | 9.5/10.5 | 13/15 | 128 |
| 110" | 2500 | 24 | 11/12 | 15/20 | 140 |
| 120" | 3000 | 24 | 11/12 | 15/20 | 160 |
| 135" | 3500 | 24 | 12.5/13.5 | 15/20 | 180 | 150/200 |
| 155" | 4000 | 24 | 13.5/14.5 | 15/20 | 200 |
| 165" | 4200 | 24 | 13.5/14.5 | 15/20 | 210 |
Packaging & Shipping: Packaging: Carton with water proof plastic.
Delivery time: In 15 days after payment confirmation
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:

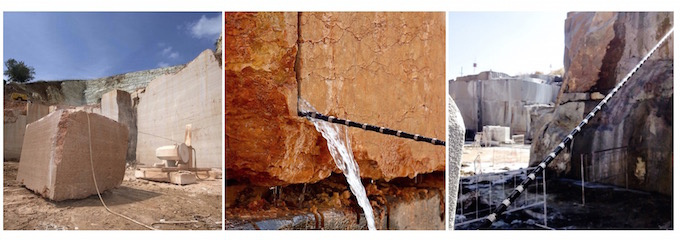

1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
